Zavedení
This manual provides comprehensive instructions for the assembly, operation, maintenance, and troubleshooting of your TecTake® Metal Storage Unit. Designed for durability and versatility, this cabinet offers secure and adjustable storage solutions for various environments, including home offices, garages, and kitchens. Please read this manual carefully before assembly and use to ensure proper installation and long-term performance.
Image: The TecTake Metal Storage Unit with its two doors fully open, revealing multiple shelves filled with organized files and storage boxes. A small safe is visible on the top shelf.
Vlastnosti produktu
- Durable Enamelled Steel: Constructed from robust, enamelled steel, ensuring strength and long-lasting security.
- Nastavitelné police: Features 5 large shelves, each with individually adjustable heights, adapting to your evolving storage needs.
- Quiet Smooth Access: Thoughtfully enhanced doors with sound-dampening rubber buffers, gracefully swinging open to an impressive 130° angle for seamless and peaceful access.
- Secure Cylinder Lock: Safeguard your confidential documents and precious possessions with the dependable cylinder lock, thoughtfully provided with two keys for your peace of mind.
- Snadná montáž: Designed with your convenience in mind, making assembly a breeze.
Image: An infographic detailing the key features of the TecTake storage unit, such as adjustable shelves, robust construction, secure locking mechanism, wide-opening doors with quiet buffers, and high load capacity per shelf.
Nastavení a montáž
The TecTake Metal Storage Unit is designed for easy assembly. Follow these steps carefully to ensure a stable and secure structure.
- Rozbalte komponenty: Opatrně vybalte všechny díly z obalu. Zkontrolujte, zda jsou všechny součásti uvedené v dodacím listu přítomny a nepoškozené.
- Sestavte rám: Begin by assembling the main frame of the cabinet. Connect the side panels to the top and bottom panels using the provided fasteners. Ensure all connections are tight and secure.
- Instalace zadního panelu: Slide or attach the back panel into the designated grooves or fasteners. This adds rigidity to the structure.
- Připevnit dveře: Mount the doors to the cabinet frame using the hinges. Ensure the doors swing freely and align correctly.
- Instalace mechanismu zámku: Secure the cylinder lock mechanism to one of the doors as per the instructions. Test the lock with the provided keys.
- Vložené police: Place the adjustable shelves into the desired positions. The shelves can be adjusted to various heights to accommodate different item sizes.
- Závěrečná kontrola: Once assembled, ensure the cabinet is stable and all parts are securely fastened.

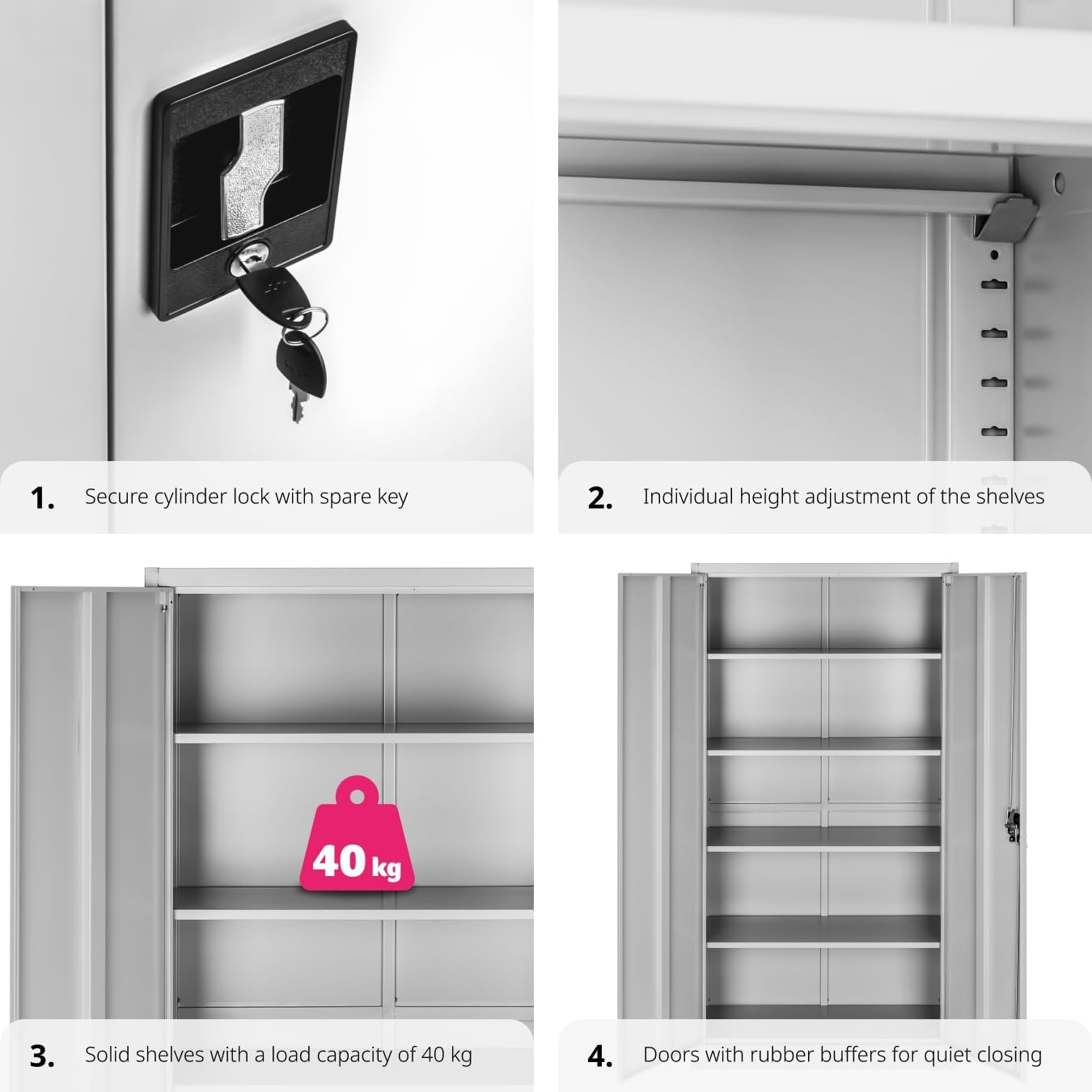

Image: A composite image illustrating key assembly and feature details: the secure cylinder lock with keys, the mechanism for individual shelf height adjustment, a shelf demonstrating its 40 kg load capacity, and the rubber buffers on the doors for quiet closing.
Image: A detailed diagram providing the overall dimensions of the storage unit (90 x 40 x 180 cm), shelf dimensions (89.5 x 36 cm), maximum load capacity per shelf (40 kg), and the total weight of the unit (39.5 kg).
Návod k obsluze
Seřizovací police
The TecTake storage unit features 5 adjustable shelves. To adjust a shelf's height:
- Vyprázdněte polici z veškerého obsahu.
- Lift the shelf slightly and pull it out from its current support clips.
- Re-insert the shelf into the desired slots on the side panels. Ensure all four corners are securely seated.
- Each shelf can support up to 40 kg. Distribute weight evenly.
Using the Lockable Doors
The cabinet is equipped with a cylinder lock for secure storage.
- To lock the cabinet, ensure both doors are fully closed. Insert one of the provided keys into the lock and turn it clockwise until the mechanism engages.
- Pro odemčení vložte klíč a otočte jím proti směru hodinových ručiček.
- Always keep a spare key in a safe, accessible location.
- The doors open to a wide 130° angle for easy access to contents. The integrated rubber buffers ensure quiet closing.
Údržba
Regular maintenance will prolong the life and appearance of your TecTake Metal Storage Unit.
- Čištění: Otřete povrchy měkkým, damp cloth and a mild detergent. Avoid abrasive cleaners or solvents that could damage the enamelled steel finish. Dry thoroughly after cleaning.
- Péče o zámek: If the lock mechanism becomes stiff, apply a small amount of graphite lubricant to the keyhole. Do not use oil-based lubricants.
- Panty dveří: Periodically check door hinges and fasteners for tightness. Tighten if necessary to ensure smooth operation and proper door alignment.
- Rozložení hmotnosti: Always distribute weight evenly across shelves to prevent warping or instability. Do not exceed the maximum load capacity of 40 kg per shelf.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Doors do not close smoothly or align | Hinges are loose or misaligned; cabinet not level. | Check and tighten hinge screws. Ensure the cabinet is on a level surface. Adjust feet if applicable. |
| Lock is stiff or difficult to turn | Lack of lubrication; debris in keyhole. | Naneste malé množství grafitového maziva do klíčové dírky. Netlačte na klíč silou. |
| Shelves sag or are unstable | Overloaded; not properly seated. | Reduce weight on the shelf, ensuring it does not exceed 40 kg. Re-seat the shelf securely into its support clips. |
| Cabinet wobbles | Uneven floor; loose assembly. | Ensure the cabinet is on a flat, level surface. Check all assembly fasteners and tighten if loose. |
Specifikace
- Značka: TecTake
- Model: Metal Storage Unit
- Barva: Šedá
- Rozměry produktu: 40 x 90 x 180 cm (hloubka x šířka x výška)
- Hmotnost položky: 39.3 kg
- Maximum Weight Capacity (per shelf): 40 kg
- Speciální vlastnosti: Adjustable shelves, Durable, Lockable
- Typ montáže: Montáž na podlahu
- Doporučená použití: Files, Folders, Office Supplies, Garage Storage
Bezpečnostní informace
- Always assemble the cabinet on a flat, stable surface.
- Do not overload shelves beyond their stated capacity (40 kg per shelf).
- Distribute weight evenly to prevent tipping.
- Během montáže držte děti a domácí zvířata mimo dosah.
- Ensure the cabinet is securely placed and stable before loading.
- Do not climb on or lean heavily on the cabinet.
Záruka a podpora
For warranty information or technical support regarding your TecTake Metal Storage Unit, please refer to the purchase documentation or visit the official TecTake website. You can also contact TecTake customer service directly for assistance.
