Walfront GYHC-25 4P Modular Contactor User Manual

1. Úvod

The Walfront GYHC-25 4P Modular Contactor is an electrical switching device designed for intelligent home control systems and industrial applications. It features a 4-pole configuration with 2 normally open (2NO) and 2 normally closed (2NC) contacts, operating at a control voltage of 230V and a frequency of 50Hz. This device is suitable for controlling various electrical loads up to 25A (AC-7a) and is built for durability and reliable performance.

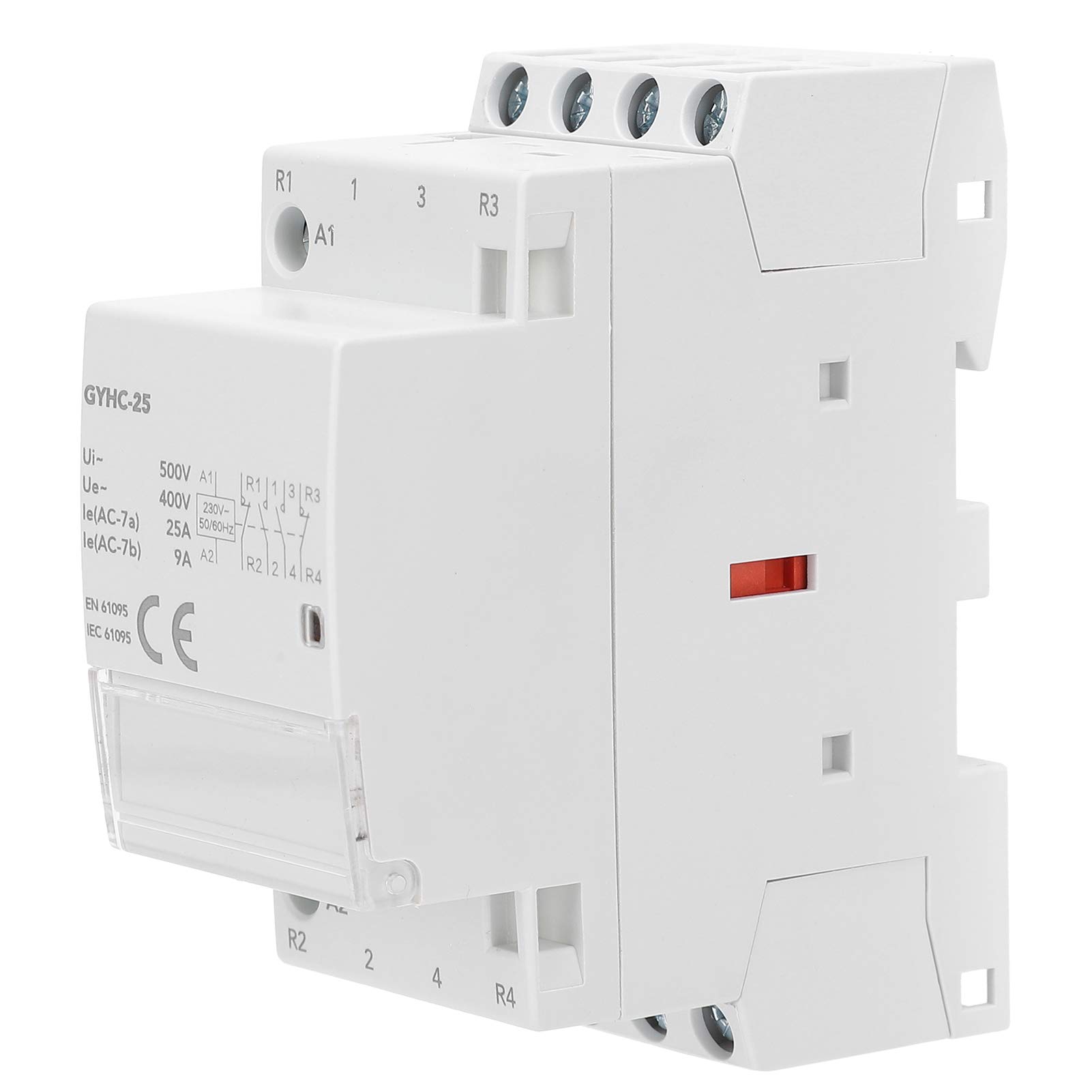

Figure 1: Walfront GYHC-25 4P Modular Contactor, showing its compact design and terminal connections.

2. Bezpečnostní informace

VAROVÁNÍ: Electrical installation and maintenance should only be performed by qualified personnel. Failure to follow these instructions can result in serious injury or death.

• Před instalací, servisem nebo demontáží stykače vždy odpojte napájení.
• Ujistěte se, že veškeré zapojení splňuje místní a národní elektrotechnické předpisy.
• Do not operate the contactor if it is damaged or shows signs of malfunction.
• Ověřte správný objemtaga jmenovité proudy před připojením.
• The device is designed for indoor use within specified temperature and humidity ranges.

3. Obsah balení

Po vybalení se prosím ujistěte, že jsou všechny součásti přítomny a nepoškozené:

• 1 x Walfront GYHC-25 4P Modular Contactor

4. Specifikace

5. Nastavení a instalace

The Walfront GYHC-25 Modular Contactor is designed for DIN rail mounting within a distribution box or electrical panel. Ensure the installation environment meets the specified temperature and humidity requirements.

5.1 Montáž

1. Ensure all power to the circuit is disconnected at the main breaker.
2. Locate a suitable DIN rail within your electrical enclosure.
3. Clip the contactor onto the DIN rail, ensuring it is securely fastened.

5.2 Zapojení

Refer to the wiring diagram below for proper connection of the control circuit and power circuit. The contactor features terminals for the control coil (A1, A2) and the main power contacts (1, 2, 3, 4, R1, R2, R3, R4).

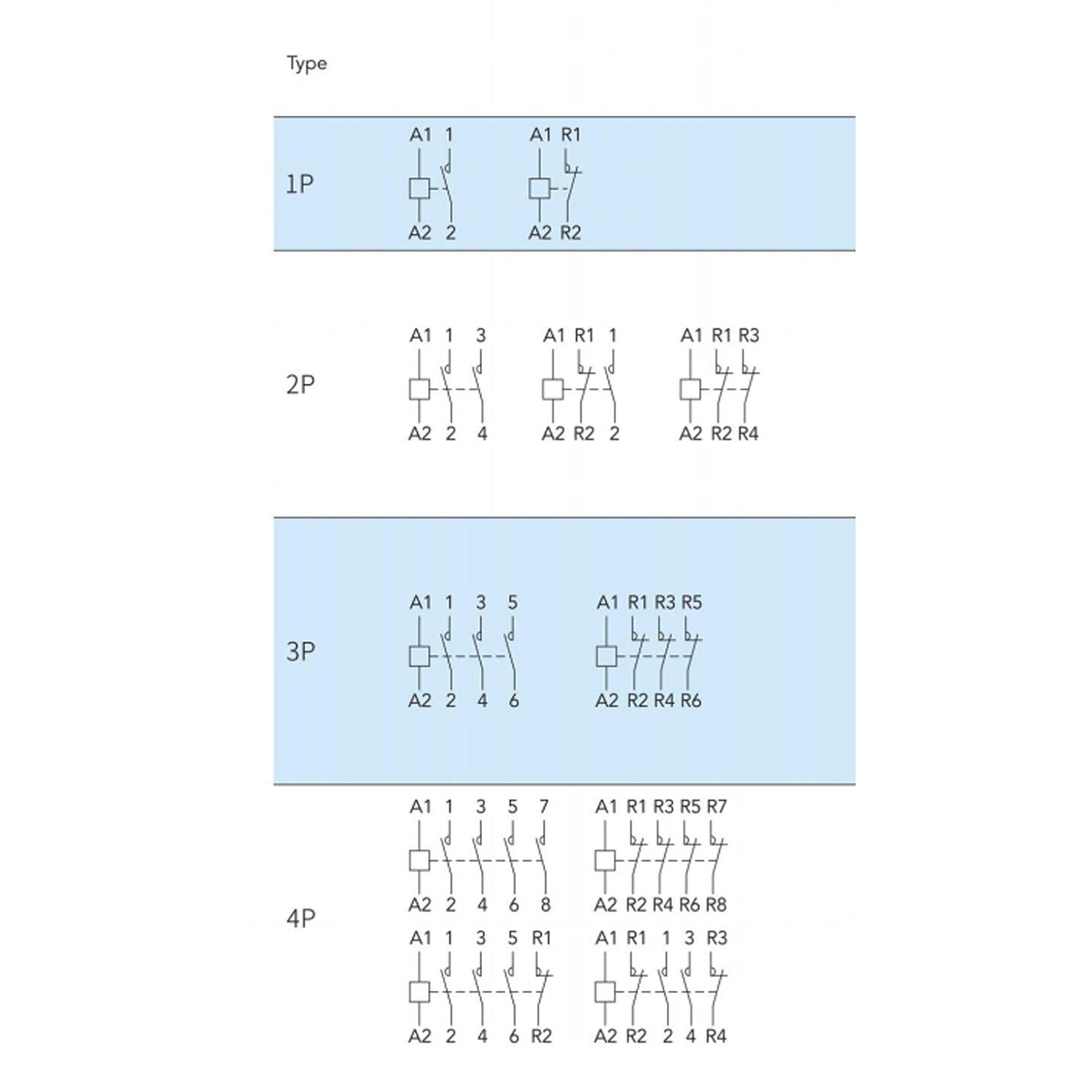

Figure 2: General wiring diagrams for modular contactors, illustrating connections for different pole configurations. For the GYHC-25 4P, refer to the 4P section.

• Connect the 230V control voltagke svorkám A1 a A2.
• Connect the incoming power supply to the main power terminals (e.g., 1, 3, R1, R3).
• Connect the load to the corresponding outgoing power terminals (e.g., 2, 4, R2, R4).
• Ensure all terminal screws are tightened to the recommended torque to prevent loose connections and overheating.

Figure 3: The Walfront GYHC-25 Modular Contactor shown installed within a typical electrical distribution panel, demonstrating its integration.

6. Návod k obsluze

The Walfront GYHC-25 Modular Contactor operates by energizing its control coil. When the control voltage (230V) is applied to terminals A1 and A2, the coil is energized, causing the normally open (NO) contacts to close and the normally closed (NC) contacts to open. When the control voltage is removed, the contacts return to their original state.

• Aktivace: Apply 230V AC to the A1 and A2 control terminals. The contactor will audibly click, and the main contacts will switch state.
• Deaktivace: Remove the 230V AC from the A1 and A2 control terminals. The contactor will de-energize, and the contacts will revert to their resting state.

This contactor is typically controlled by a switch, timer, thermostat, or smart home automation system to manage the power supply to connected loads.

7. Údržba

The Walfront GYHC-25 Modular Contactor is designed for minimal maintenance. However, periodic checks can ensure optimal performance and longevity.

• Vizuální kontrola: Regularly inspect the contactor for any signs of physical damage, discoloration, or loose connections.
• Těsnost svorek: Periodically check and re-tighten terminal screws, especially after initial installation and during routine electrical system checks.
• Čištění: Keep the contactor free from dust and debris. Use a dry, soft cloth for cleaning. Do not use liquid cleaners.
• Podmínky prostředí: Zajistěte, aby provozní prostředí zůstalo v rámci specifikovaného rozsahu teploty a vlhkosti.

Před prováděním jakékoli údržby vždy odpojte napájení.

8. Řešení problémů

If you encounter issues with your Walfront GYHC-25 Modular Contactor, consider the following troubleshooting steps:

• Contactor does not energize:
  • Zkontrolujte, zda je regulační objemtage (230V) is present at terminals A1 and A2.
  • Verify that the control circuit wiring is correct and secure.
  • Ensure there are no breaks in the control circuit.
• Contactor energizes but load does not receive power:
  • Check the main power supply to the contactor's input terminals.
  • Verify the wiring from the contactor's output terminals to the load.
  • Inspect the load itself for any faults or disconnections.
  • Ensure the contactor's main contacts are not damaged (requires professional inspection).
• Contactor makes unusual noise or overheats:
  • Okamžitě odpojte napájení.
  • This could indicate a faulty coil, loose connections, or an overloaded circuit. Seek professional assistance.

If the problem persists after these steps, consult a qualified electrician or contact Walfront customer support.

9. Záruka a podpora

Specific warranty information for the Walfront GYHC-25 Modular Contactor is not provided in the product details. Please refer to the retailer or Walfront's official webzáruční podmínky naleznete na webu.

For technical support or further inquiries, please contact Walfront customer service through their official channels or the point of purchase.
