Next Level Racing GT Seat Add-On (NLR-S024) Instruction Manual

1. Úvod a konecview

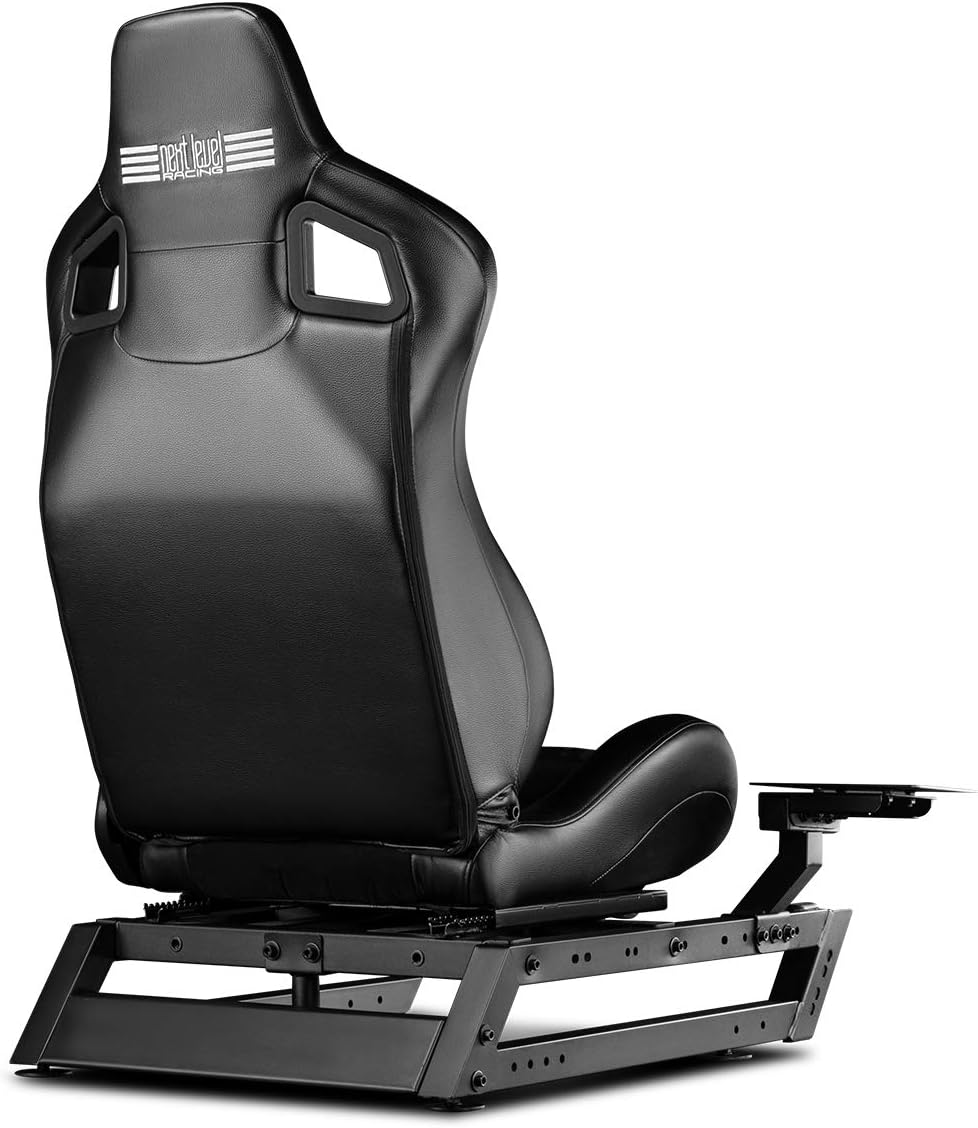

The Next Level Racing GT Seat Add-On (NLR-S024) is designed to convert compatible Next Level Racing Wheel Stands, such as the Wheel Stand DD or Wheel Stand 2.0, into a full racing cockpit. This add-on provides a dedicated racing seat for an immersive simulation experience. It is engineered for compatibility with various motion platforms, including the Motion Platform V3 and Traction Plus Platform.

Mezi klíčové vlastnosti patří:

• Converts a compatible wheel stand into a full racing cockpit.
• Designed with breathable fabric and leather trim for durability and comfort.
• Features a custom reclining chair with angle and distance adjustment capabilities.
• Compatible with Next Level Racing Motion Platform V3 and Traction Plus Platform.

2. Bezpečnostní informace

Před montáží a použitím si prosím přečtěte a pochopte všechny bezpečnostní pokyny. Nedodržení těchto pokynů může vést ke zranění nebo poškození výrobku.

• Před použitím se ujistěte, že jsou všechny šrouby a spojovací prvky bezpečně utažené. Pravidelně kontrolujte, zda nejsou uvolněné spoje.
• Během nastavování se vyhýbejte pohyblivým částem a nedotýkejte se jejich rukou a prstů.
• Do not exceed the recommended weight capacity (if specified in the full product manual).
• Use the product on a stable, level surface to prevent tipping.
• Uchovávejte obalové materiály mimo dosah dětí, abyste předešli nebezpečí udušení.

3. Obsah balení

Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact Next Level Racing support.

• GT Seat
• Seat Frame/Base
• Montážní materiál (šrouby, podložky, matice)
• Assembly Tools (e.g., wrench, hex keys)
• Návod k použití (tento dokument)

4. Nastavení a montáž

Assembly of the GT Seat Add-On involves attaching the seat to its frame and then integrating this assembly with a compatible Next Level Racing Wheel Stand. Follow the detailed steps provided in the included physical manual for precise instructions. The general process is outlined below:

1. Rozbalte komponenty: Opatrně vyjměte všechny díly z obalu a položte je na čistý, rovný povrch. Zkontrolujte je podle obsahu balení.
2. Assemble Seat to Frame: Attach the GT Seat to its dedicated frame using the provided bolts and tools. Ensure the seat sliders are correctly oriented.
3. Integrate with Wheel Stand: Connect the assembled GT Seat and frame to your Next Level Racing Wheel Stand (e.g., Wheel Stand DD or 2.0). This typically involves aligning mounting points and securing with bolts. Refer to your specific wheel stand's manual for compatible attachment points.
4. Počáteční úpravy: Once assembled, perform initial adjustments for seat recline and distance to ensure a comfortable and stable setup.

5. Návod k obsluze

The GT Seat Add-On is designed for user-friendly adjustments to optimize your racing position.

• Sklon sedadla: Locate the recline lever on the side of the seat. Pull the lever up to adjust the seat back angle. Release the lever to lock the seat in the desired position.
• Vzdálenost sedadla: Use the slider bar located under the front of the seat to adjust the seat's forward or backward position. Pull the lever to unlock, slide the seat to the desired distance, and release the lever to lock.
• Wheel Stand Adjustments: For optimal positioning, you may also need to adjust the height and angle of your connected Next Level Racing Wheel Stand. Refer to your wheel stand's instruction manual for these adjustments.

6. Údržba

Regular maintenance ensures the longevity and optimal performance of your GT Seat Add-On.

• Čištění: Wipe down the seat fabric and leather trim with a damp cloth. For stubborn stains, use a mild, non-abrasive cleaner. Avoid harsh chemicals.
• Kontrola hardwaru: Periodically inspect all bolts, nuts, and connections to ensure they remain tight. Re-tighten any loose fasteners.
• Pohyblivé části: Ensure seat sliders and recline mechanisms operate smoothly. If they become stiff, a small amount of silicone-based lubricant can be applied, avoiding contact with fabric.

7. Řešení problémů

If you encounter issues with your GT Seat Add-On, consider the following common solutions:

• Nestabilita: Ensure the seat add-on is correctly and securely attached to the wheel stand. Verify all bolts are tightened. Check that the wheel stand itself is stable on a level surface.
• Obtížnost nastavení sedadla: Check for any obstructions in the seat slider rails or recline mechanism. Ensure the levers are fully engaged or disengaged when attempting to adjust.
• Vrzavé zvuky: Identify the source of the noise. It may be a loose bolt requiring tightening, or a moving part that could benefit from a small amount of lubricant.

For persistent issues, refer to the contact information in the Warranty and Support section.

8. Specifikace

9. Záruka a podpora

Next Level Racing products come with a manufacturer's warranty. For specific warranty terms, duration, and conditions, please refer to the warranty card included with your product or visit the official Next Level Racing website. For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Next Level Racing customer service through their official channels.

Oficiální Webmísto: nextlevelracing.com
