Antec NX410 ATX Mid-Tower Case Instruction Manual

1. Úvod

This manual provides detailed instructions for the assembly, operation, and maintenance of your Antec NX410 ATX Mid-Tower Case. Please read this manual thoroughly before beginning installation to ensure proper setup and to maximize the performance and longevity of your system.

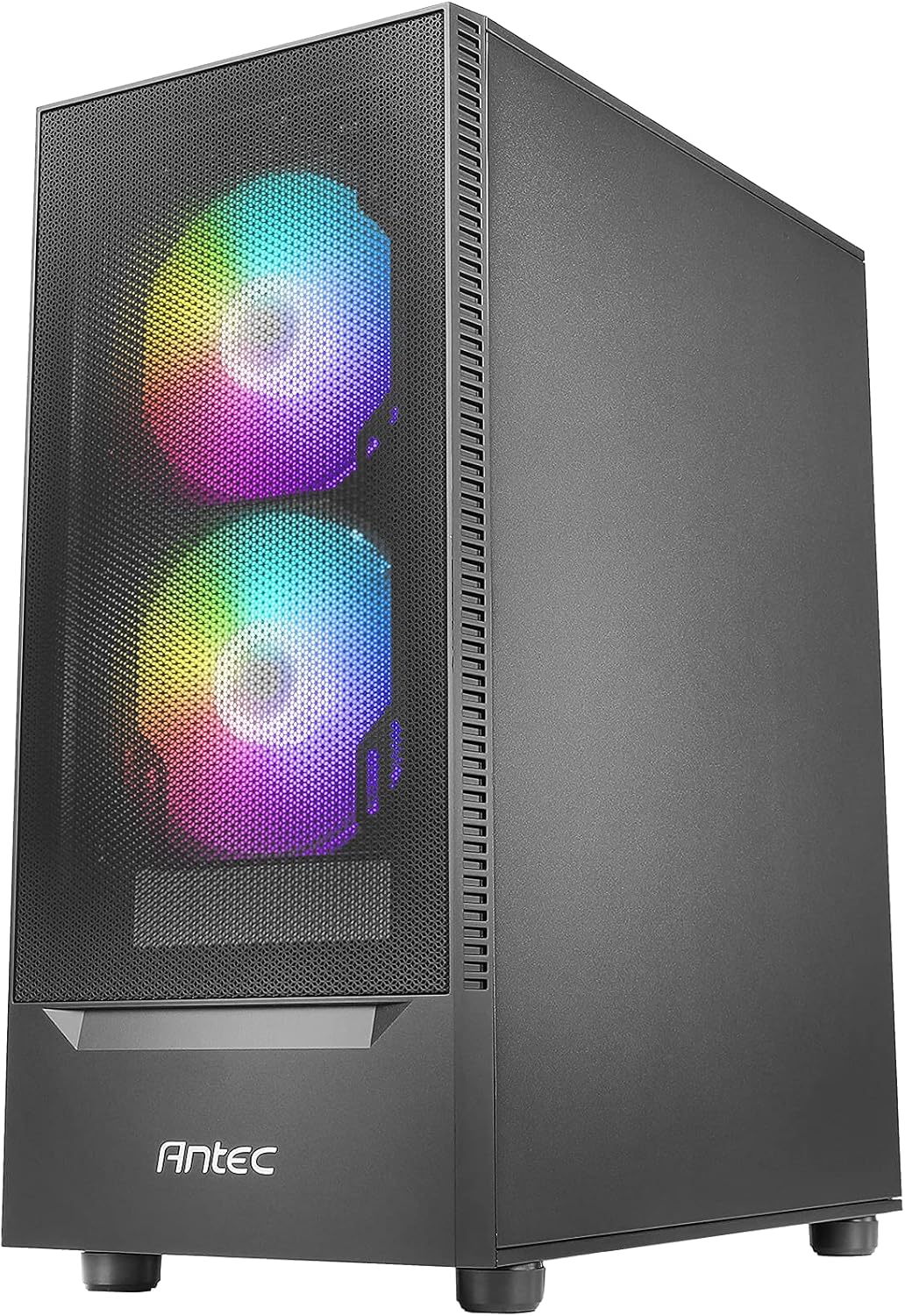

Figure 1.1: Antec NX410 ATX Mid-Tower Case (Black)

2. Klíčové vlastnosti

• Pokročilé chlazení: Pre-installed with 2 x 140mm ARGB fans in the front and 1 x 120mm ARGB fan in the rear for efficient airflow.
• Boční panel z tvrzeného skla: A full-side view tempered glass panel allows for showcasinvnitřní komponenty a RGB osvětlení.
• Optimalizované proudění vzduchu: Features a grid front panel design to enhance air intake and maintain optimal temperatures.
• Podpora základní desky: Compatible with ATX, Micro-ATX, and ITX motherboard form factors.
• Ample Expansion: Supports various storage configurations and large graphics cards (up to 335mm) and CPU coolers (up to 168mm).

3. Nastavení a instalace

3.1 Příprava případu

Before installing components, ensure the case is placed on a stable, flat surface. The tempered glass side panel can be easily opened via a magnetic latch for access to the interior.

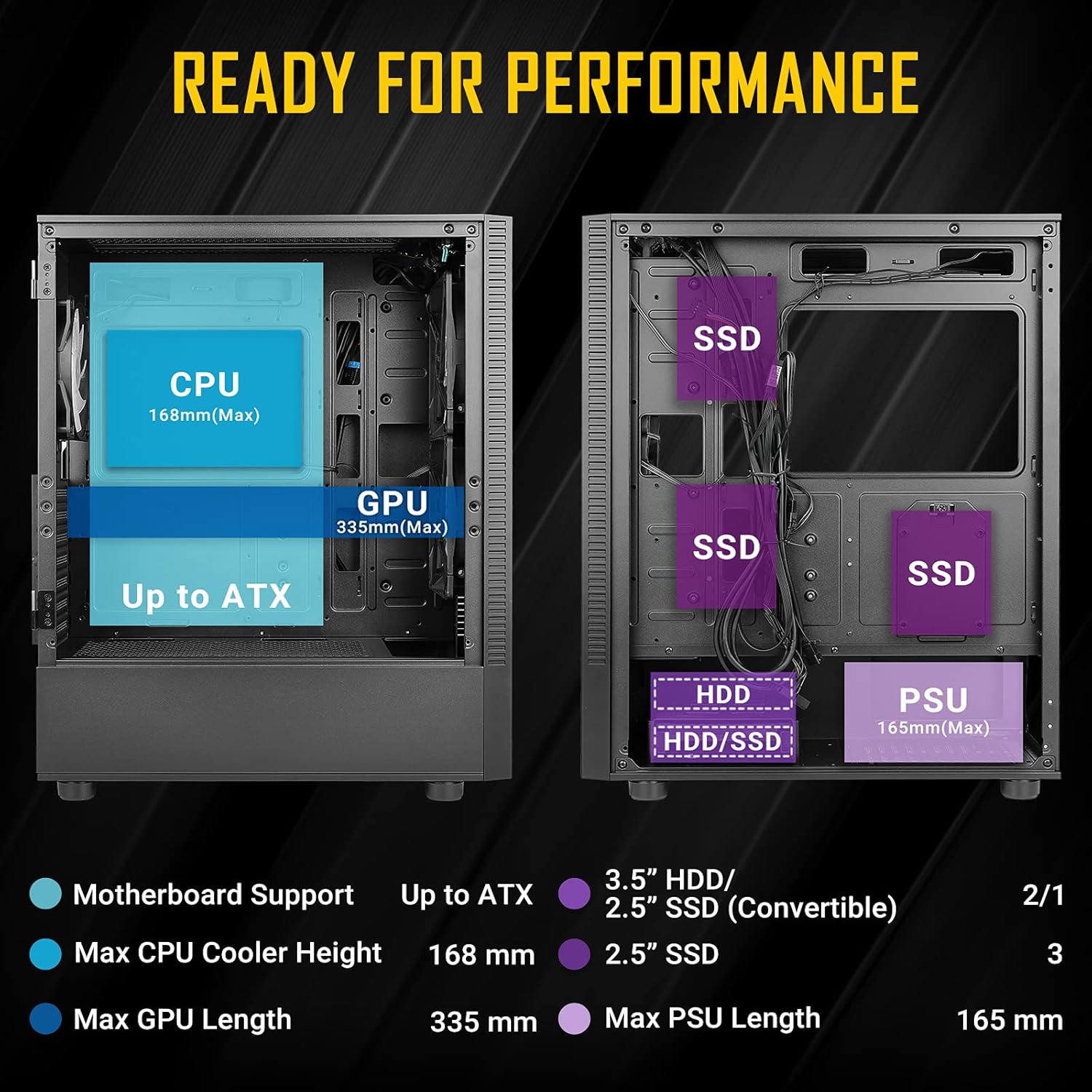

Figure 3.1: Internal Component Layout and Compatibility

3.2 Instalace základní desky

The NX410 supports ATX, Micro-ATX, and ITX motherboards. Install standoffs as required by your motherboard's form factor before mounting the motherboard.

3.3 Podpora ventilátoru a chladiče

The case comes with pre-installed ARGB fans. Additional fans or radiators can be installed as follows:

• Přední: Up to 3 x 120mm or 3 x 140mm fans (up to 360mm radiator).
• Nahoře: Up to 2 x 120mm or 2 x 140mm fans (up to 280mm radiator).
• Zadní: 1 x 120mm fan (up to 120mm radiator).

Figure 3.2: Fan and Radiator Configuration

Important Fan Connection Note:

Figure 3.3: Fan Installation Warning

• If you connect the major fan and other fans but do not connect the major fan to the motherboard, other fans will not function.
• The fan kit does not work in sync with the motherboard ARGB function unless properly connected.

3.4 Instalace úložného disku

The case provides bays for 3.5-inch HDDs and 2.5-inch SSDs. Refer to the internal layout diagram (Figure 3.1) for specific mounting locations.

3.5 Instalace jednotky napájecího zdroje (PSU)

The PSU mounts at the rear bottom of the case. Ensure the PSU length does not exceed 165mm for optimal fit and cable management.

4. Ovládání funkcí pouzdra

4.1 Vstupní/výstupní porty na předním panelu

The top front panel provides convenient access to essential ports and controls:

• Tlačítko napájení
• Ovládací tlačítko LED
• USB 3.0 x 1
• USB 2.0 x 2
• HD-AUDIO (Headphone and Microphone jacks)

Figure 4.1: Front Panel I/O Ports

4.2 Ovládání osvětlení ARGB

Use the dedicated LED Control Button on the front panel to cycle through various ARGB lighting effects and colors for the pre-installed fans. This allows for customization of your system's aesthetic.

Figure 4.2: LED Control Button

5. Údržba

5.1 Čištění prachových filtrů

The Antec NX410 features a fine mesh front panel and a magnetic dust filter on the top panel to prevent dust buildup. Regularly remove and clean these filters to maintain optimal airflow and cooling performance.

Figure 5.1: Fine Mesh Front Panel

5.2 Přístup k interním komponentám

The tempered glass side panel is secured with a magnetic latch, allowing for tool-less access to the internal components for upgrades, cleaning, or troubleshooting. Gently pull the handle to open the panel.

6. Řešení problémů

• Systém se nezapíná: Ensure all power cables (24-pin ATX, 8-pin CPU, GPU PCIe) are securely connected to the motherboard, graphics card, and power supply. Verify the power supply switch is in the 'ON' position.
• Ventilátory se netočí/RGB nefunguje: Check fan connections to the motherboard or fan controller. Ensure the LED control button is pressed to cycle through modes. Refer to Figure 3.3 for proper fan wiring.
• Problémy s přehříváním: Confirm all case fans are installed correctly and spinning. Clean dust filters regularly. Ensure proper thermal paste application on the CPU cooler.
• Nefunkční USB porty: Verify the USB headers from the front panel are correctly connected to the motherboard.

7. Specifikace

8. Záruka a podpora

The Antec NX410 ATX Mid-Tower Case comes with a 2-letá záruka. For technical support, troubleshooting assistance, or warranty claims, please visit the official Antec webnebo se obraťte na jejich zákaznický servis. Uschovejte si doklad o koupi pro ověření záruky.
