WisFox 2.4GHz Wireless Keyboard and Mouse Combo

1. Úvod

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your WisFox 2.4GHz Wireless Keyboard and Mouse Combo. This full-size ergonomic USB keyboard features a convenient phone holder, and the accompanying mouse offers quiet clicking for a comfortable user experience. It is designed for seamless compatibility with various computer systems.

Figure 1: WisFox Wireless Keyboard and Mouse Combo. The image displays the black full-size keyboard with an integrated phone holder slot at the top, a black wireless mouse, and a small USB receiver.

2. Nastavení

Chcete-li nastavit bezdrátovou kombinaci klávesnice a myši, postupujte takto:

1. Nainstalujte baterie:
   • The wireless keyboard requires 2 AAA batteries. Locate the battery compartment on the underside of the keyboard, open the cover, insert the batteries according to the polarity indicators, and close the cover.
   • The wireless mouse requires 1 AA battery. Locate the battery compartment on the underside of the mouse, open the cover, insert the battery according to the polarity indicators, and close the cover.


   Figure 2: Battery installation for the keyboard and mouse. The image shows the underside of the keyboard with its battery compartment open, revealing two AAA batteries. The mouse's underside is also shown with its battery compartment open, revealing one AA battery. The USB receiver is stored inside the mouse's battery compartment.
2. Vyhledejte USB přijímač: The single USB receiver for both the keyboard and mouse is conveniently stored inside the mouse's battery compartment. Carefully remove it.
3. Připojte přijímač: Plug the USB receiver into an available USB port on your computer, laptop, or desktop.
4. Zapnutí: Turn on the keyboard and mouse using their respective ON/OFF switches. The keyboard's switch is located near the top right of the keyboard, and the mouse's switch is on its underside.
5. Automatické připojení: The keyboard and mouse should automatically connect to your device within seconds. No additional software installation is required.

Poznámka k videím: Official product videos from the seller were not available for embedding. The setup process is straightforward as described above.

3. Návod k obsluze

3.1 Funkce klávesnice

• Integrovaný držák telefonu: The keyboard features a U-shaped holder (approximately 10 inches / 25.5 cm long) at the top. This slot is designed to securely hold smartphones, iPads, and other devices horizontally or vertically, providing a convenient viewing angle for videos, documents, or entertainment while working.
• Rozložení v plné velikosti: The keyboard has a standard US QWERTY layout with a dedicated number pad. Keys are appropriately spaced for comfortable typing.
• Multimedia & Shortcut Keys: Access 12 multimedia combination keys and 5 independent shortcut keys for efficient control over music, movies, web browsing, email, and more.

  Note: Some shortcuts may not be available on Mac systems.



  Obrázek 3: Detailní view of the keyboard's multimedia and shortcut keys. The image highlights the function keys (F1-F12) with their respective multimedia icons (e.g., play/pause, volume control) and dedicated shortcut keys for calculator, search, and lock screen.

3.2 Funkce myši

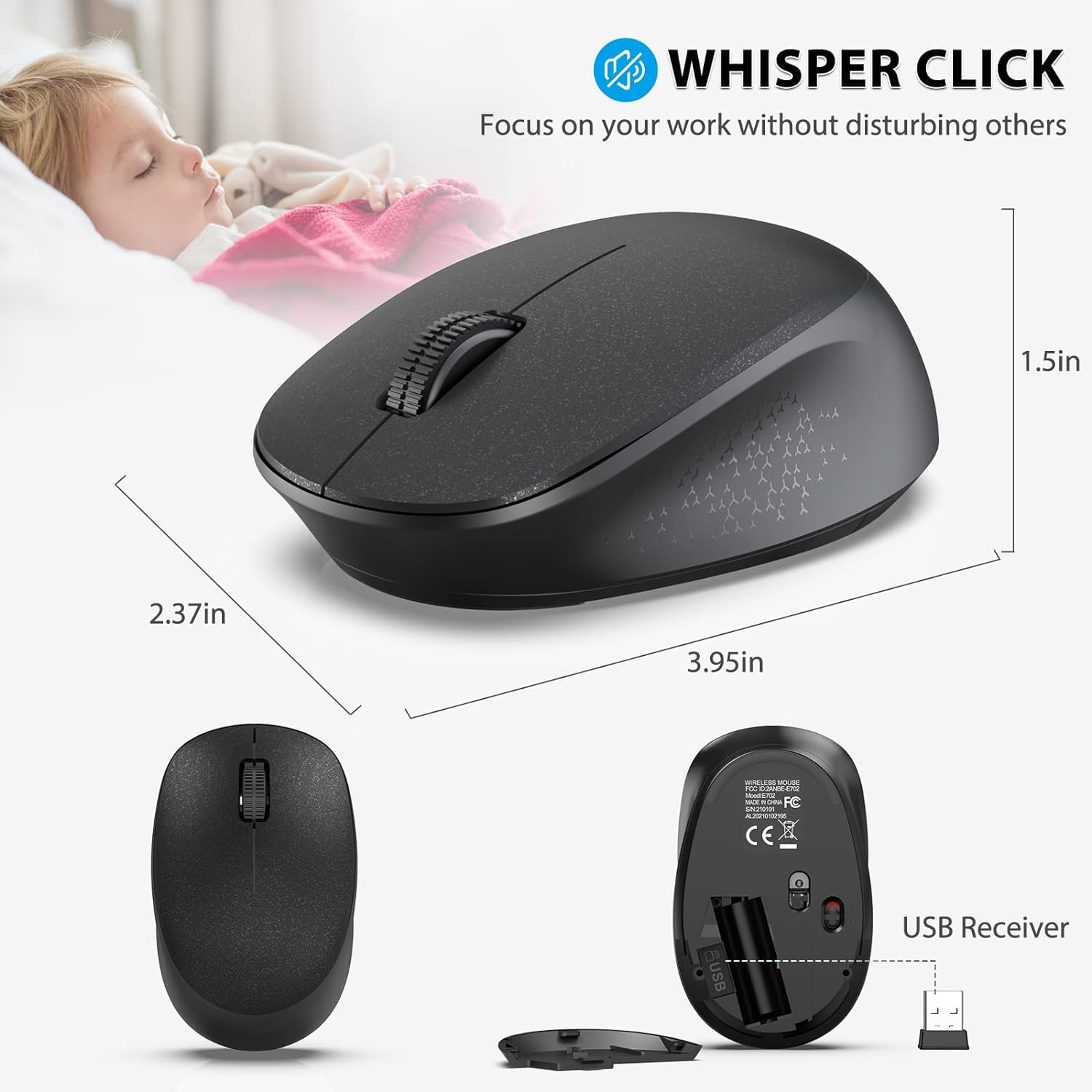

• Noiseless Clicking: The mouse is designed for whisper-quiet clicks, minimizing disturbance in quiet environments like libraries or during late-night work sessions.
• Vysoká citlivost: Features a fixed 1600 DPI for precise and responsive cursor control.

3.3 Kompatibilita

The WisFox Wireless Keyboard and Mouse Combo is compatible with a wide range of operating systems and devices, including:

• Windows 2000 / ME / XP / Vista / 7 / 8 / 10
• Desktops, Chromebooks, PCs, Laptops, Computers

Figure 4: A user demonstrating the keyboard and mouse combo in an office setting. The image shows the keyboard with a tablet placed in its integrated holder, connected to a desktop computer, illustrating a simplified desktop setup.

4. Údržba

• Výměna baterie: Replace batteries when performance degrades. Ensure correct polarity when inserting new batteries.
• Čištění: K čištění povrchů klávesnice a myši používejte měkký, suchý hadřík. V případě odolných nečistot použijte lehceamp Lze použít hadřík, ale dbejte na to, aby se do vnitřních součástí nedostala vlhkost.
• Skladování: When not in use for extended periods, turn off the keyboard and mouse using their ON/OFF switches to conserve battery life. The USB receiver can be stored inside the mouse's battery compartment to prevent loss.

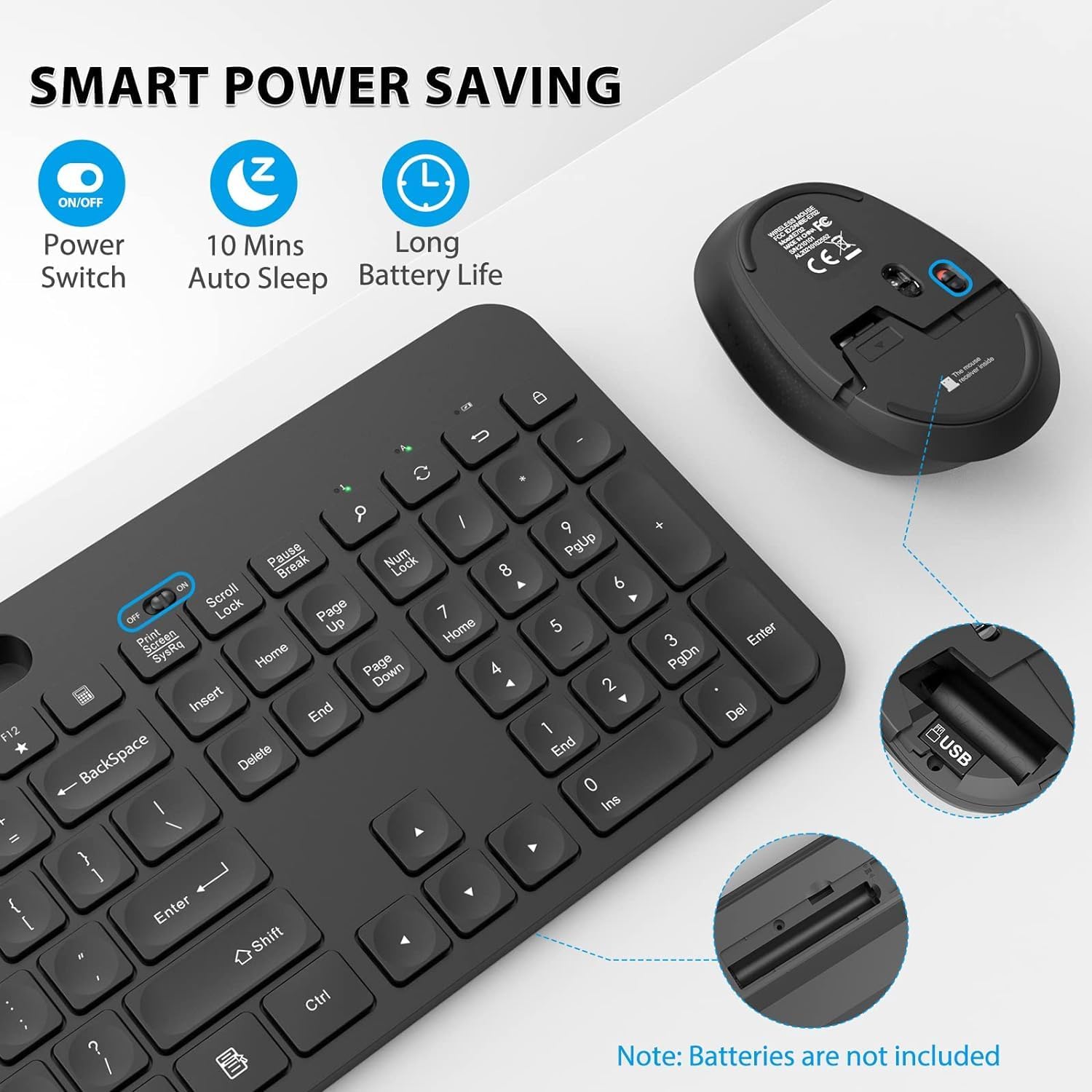

• Šetření energie: The devices feature smart power-saving modes, including an auto-sleep function after 10 minutes of inactivity, to extend battery life.

5. Řešení problémů

If you encounter issues with your WisFox Wireless Keyboard and Mouse Combo, try the following solutions:

• Žádné připojení/Zpoždění:
  • Ujistěte se, že jsou klávesnice i myš ZAPNUTY.
  • Zkontrolujte, zda jsou baterie správně vloženy a zda jsou dostatečně nabité. V případě potřeby je vyměňte.
  • Verify that the USB receiver is securely plugged into a working USB port on your computer. Try a different USB port if the issue persists.
  • Move the keyboard and mouse closer to the USB receiver to ensure they are within the 10m (33 ft) wireless range.
  • Neumisťujte přijímač do blízkosti jiných bezdrátových zařízení nebo velkých kovových předmětů, které by mohly způsobovat rušení.
• Klávesy nereagují:
  • Zkontrolujte stav nabití baterie.
  • Ujistěte se, že je klávesnice zapnutá a připojená.
  • Restartujte počítač.
• Mouse Cursor Jumps/Erratic Movement:
  • Ujistěte se, že myš je používána na čistém, nereflexním povrchu.
  • Vyčistěte optický senzor na spodní straně myši.
  • Zkontrolujte stav nabití baterie.

Pokud tyto kroky problém nevyřeší, podívejte se prosím do části Záruka a podpora, kde vám pomohou.

6. Specifikace

7. Záruka a podpora

Your WisFox Wireless Keyboard and Mouse Combo is backed by a 12měsíční bezplatná záruka od data nákupu.

WisFox is committed to providing superior quality products and professional after-sales support to enhance your user experience.

If you encounter any issues or have questions regarding your product, please do not hesitate to contact us directly via Amazon mail. Our professional customer service team is ready to assist you and provide faster solutions.

Figure 5: Diagram illustrating the customer support process. It shows a user with an issue contacting the seller directly for faster problem resolution, emphasizing the availability of professional customer service.
