1. Úvod
Thank you for choosing the Lepro 20W LED Floodlight. This manual provides essential information for the safe installation, operation, and maintenance of your new floodlights. Please read these instructions carefully before use and retain them for future reference.
Image 1.1: Two Lepro 20W LED Floodlights with power cable. These floodlights are designed for outdoor use, providing bright and efficient illumination.
2. Bezpečnostní pokyny
Pro zajištění bezpečného provozu vždy dodržujte tyto pokyny:
- Elektrická bezpečnost: Ensure the power supply is disconnected before installation or maintenance. All electrical connections must comply with local wiring regulations. If unsure, consult a qualified electrician.
- Základy: Reflektor musí být řádně uzemněn, aby se zabránilo úrazu elektrickým proudem.
- svtage: Ověřte, že zásoba objtage matches the floodlight's rated voltage (240 V AC).
- Voděodolnost: The product is IP65 rated, meaning it is protected against dust ingress and low-pressure water jets from any direction. However, do not submerge the unit in water.
- Teplo: The floodlight generates heat during operation. Do not cover the unit or install it in an enclosed space without adequate ventilation.
- Montáž: Ujistěte se, že montážní povrch je dostatečně pevný, aby unesl hmotnost světlometu.
- Světelný zdroj: Do not stare directly into the LED light source when it is illuminated, as this may cause eye strain or damage.
3. Obsah balení
Váš balíček by měl obsahovat následující položky:
- 2 x Lepro 20W LED Floodlights
- Návod k použití (tento dokument)
4. Vlastnosti produktu
The Lepro 20W LED Floodlight offers the following key features:
- Ultra-Bright and Energy-Efficient: Utilizes SMD 2835 LEDs and an optimized reflector design to deliver 1700 lumens of daylight white light (5000K) with only 20W of power consumption, equivalent to a 140W halogen lamp.
- Odolné a odolné vůči povětrnostním vlivům: Constructed from die-cast aluminum and tempered glass, with an IP65 rating for resistance against dust and water, suitable for all weather conditions.
- Efektivní odvod tepla: Features an ultra-thin housing and integrated heat sink design for effective heat management, extending the product's lifespan.
- Široký úhel paprsku: Provides a 110° beam angle for broad illumination coverage.
- 360° Rotatable Bracket: The mounting bracket allows for 360° rotation, enabling flexible adjustment of the light direction.
- Snadná instalace: Designed for straightforward installation on various surfaces.
Image 4.1: Key lighting specifications of the floodlight, including LED quantity, color temperature, brightness, and beam angle.
Image 4.2: Illustration of the floodlight's coverage, demonstrating that 20W provides 1700 lumens, effectively illuminating a 5-meter diameter area when mounted at 4 meters height.
Image 4.3: The rear of the floodlight, illustrating the heat dissipation fins designed to efficiently release heat and prolong the product's lifespan.

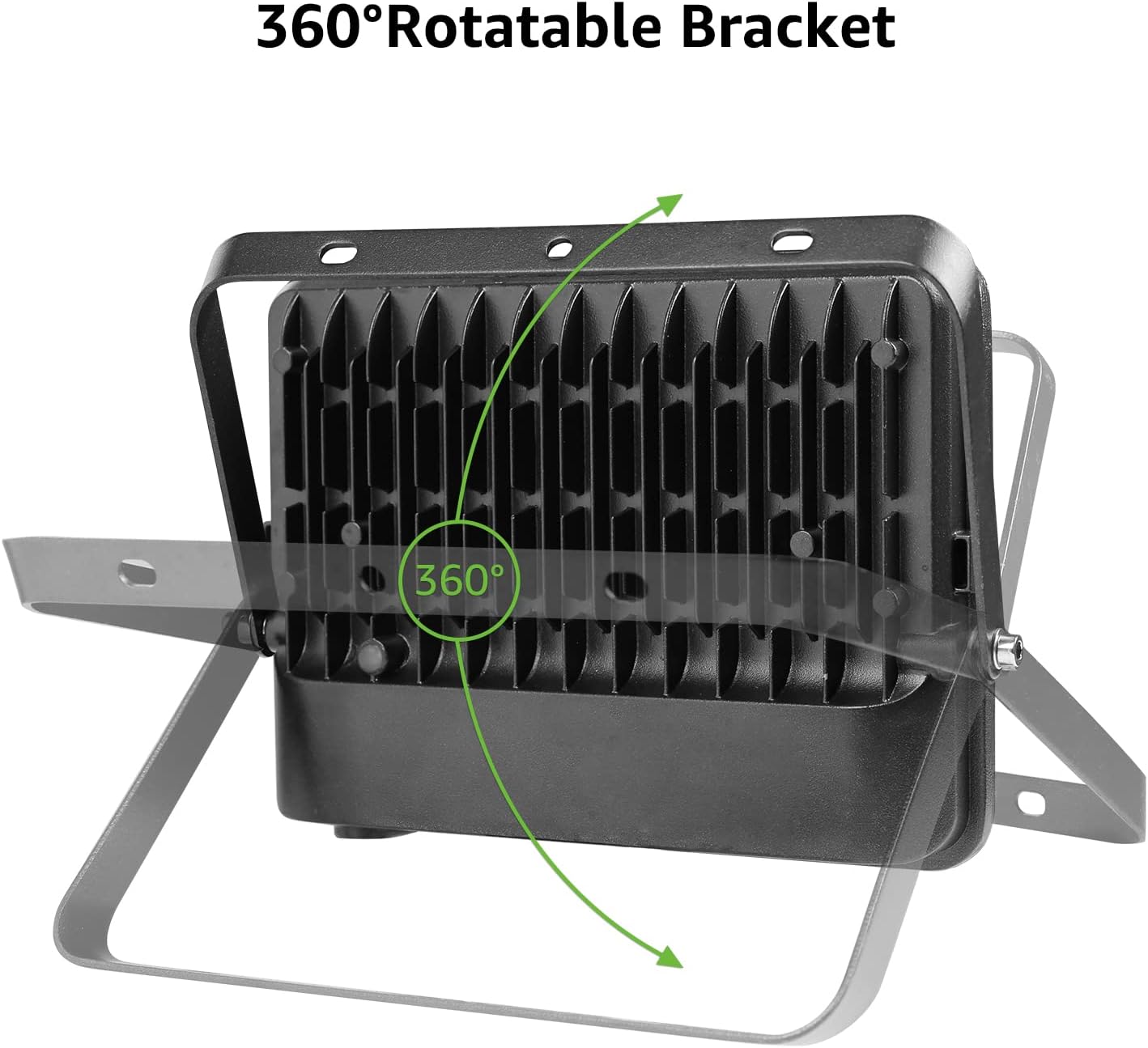

Image 4.4: The 360° rotatable bracket, allowing for flexible adjustment of the light direction to suit various illumination needs.
Image 4.5: Demonstrates the floodlight's durability and weather resistance, highlighting its IP65 waterproof rating, heat resistance, and frost resistance for reliable performance in diverse outdoor conditions.
5. Specifikace
| Atribut | Hodnota |
|---|---|
| Značka | Lepro |
| Číslo modelu | PR340011-DW-EU-2 |
| Rozměry produktu (D x Š x V) | 10.82 x 2.6 x 9.6 cm |
| Hmotnost | 540 gramů |
| Hodnocení IP | IP65 |
| Počet položek | 2 |
| Styl | Moderní |
| Barva | Cool White/Black |
| Materiál | Hliník, tvrzené sklo |
| Maximální Wattage | 20 wattů |
| svtage | 240 voltů (AC) |
| Specifická použití | Outdoor and enclosed spaces |
| Speciální funkce | Energeticky efektivní |
| Světelný tok | 1700 lm |
| Index podání barev (CRI) | 80.00 |
| Zdroj napájení | AC |
| Typ instalace | Držák na zeď |
Image 5.1: Detailed dimensions of the floodlight, including length, width, and height, along with cable length, provided in both millimeters and inches for precise planning.
6. Instalace
Pro správnou instalaci postupujte podle následujících kroků:
- Příprava: Before starting, ensure the power supply is turned off at the main circuit breaker.
- Místo montáže: Choose a suitable location for the floodlight. The included bracket allows for mounting on walls, ceilings, or directly on the ground.
- Označení: Use the bracket as a template to mark the drilling points on the desired surface.
- Vrtání: Drill holes at the marked points. Insert appropriate wall plugs if mounting on masonry.
- Bezpečný držák: Attach the bracket securely to the surface using screws (not included). The bracket features 2 self-locking screws for easy removal of the spot without tools.
- Upravit úhel: The bracket is 360° rotatable. Adjust the floodlight to the desired angle before tightening the bracket screws.
- Zapojení: Connect the floodlight's 1-meter power cable to your electrical supply. Ensure correct wiring: brown wire for Live, blue wire for Neutral, and green/yellow wire for Ground. Use a waterproof junction box for outdoor connections (not included).
- Závěrečná kontrola: Double-check all connections and ensure the floodlight is securely mounted.
- Zapnutí: Obnovte napájení hlavním jističem.

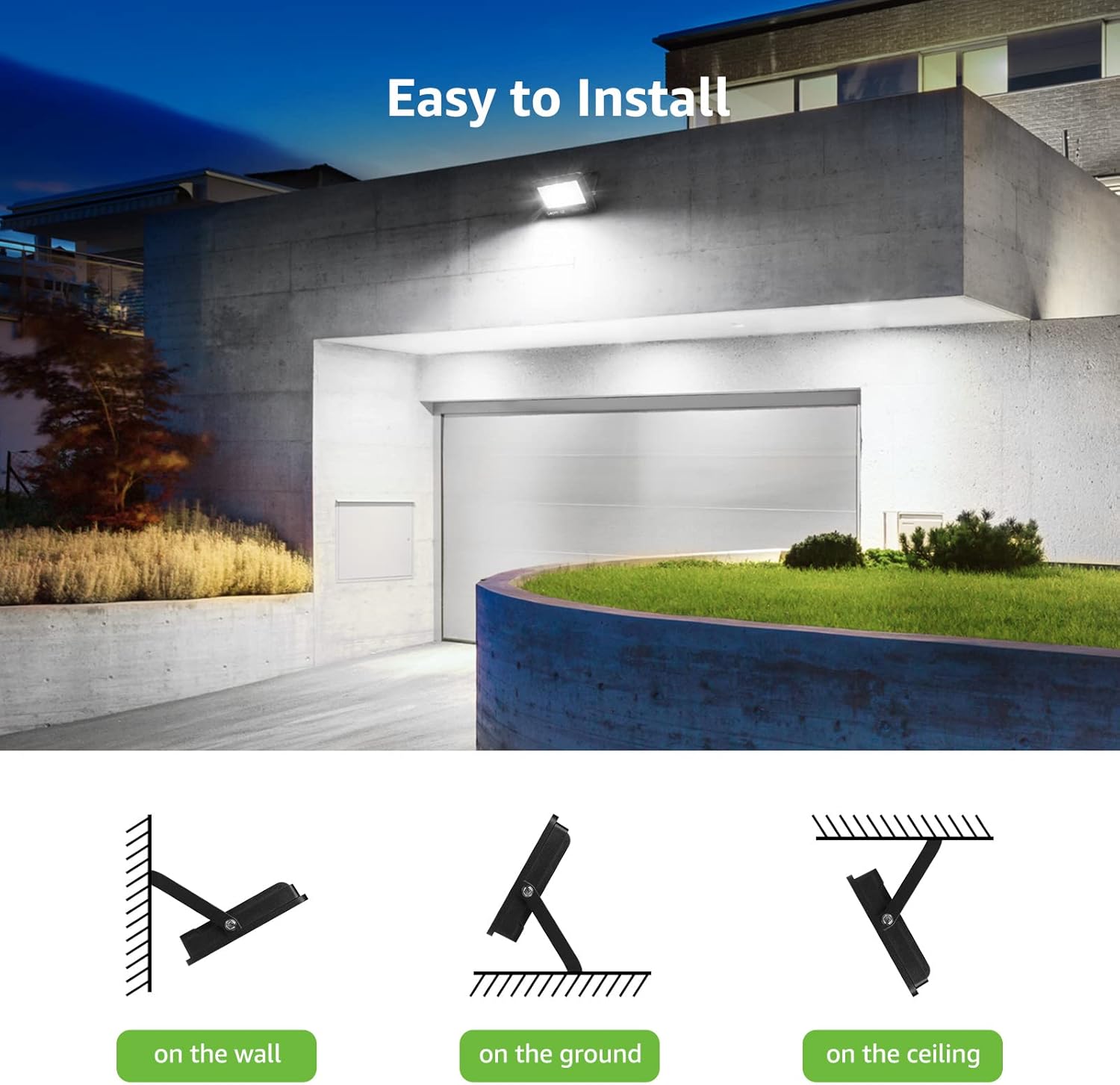

Image 6.1: Various installation methods for the floodlight, demonstrating its versatility for mounting on walls, ground, or ceilings.
7. Provoz
Once installed and connected to a power source, the Lepro 20W LED Floodlight will illuminate when power is supplied. There are no additional controls on the unit itself. Operation is typically controlled via an external switch or timer connected to the power circuit.
Obrázek 7.1: Příkladamples of the floodlight in various applications, including residential and commercial outdoor spaces, showcasing its effective illumination.
8. Údržba
The Lepro LED Floodlight requires minimal maintenance:
- Čištění: Periodically clean the glass surface with a soft, damp hadříkem, abyste zajistili optimální světelný výkon. Nepoužívejte abrazivní čisticí prostředky ani rozpouštědla.
- Inspekce: Regularly inspect the power cable and housing for any signs of damage. If damage is found, disconnect power immediately and have the unit inspected by a qualified professional.
- Žádné díly opravitelné uživatelem: The LED light source is integrated and not replaceable by the user. Do not attempt to open the housing.
9. Řešení problémů
Pokud narazíte na problémy s reflektorem, podívejte se na následující běžné problémy a jejich řešení:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Světlo se nerozsvítí | Žádné napájení Uvolněné připojení kabeláže Faulty external switch | Zkontrolujte napájení a jistič. Zkontrolujte, zda jsou všechna zapojení bezpečná (nejprve se ujistěte, že je vypnuto napájení). Test the external switch or bypass it temporarily. |
| Světlo je tlumené nebo bliká | Nestabilní napájení Nesprávný svtage Poškozená jednotka | Zajistěte stabilní napájení. Ověřte vstupní objtage odpovídá specifikacím. Pokud problémy přetrvávají, kontaktujte zákaznickou podporu. |
| Voda uvnitř jednotky | Nesprávná instalace Damage to housing/seal | Ensure all seals are intact and installation is correct. Disconnect power immediately. Contact customer support. |
If the problem persists after attempting these solutions, please contact Lepro customer support.
10. Záruka a podpora
Lepro products are designed for reliability and performance. For warranty information or technical support, please refer to the official Lepro webwebu nebo se obraťte přímo na jejich zákaznický servis. Uschovejte si účtenku jako doklad o koupi.
Pro více informací navštivte Lepro Store.
