APIELE KCD1-8-101NW 12V 20A Waterproof Round Rocker Toggle Switch User Manual

1. Úvod

Thank you for choosing the APIELE KCD1-8-101NW 12V 20A Waterproof Round Rocker Toggle Switch. This manual provides essential information for the proper installation, operation, and maintenance of your switch. Please read these instructions carefully before use to ensure safe and efficient performance. This switch is designed for various applications, including automotive, marine, and household electronic modifications.

2. Konec produktuview

The APIELE KCD1-8-101NW is a robust, round rocker toggle switch featuring a 3-pin SPST (Single Pole Single Throw) configuration with an integrated 12V LED indicator. It is rated for 12V DC and up to 20A, making it suitable for a wide range of low-voltage electrical systems. Its snap-in design allows for quick and easy installation, and its IP65 waterproof rating ensures reliable operation in challenging environments.

Figure 2.1: Detailed dimensions and electrical specifications of the APIELE KCD1-8-101NW rocker switch. This image shows the polarity, pin type, switch operation, rating, LED color options, hole diameter, material, and electrical/mechanical life.

Figure 2.2: Illustration highlighting the mechanical durability of the switch, rated for over 10,000 press cycles.

Figure 2.3: Visual representation of the switch's IP65 efficient waterproof capability, demonstrating its resistance to water splashes.

3. Specifikace

4. Nastavení a instalace

The KCD1-8-101NW switch features a snap-in design for straightforward installation. Ensure the power source is disconnected before proceeding with installation.

4.1 Montáž

1. Připravte montážní otvor: Drill a round hole with a diameter of 20 mm (0.78 inches) in the desired mounting surface. Ensure the material thickness is appropriate for a secure snap-in fit.
2. Vložte přepínač: Gently push the switch into the prepared hole. The snap-in tabs on the sides of the switch body will secure it in place. Apply even pressure to avoid damaging the switch or the mounting surface.

Figure 4.1: The snap-in design allows for quick and tool-free installation into a 20mm diameter hole.

4.2 Zapojení

The switch has three pins for connection. It is a Single Pole Single Throw (SPST) switch with an integrated LED. The pins are typically configured as follows:

• Pin 1 (Input): Connect to the positive (+) terminal of your 12V DC power source.
• Pin 2 (Output): Connect to the positive (+) terminal of the device or load you wish to power.
• Pin 3 (Ground/LED Negative): Connect to the negative (-) terminal of your 12V DC power source or chassis ground. This pin also provides the ground connection for the internal LED.

Ensure all connections are secure and properly insulated to prevent short circuits. Verify the correct polarity before applying power.

Figure 4.2: The underside of the switch showing the three spade terminals for electrical connections.

5. Návod k obsluze

Operating the APIELE KCD1-8-101NW switch is straightforward:

• Zapnout: Press the rocker switch to the 'ON' position. The integrated LED will illuminate, indicating that power is flowing to the connected device.
• Vypnout: Press the rocker switch to the 'OFF' position. The LED will turn off, and power to the connected device will be interrupted.

The tactile feedback of the rocker ensures clear indication of the switch's state.

6. Údržba

The APIELE KCD1-8-101NW switch is designed for durability and requires minimal maintenance.

• Čištění: Periodically wipe the switch surface with a soft, damp cloth to remove dust and grime. Avoid using harsh chemicals or abrasive cleaners, as these can damage the plastic and waterproof seal.
• Kontrola připojení: Occasionally inspect the wiring connections to ensure they remain secure and free from corrosion. Loose connections can lead to intermittent operation or overheating.
• Vodotěsná integrita: While the switch is IP65 rated for water resistance, avoid prolonged submersion or high-pressure water jets, which could compromise the seal over time.

7. Řešení problémů

If you encounter issues with your APIELE KCD1-8-101NW switch, consider the following troubleshooting steps:

• Switch Not Activating Device:
  • Check the power source: Ensure 12V DC power is supplied to Pin 1.
  • Verify wiring: Confirm that Pin 1 (Input), Pin 2 (Output), and Pin 3 (Ground) are correctly connected.
  • Inspect the load: Ensure the connected device is functioning correctly and not drawing excessive current.
  • Check for blown fuses: If applicable, verify that any inline fuses in the circuit are intact.
• LED nesvítí:
  • Ujistěte se, že je spínač v poloze „ON“.
  • Verify the ground connection: Confirm Pin 3 is properly connected to ground.
  • Zkontrolujte správný objemtage: The LED requires 12V DC to operate.
  • LED failure: In rare cases, the LED itself may be faulty.
• Přerušovaný provoz:
  • Zkontrolujte, zda nejsou uvolněné kabelové spoje.
  • Inspect for corrosion on terminals.
  • Ensure the switch is securely mounted and not experiencing physical stress.

If these steps do not resolve the issue, contact APIELE customer support for further assistance.

8. Aplikace

The versatility and robust design of the APIELE KCD1-8-101NW switch make it suitable for a wide array of applications:

• Automobilový průmysl: Ideal for controlling auxiliary lights, fog lamps, car interior lights, dashboard modifications, and other 12V accessories in cars, trucks, and motorcycles.
• námořní: Suitable for boat lighting, bilge pumps, navigation systems, and other marine electronics due to its waterproof design.
• Household/DIY: Can be integrated into various DIY projects, electronic modifications, and small appliance controls where a 12V DC power source is used.

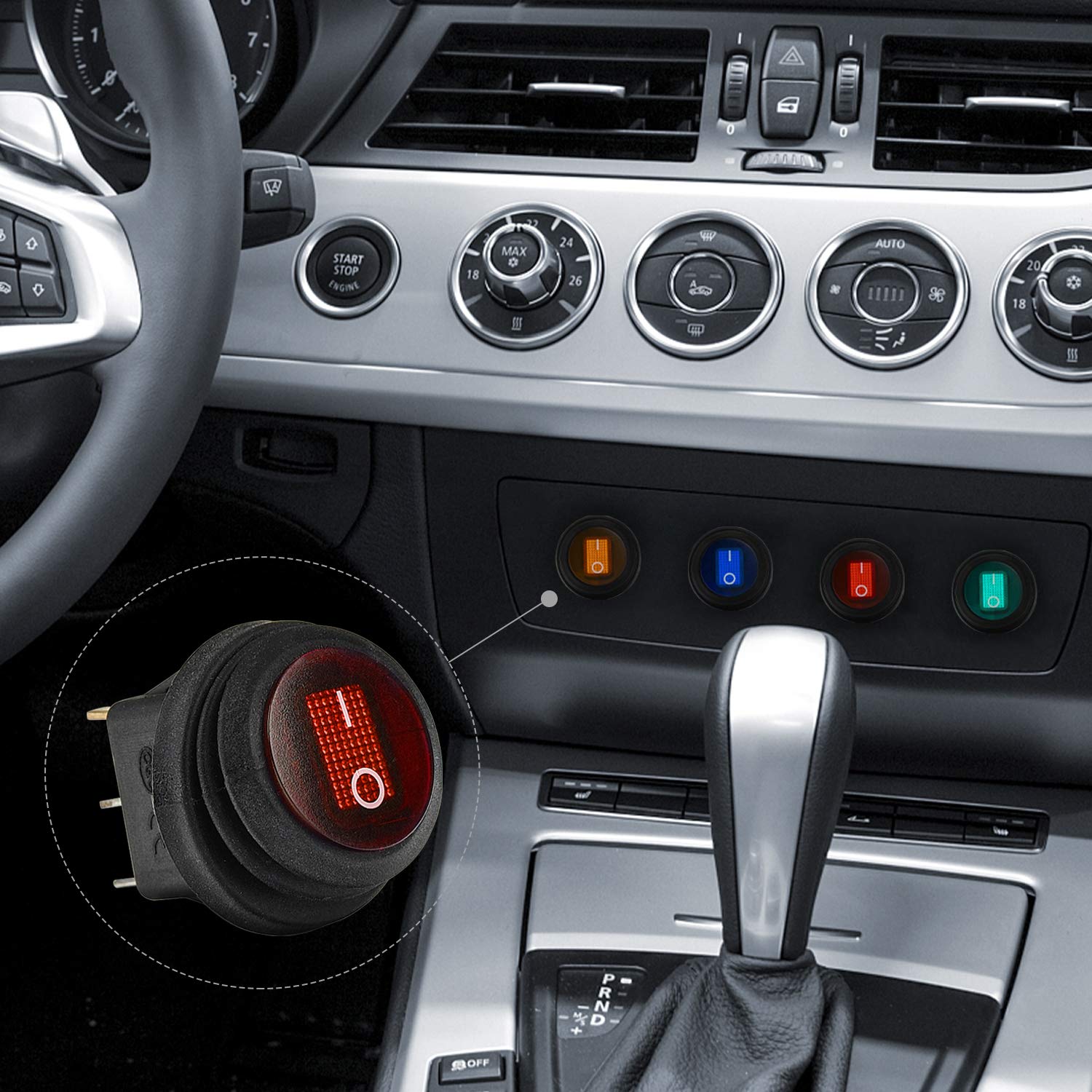

Obrázek 8.1: Přample of the rocker switch integrated into a vehicle's dashboard for controlling accessories.

Figure 8.2: Diverse applications of the switch, including marine vessels, motorcycles, and trucks.

9. Záruka a podpora

Specific warranty details for the APIELE KCD1-8-101NW switch are not provided in this manual. For information regarding warranty coverage, returns, or technical support, please refer to the product packaging or contact APIELE customer service directly through their official webwebu nebo prodejce, od kterého byl produkt zakoupen.
