Hyper Tough Razor Scraper with Soft Grip Handle User Manual

Zavedení

The Hyper Tough Razor Scraper is designed for efficient removal of various materials from hard surfaces. Its robust construction and ergonomic design ensure effective and comfortable use. This manual provides essential information for the safe and proper operation, maintenance, and care of your scraper.

Image: The Hyper Tough Razor Scraper, showing its red and black soft grip handle and the exposed razor blade.

Bezpečnostní informace

VAROVÁNÍ: This product contains a sharp blade. Handle with extreme care to prevent injury.

• Always keep fingers away from the blade edge.
• Používejte vhodné osobní ochranné prostředky, jako jsou rukavice a ochrana očí.
• Ensure the blade is retracted when not in use or when storing the scraper.
• Uchovávejte mimo dosah dětí.
• Dispose of used blades safely in a puncture-resistant container.
• Do not use on surfaces that can be easily scratched or damaged by a razor blade.

Komponenty

The Hyper Tough Razor Scraper consists of the following main components:

• Měkká rukojeť: Poskytuje pohodlí a kontrolu během používání.
• Rám z nerezové oceli: Zajišťuje odolnost a pevnost.
• Retractable Blade Mechanism: Allows for safe extension and retraction of the blade.
• Push Button Action: Secures the blade in position and prevents accidental slipping.
• Single Edge Razor Blade: The cutting component for scraping.

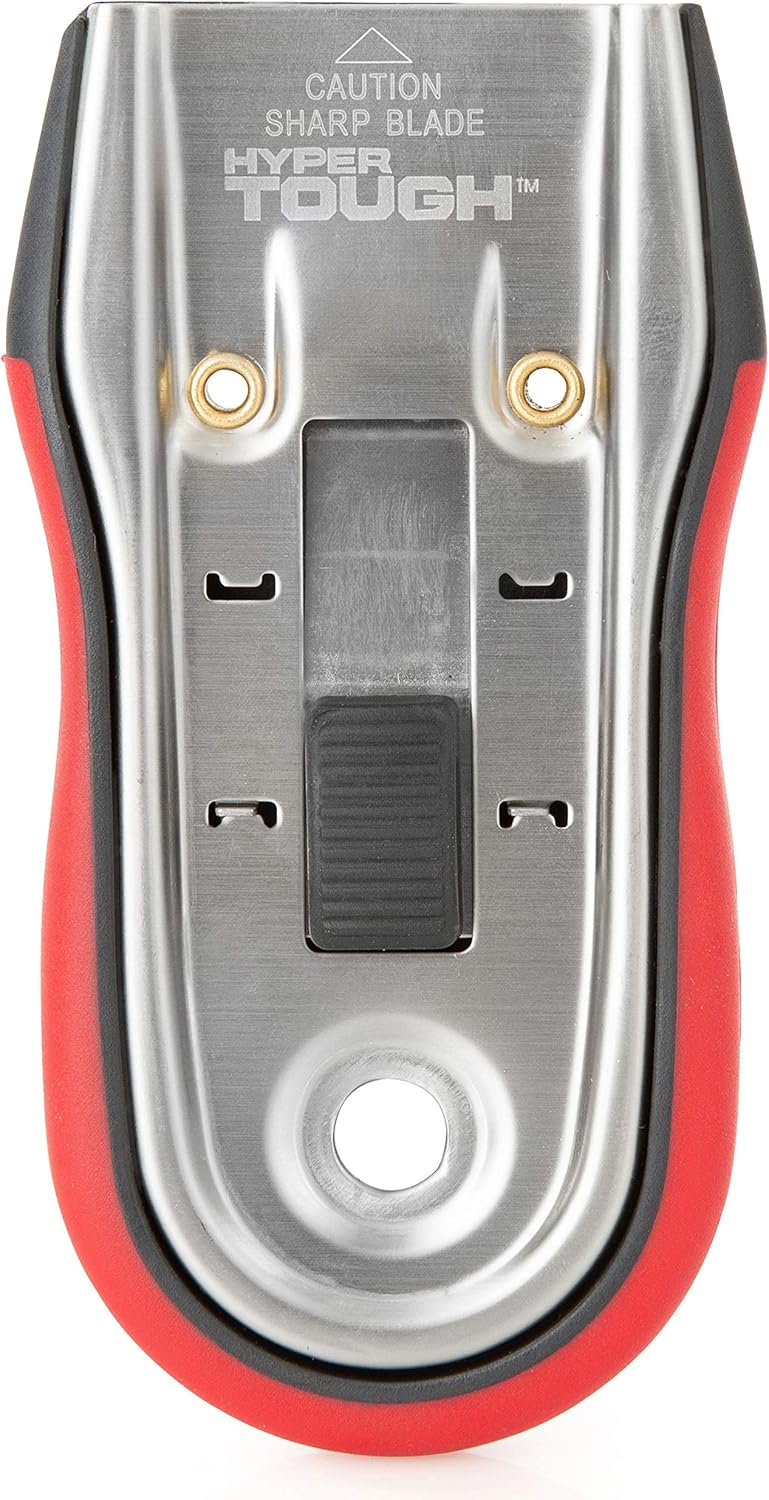

Obrázek: Detailní záběr shora dolů view of the scraper, highlighting the retractable blade mechanism and push button.

Nastavení

Blade Insertion/Reversal

1. Locate the push button on the top of the scraper.
2. Press and hold the push button to release the blade mechanism.
3. Carefully slide the existing blade out or insert a new standard 1-1/2" single edge razor blade with an aluminum spine. Ensure the sharp edge is facing outwards for use, or inwards for safe storage/shipping.
4. Release the push button to lock the blade securely in place. Gently tug on the blade to ensure it is fully seated and locked.

Image: The Hyper Tough Razor Scraper shown next to a detached single-edge razor blade, illustrating the blade replacement process.

Image: The Hyper Tough Razor Scraper with indicated dimensions: 1-1/2 inches blade width and 4-1/2 inches overall length.

Návod k obsluze

Obecné použití

1. Ensure the blade is properly inserted and locked.
2. Extend the blade by pressing the push button and sliding it forward until it locks into the extended position.
3. Hold the scraper firmly with the soft grip handle.
4. Position the blade at a shallow angle (typically 15-30 degrees) against the surface to be scraped.
5. Apply steady, even pressure and push or pull the scraper across the material to be removed.
6. For stubborn materials, multiple passes or a slightly steeper angle may be required.
7. After use, retract the blade fully into the handle by pressing the push button and sliding it back for safety.

Image: A hand demonstrating the use of the Hyper Tough Razor Scraper to remove a substance from a red surface.

Údržba

Čištění

After each use, wipe the blade and scraper body clean with a dry cloth to remove any debris or residue. For stubborn residue, a damp cloth can be used, ensuring the scraper is thoroughly dried afterwards to prevent rust, especially on the blade.

Výměna čepele

Replace the blade when it becomes dull or damaged. A dull blade requires more force and increases the risk of injury or surface damage. Refer to the "Setup" section for instructions on blade insertion and removal.

Odstraňování problémů

Specifikace

• Číslo modelu: 203562
• Značka: Hyper odolný
• Typ čepele: Standard 1-1/2" Single Edge Razor Blade with Aluminum Spine
• Materiál rukojeti: Měkká rukojeť
• Materiál rámu: Těžká nerezová ocel
• Hmotnost: Přibližně 2.39 unce
• Rozměry balení: Přibližně 4.96 x 2.6 x 0.31 palce
• Potřebné baterie: Žádný
• ASIN: B08GNZ3WST

Záruka a podpora

For information regarding warranty coverage, product support, or replacement parts, please contact Hyper Tough customer service. Refer to the product packaging or the official Hyper Tough webstránky s nejaktuálnějšími kontaktními informacemi.

Výrobce: Hyper odolný
