Uživatelská příručka k otevřenému reflexnímu pistolovému mířidlu HOLOSUN HE508T X2 s vícenásobnou osnovou

Zavedení

This manual provides detailed instructions for the proper setup, operation, and maintenance of your HOLOSUN HE508T X2 Multi-Reticle Open Reflex Pistol Sight. Please read this manual thoroughly before using the device to ensure safe and effective operation.

Obrázek: Přední strana view of the HOLOSUN HE508T X2 Multi-Reticle Open Reflex Pistol Sight, showcasing the objective lens and solar panel.

Bezpečnostní informace

Always handle firearms and optics responsibly. Follow all local and federal firearm safety regulations. Ensure the firearm is unloaded and safe before installing or adjusting the sight. Never look directly into the sun through the optic.

Klíčové vlastnosti

• Multi-Reticle System (MRS): Allows selection between a 2 MOA dot, a 32 MOA circle, or a combination of both.
• Solar Failsafe: Utilizes a solar panel for power in bright conditions, extending battery life and providing backup power.
• Shake Awake Technology: Automatically deactivates the LED during periods of inactivity and reactivates upon motion.
• Titanium Housing: Constructed from Grade 5 titanium for enhanced durability and corrosion resistance.
• Super Green LED: High-efficiency green LED for clear visibility and extended battery life.
• Multilayer Reflective Glass: Provides clear sight picture and reduces glare.

Image: Diagram illustrating the Multi-Reticle System (MRS) options: 2 MOA dot, 32 MOA circle, and combined reticle.

Nastavení a instalace

Obsah balení

• HOLOSUN HE508T X2 Optic
• Baterie CR1632 (předinstalovaná nebo samostatná)
• Nástroj pro úpravu
• Objektiv čistící hadřík
• Uživatelská příručka

Instalace baterie

1. Locate the battery tray on the side of the optic.
2. Using a small flathead screwdriver or the provided tool, gently open the battery tray.
3. Vložte jednu baterii CR1632 kladným pólem (+) nahoru.
4. Bezpečně zavřete přihrádku na baterii.

Obrázek: Boční view of the HOLOSUN HE508T X2, highlighting the battery tray for CR1632 battery installation.

Montáž optiky

The HE508T X2 is designed for handgun applications and uses an industry-standard footprint. Ensure your handgun slide is compatible with this footprint or use an appropriate adapter plate (not included).

1. Ujistěte se, že je střelná zbraň nenabitá a bezpečná.
2. Place the optic onto the mounting plate or slide cut.
3. Secure the optic using the appropriate screws (typically provided with the handgun or adapter plate) and a torque wrench. Refer to your handgun or adapter plate manufacturer's specifications for proper torque values.
4. Apply a small amount of blue thread locker (e.g., Loctite 242) to the screw threads before installation to prevent loosening from recoil.

Image: The HOLOSUN HE508T X2 mounted on a pistol slide, demonstrating proper fitment.

Návod k obsluze

Zapnutí/vypnutí

• Zapnutí: Press either the "+" or "-" button to turn on the optic.
• Vypnout: Press both "+" and "-" buttons simultaneously for approximately 3 seconds.

Nastavení jasu

• Press the "+" button to increase brightness.
• Press the "-" button to decrease brightness.
• The optic has 10 daylight and 2 night vision compatible brightness settings.

Reticle Selection (Multi-Reticle System)

The HE508T X2 features a Multi-Reticle System (MRS) allowing you to choose between three reticle options:

1. 2 MOA tečka a 32 MOA kruh: Výchozí nastavení.
2. Pouze tečka 2 MOA: Press and hold the "-" button for 3 seconds to switch from the combined reticle.
3. Pouze kruh 32 MOA: Press and hold the "-" button for 3 seconds again to switch from the 2 MOA dot only.
4. Repeat the process to cycle through the reticle options.

Image: Visual representation of the available reticle options for the HOLOSUN HE508T X2: 2 MOA dot, 32 MOA circle, and combined.

Zeroing the Sight (Windage and Elevation)

The windage and elevation adjustment turrets are located on the right side and top of the optic, respectively. Each click adjusts the point of impact by 1 MOA.

1. Use the provided adjustment tool to turn the windage (R) and elevation (U) adjustment screws.
2. Turn the screw clockwise to move the point of impact right (R) or down (D).
3. Turn the screw counter-clockwise to move the point of impact left (L) or up (U).
4. Make small adjustments and fire test shots to confirm zero.

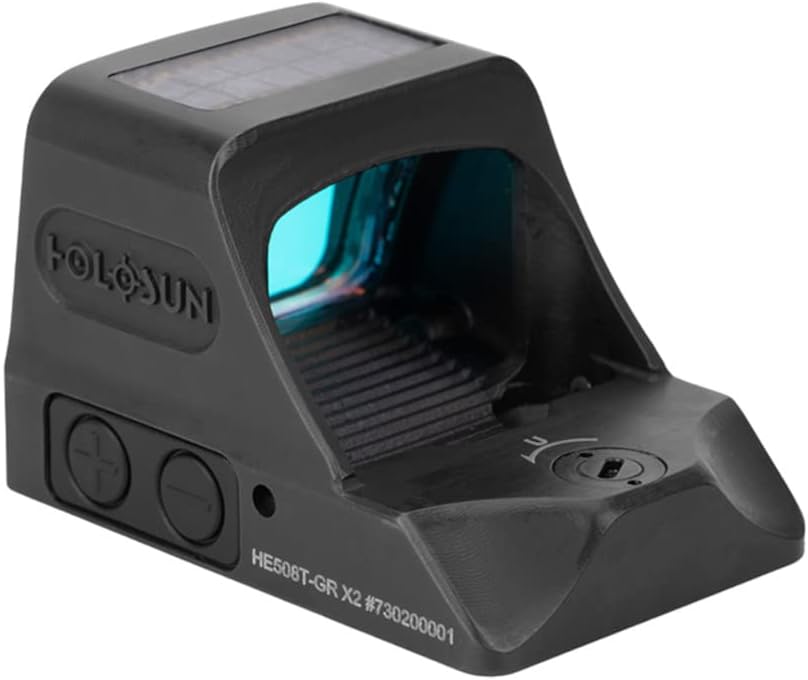

Obrázek: Shora dolů view of the HOLOSUN HE508T X2, indicating the elevation adjustment screw.

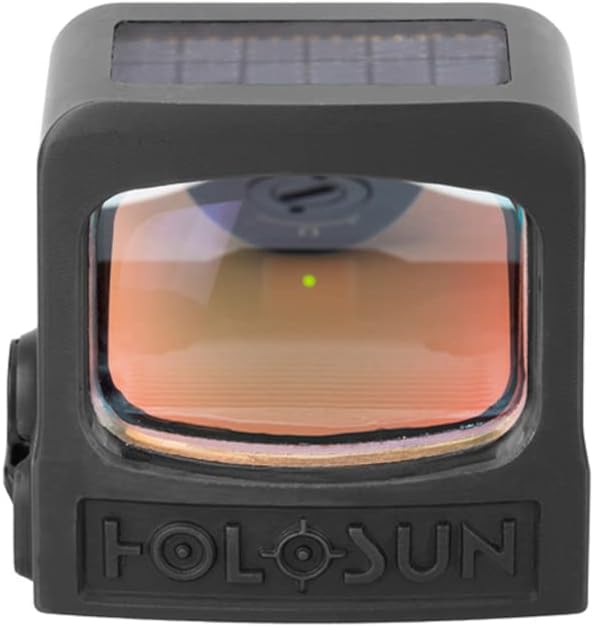

Obrázek: Boční view of the HOLOSUN HE508T X2, indicating the windage adjustment screw.

Shake Awake Technology

The Shake Awake feature conserves battery life by entering sleep mode after a period of inactivity. The optic will instantly reactivate upon detecting motion. The sleep timer can be adjusted from 10 minutes to 12 hours, or deactivated entirely. Refer to the full product manual for advanced settings.

Solar Failsafe

In auto mode, the reticle brightness is automatically adjusted based on ambient light detected by the solar panel. If the battery fails, the solar panel can power the reticle indefinitely in sufficient light conditions.

Údržba

Čištění

• K jemnému otření čoček použijte dodaný hadřík na čočky nebo měkký, čistý hadřík z mikrovlákna.
• For stubborn smudges, use a small amount of lens cleaning solution designed for optics.
• Avoid using harsh chemicals or abrasive materials on the optic's housing or lenses.
• Keep the solar panel clean and free of obstructions for optimal performance.

Výměna baterie

Replace the CR1632 battery when the reticle becomes dim or flickers, or approximately every 50,000 hours of use (depending on brightness setting and reticle choice). Follow the battery installation steps outlined in the "Setup and Installation" section.

Odstraňování problémů

Specifikace

Záruka a podpora

Informace o záruce

The HOLOSUN HE508T X2 is covered by a Manufacturer Limited Lifetime Warranty. For specific details regarding warranty coverage, terms, and conditions, please refer to the official HOLOSUN website or contact HOLOSUN customer service directly.

Zákaznická podpora

For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact HOLOSUN customer support. Visit the official HOLOSUN webstránky s kontaktními informacemi a dalšími zdroji.

Official HOLOSUN Webmísto: www.holosun.com
