Brightown Meteor Shower Lights Outdoor - 240 LED Multicolor Instruction Manual

Zavedení

The Brightown Meteor Shower Lights are designed to create a dynamic and festive lighting display for outdoor environments. These lights feature a unique snowfall or meteor shower effect, where individual LEDs illuminate in sequence, creating a cascading light pattern. Constructed with durable, waterproof materials, they are suitable for various weather conditions and can be connected in series to extend coverage.

Figure 1: Brightown Meteor Shower Lights in Multicolor, showcasing the cascading light effect.

Obsah balení

Ověřte, zda jsou v balení přítomny všechny komponenty:

• 10 x Meteor Shower Light Tubes (11.8 inches each, 24 LEDs per tube)
• 1 x UL Certified Low Voltage Plug-in Transformer

Specifikace

Bezpečnostní informace

• Hodnocení voděodolnosti: These lights are IP44 waterproof, designed to withstand rain, wind, and damp climates. Ensure all connections are secure to maintain water resistance.
• UL certifikace: The included low voltage plug-in transformer is UL certified, providing protection against electric shock and short circuits.
• Zdroj napájení: Use only with the provided corded electric power source. Do not attempt to modify the wiring or power adapter.
• Instalace: When installing, ensure the power is disconnected. Avoid placing lights in areas where they may be submerged in water.
• Spojení: Up to 4 sets of these lights can be connected end-to-end to ensure consistent brightness. Do not exceed this limit.

Nastavení

Komponenty skončilyview

Figure 2: Detail of the waterproof light tubes and secure connectors.

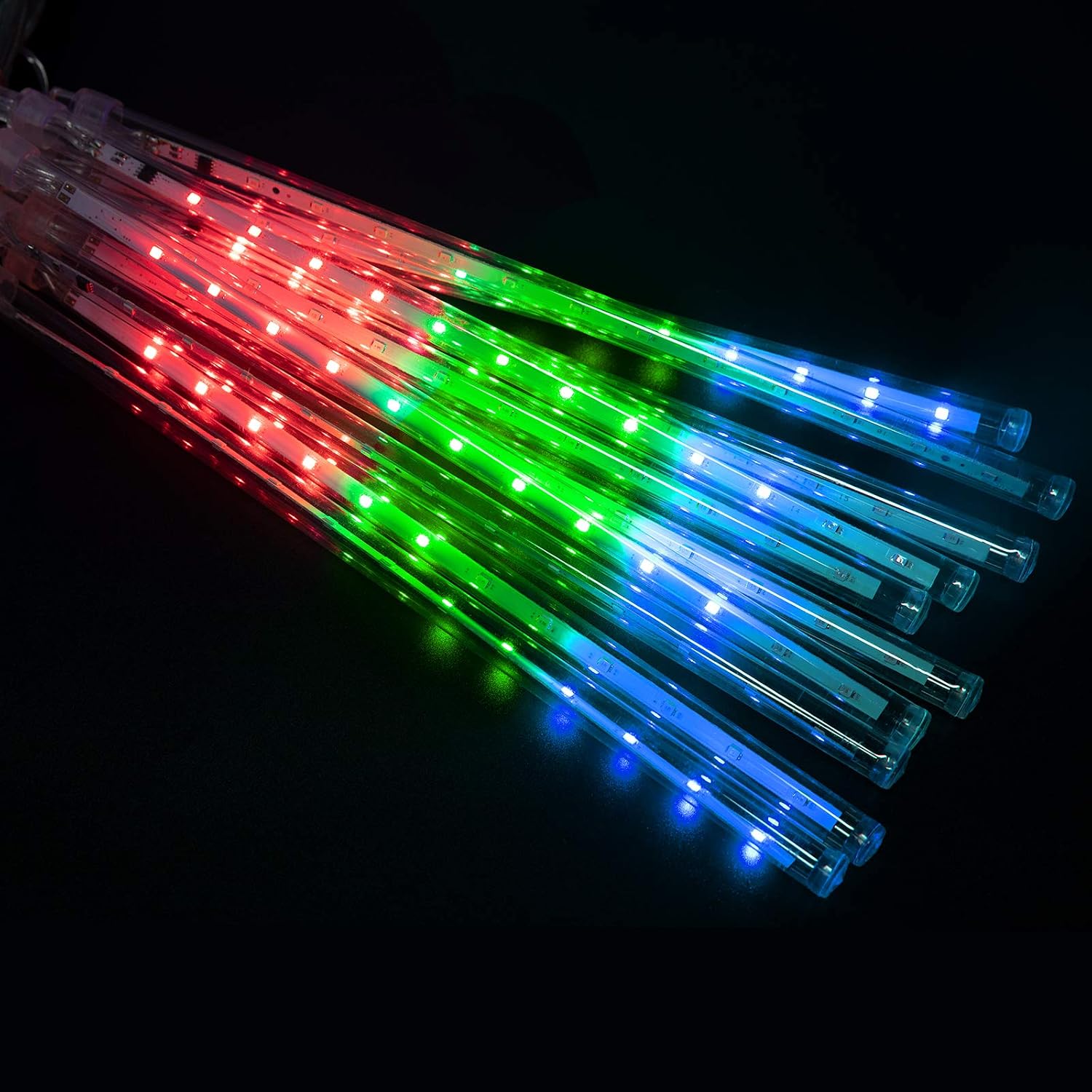

Figure 3: The internal LED strips are visible through the transparent polycarbonate tubes.

Kroky instalace

1. Rozbalit: Carefully remove all light tubes and the power adapter from the packaging.
2. Připojení trubek: Attach the light tubes to the main string. Ensure each connection is tight to maintain the IP44 waterproof rating.
3. Připojení napájení: Connect the UL certified low voltage plug-in transformer to the main string.
4. Kontrola polarity: Note the "+" and "-" connectors. If the lights do not illuminate upon plugging in, disconnect them and change the direction of the connection, then reconnect.

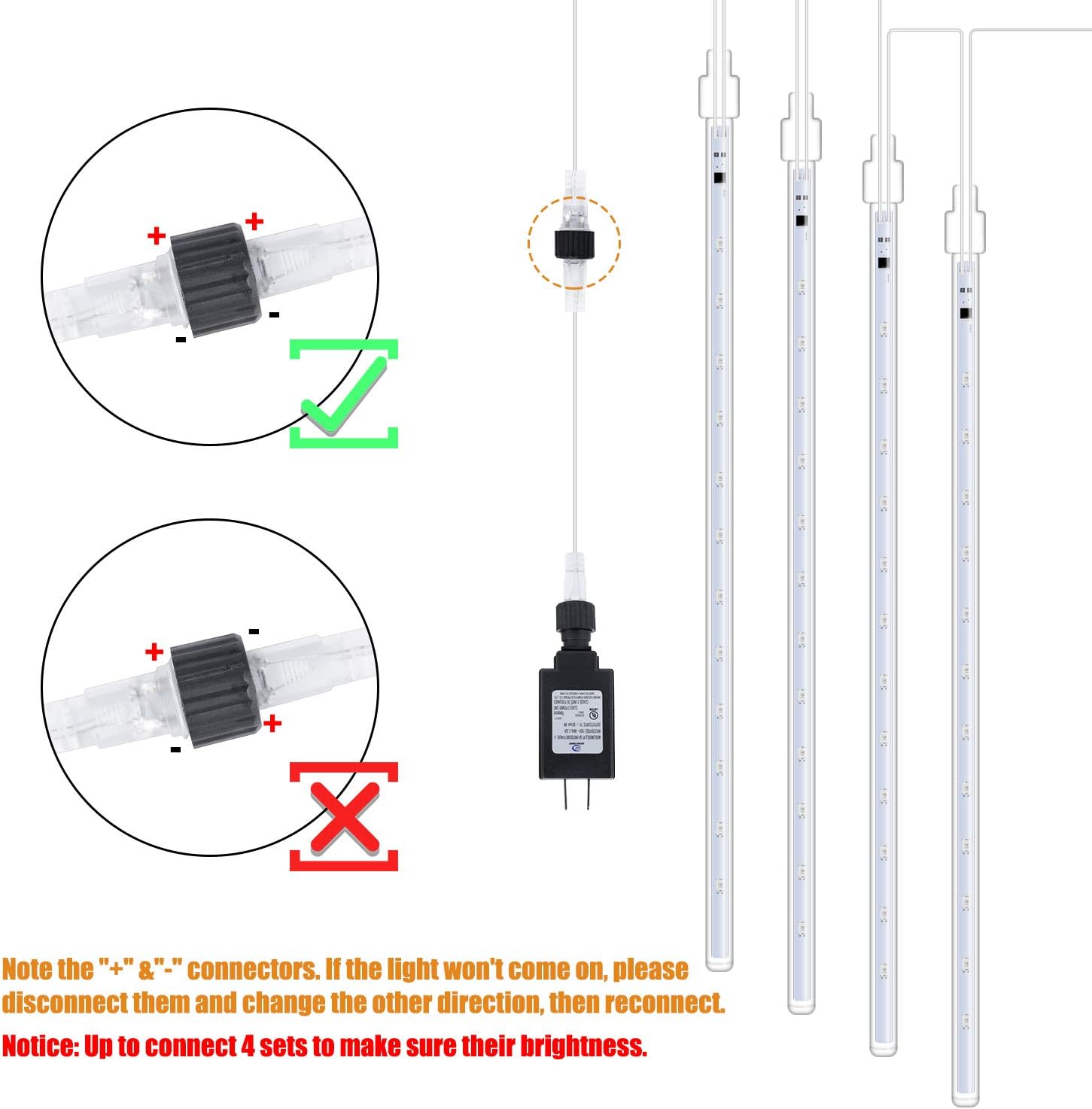

Figure 4: Correct connection (top) and incorrect connection (bottom) of light tubes, illustrating polarity.

5. Umístění: Hang the lights in your desired outdoor location, such as trees, eaves, or along architectural features. The 13.1-foot leading wire provides flexibility for placement.
6. Rozšíření pokrytí: If more length is required, up to 4 sets of these lights can be connected end-to-end to ensure optimal brightness across the entire display.


Figure 5: Dimensions of the light tubes and the maximum number of connectable sets.

Návod k obsluze

Once properly installed and connected to a power source, the Brightown Meteor Shower Lights will automatically begin their cascading light sequence. Each LED within the tubes lights up and down in a rapid, sequential pattern, simulating a meteor shower or falling snow. The multicolor LEDs create a vibrant and dynamic visual effect.

Údržba

• Čištění: To clean the light tubes, ensure the power is disconnected. Wipe gently with a soft, damp tkanina. Nepoužívejte agresivní chemikálie nebo abrazivní materiály.
• Skladování: When not in use, store the lights in a cool, dry place, away from direct sunlight and extreme temperatures. Carefully coil the wires and tubes to prevent tangling and damage.
• Inspekce: Periodically inspect the wires, connectors, and tubes for any signs of wear, damage, or corrosion. Replace any damaged components immediately.

Odstraňování problémů

• Světla se nerozsvítí:
  • Ujistěte se, že je napájecí adaptér bezpečně zapojený do funkční elektrické zásuvky.
  • Check all connections between the light tubes and the main string for proper seating and polarity (refer to Setup section, Figure 4).
  • Ověřte funkčnost zásuvky tak, že ji otestujete na jiném zařízení.
• Nekonzistentní jas:
  • If multiple sets are connected, ensure no more than 4 sets are linked together to maintain optimal brightness.
  • Check for loose connections between sets.
• Blikající světla:
  • Inspect for any damaged wires or loose connections.
  • Ujistěte se, že je napájecí zdroj stabilní.

Záruka a podpora

Brightown products typically come with a 1-letá záruka. For warranty claims, technical support, or any product-related inquiries, please contact Brightown customer service directly. Keep your purchase receipt as proof of purchase.
