Seiko 5 Sports Automatic Watch SRPD69 User Manual

1. Úvod

This manual provides comprehensive instructions for the proper use and care of your Seiko 5 Sports Automatic Watch, model SRPD69. Please read this manual thoroughly to ensure optimal performance and longevity of your timepiece. Keep this manual for future reference.

2. Konec produktuview

The Seiko 5 Sports SRPD69 is an automatic mechanical watch featuring the reliable Seiko 4R36 movement. It is designed for everyday wear with a robust stainless steel case and mesh bracelet, offering both durability and style.

Klíčové vlastnosti:

• Hnutí: Seiko Caliber 4R36 automatic mechanical movement with manual winding capability.
• Výkonová rezerva: Přibližně 41 hodiny.
• Vibrace: 21,600 vibrations per hour.
• Zobrazit: Day and date calendar function.
• Luminiscence: LumiBrite on hands and markers for enhanced visibility in low light.
• Rámeček: Unidirectional rotating bezel with a red insert.
• zadní víčko: See-through caseback to observe the movement.
• Voděodolnost: 10 bar (100 meters / 330 feet).
• Materiál pouzdra: Nerez.
• Náramek: Stainless steel mesh bracelet with a fold-over clasp.

Figure 2.1: The Seiko 5 Sports Watch SRPD69 is presented in a white and blue branded box.

3. Nastavení

3.1 Počáteční vinutí

Your Seiko 5 Sports watch is powered by an automatic mechanical movement. It does not require a battery. When the watch is not worn, it relies on its power reserve. If the watch has stopped or its power reserve is low, follow these steps:

1. Odšroubujte korunku: If your crown is a screw-down type, turn it counter-clockwise until it springs out to position 1. (Note: The SRPD69 typically has a push-pull crown, so this step may not apply. If it's a push-pull, simply pull it out.)
2. Ruční navíjení: In position 1 (normal position, or unscrewed position if screw-down), turn the crown clockwise approximately 30-40 times. This will manually wind the mainspring and build up a sufficient power reserve to start the watch.
3. Automatické navíjení: Once the watch starts ticking, wearing it on your wrist will automatically wind the mainspring through your arm's motion.

Obrázek 3.1: Strana view of the watch, highlighting the crown for winding and setting.

3.2 Nastavení času a data

Chcete-li nastavit čas a datum, postupujte takto:

1. Vytáhněte korunu: Gently pull the crown out to position 2 (first click) for date/day setting, or position 3 (second click) for time setting.
2. Nastavení data a dne:
   • In position 2, turn the crown clockwise to set the date.
   • Turn the crown counter-clockwise to set the day of the week.
   • Důležité: Avoid setting the date and day between 9:00 PM and 4:00 AM, as this can damage the movement. If you need to set the date/day during this period, first advance the time past 4:00 AM, then set the date/day, and finally set the correct time.
3. Nastavení času:
   • In position 3, turn the crown to move the hands. Advance the minute hand past the current time by a few minutes, then turn it back to the exact time.
   • To ensure accurate time setting, synchronize with a reliable time source.
4. Zatlačte korunku: Once set, push the crown back into position 0 (normal position). If it's a screw-down crown, screw it back in tightly to maintain water resistance.

3.3 Nastavení náramku

The stainless steel mesh bracelet may require adjustment for a comfortable fit. It is recommended to have this adjustment performed by a qualified jeweler or watch technician to prevent damage to the bracelet or clasp mechanism.

4. Návod k obsluze

4.1 Nošení hodinek

Wear the watch snugly on your wrist, ensuring it is not too tight or too loose. This allows the automatic winding mechanism to function effectively and provides comfort.

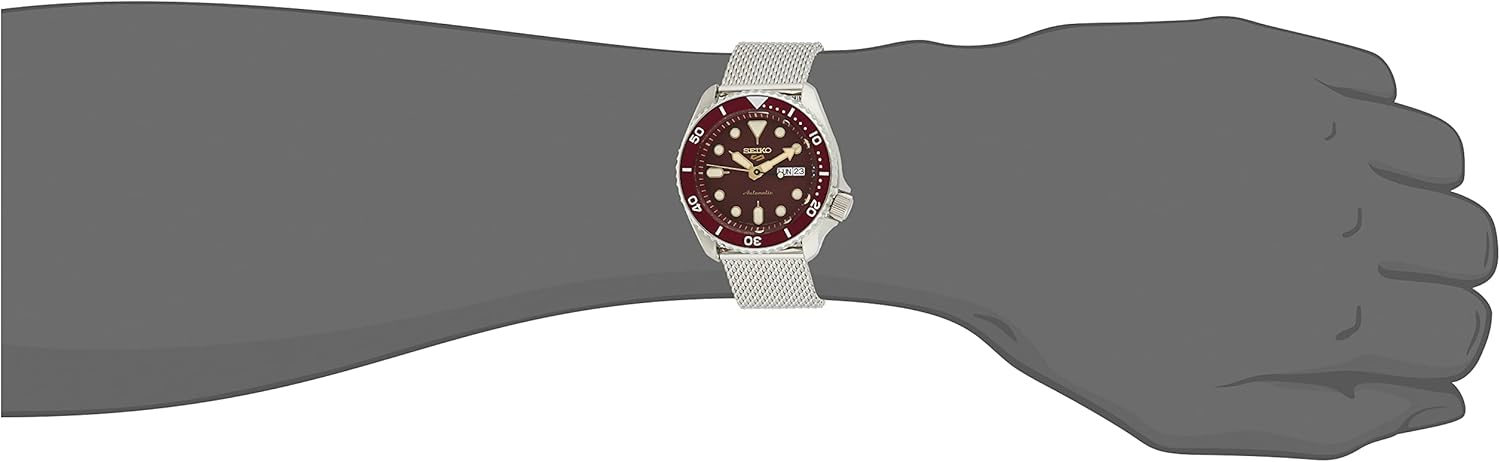

Figure 4.1: The Seiko 5 Sports Watch SRPD69 displayed on a wrist, showing its fit and appearance.

4.2 Používání jednosměrně otočné lunety

The SRPD69 features a unidirectional rotating bezel. This bezel can be used for timing events up to 60 minutes. To use it:

1. Rotate the bezel counter-clockwise until the zero mark aligns with the minute hand.
2. Minutová ručička poté bude na lunetě ukazovat uplynulý čas.

The unidirectional design prevents accidental rotation in the wrong direction, which could lead to an overestimation of elapsed time.

5. Údržba

5.1 Čištění hodinek

Regular cleaning helps maintain the appearance and hygiene of your watch:

• Otřete pouzdro a sklo měkkým, suchým hadříkem.
• For the stainless steel mesh bracelet, use a soft brush and mild soapy water to remove dirt and grime. Rinse thoroughly with clean water and dry completely.
• Ensure the crown is pushed in (and screwed down if applicable) before cleaning with water.

5.2 Voděodolnost

Your watch is water resistant to 10 bar (100 meters). This means it is suitable for swimming and snorkeling, but not for scuba diving. To maintain water resistance:

• Always ensure the crown is fully pushed in (and screwed down if applicable) before exposing the watch to water.
• Neovládejte korunku ani tlačítka, pokud jsou hodinky mokré nebo ponořené.
• Nevystavujte hodinky horké vodě, páře ani náhlým změnám teploty, mohlo by dojít k poškození těsnění.
• Have the water resistance seals checked periodically, especially after any impact or battery replacement (though this watch is automatic, seals can still degrade).

5.3 Pravidelný servis

Like any precision mechanical instrument, your watch requires periodic servicing to ensure optimal performance. It is recommended to have your watch inspected and serviced by an authorized Seiko service center every 3 to 5 years.

5.4 Skladování

When not wearing your watch for extended periods, store it in a cool, dry place away from direct sunlight, extreme temperatures, and strong magnetic fields. If stored for a long time, the watch will stop. Simply re-wind it manually and set the time before wearing.

6. Řešení problémů

7. Specifikace

Obrázek 7.1: Boční profíkfile of the Seiko 5 Sports Watch SRPD69, showcasing the case and mesh bracelet design.

Obrázek 7.2: Zadní view of the watch, displaying the transparent caseback and the automatic movement.

8. Záruka a podpora

8.1 Záruka výrobce

Your Seiko 5 Sports Automatic Watch SRPD69 is covered by a 3letá záruka výrobce from the date of purchase. This warranty covers manufacturing defects under normal use. Please refer to the warranty card included with your watch for full terms and conditions.

8.2 Zákaznická podpora

For any questions, service requests, or warranty claims, please contact your authorized Seiko retailer or visit the official Seiko website for a list of authorized service centers in your region. When contacting support, please have your watch model number (SRPD69) and proof of purchase readily available.

You can find more information and support resources on the official Seiko webmísto: www.seikowatches.com/global-en/support
