OLFA ESK-1 Beginner Craft Knife Set Instruction Manual

1. Důležité bezpečnostní informace

This craft knife set contains extremely sharp blades. Improper use can result in serious injury. Please read and understand all safety warnings before use.

• Always keep blades out of reach of children. Adult supervision is required for users under 18 years of age.
• Dbejte mimořádné opatrnosti when handling, using, and replacing blades.
• Vždy odřízněte od těla.
• Use a cutting mat or protective surface to prevent damage to your work area and to ensure safer cutting.
• Ensure the blade is fully retracted or stored safely in the disposal stand when not in use.
• Dispose of used blades properly using the integrated disposal container in the stand. Do not discard used blades in regular trash without proper containment.
• Nepoužívejte nadměrnou sílu when cutting, as this can cause the blade to break or slip.

2. Konec produktuview

The OLFA ESK-1 Beginner Craft Knife Set is designed for precision cutting in various crafting applications. It includes a craft knife with a snap-off blade and a safety disposal stand.

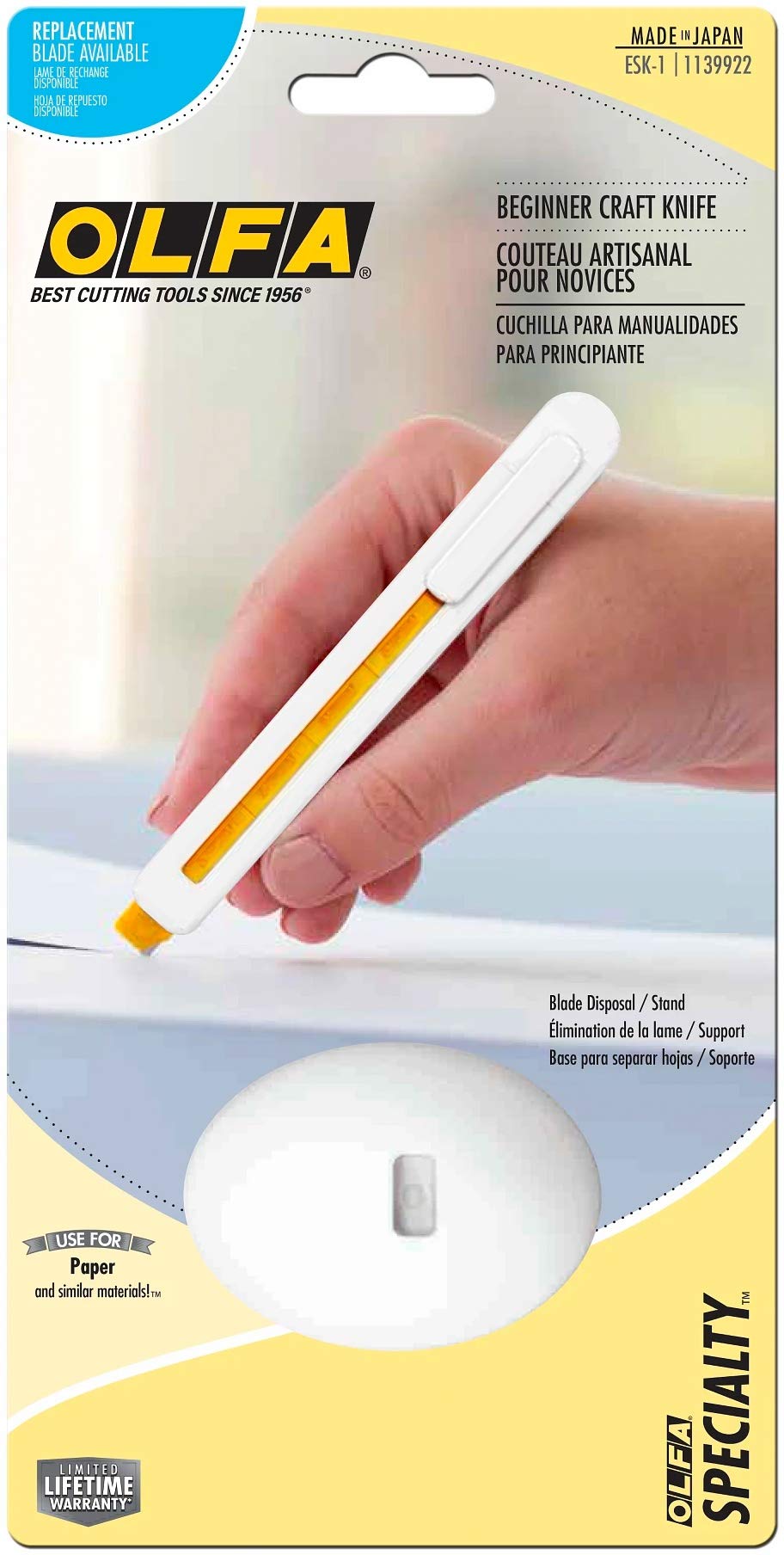

Figure 1: OLFA ESK-1 Beginner Craft Knife and Safety Disposal Stand.

Klíčové vlastnosti:

• Limited Blade Exposure: The preloaded ESKB-1/2B blade is encased in plastic, exposing only a small cutting tip for enhanced safety and control.
• Lightweight Rounded Handle: Designed for comfort and stability, reducing hand fatigue during extended use.
• Tool-Free Blade Replacement: Easy snap-off blade segments and integrated disposal system.
• Přesné řezání: Ideal for detailed and intricate work on materials like paper, vinyl, rubber, models, cardstock, and foam.

3. Nastavení a montáž

The OLFA ESK-1 craft knife comes preloaded with a blade. No assembly is required before initial use.

3.1. Understanding the Components

• Craft Knife: The main cutting tool with a retractable blade.
• ESKB-1/2B Blade: Carbon tool steel blade with 4 snap-off segments, encased in plastic.
• Safety Disposal Stand: Serves as a stand for the knife and a container for safely snapping off and storing used blade segments.

Figure 2: Craft knife and disposal stand separated.

3.2. Initial Blade Check

Before first use, gently slide the blade mechanism forward to expose the cutting tip. Ensure the blade is securely seated and moves smoothly. Retract the blade fully when not in use.

4. Návod k obsluze

4.1. Holding the Knife

Hold the knife firmly with your dominant hand. The rounded handle is designed for a comfortable grip, allowing for precise control during cutting. Position your fingers to avoid contact with the blade.

Figure 3: Proper grip for the craft knife.

4.2. Provedení řezu

1. Place the material to be cut on a protective cutting mat.
2. Gently slide the blade mechanism forward to expose only the necessary cutting tip.
3. Position the blade tip on your cutting line.
4. Apply light, consistent pressure and guide the knife along the desired path. For thicker materials, multiple light passes are recommended over a single deep cut.
5. After cutting, fully retract the blade into the handle.

Figure 4: Limited blade exposure for controlled cutting.

4.3. Snapping Off Dull Blade Segments

When the blade becomes dull, a fresh segment can be exposed using the safety disposal stand.

1. Ensure the knife is fully retracted into the stand for stability.
2. Advance the blade until the dullest segment is exposed just past the plastic casing.
3. Insert the exposed dull blade segment into the slot on the bottom of the safety disposal stand.
4. Gently bend the knife sideways until the dull segment snaps off and falls into the stand's internal disposal container.
5. Retract the blade slightly to expose the new, sharp cutting tip.

Figure 5: Snapping off a dull blade segment.

4.4. Left-Handed / Right-Handed Conversion

The OLFA ESK-1 knife can be configured for both left-handed and right-handed users. To switch the orientation:

1. Carefully remove the blade from the knife handle.
2. Reinsert the blade into the handle upside down.
3. Ensure the blade is securely seated before use.

5. Údržba

5.1. Čištění

Wipe the knife handle with a dry or slightly damp cloth to remove any debris. Do not use harsh chemicals or abrasive cleaners. Ensure the blade mechanism remains free of obstructions.

5.2. Výměna čepele

When all blade segments are used, the entire blade needs to be replaced. Use only genuine OLFA ESKB-1/2B replacement blades.

1. Fully extend the old blade from the knife handle.
2. Carefully pull the old blade out of the handle.
3. Unpack a new OLFA ESKB-1/2B blade.
4. Insert the new blade into the knife handle, ensuring it slides into the guide rails.
5. Push the blade fully into the handle until it clicks into place.
6. Test the blade mechanism to ensure smooth operation.

Replacement blades can be found zde.

5.3. Storing Used Blades

The safety disposal stand is designed to collect snapped-off blade segments. When the stand is full, empty the contents into a secure, puncture-proof container before disposing of it according to local regulations for sharp objects.

Figure 6: Safety disposal stand for used blades.

5.4. Skladování

Always store the craft knife with the blade fully retracted or securely placed in the safety disposal stand. Store the set in a dry place, away from direct sunlight and out of reach of children.

Figure 7: Craft knife stored in its safety disposal stand.

6. Řešení problémů

• Blade not extending/retracting smoothly:

  Check for any debris or material lodged in the blade channel. Clean the channel if necessary. Ensure the blade is correctly inserted.
• Cuts are rough or tearing material:

  The blade may be dull. Snap off a dull segment to expose a fresh, sharp edge. If all segments are used, replace the entire blade.

• Čepel se často láme:

  Ensure you are not applying excessive force during cutting. Use multiple light passes for thicker materials. Verify the blade is correctly seated in the handle.

• Blade segments not snapping cleanly:

  Ensure the blade is inserted correctly into the slot of the disposal stand and that sufficient force is applied to snap the segment. The stand should be on a stable surface.

7. Specifikace

8. Záruka a podpora

For information regarding product warranty, technical support, or to purchase additional accessories and replacement parts, please visit the official OLFA webwebu nebo se přímo obraťte na jejich zákaznický servis.

Official OLFA Webmísto: OLFA Store on Amazon
