Wendry 9461NGW Bluetooth 5.0 M.2 Network Card User Manual

1. Úvod

The Wendry 9461NGW is a high-performance M.2 network card designed to provide reliable wireless connectivity for compatible devices. It integrates both Wi-Fi and Bluetooth functionalities, supporting the latest standards for fast and stable connections.

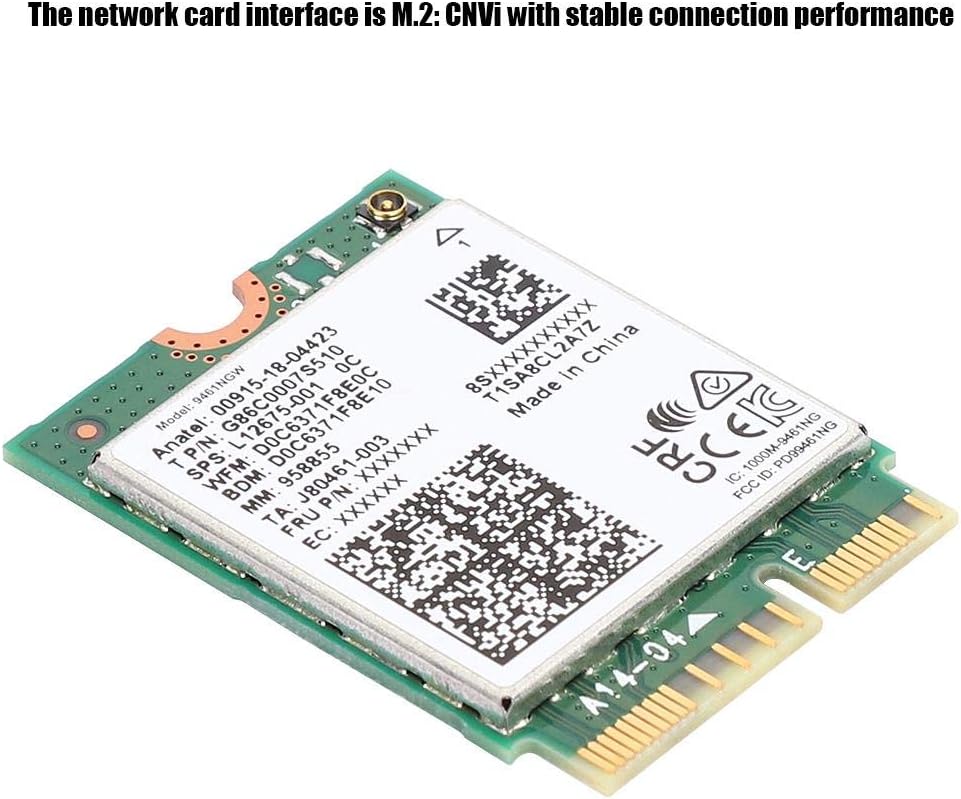

Obrázek 1.1: Shora dolů view of the Wendry 9461NGW M.2 Network Card, showing its compact form factor and M.2 interface.

Klíčové vlastnosti:

• High Speed Connectivity: Achieves AC speeds up to 433Mbps for efficient data transfer.
• Podpora dvou pásem: Operates on both 2.4G and 5G networks for versatile wireless access.
• Bluetooth 5.0: Integrated Bluetooth 5.0 for seamless connection with compatible peripherals.
• M.2 CNVi Interface: Designed with an M.2 CNVi interface for stable and reliable connection performance.
• Široká kompatibilita: Compatible with various desktops, all-in-ones, and industrial computers featuring NGFF / M.2 interfaces on the motherboard. Specifically compatible with HP 14-CE1010TX and 14-CE1006TX.
• Operační systém: Optimized for Windows 10.

2. Nastavení a instalace

Proper installation of the 9461NGW network card is crucial for optimal performance. Ensure your system is powered off and disconnected from the power source before proceeding.

2.1 Systémové požadavky:

• Available M.2 CNVi slot on motherboard.
• Operating System: Windows 10 (64-bit recommended).

2.2 Kroky instalace:

1. Připravte si systém: Vypněte počítač a odpojte všechny kabely. Otevřete kryt počítače, abyste se dostali k základní desce.
2. Vyhledejte slot M.2: Identify an available M.2 CNVi slot on your motherboard. Refer to your computer or motherboard manual if unsure.
3. Vložení síťové karty: Gently align the notch on the 9461NGW network card with the key in the M.2 slot. Insert the card at a slight angle (approximately 30 degrees) until it is fully seated.


Obrázek 2.1: Úhlové view of the network card, illustrating its M.2 connector and overall dimensions.

4. Zabezpečte kartu: Once inserted, gently push the card down towards the motherboard. Secure it with the small screw provided with your motherboard or computer, typically at the end of the M.2 slot.


Obrázek 2.2: Přední a zadní strana views of the network card, showing component layout and regulatory markings.

5. Připojení antén (pokud je to relevantní): If your system requires external antennas, carefully connect them to the small connectors on the network card. Ensure they are securely fastened.
6. Zavření pouzdra a zapnutí: Zavřete skříň počítače, znovu připojte všechny kabely a zapněte systém.

3. Návod k obsluze

After physical installation, the operating system needs to recognize and utilize the network card. This typically involves driver installation.

3.1 Instalace ovladače:

• Automatická instalace: For Windows 10, the operating system may automatically detect and install the necessary drivers upon first boot after installation.
• Ruční instalace: If drivers are not automatically installed, you may need to download them from the manufacturer's website (e.g., Intel for 9461NGW chipsets) or from your computer/motherboard manufacturer's support page.
• Správce zařízení: Verify driver status in Windows Device Manager (Right-click Start > Device Manager). Look under 'Network adapters' and 'Bluetooth'. If there are yellow exclamation marks, drivers need to be updated or installed.

3.2 Wi-Fi Connectivity:

Once drivers are installed, the network card will enable Wi-Fi functionality.

• Připojit k síti: Click the Wi-Fi icon in the system tray, select your desired network, enter the password, and connect.
• Dvoupásmový provoz: The card supports both 2.4GHz and 5GHz bands. The 5GHz band generally offers faster speeds over shorter distances, while 2.4GHz provides better range.

Figure 3.1: The network card supports both 2.4G and 5G wireless networks for flexible connectivity options.

3.3 Připojení Bluetooth:

The integrated Bluetooth 5.0 allows connection to various Bluetooth devices.

• Povolit Bluetooth: Go to Windows Settings > Devices > Bluetooth & other devices and ensure Bluetooth is turned On.
• Párování zařízení: Click 'Add Bluetooth or other device', select 'Bluetooth', and follow the on-screen prompts to pair your Bluetooth devices (e.g., headphones, mouse, keyboard).

4. Údržba

The Wendry 9461NGW network card is a robust component designed for long-term use with minimal maintenance. However, following these general guidelines can help ensure its longevity and optimal performance:

• Udržujte systém čistý: Regularly clean the interior of your computer case to prevent dust buildup, which can impede airflow and lead to overheating of components, including the network card. Use compressed air for this purpose.
• Správná manipulace: When handling the network card, always hold it by its edges to avoid touching the gold connectors or sensitive components, which can be damaged by static electricity or oils from your skin.
• Aktualizace ovladačů: Periodically check for updated drivers from the chipset manufacturer (e.g., Intel) or your computer/motherboard manufacturer. Updated drivers can improve performance, stability, and security.
• Podmínky prostředí: Ensure your computer operates in a well-ventilated area with stable temperature and humidity to prevent component stress.

5. Řešení problémů

If you encounter issues with your 9461NGW network card, refer to the following troubleshooting steps:

5.1 Wi-Fi or Bluetooth Not Detected:

• Zkontrolujte fyzické připojení: Power off your computer and verify that the network card is securely seated in the M.2 slot and the retaining screw is tightened.
• Správce zařízení: Open Device Manager in Windows. Look for 'Network adapters' and 'Bluetooth'. If the device is listed with a yellow exclamation mark or not present, try the following:
• Right-click and select 'Scan for hardware changes'.
• If present, right-click the device and select 'Update driver'. Choose 'Search automatically for updated driver software'.
• If still problematic, try uninstalling the device (right-click > 'Uninstall device') and then restart your computer. Windows should attempt to reinstall it.
• Nastavení BIOSu/UEFI: Some motherboards have options to enable/disable M.2 slots or integrated Wi-Fi/Bluetooth. Check your system's BIOS/UEFI settings to ensure the M.2 slot is enabled.

5.2 Slow Wi-Fi Speed or Frequent Disconnections:

• Aktualizace ovladačů: Ensure you have the latest drivers installed for the network card.
• Připojení antény: If using external antennas, ensure they are securely connected to the card.
• Blízkost routeru: Move closer to your Wi-Fi router or ensure there are no significant obstructions (e.g., thick walls, metal objects) between your computer and the router.
• Rušení: Other electronic devices (cordless phones, microwaves, other Wi-Fi networks) can cause interference. Try changing your Wi-Fi channel on your router.
• Nastavení routeru: Ensure your router is configured for optimal performance, including using WPA2/WPA3 encryption and appropriate channel width.

5.3 Bluetooth Device Pairing Issues:

• Ensure Device is in Pairing Mode: Refer to your Bluetooth device's manual to ensure it is in discoverable or pairing mode.
• Remove and Re-pair: In Windows Bluetooth settings, remove the problematic device and attempt to pair it again.
• Aktualizace ovladačů: Ensure Bluetooth drivers are up to date.
• Restartujte službu Bluetooth: In Windows Services (search 'services.msc'), find 'Bluetooth Support Service', right-click, and select 'Restart'.

6. Specifikace

Detailed technical specifications for the Wendry 9461NGW Bluetooth 5.0 M.2 Network Card:

7. Záruka a podpora

For warranty information and technical support regarding your Wendry 9461NGW network card, please refer to the following:

• Záruka výrobce: Specific warranty terms and duration may vary. Please retain your proof of purchase.
• Technická podpora: For assistance with installation, troubleshooting, or product inquiries, please contact Wendry customer support through their official channels or the seller from whom you purchased the product.
• Online zdroje: Visit the official Wendry store page on Amazon for additional product information and support resources: Wendry Store on Amazon.
