Uživatelská příručka k solárnímu regulátoru nabíjení EPEVER Tracer 3215BN MPPT

1. Úvod

The EPEVER Tracer 3215BN is a 30A Maximum Power Point Tracking (MPPT) solar charge controller designed for 12V/24V battery systems. It efficiently converts solar energy to charge various battery types, including Sealed, Gel, and Flooded lead-acid batteries. This controller features an integrated LCD display for system monitoring and configuration, along with advanced protection functions to ensure system reliability.

2. Vlastnosti produktu

• Pokročilá MPPT technologie: Ensures maximum power point tracking with an efficiency of no less than 99.5%, optimizing solar energy harvesting.
• Vysoká účinnost konverze: Dosahuje maximální účinnosti konverze 98 %.
• Fast Tracking Speed: Ultra-fast tracking and accurate recognition of multiple power points.
• Robustní design: Features a common negative design and die-cast aluminum construction for effective heat dissipation.
• Komplexní ochrana: Includes all-round electronic fault self-test and enhanced electronic protection functions to prevent system damage.
• Komunikační rozhraní: Equipped with an RS-485 communication bus interface and Modbus communication protocol for expanded applications and monitoring via PC or external display units like MT52.
• Software Upgrade Support: Allows for future software enhancements.
• User-Friendly Indicators: LED indicators provide clear system status.
• Flexible Load Control: Offers multiple load control modes including manual control, light ON/OFF, light On+Timer, and time control.
• Kompatibilita baterie: Supports Sealed, Gel, Flooded, and User-defined battery types.
• Teplotní kompenzace: Includes a battery temperature compensation function.
• Energetická statistika: Provides real-time energy statistics.

3. Nastavení a instalace

Proper installation is crucial for the safe and efficient operation of your EPEVER Tracer 3215BN controller. Follow these steps carefully.

3.1 Identifikace součásti

This image illustrates the various components and ports of the Tracer 3215BN controller, including the Heat Sink, RTS Port, Charging LED indicator, Solar Terminal, Battery LED indicator, Button, RS-485 Port, Battery Terminal, and Load Terminal.

3.2 Schéma zapojení

Connect the components in the specified order to prevent damage to the controller and other system components.

This diagram shows the connection sequence: Solar Panel (PV) to the controller, controller to Battery, and controller to Load (e.g., lights, fan, TV, computer via inverter). Ensure correct polarity for all connections.

1. Připojte baterii: First, connect the battery to the controller's battery terminals. Ensure correct polarity (+ to + and - to -). The controller requires battery power to operate.
2. Připojení solárních panelů: Next, connect the solar panels to the controller's PV terminals. Verify correct polarity.
3. Připojení zátěže: Finally, connect your DC loads to the controller's load terminals. If using AC loads, connect them through an inverter, which is then connected to the battery.

Důležité bezpečnostní upozornění: Always disconnect power from solar panels and battery before making or breaking any connections to the controller. Ensure all connections are tight to prevent loose contacts and overheating.

3.3 Komunikační porty

This image highlights the RTS (Remote Temperature Sensor) Port and the RS-485 Port, used for external temperature sensing and communication respectively.

• Port RTS: Connect the optional Remote Temperature Sensor (RTS) here for accurate battery temperature compensation.
• Port RS-485: Use this port for connecting to a PC, MT52 remote meter, or other monitoring devices via Modbus protocol.

4. Návod k obsluze

Once installed, the controller will automatically begin charging the battery from the solar panels. The LCD display provides real-time information about the system status.

4.1 LCD displej a tlačítka

The integrated LCD display shows various parameters such as battery voltage, charging current, load status, and error codes. Use the buttons adjacent to the display to navigate through menus and adjust settings.

4.2 Režimy řízení zátěže

Regulátor nabízí několik režimů řízení zátěže:

• Ruční ovládání: Ručně zapněte nebo vypněte zátěž.
• Světlo ZAP/VYP: Zátěž se za soumraku zapne a za úsvitu vypne.
• Light On+Timer: Zátěž se za soumraku zapne a zůstane zapnutá po nastavenou dobu.
• Ovládání času: Load operates during specific programmed times.

4.3 Remote Monitoring and Settings

The Tracer 3215BN supports remote monitoring and parameter adjustment through various accessories.

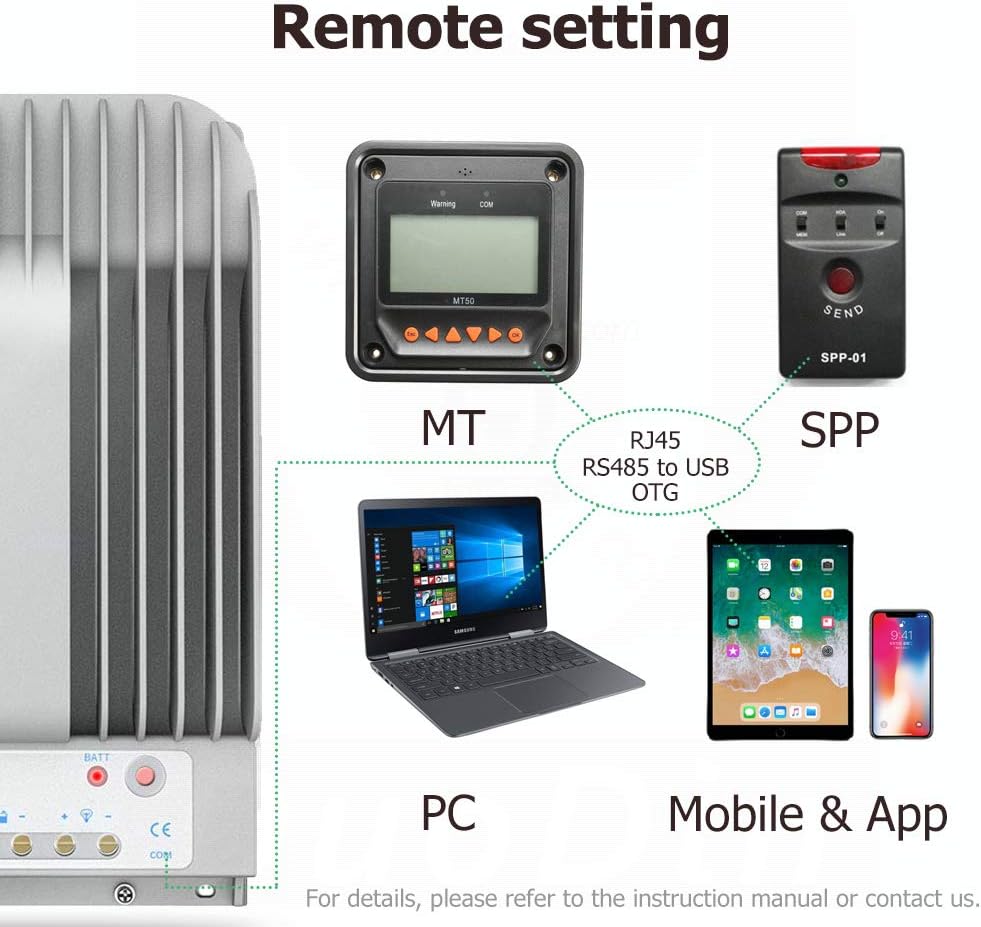

This image illustrates how the controller can be connected to an MT (remote meter), SPP (wireless module), PC, or mobile application for remote monitoring and configuration.

• MT Remote Meter: Connect an EPEVER MT series remote meter (e.g., MT52) to view real-time data and modify parameters from a distance.
• PC Software: Use EPEVER PC software by connecting the controller via an RS-485 to USB adapter for detailed monitoring, data logging, and advanced settings.
• Mobilní aplikace: Connect a compatible wireless module (e.g., Bluetooth or WiFi) to use the EPEVER mobile application for convenient monitoring and control via smartphone or tablet.

5. Údržba

Pravidelná údržba zajišťuje dlouhou životnost a optimální výkon vašeho solárního regulátoru nabíjení.

• Kontrola připojení: Pravidelně kontrolujte veškeré kabelové spoje, zda nejsou pevně utažené a zda nejsou zkorodované. Volné spoje mohou způsobit výbuch.tagkapky a přehřívání.
• Vyčistěte ovladač: Keep the controller clean and free from dust and debris. Ensure the heat sink fins are not obstructed to allow for proper heat dissipation.
• Zkontrolujte stav baterie: Monitor baterie voltage and health regularly. Ensure the battery type setting in the controller matches your installed battery.
• Podmínky prostředí: Ujistěte se, že je regulátor instalován v suchém, dobře větraném prostoru, mimo dosah přímého slunečního záření a extrémních teplot.

6. Řešení problémů

This section addresses common issues you might encounter with your Tracer 3215BN controller.

6.1 Controller Not Powering On

• Zkontrolujte připojení baterie: The controller requires a minimum battery voltage to power on. Ensure the battery is properly connected and has sufficient charge. If the battery is completely discharged, the controller may not power on until an external 12V source or sufficient solar input is provided to raise the battery voltage.
• Ověřte polaritu: Confirm that the battery connections are made with correct polarity.
• Inspect Fuses/Breakers: Check any inline fuses or circuit breakers between the battery and the controller.

6.2 No Charging Indication

• Check Solar Panel Connection: Ensure solar panels are correctly connected to the PV terminals with proper polarity.
• Verify Solar Input Voltage: Změřte objem otevřeného okruhutage of your solar panels to ensure it is within the controller's acceptable range (Max 150V).
• Sunlight Conditions: Ensure there is adequate sunlight reaching the solar panels.

6.3 Load Not Working

• Check Load Connection: Verify that the load is correctly connected to the load terminals.
• Režim ovládání zatížení: Ensure the load control mode is set appropriately (e.g., manual ON, or correct timer settings).
• Baterie Voltage: Pokud baterie objtagPokud je e příliš nízké, regulátor může odpojit zátěž, aby ochránil baterii.
• Ochrana proti přetížení: Check if the load current exceeds the controller's rated load current, triggering overload protection.

7. Specifikace

Key technical specifications for the EPEVER Tracer 3215BN MPPT Solar Charge Controller:

This table provides a comparison of key specifications between the Tracer-AN and Tracer-BN series, highlighting the superior heat dissipation and voltage ranges of the BN series.

This image details the physical dimensions of the Tracer 3215BN controller.

8. Informace o záruce

Warranty terms and conditions for EPEVER products can vary. It is recommended to confirm the specific warranty period and coverage directly with your seller (SolaMr) or the manufacturer (EPEVER) at the time of purchase. Keep your proof of purchase for any warranty claims.

9. Podpora

For technical assistance, troubleshooting beyond this manual, or inquiries regarding product functionality, please contact the following:

• Podpora prodejců: Contact SolaMr for assistance related to your purchase.
• Podpora výrobce: Visit the official EPEVER website for product documentation, FAQs, and contact information for direct manufacturer support.
