CAME BX-78 Sliding Gate Automation System User Manual

1. Úvod

This manual provides essential information for the safe and efficient installation, operation, and maintenance of the CAME BX-78 230V sliding gate automation system. The BX-78 is designed for residential sliding gates weighing up to 800 kg and with a maximum length of 14 meters. It features an integrated electronic board, radio decoding, movement control, obstacle detection, and mechanical limit switches to ensure reliable performance.

2. Bezpečnostní informace

Please read all safety instructions carefully before installation and operation. Failure to follow these instructions may result in serious injury or property damage.

• Installation must be performed by qualified personnel in accordance with local regulations and safety standards (EN 12453-EN 12445).
• Během provozu držte děti a domácí zvířata mimo dosah vrat.
• Nepoužívejte bránu, pokud je kterákoli část systému poškozená nebo nefunkční.
• Ensure all safety devices, such as photocells and emergency stops, are correctly installed and functioning.
• In case of power failure, use the manual release mechanism to operate the gate.
• Regular maintenance is crucial for safe and long-term operation.

3. Komponenty produktu

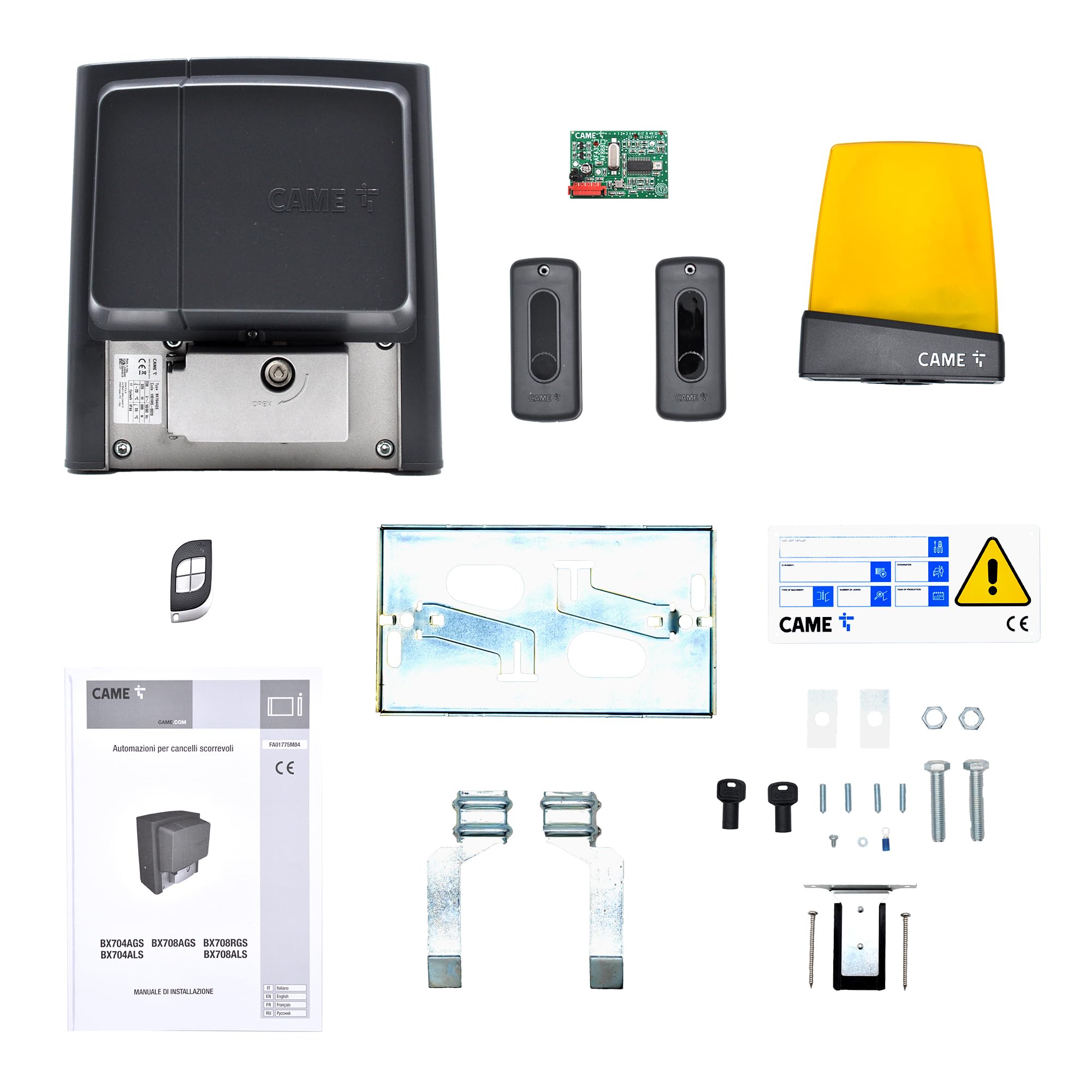

The CAME BX-78 kit typically includes the following main components:

• 001BX-78 230V Automation Unit: The core motor unit with an integrated electronic board, radio decoding, movement control, obstacle detection, and mechanical limit switches.
• 001AF43S 433.92 MHz RF Board: Radio frequency receiver board for remote control signals.
• 001TOP-432EV Two-channel Transmitter: A 433.92 MHz multi-purpose transmitter with 4,096 self-learning combinations for remote gate operation.
• 433.92 MHz Antenna: For enhancing the range and reliability of remote control signals.
• 001DIR10 Pair of Outdoor Photocells: Safety sensors (12-24 V AC-DC) with a 20-meter range to detect obstacles in the gate's path.
• 001KLED LED Signal Flasher: A warning light to indicate gate movement.

4. Instalace

Installation of the CAME BX-78 system requires technical expertise and should only be carried out by a qualified installer. This section provides a general overview; always refer to the detailed installation manual provided with the product for specific instructions and diagrams.

1. Montáž motorové jednotky: Securely mount the BX-78 motor unit on a stable concrete base next to the sliding gate, ensuring proper alignment with the gate's rack.
2. Elektrické připojení: Connect the 230V/220V power supply to the motor unit's electronic board. Connect all safety devices (photocells, flasher) and control devices (RF board, antenna) to the designated terminals on the control board.
3. Installing Safety Devices: Mount the photocells at appropriate heights and distances to detect obstacles. Install the LED signal flasher in a visible location.
4. Adjusting Limit Switches: Set the mechanical limit switches to define the gate's open and closed positions accurately.
5. Programování: Program the electronic board for gate travel, slowdowns, and remote control functions. This includes pairing the 001TOP-432EV transmitters.

For detailed wiring diagrams and programming steps, consult the comprehensive installation guide.

5. Provoz

Once installed and programmed, the CAME BX-78 system offers convenient and secure gate operation.

5.1. Dálkové ovládání

Use the provided 001TOP-432EV two-channel transmitter to open, close, or stop the gate. Pressing a programmed button will initiate the gate movement. Ensure you have a clear line of sight to the gate and that no obstacles are present before operating.

5.2. Ruční uvolnění

V případě výpadku proudutage or system malfunction, the gate can be operated manually. Locate the manual release mechanism on the motor unit, typically covered by a protective cap. Insert the provided key or lever and follow the instructions to disengage the motor, allowing the gate to be moved by hand.

5.3. Smart Control (CAME Connect)

The CAME BX-78 system is compatible with CAME Connect, allowing for remote management and control via a smartphone application. An additional gateway may be required to connect all CAME automation systems to the CAME Cloud for remote access and installer web funkčnost aplikace.

6. Údržba

Regular maintenance ensures the longevity and safe operation of your CAME BX-78 system. Perform the following checks periodically:

• Čištění: Keep the motor unit, photocells, and gate track clean and free from debris, leaves, or snow.
• Pohyblivé části: Inspect the gate's wheels, rollers, and rack for wear or damage. Lubricate moving parts as recommended by the installer.
• Bezpečnostní zařízení: Regularly test the photocells and other safety devices to ensure they respond correctly to obstructions.
• Elektrické připojení: Pravidelně kontrolujte těsnost všech elektrických spojů a známky koroze.
• Odborná kontrola: Doporučuje se nechat systém zkontrolovat kvalifikovaným technikem alespoň jednou ročně.

7. Řešení problémů

If you encounter issues with your CAME BX-78 system, refer to the following common troubleshooting tips:

• Brána nereaguje: Check the power supply, ensure the remote control batteries are not depleted, and verify that no safety devices (e.g., photocells) are obstructed or activated.
• Brána se zastaví uprostřed pohybu: This could indicate an obstruction detected by the photocells or an issue with the motor's movement control. Clear any obstructions and check the photocells.
• Neobvyklé zvuky: Investigate any unusual grinding or squealing noises, which may indicate wear on mechanical components or a need for lubrication.
• Flasher Not Working: Check the bulb or LED in the flasher unit and its electrical connection.

For persistent problems or complex issues, contact a qualified CAME service technician.

8. Specifikace

9. Záruka a podpora

For warranty information, technical support, or service requests, please contact your authorized CAME dealer or the seller from whom you purchased the product. Keep your purchase receipt and product model information handy when contacting support.
