1. Úvod
This manual provides essential information for the proper use and integration of the ProIcWorld MP3402/MP3402A DC-DC converter. The MP3402/MP3402A is a compact, high-efficiency step-up (boost) converter designed for applications requiring a regulated output voltage from a lower input voltage source. Its small SOP-8 package makes it suitable for space-constrained designs.
2. Popis produktu
The MP3402/MP3402A is an integrated circuit (IC) designed to efficiently convert a low DC input voltage to a higher, regulated DC output voltage. It incorporates an internal power switch and control circuitry to minimize external component count. This IC is ideal for portable electronic devices, battery-powered systems, and other applications where power efficiency and compact size are critical.
3. Vlastnosti
- High Efficiency Step-Up (Boost) Converter
- Integrated Power Switch
- Wide Input Voltage Dosah
- Nastavitelný výstupní objemtage
- Nadproudová ochrana
- Ochrana proti tepelnému vypnutí

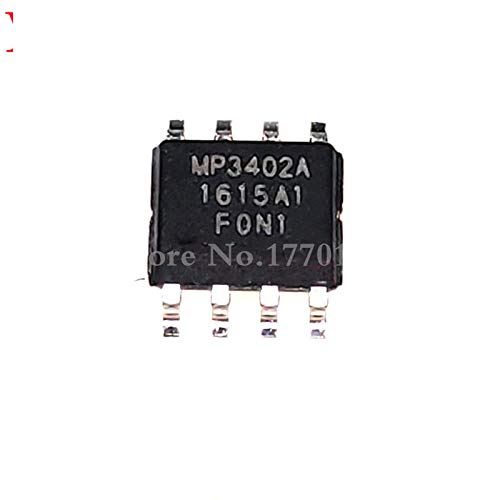

- Compact SOP-8 Package
4. Konfigurace pinů
The MP3402/MP3402A comes in an SOP-8 package. The following table describes the function of each pin:
| Pin č. | Jméno | Popis |
|---|---|---|
| 1 | SW | Switch Node. Connects to the inductor and output diode. |
| 2 | GND | Ground. Connect to the system ground. |
| 3 | FB | Feedback Pin. Connect to the output voltage dělič. |
| 4 | KOMP | Compensation Pin. Connect RC network for loop stability. |
| 5 | EN | Enable Pin. High for operation, Low for shutdown. |
| 6 | VIN | Vstupní objemtage Supply. |
| 7 | VIN | Vstupní objemtage Supply. |
| 8 | SW | Switch Node. Connects to the inductor and output diode. |
5. Specifikace
Key electrical characteristics and operating parameters:
| Parametr | Hodnota | Jednotka |
|---|---|---|
| Vstupní objemtage Dosah | 2.5 až 5.5 | V |
| Switch Current Limit | Až do 2 | A |
| Přepínací frekvence | Až do 1.2 | MHz |
| Klidový proud | Nízký | uA |
| Rozsah provozních teplot | -40 až +85 | °C |
6. Nastavení a integrace
Integrating the MP3402/MP3402A into a circuit requires careful attention to component selection and PCB layout for optimal performance and stability.
6.1. Component Selection
- Induktor: Select an inductor with appropriate saturation current and low DC resistance.
- Output Capacitor: Use low ESR ceramic capacitors for stable output voltage.
- Input Capacitor: A ceramic capacitor at the input helps filter input ripple.
- Feedback Resistors: Precision resistors are recommended for accurate output voltage nastavení.
- dioda: A Schottky diode is recommended for the output rectifier due to its low forward voltage pokles.
6.2. Pokyny pro rozvržení desek plošných spojů
- Keep power traces (VIN, SW, GND) short and wide to minimize parasitic inductance and resistance.
- Place input and output capacitors as close as possible to the IC pins.
- Ensure a solid ground plane for thermal dissipation and noise reduction.
- Route the feedback trace (FB) away from noisy switching nodes to prevent interference.
7. Principy fungování
The MP3402/MP3402A operates as a boost converter, storing energy in an inductor during the switch ON-time and releasing it to the output during the switch OFF-time. The feedback pin (FB) monitors the output voltage, and the internal control loop adjusts the duty cycle of the internal power switch to maintain a constant output voltage, even with varying input voltage or load conditions.
8. Údržba
As an integrated circuit, the MP3402/MP3402A requires no routine maintenance. Ensure that the operating environment remains within the specified temperature and humidity ranges to prevent damage or degradation of performance. Avoid physical stress or electrostatic discharge (ESD) during handling and assembly.
9. Řešení problémů
If the MP3402/MP3402A circuit is not functioning as expected, consider the following troubleshooting steps:
- No Output Voltage:
- Ověřte vstupní objtage (VIN) is within the specified range.
- Check if the Enable (EN) pin is pulled high.
- Inspect all solder joints and component connections for continuity.
- Ensure the output diode is correctly oriented and functional.
- Unstable Output Voltage:
- Check the values and ESR of input and output capacitors.
- Verify the feedback resistor network for correct values and connections.
- Review PCB layout for excessive noise or long traces, especially on the feedback path.
- Přehřívání:
- Ensure the load current does not exceed the IC's capabilities.
- Zkontrolujte zkraty na výstupu.
- Verify proper thermal dissipation through the PCB ground plane.
10. Záruka a podpora
As a component, the MP3402/MP3402A is typically covered by the warranty provided by the distributor or seller at the point of purchase. For specific warranty terms, please refer to the purchase agreement or contact your supplier, ProIcWorld. Technical support for integration and application-specific questions may be available through the original component manufacturer's datasheets and application notes, or from your component supplier.
For further assistance, please contact your point of purchase or refer to the official datasheets for the MP3402/MP3402A series.
