Quictent ML-KK-GM1203RB-S-GC-R1

Quictent Privacy 10x10 Pop-Up Canopy Tent with Sidewalls Instruction Manual

Model: ML-KK-GM1203RB-S-GC-R1

Důležité bezpečnostní informace

Před instalací nebo použitím stanu s baldachýnem si prosím přečtěte a pochopte všechna bezpečnostní varování. Nedodržení těchto pokynů může vést ke zranění nebo poškození výrobku.

  • Ensure the shelter is securely anchored to withstand wind.
  • Avoid prolonged UV exposure to maximize fabric lifespan.
  • This product's fabric is flammable and should be kept away from open flames or heat sources.
  • Do not use the canopy in extreme weather conditions, including heavy winds, storms, or snow.

Konec produktuview

Seznam komponent

  • 1 x Instant Folding Frame
  • 1 x Roof Cover
  • 4 x Sidewalls (2 door panels, 2 window panels)
  • 1 x Set of Stakes and Ropes
  • 1 x Přepravní taška na kolečkách

Vlastnosti produktu

  • One-Person Easy Setup: Features a central lock structure and an integrated folding frame, allowing for quick setup and takedown.
  • Roll-Up Ventilated Windows: Unique mesh window design on sidewalls provides fresh air, outdoor views, and mosquito protection.
  • Waterproof & Sun Protection: Crafted from durable 420D Oxford fabric with an advanced UV coating, offering 99% UV blockage (UPF 50+) and waterproof performance.
  • Multi-Functional Sidewalls: Four detachable and interchangeable sidewalls (two door panels, two window panels) can be freely combined for weather protection or removed for ventilation.
  • Easy Transport & Portability: The entire canopy and sidewalls fold down compactly and store in a wheeled carry bag for effortless transport and storage.

Pokyny pro nastavení

1. Vybalování

Carefully remove the canopy frame and all components from the wheeled carry bag. Lay the folded frame flat on the ground in your desired setup location.

Quictent Privacy 10x10 Pop-Up Canopy Tent in Royal Blue, ready for setup.
Quictent Privacy 10x10 Pop-Up Canopy Tent in Royal Blue, ready for setup.

2. Frame Expansion

With a partner, gently pull the outer legs of the frame outwards until it is partially expanded. Step under the canopy and push up on the central lock mechanism until it clicks securely into place, fully expanding the frame.

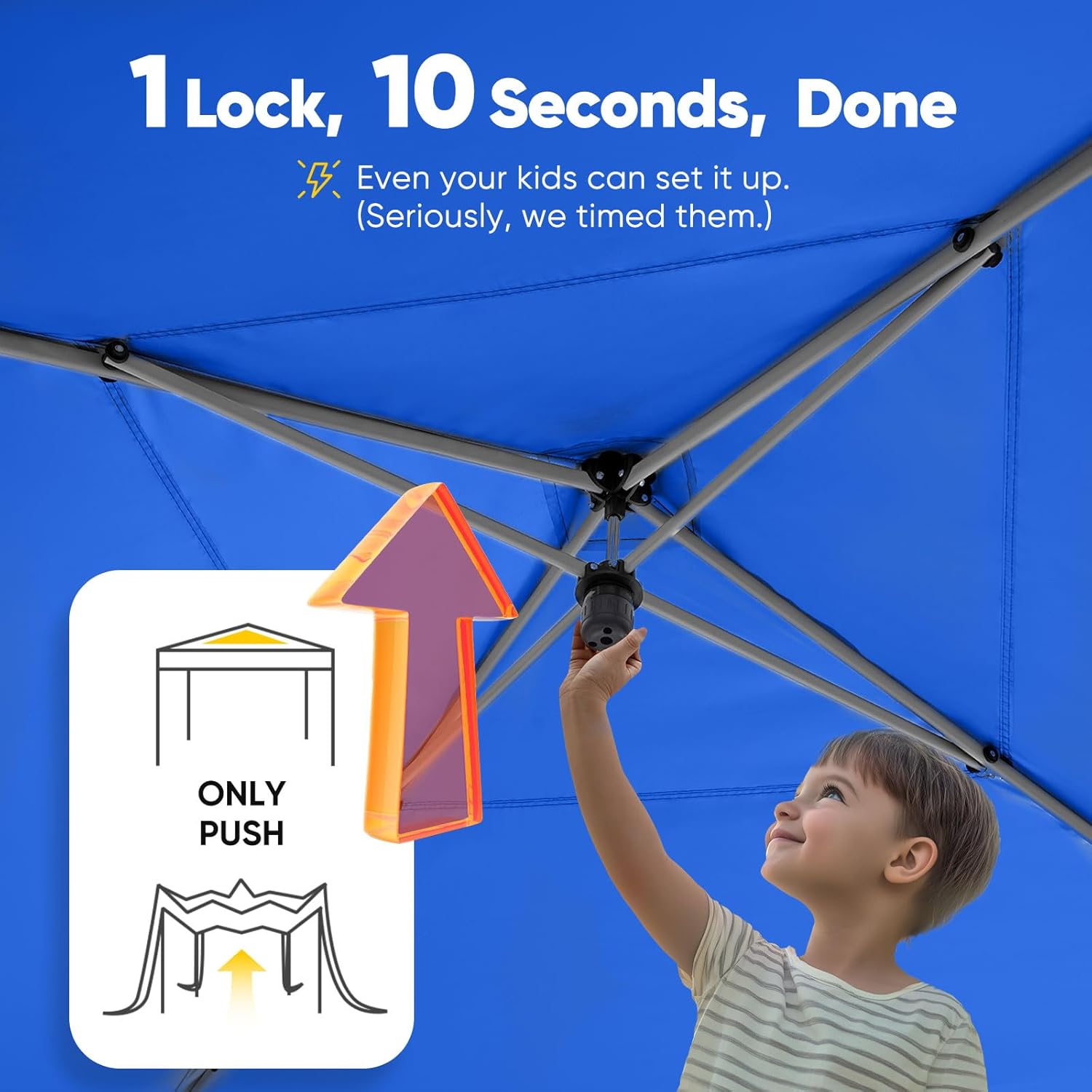

A child demonstrating the one-push setup mechanism of the canopy frame.
A child demonstrating the one-push setup mechanism of the canopy frame.

3. Attaching the Canopy Top

Drape the roof cover over the expanded frame. Secure the corners and edges of the canopy top to the frame using the attached hook and loop fasteners. Ensure the fabric is taut to prevent water pooling.

4. Attaching Sidewalls

Attach the four sidewalls to the canopy frame using the integrated hook and loop fasteners. The sidewalls are interchangeable, allowing for flexible configuration with two door panels and two window panels. Zip them together for full enclosure or leave them open for access.

A Quictent canopy tent with sidewalls attached, showing the roll-up mesh windows.
A Quictent canopy tent with sidewalls attached, showing the roll-up mesh windows.

5. Securing the Canopy

Extend the legs to the desired height, ensuring each leg locks securely into place. Use the provided stakes and ropes to anchor the canopy firmly to the ground, especially in windy conditions. For additional stability, sandbags can be attached to the legs.

A Quictent canopy tent with sidewalls, demonstrating its weather resistance against rain and snow.
A Quictent canopy tent with sidewalls, demonstrating its weather resistance against rain and snow.

Video demonstrating the easy setup process of the Quictent pop-up canopy with sidewalls.

Videoprezentaceasing the waterproof features and sidewall attachment of the Quictent 10x10 pop-up canopy tent.

Návod k obsluze

Nastavení výšky

The canopy legs feature adjustable height settings. To adjust, press the release button on each leg and slide the inner leg to the desired height. Ensure the leg locks securely into one of the pre-drilled holes before use.

Using Roll-Up Windows

The sidewalls include roll-up mesh windows for ventilation and visibility. To open, unzip the window panel and roll it upwards, securing it with the attached toggles. To close, unfasten the toggles and zip the panel down completely.

A person relaxing inside a Quictent privacy canopy tent, demonstrating the privacy and view offered by the roll-up window.
A person relaxing inside a Quictent privacy canopy tent, demonstrating the privacy and view offered by the roll-up window.

Údržba

Čištění

Clean the canopy fabric and sidewalls with mild soap and water. Avoid using harsh chemicals, bleach, or abrasive cleaners, as these can damage the fabric and UV coating. Rinse thoroughly and allow all components to air dry completely before storage to prevent mildew and odors.

Skladování

Before storing, ensure the canopy fabric, frame, and all accessories are clean and completely dry. Fold the canopy neatly and place all components back into the wheeled carry bag. Store the bag in a cool, dry place away from direct sunlight and extreme temperatures to prolong the product's lifespan.

Odstraňování problémů

Běžné problémy

  • Difficulty expanding/collapsing frame: Ensure all locking mechanisms are disengaged before attempting to expand or collapse the frame. Apply even pressure when expanding or collapsing. If the frame is stiff, check for any obstructions or bent parts.
  • Hromadění vody na vrcholu střechy: Verify that the canopy top is taut and properly secured to the frame at all attachment points. Adjust leg heights if necessary to create proper tension and ensure adequate drainage.
  • Instability in windy conditions: Always use the provided stakes and ropes to anchor the canopy firmly to the ground. For added stability, especially on hard surfaces, utilize sandbags or other heavy objects on each leg. Never leave the canopy unattended in strong winds.

Informative video detailing five methods to reinforce and prevent collapse of a canopy tent.

Specifikace

ZnačkaKlidný
MateriálAlloy Steel (Frame), 420D Oxford fabric (Canopy)
BarvaKrálovská modrá
Hmotnost položky42.7 libry
Rozměry položky (D x Š x V)118"L x 118"W x 104"H (10x10ft)
Podlahová plocha100 čtverečních stop
Ochrana před ultrafialovým zářením99.99% (UPF 50+)
Úroveň odolnosti proti voděVodotěsný
Typ rámuPop-up
Typ uzávěruHook & Loop, Zipper
Zahrnuté komponenty1 Set of Stakes and Ropes, 1x Carry Bag, 1x Instant folding frame, 1x Roof Cover, 4x Sidewalls
Číslo modeluML-KK-GM1203RB-S-GC-R1

Záruka a podpora

Informace o záruce

The Quictent Privacy 10x10 Pop-Up Canopy Tent comes with the following warranty:

  • Lifetime Free Replacement for Ropes and Stakes.
  • 6 Months Free Warranty for Roof, Sidewalls, Frame, and Poles.
  • Lifetime Free Replacement for a few Natural-loss Parts.
  • Lifetime 50% OFF Parts Supply exceeding the normal 6 months warranty period.

Uschovejte si prosím doklad o koupi pro uplatnění záruky.

Zákaznická podpora

For further assistance, parts replacement, or warranty claims, please contact Quictent customer support through the retailer where the product was purchased or visit the official Quictent webstránky pro kontaktní informace.
