Ducane Gas Grill LP Propane Gas Valve Replacement Manual

Zavedení

This manual provides detailed instructions for the safe and proper installation, operation, and maintenance of the Ducane Gas Grill LP Propane Gas Valve Replacement, Model 20175401. This brass valve is designed for specific Ducane Aluminum Series gas grills. Please read this manual thoroughly before proceeding with any installation or maintenance to ensure safety and optimal performance.

Konec produktuview

The Ducane Gas Grill LP Propane Gas Valve (Model 20175401) is a replacement brass control valve for various Ducane Aluminum Series gas grills. It is crucial for regulating the flow of LP propane gas to the grill burners. This valve replaces original part numbers 20175401, G1827566, and 37800.

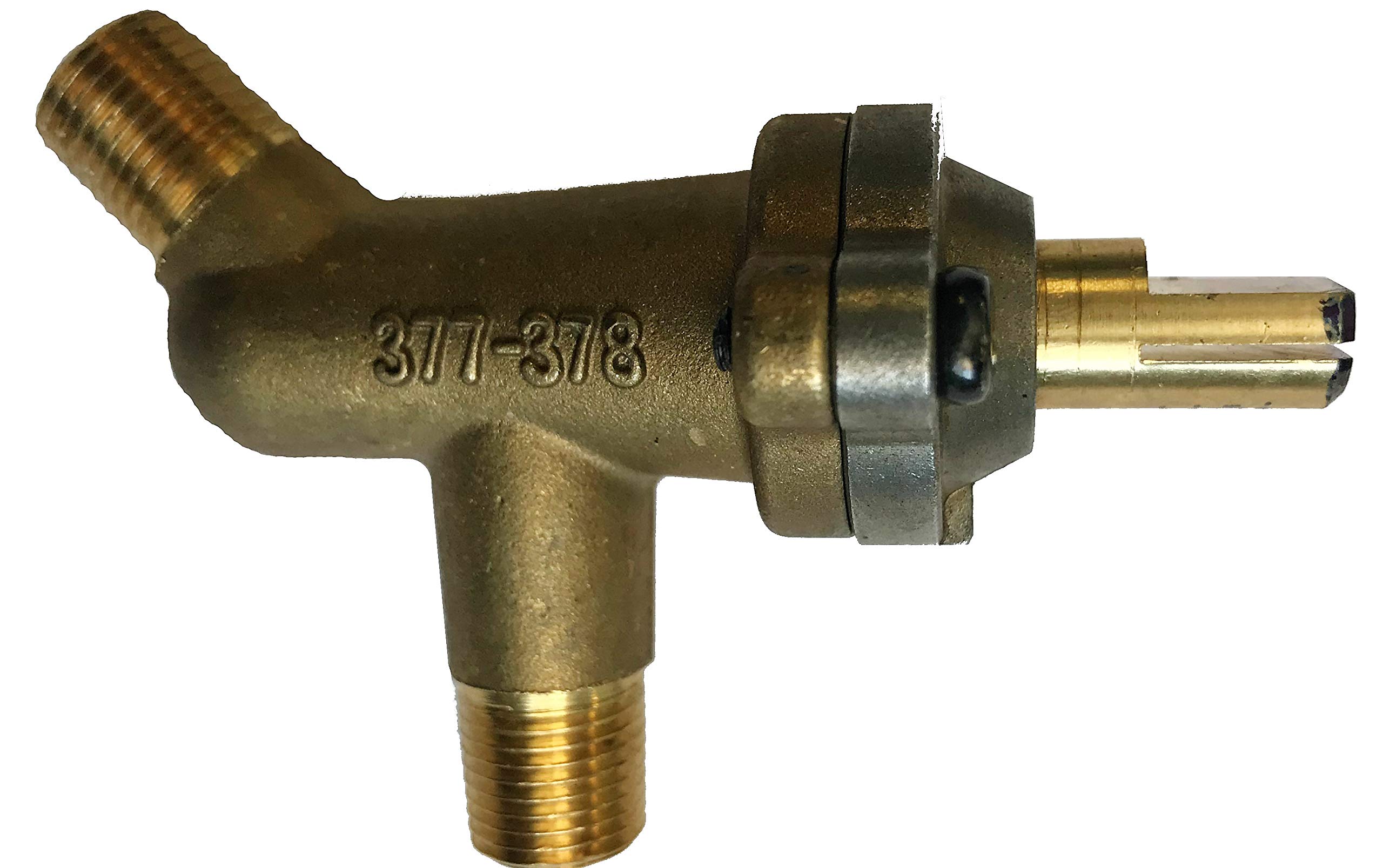

Image: Ducane Gas Grill LP Propane Gas Valve Replacement, Model 20175401. This image shows the brass gas valve with its stem and connection points.

Kompatibilní modely grilů:

• 1000, 1005, 1005SHLPE
• 1200, 1200HLPE, 1202, 1202S, 1202SHLPE, 1204, 1204S, 1204SHLPE, 1205, 1205SHLPE
• 1305, 1305SHLPE
• 1500, 1502, 1502S, 1502SHLPE, 1504, 1504S, 1504SHLPE, 1505, 1505SHLPE
• 1600, 1600SHLPE, 1600SHNE, 1605, 1605SHLPE, 1605SHNE
• 2000, 2002, 2002HLPE

Note: Always compare the new valve with your old valve to ensure compatibility before installation.

Bezpečnostní informace

VAROVÁNÍ: Nesprávná instalace, seřízení, úprava, servis nebo údržba může způsobit zranění nebo poškození majetku. Před instalací nebo servisem tohoto zařízení si důkladně přečtěte pokyny pro instalaci, provoz a údržbu.

• Always disconnect the gas supply (turn off the LP tank valve) before attempting any installation, maintenance, or repair.
• Ensure the grill is completely cool before working on it.
• Používejte vhodné osobní ochranné prostředky, jako jsou rukavice a ochrana očí.
• Perform a leak test after any gas component replacement.
• If you smell gas, immediately turn off the gas supply, ventilate the area, and do not operate the grill or any electrical switches. Contact a qualified service technician.
• This valve is for LP Propane Gas only. Do not attempt to use it with natural gas unless explicitly stated as compatible.

Nastavení a instalace

This section outlines the steps for replacing your existing gas valve with the Ducane Model 20175401.

Požadované nástroje:

• Adjustable wrench or appropriate size open-end wrench
• Šroubovák (křížový nebo plochý, v závislosti na modelu grilu)
• Roztok pro detekci netěsností (mýdlová voda)
• Rukavice a ochrana očí

Kroky instalace:

1. Odpojení přívodu plynu: Turn off the gas supply at the LP tank valve and disconnect the regulator from the tank.
2. Ochladit: Ensure the grill is completely cool to the touch.
3. Access Valve: Depending on your grill model, you may need to remove control knobs, the control panel, or other components to access the gas manifold and valves. Refer to your specific grill's owner's manual for detailed disassembly instructions.
4. Demontáž starého ventilu:
   • Carefully disconnect the gas line from the old valve.
   • Unscrew or unclip the old valve from the manifold.
   • Důležité: The orifice is NOT included with the new valve. Carefully remove the orifice from the old valve. It is typically a small brass fitting at the end of the valve where the gas exits towards the burner.
5. Install Orifice: Screw the removed orifice from your old valve into the new Ducane Model 20175401 replacement valve. Ensure it is securely tightened.
6. Instalace nového ventilu:
   • Attach the new valve to the gas manifold, ensuring a snug fit.
   • Connect the gas line to the new valve. Hand-tighten first, then use a wrench to tighten securely, but do not overtighten.
7. Sestavení grilu: Reattach any control panels, knobs, or other components that were removed.
8. Znovu připojte přívod plynu: Reconnect the LP regulator to the gas tank.
9. Proveďte zkoušku těsnosti: Proceed to the "Operating" section for leak testing instructions.

Operating (Leak Test)

After installing the new gas valve, it is critical to perform a leak test before operating the grill.

1. Připravte si roztok: Mix a solution of equal parts liquid dish soap and water in a spray bottle or small container.
2. Aplikujte řešení: With the gas supply turned on at the LP tank, but the grill burners turned off, apply the soapy water solution to all gas connections, including the new valve connections, the regulator connection to the tank, and any other gas line connections.
3. Check for Bubbles: Observe the connections for bubbles. The presence of bubbles indicates a gas leak.
4. Address Leaks: If bubbles appear, immediately turn off the gas supply. Tighten the connection where the leak is detected. Repeat the leak test. If the leak persists, do not use the grill and contact a qualified service technician.
5. Žádné bubliny: If no bubbles appear, the connections are secure, and the grill is ready for use. Wipe off any excess soapy solution.

Údržba

Proper maintenance ensures the longevity and safe operation of your gas valve.

• Pravidelná kontrola: Periodically inspect the gas valve and connections for any signs of wear, corrosion, or damage.
• Čistota: Keep the area around the gas valve clean and free from grease buildup, debris, or insect nests.
• Kontroly těsnosti: Perform a leak test at the beginning of each grilling season or if the grill has been moved or stored for an extended period.
• Vyhněte se agresivním chemikáliím: Do not use abrasive cleaners or harsh chemicals on the valve, as this can damage the brass or seals.

Odstraňování problémů

If you encounter issues not listed here or if troubleshooting steps do not resolve the problem, contact Ducane customer support or a qualified service technician.

Specifikace

• Číslo dílu: 20175401
• Nahrazuje čísla dílů: G1827566, 37800
• Materiál: Mosaz
• Délka stonku: 5/8 palce
• Celková délka: 2 5/8 palce
• Výška: 1 3/4 palce
• Typ plynu: LPG propan
• Otvor: Not included (re-use existing orifice)

Záruka a podpora

For information regarding warranty coverage or technical support, please refer to the original purchase documentation or contact Ducane customer service directly. Keep your proof of purchase for any warranty claims.

Zákaznická podpora: Please visit the official Ducane website or refer to your grill's original manual for contact information.
