VoltEdge TX20 Universal Headset Instruction Manual

1. Úvod

The VoltEdge TX20 Universal Headset is designed for versatile audio experiences, whether at home or on the go. Its lightweight construction, combined with a retro aesthetic, provides comfort and style. Engineered with stainless steel and polypropylene, the TX20 offers a flexible and durable design. Custom dynamic drivers deliver quality in-game sound, while the directional in-line microphone ensures clear chat audio. Convenient volume control and an instant push-pull mute function are integrated for ease of use.

Klíčové vlastnosti:

• Lehký a pohodlný design
• Retro-inspired style
• In-line microphone with minimal feedback
• Custom dynamic audio drivers
• Robust and durable build quality

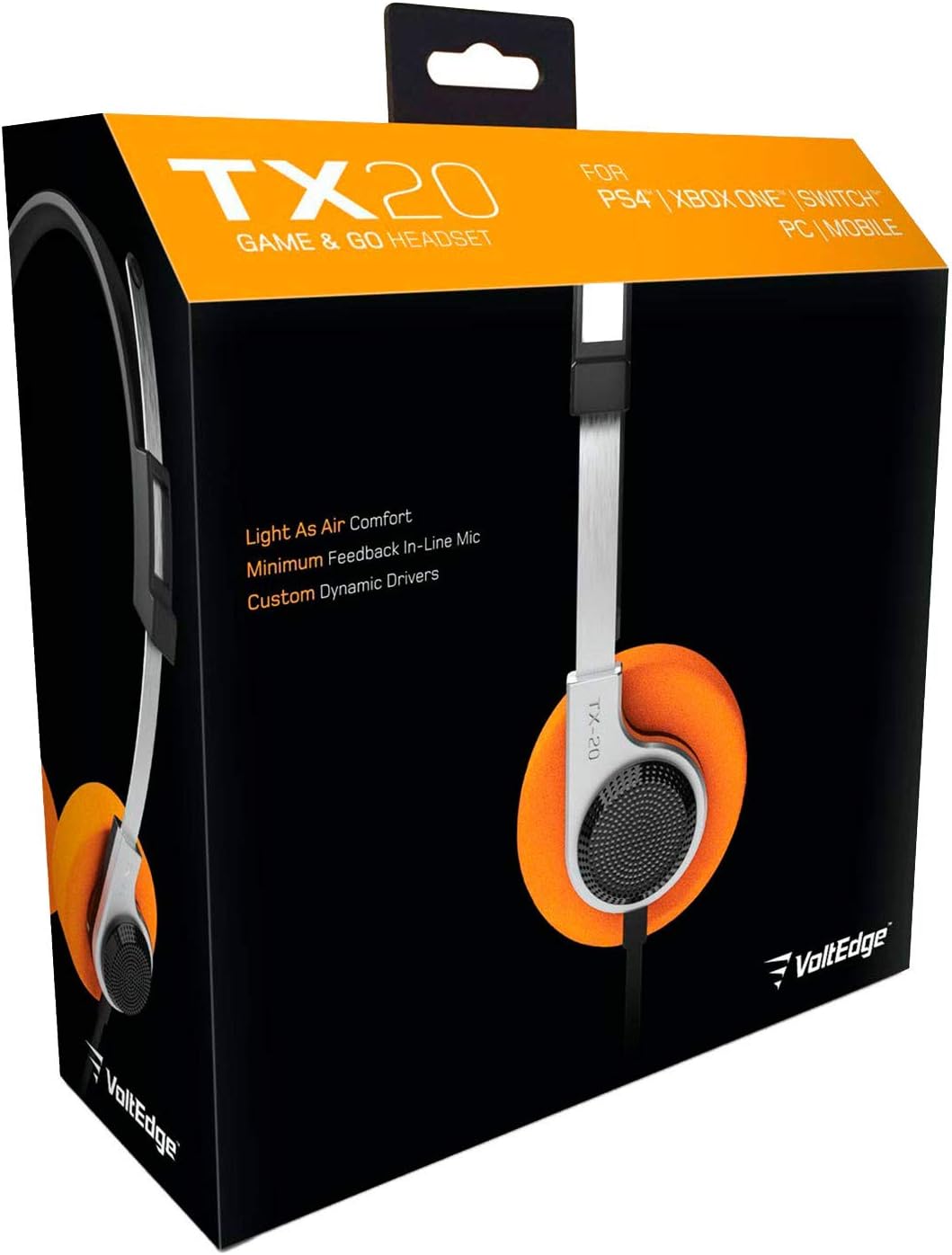

Figure 1: VoltEdge TX20 Universal Headset packaging, showing the headset and key features.

2. Komponenty produktu

The VoltEdge TX20 headset consists of the following main components:

• Nastavitelná čelenka: Pro bezpečné a pohodlné nošení.
• On-Ear Earcups: Featuring custom dynamic drivers and soft ear cushions.
• Řídicí jednotka Řady: Contains volume control and a mute switch for the microphone.
• Directional In-line Microphone: Pro jasnou hlasovou komunikaci.
• 3.5mm audio jack: For universal connectivity to various devices.

Obrázek 2: Přední strana view of the VoltEdge TX20 Headset, showing the headband and earcups.

Obrázek 3: Strana view of the VoltEdge TX20 Headset, highlighting the earcup design and TX-20 branding.

3. Pokyny k nastavení

3.1 Připojení náhlavní soupravy

1. Locate the 3.5mm audio jack on your gaming console controller (e.g., PS4, Xbox One), Nintendo Switch, PC, or mobile device.
2. Insert the 3.5mm audio jack from the VoltEdge TX20 headset firmly into the audio port of your device.
3. Ujistěte se, že je připojení bezpečné, abyste předešli přerušení zvuku.

3.2 Úprava pro pohodlí

• Gently extend or retract the headband to fit your head size.
• Position the earcups so they rest comfortably over your ears. The on-ear design should provide a snug fit without excessive pressure.

4. Návod k obsluze

4.1 Ovládání hlasitosti

The VoltEdge TX20 features an in-line control unit on the cable. To adjust the audio volume, slide the volume wheel up or down. Increase the volume by sliding it up, and decrease it by sliding it down.

4.2 Funkce ztlumení mikrofonu

To mute the microphone, locate the push-pull switch on the in-line control unit. Push the switch to mute your microphone, preventing your voice from being transmitted. Pull the switch to unmute the microphone and resume voice communication.

4.3 Obecné použití

• Hraní: Connect to your console or PC for immersive game audio and clear team chat.
• Hudební video: Enjoy high-quality audio for music playback and video streaming on compatible devices.
• Mobile Calls: Use the integrated microphone for hands-free calls on your smartphone.

5. Údržba

5.1 Čištění

• Use a soft, dry cloth to wipe the exterior surfaces of the headset.
• Náušníky jemně otřete lehceamp V případě potřeby osušte hadříkem a poté ihned osušte.
• Avoid using harsh chemicals, solvents, or abrasive cleaners, as these can damage the headset's finish.

5.2 Skladování

• Sluchátka skladujte na chladném a suchém místě mimo dosah přímého slunečního záření a extrémních teplot.
• Avoid tangling the cable. Consider coiling it loosely when not in use.

5.3 Opatření pro manipulaci

• Nevystavujte sluchátka vodě ani nadměrné vlhkosti.
• Zabraňte pádu sluchátek na zem nebo jejich vystavení silným nárazům.
• Do not attempt to disassemble or modify the headset, as this will void any warranty.

6. Řešení problémů

6.1 Žádný zvuk nebo nízká hlasitost

• Zkontrolujte připojení: Ujistěte se, že je 3.5mm audio konektor zcela zasunut do audio portu zařízení.
• Upravit hlasitost: Verify that the in-line volume control on the headset is turned up. Also, check the volume settings on your connected device.
• Test na jiném zařízení: Connect the headset to a different device (e.g., smartphone, another PC) to determine if the issue is with the headset or the original device.

6.2 Microphone Not Working or Unclear

• Check Mute Switch: Ensure the in-line microphone mute switch is in the "unmute" position.
• Nastavení zařízení: Verify microphone input settings on your connected device (e.g., PC sound settings, console audio settings). Ensure the TX20 is selected as the input device.
• Nastavení aplikace: Some applications (e.g., gaming chat, video conferencing) have their own microphone settings. Check these as well.
• Test na jiném zařízení: As with audio, test the microphone on another device to isolate the problem.

6.3 Static or Distorted Audio

• Zkontrolujte připojení: A loose connection can cause static. Re-insert the 3.5mm jack firmly.
• Rušení: Move away from other electronic devices that might be causing interference.
• Kvalita zdroje: Ensure the audio source itself is of good quality.

7. Technické specifikace

8. Informace o záruce

VoltEdge products are manufactured to high-quality standards. For specific warranty details regarding your TX20 Universal Headset, please refer to the warranty card included with your purchase or visit the official VoltEdge webUschovejte si doklad o koupi pro případné reklamace.

9. Zákaznická podpora

If you encounter any issues or have questions not covered in this manual, please contact VoltEdge customer support. You can typically find contact information on the product packaging, the official VoltEdge webwebu nebo prostřednictvím svého prodejce.

For the most up-to-date support resources, please visit the official VoltEdge webmísto: VoltEdge Store on Amazon
