Zavedení
This manual provides detailed instructions for the safe and efficient operation, maintenance, and troubleshooting of your JOYROOM Portable Air Compressor Tire Inflator CY-006. Please read this manual thoroughly before using the product and retain it for future reference.
Komponenty produktu
Familiarize yourself with the various parts of the air compressor:
- Zacházet s: Pro snadné přenášení.
- Digitální tlakoměr: Displays current and target pressure.
- LED svítilna: Provides illumination for nighttime use or emergencies.
- Přepínač svítilny: To turn the LED flashlight on or off.
- Přepínač ON/OFF: Activates or deactivates the compressor.
- Vzduchová hadice: Connects to the tire valve stem.
- Power Cord (10FT): Connects to a 12V DC power source (cigarette lighter).
- Zástrčka zapalovače cigaret: For vehicle power connection.
- Additional Nozzle Attachments: For inflating various items like balls and bicycle tires.
Image: Labeled diagram showing the handle, digital pressure gauge, LED flashlight, switches, air hose, power cord, cigarette lighter plug, and additional nozzle attachments of the JOYROOM Portable Air Compressor.
Nastavení
- Připojte napájení: Insert the cigarette lighter plug into your vehicle's 12V DC power outlet. Ensure your vehicle's engine is running to provide stable power.
- Připojte vzduchovou hadici: Screw the air hose connector onto the tire valve stem. Ensure a tight seal to prevent air leakage.
- Zapnutí: Flip the ON/OFF switch to the 'ON' position. The digital display will illuminate.
- Nastavte požadovaný tlak: Use the '+' and '-' buttons to set your target tire pressure. The 'M' button allows you to cycle through pressure units (PSI, KPA, BAR, KG/CM²). Consult your vehicle's manual or door jamb sticker for recommended tire pressure.

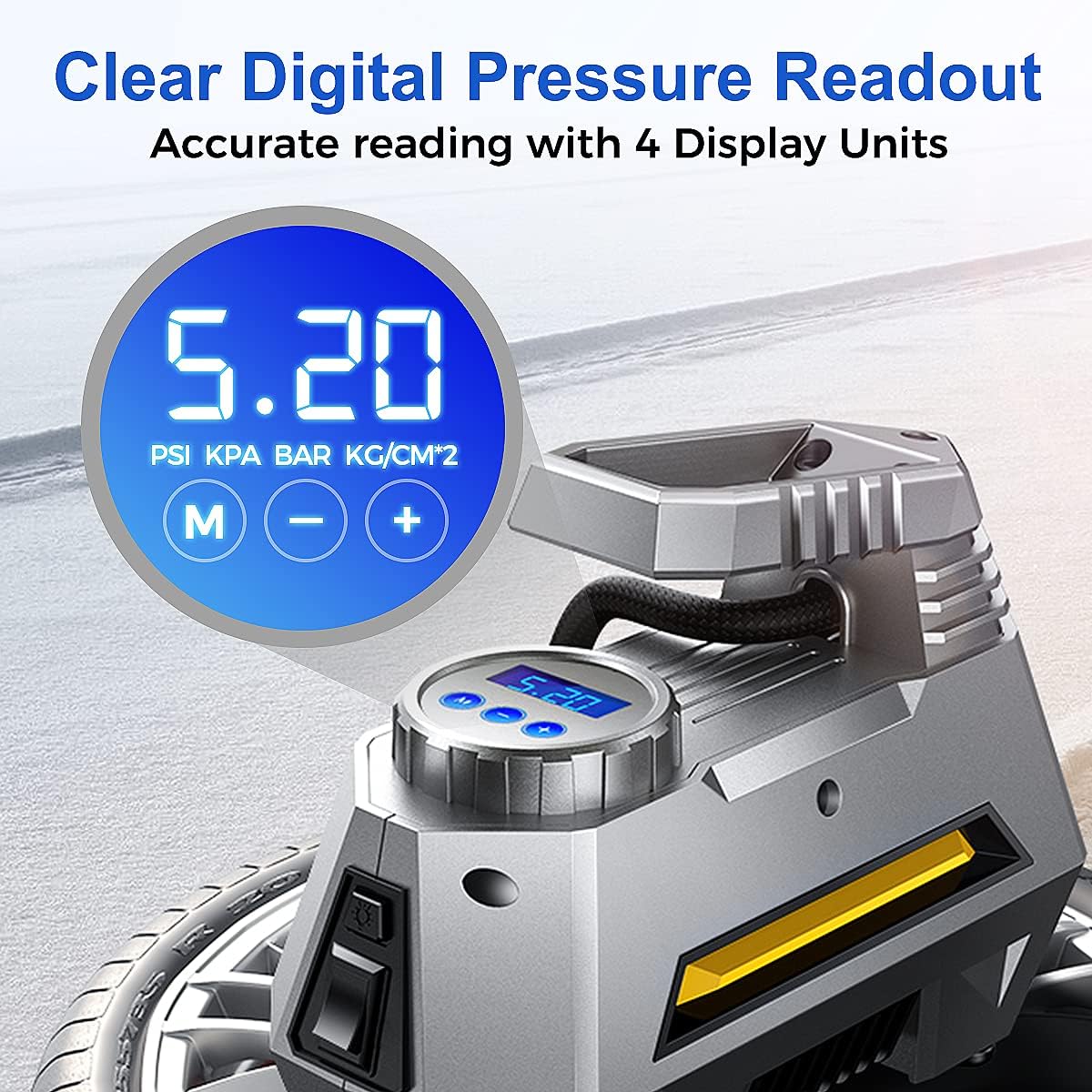

Image: Close-up of the digital pressure gauge displaying pressure readings and unit selection buttons (M, -, +).
Návod k obsluze
- Začátek inflace: Once the desired pressure is set, the compressor will automatically begin inflating. The digital display will show the current tire pressure increasing.
- Automatické vypnutí: Kompresor se automaticky zastaví, jakmile je dosaženo přednastaveného tlaku.
- Odpojit: Turn off the compressor using the ON/OFF switch, then carefully unscrew the air hose from the tire valve stem.
- Using Nozzle Attachments: For inflating items like sports balls or bicycle tires, select the appropriate nozzle attachment and screw it onto the air hose before connecting to the item.
- Nouzová svítilna: To activate the built-in LED flashlight, use the dedicated flashlight switch. This is useful for low-light conditions or roadside emergencies.

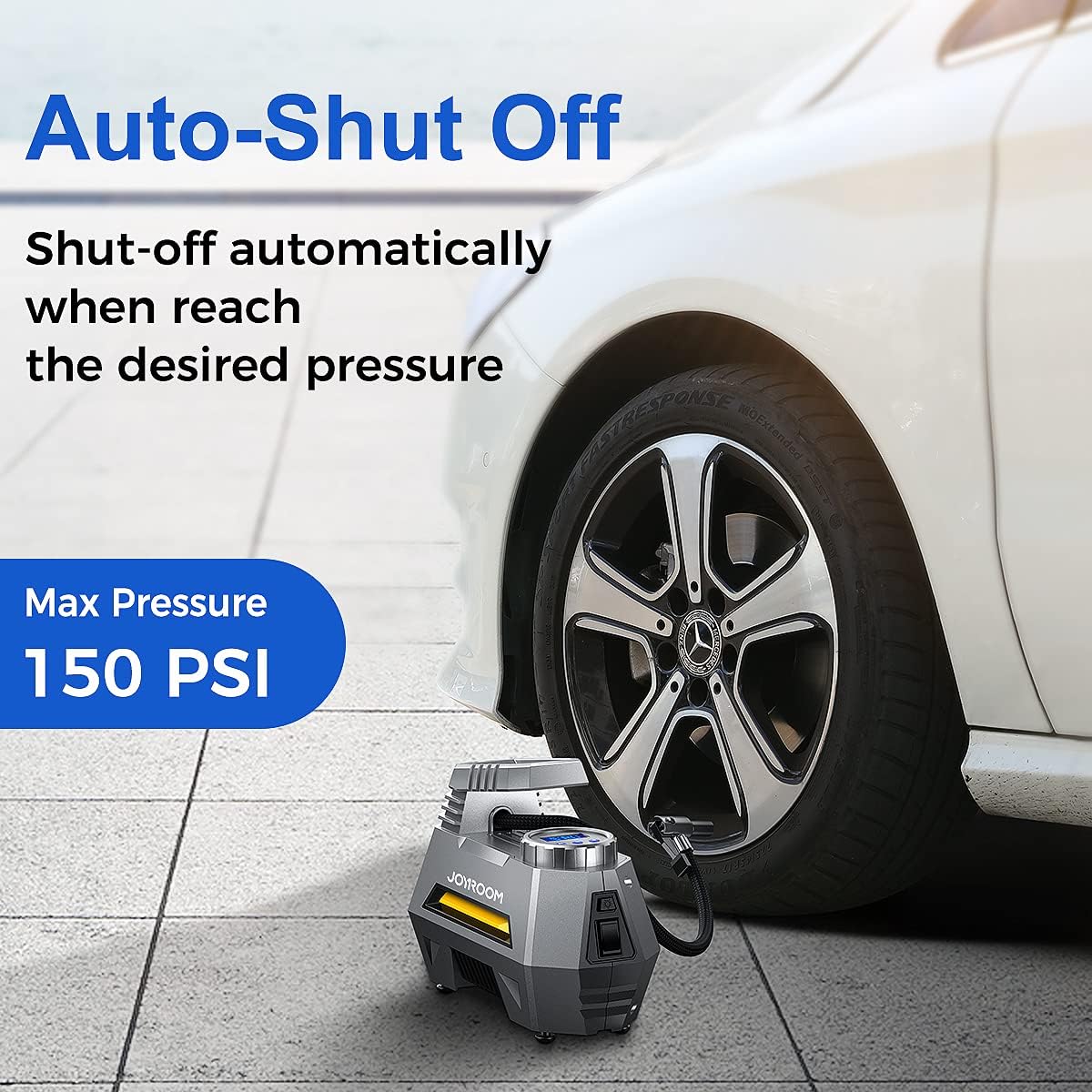

Image: The JOYROOM air compressor connected to a car tire, illustrating the automatic shut-off feature and maximum pressure capability of 150 PSI.
Image: The JOYROOM air compressor's ultra-bright LED flashlight in use, illuminating a car tire in a dark environment.
Údržba
- Čištění: Otřete vnější část kompresoru měkkým hadříkemamp hadříkem. Nepoužívejte agresivní chemikálie ani abrazivní čisticí prostředky. Před uskladněním se ujistěte, že je zařízení suché.
- Skladování: Store the air compressor in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the power cord and air hose are neatly wrapped to prevent damage.
- Inspekce: Periodically inspect the power cord, air hose, and connectors for any signs of wear, cuts, or damage. Do not use the device if any components are damaged.
- Péče o trysku: Keep the nozzle attachments clean and free from debris to ensure proper function.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Kompresor se nezapne. | No power from 12V outlet; loose connection; blown fuse in vehicle or compressor. | Ensure vehicle engine is running. Check power cord connection. Inspect vehicle's cigarette lighter fuse and the compressor's internal fuse (if accessible and user-serviceable). |
| Pomalá inflace nebo žádná inflace. | Air leak from hose connection; clogged nozzle; low vehicle voltage. | Ensure air hose is tightly screwed onto valve stem. Check nozzle for obstructions. Ensure vehicle battery is adequately charged. |
| Nepřesný údaj o tlaku. | Sensor calibration issue; external gauge discrepancy. | Compare reading with a known accurate tire pressure gauge. If consistently inaccurate, contact customer support. |
| Overheating or burning smell. | Prolonged continuous use; internal component failure. | Immediately turn off and disconnect the compressor. Allow it to cool down for at least 15-20 minutes. Avoid continuous operation for extended periods. If the issue persists, discontinue use and contact customer support. |
If problems persist after attempting these solutions, please contact JOYROOM customer support.
Specifikace
| Funkce | Detail |
|---|---|
| Model | CY-006 |
| Značka | RADOSTI |
| Maximální tlak | 150 PSI |
| svtage | 12 V DC |
| Hmotnost položky | 1.7 libry (přibližně 0.77 kg) |
| Rozměry produktu | 8 x 3.5 x 6.2 palců (přibližně 20.3 x 8.9 x 15.7 cm) |
| Zdroj napájení | Vehicle 12V DC Cigarette Lighter |
| Zahrnuté příslušenství | Nástavce trysek |
Image: Diagram illustrating the internal high-tech mechanism of the air compressor, highlighting the upgraded metal motor for faster, safer, and quieter inflation.
Záruka a podpora
Specific warranty information is not provided in the product details. For warranty claims, technical support, or further assistance, please contact JOYROOM customer service directly through their official webna webu nebo u prodejce, kde byl produkt zakoupen.
