Good Housekeeping Yorkshire Bathroom Ventilation Exhaust Fan with Light

Zavedení

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Good Housekeeping Yorkshire 80 CFM 2.5 Sones Decorative Bathroom Ventilation Exhaust Fan with Light. Please read all instructions carefully before beginning installation to ensure proper function and safety.

Bezpečnostní informace

VAROVÁNÍ: Abyste snížili riziko požáru, úrazu elektrickým proudem nebo zranění osob, dodržujte následující:

• Instalační práce a elektrické vedení musí být provedeny kvalifikovanou osobou (osobami) v souladu se všemi platnými předpisy a normami, včetně protipožárních stavebních předpisů a norem.
• Pro správné spalování a odvod plynů kouřovodem (komínem) zařízení na spalování paliva je zapotřebí dostatek vzduchu, aby se zabránilo zpětnému tahu. Dodržujte pokyny výrobce topného zařízení a bezpečnostní normy, jako jsou normy vydané Národní asociací protipožární ochrany (NFPA), Americkou společností pro inženýry vytápění, chlazení a klimatizace (ASHRAE) a místními předpisy.
• Při řezání nebo vrtání do stěny nebo stropu nepoškoďte elektrické vedení a další skryté inženýrské sítě.
• Potrubní ventilátory musí být vždy odvětrávány do venkovního prostředí.
• This unit is ETL Listed for safe use over shower enclosures and bathtubs installed on a GFCI circuit.
• Před prováděním servisu nebo čištění jednotky vždy odpojte napájení na servisním panelu.

Obsah balení

Před zahájením instalace ověřte, zda jsou všechny komponenty přítomny a nepoškozené.

• Light Kit with Glass Shade
• Motor with Housing (All-Metal)
• Instalační hardware

Note: Lightbulbs are not included. This unit uses two LED A15 bulbs, 8 watts maximum.

Nastavení a instalace

This fan is designed for flush mount installation. The light and exhaust fan can be wired to the same switch or to independent switches. Adjustable slider bars are included for housing ranges from 13.78" to 22.83".

Požadované nástroje:

• Šroubovák
• Odizolovače drátů
• Vrtat
• Měřicí páska
• Kleště
• Ochranné brýle

Kroky instalace:

1. Připravte instalační prostor: Ensure power is disconnected at the circuit breaker. Determine the optimal location for the fan, considering ducting requirements and electrical access.
2. Vystřihněte otvor: Based on the housing dimensions (8 in. x 8 in. x 7 3/4 in.), carefully cut an opening in the ceiling.
3. Namontujte kryt: Use the adjustable slider bars to secure the fan housing between ceiling joists. The housing dimensions are 7-3/4" W x 8-3/8" L x 6-1/2" H.
4. Připojení potrubí: Attach a 4-inch diameter duct to the fan's exhaust port and route it to the exterior of the building. Ensure all connections are sealed to prevent air leakage.
5. Elektrické vedení: Connect the electrical wiring according to local codes. The fan operates on 120 Volts (AC) and 140 watts. The light and fan can be wired to separate switches if desired.
6. Instalace žárovek: Insert two LED A15 bulbs (not included), maximum 8 watts each, into the light sockets.
7. Attach Glass Shade and Cover: Secure the glass shade and the decorative cover to the fan housing. The cover has a 14-inch diameter.

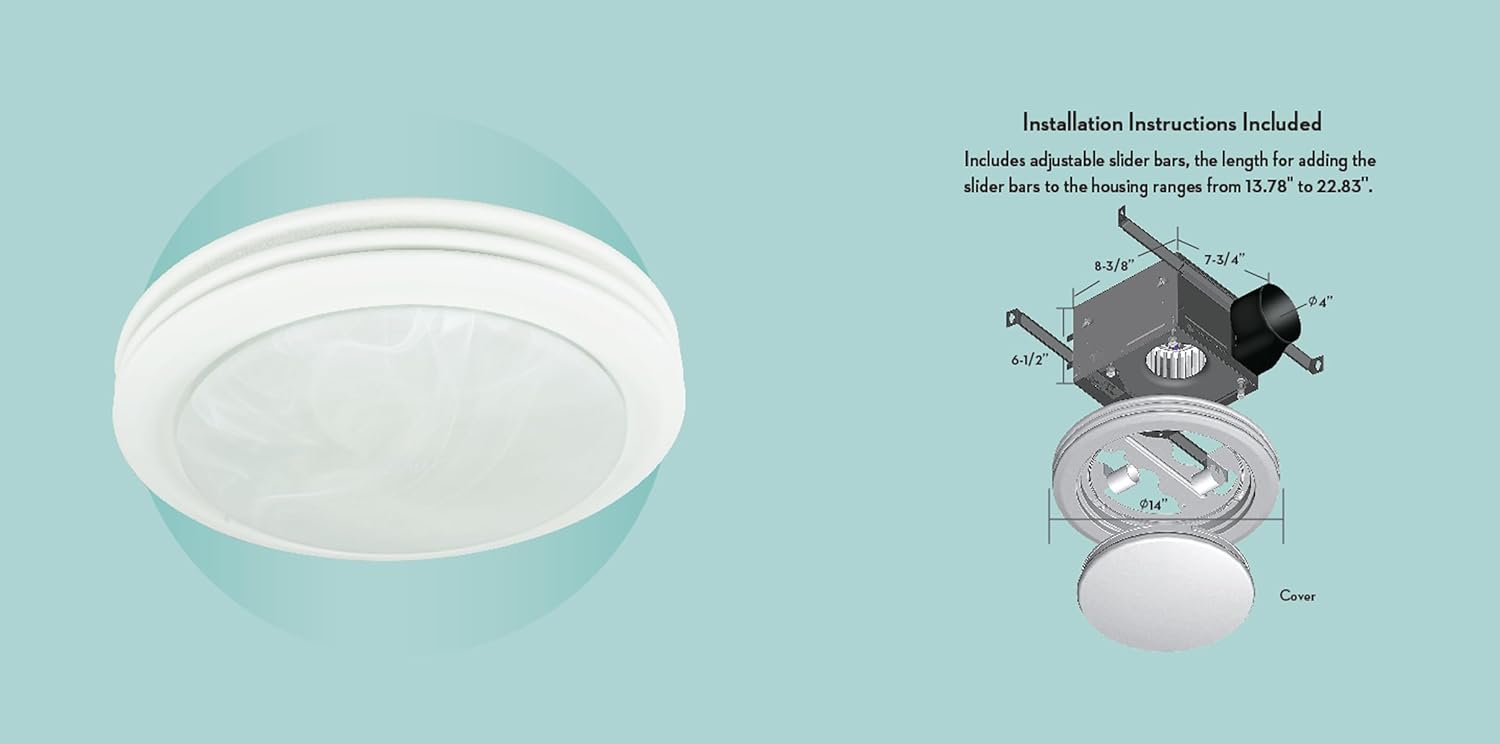

Obrázek 1: Rozložené view and dimensions of the fan unit, showing the housing, duct connection, and decorative cover assembly.

Figure 2: Technical drawing illustrating the housing dimensions and duct diameter for proper installation.

Figure 3: The fan unit disassembled, highlighting the main housing and the decorative light cover.

Figure 4: The Good Housekeeping Yorkshire Bath Fan with Light, showcasing its design and key features like 80 CFM and 2.5 Sones.

Obrázek 5: Podrobný view of the fan's decorative cover and light fixture in satin white.

Figure 6: The exhaust fan with light installed in a bathroom, demonstrating its aesthetic integration and function.

Návod k obsluze

The Good Housekeeping Yorkshire fan is designed for simple operation. Once properly installed and wired, the fan and light functions are controlled by your wall switches.

• Provoz ventilátoru: Activate the fan by flipping the designated wall switch. The fan will begin to extract moist air from the bathroom.
• Světelný provoz: Activate the light by flipping its designated wall switch. The light provides illumination for the bathroom area.
• Kombinovaný provoz: If wired to a single switch, both the fan and light will activate simultaneously.

For optimal humidity control, operate the fan during and after showering or bathing until excess moisture is removed from the air.

Údržba

Regular maintenance ensures optimal performance and longevity of your exhaust fan. Always disconnect power at the service panel before performing any maintenance.

• Čištění krytu: The secure and screwless design enclosure allows for simple re-lamping and cleaning without the need for any tools. Gently pull down the decorative cover to remove it. Clean the cover with a soft cloth and mild, non-abrasive cleaner.
• Cleaning the Fan Blades and Housing: With the cover removed and power disconnected, carefully wipe down the fan blades and the interior of the housing to remove dust and debris. A vacuum cleaner with a brush attachment can also be used.
• Výměna žárovek: If a bulb burns out, replace it with a new LED A15 bulb, maximum 8 watts. Ensure the new bulb is securely screwed into the socket.
• Inspekce potrubí: Periodically inspect the ductwork for any blockages, leaks, or damage. Ensure the duct is free of obstructions to maintain proper airflow.

Odstraňování problémů

If you experience issues with your exhaust fan, refer to the following common problems and solutions:

Specifikace

Note: The product specifications indicate a noise level of 3 Sones, while the feature bullets state 2.5 Sones. For user clarity, 2.5 Sones is the typical operating noise level, with 3 Sones being the listed maximum.

Regarding bulb type, the feature bullets specify "two LED A15 bulbs, 8 watts maximum" which is prioritized over the general "Compact Fluorescent Light (CFL)" found in some specifications.

Záruka a podpora

Your Good Housekeeping Yorkshire Bathroom Ventilation Exhaust Fan with Light is backed by a comprehensive warranty:

• 4 Year Limited Warranty (Parts)
• 5 Year Limited Warranty (Motor)

For warranty claims, technical support, or replacement parts, please contact Good Housekeeping customer service. Refer to the product packaging or the official Good Housekeeping webstránky s nejaktuálnějšími kontaktními informacemi.

You can also refer to the official Installation Manual (PDF) available at: https://manuals.plus/m/5fe575de0ac53f543b3cb8de19391427c65bb7dcde92703b4408b45c6414e542
