1. Úvod
This EBTOOLS Recoil Starter Kit is designed as a high-quality replacement pull starter for various generators and engines. It features a durable construction and is engineered for stable performance with low operating noise, ensuring a reliable start for your equipment. This manual provides essential information for proper installation, operation, and maintenance.
2. Bezpečnostní informace
Always prioritize safety when working with machinery.
- Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when handling or installing the recoil starter.
- Ensure the engine is completely off, cooled down, and spark plug wire disconnected before attempting any installation, inspection, or maintenance.
- Udržujte ruce a oděv mimo pohyblivé části.
- Refer to your engine's specific manual for additional safety guidelines and procedures.
- Professional installation is recommended to ensure proper function and safety.
3. Identifikace dílů
Familiarize yourself with the components of your recoil starter.
Obrázek 3.1: Vnitřní view of the recoil starter, highlighting the spring and rope spool.
Obrázek 3.2: Recoil starter with key dimensions for reference.

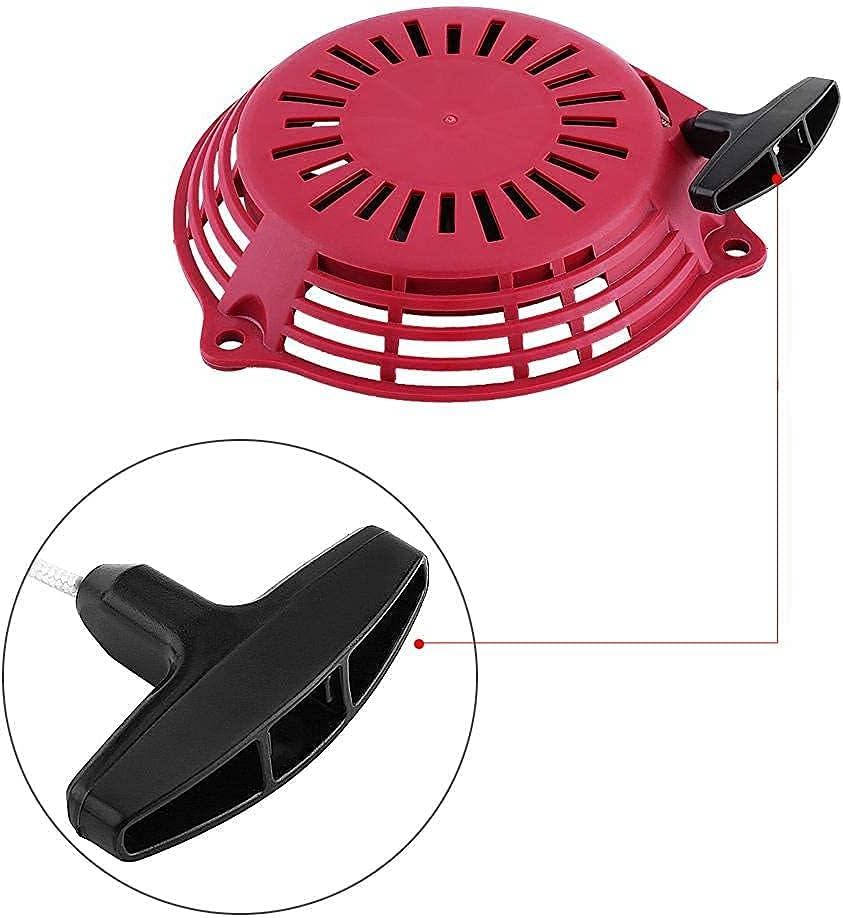

Obrázek 3.3: Detail of the pull handle and cord assembly.
Obrázek 3.4: Nahoru view of the recoil starter casing.
4. Specifikace
| Funkce | Specifikace |
|---|---|
| Rozměry (D x Š x V) | 168 x 132 x 58 mm (6.6" x 5.2" x 2.3") |
| Hmotnost | 280 g |
| Materiál | High-quality Metal and Plastic |
| Čísla dílů OEM | 28400-ZL8-023ZA, 28400-ZL8-013ZA, 284400-ZM0-003 |
| Výkonový jmenovitý | 4.8E+2 |
| UPC | 798382987704 |
5. Kompatibilita
This recoil starter is compatible with a range of generators and engines, specifically designed to replace original equipment.
- Replacement for GC135, GC160, GCV135, GCV160, and EN2000 generators.
- Suitable for horizontal and vertical shaft engines ranging from 4 to 5.5 HP.
Obrázek 5.1: Recoil starter shown with a compatible lawnmower engine.
Obrázek 5.2: The recoil starter's fit with a typical lawnmower engine.
Obrázek 5.3: Example of a generator utilizing a similar recoil starter.
6. Instalace
The EBTOOLS Recoil Starter is designed for easy installation. However, for optimal performance and safety, professional installation is recommended.
- Připravte motor: Ensure the engine is completely off, cool, and the spark plug wire is disconnected to prevent accidental starting.
- Vyhledejte starý startér: Identify the existing recoil starter on your engine.
- Demontáž starého startéru: Carefully unbolt and detach the old recoil starter. Note the orientation and any specific mounting hardware.
- Align New Starter: Position the new EBTOOLS recoil starter, ensuring the mounting holes align correctly with the engine's attachment points.
- Secure New Starter: Fasten the new starter using the appropriate bolts. Ensure it is securely mounted but do not overtighten.
- Zkušební tažná šňůra: Gently pull the cord a few times to ensure it extends and retracts smoothly without binding.
Obrázek 6.1: Preparing to install the recoil starter on an engine.
7. Provoz
Once installed, operating the recoil starter is straightforward:
- Připravte motor: Ensure your engine is primed and ready to start according to its specific operating instructions (e.g., fuel on, choke set).
- Stahovací šňůra: Grasp the recoil starter handle firmly. Slowly pull the cord until you feel resistance (this indicates the engine's compression stroke).
- Startovací motor: With a quick, smooth, and continuous pull, extend the cord fully. Do not yank or snap the cord.
- Zatahovací šňůra: Allow the cord to retract fully and smoothly back into the starter housing. Do not let the handle snap back against the housing.
- V případě potřeby opakujte: Pokud motor nenastartuje na první zatažení, postup opakujte.
Obrázek 7.1: Proper technique for pulling the recoil starter cord.
8. Údržba
Regular maintenance helps prolong the life of your recoil starter:
- Udržujte v čistotě: Periodically clean the recoil starter housing to prevent dirt and debris from entering the mechanism.
- Zkontrolujte kabel: Regularly check the pull cord for signs of fraying, cuts, or excessive wear. Replace the cord if any damage is observed.
- Zkontrolujte montáž: Ensure all mounting bolts are secure. Loose bolts can cause vibration and damage.
- Mazání: If the cord does not retract smoothly, a small amount of dry lubricant (e.g., silicone spray) can be applied to the spring mechanism, if accessible, following manufacturer guidelines. Avoid oil-based lubricants which can attract dirt.
9. Řešení problémů
Zde jsou některé běžné problémy a jejich možná řešení:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Pull cord does not retract fully. | Internal spring issue, debris, or cord binding. | Inspect for visible obstructions. If internal, professional repair or replacement may be needed. |
| Pull cord is frayed or broken. | Normal wear and tear, improper pulling technique. | Replace the pull cord. Ensure smooth, consistent pulls during operation. |
| Motor po zatažení nenastartuje. | Not a recoil starter issue; engine-related problem. | Check engine fuel level, spark plug, carburetor, and other engine components. Consult your engine's manual. |
| Recoil starter feels loose after installation. | Mounting bolts are not tightened sufficiently. | Ujistěte se, že všechny montážní šrouby jsou bezpečně utažené. |
10. Záruka a podpora
For specific warranty information regarding your EBTOOLS Recoil Starter Kit, please refer to the product packaging or the official EBTOOLS website. For technical support or further assistance, please contact EBTOOLS customer service through their official channels.
