Zavedení
Thank you for choosing the Sparco SPT160 100 PSI Air Compressor. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new air compressor. Please read this manual thoroughly before use and retain it for future reference.
The Sparco SPT160 is designed for inflating various items, including vehicle tires and sports equipment. It features fast inflation capabilities and an automatic safety shutdown to prevent over-inflation.
Bezpečnostní pokyny
Always observe the following safety precautions to reduce the risk of injury or damage to the product:
- Před použitím kompresoru si přečtěte všechny pokyny.
- Ensure the compressor is connected to a 12 Volt DC power source only.
- Nenechávejte kompresor během provozu bez dozoru.
- Během používání držte děti a domácí zvířata mimo dosah kompresoru.
- Avoid operating the compressor in wet conditions or near flammable liquids/gases.
- Do not over-inflate tires or other items. Refer to the manufacturer's recommended pressure. The compressor features an automatic safety shutdown to help prevent this.
- Allow the compressor to cool down after extended use to prevent overheating.
- Store the compressor in a dry, safe place when not in use.
Obsah balení
Ověřte, zda jsou v balení přítomny všechny položky:
- 1 x Sparco SPT160 Air Compressor
- 3 x Nozzle Adapters (for various inflation needs)
- 1 x Digital Tire Pressure Gauge (Sparco mascot design)
- 1 x Uživatelská příručka
Konec produktuview
Familiarize yourself with the components of your Sparco SPT160 Air Compressor.
Obrázek 1: Přední view of the Sparco SPT160 Air Compressor, showing the digital display, control buttons, power switch, and the Sparco logo.
Obrázek 2: Úhlové view of the compressor, highlighting the integrated LED work light on the left side, useful for low-light conditions.

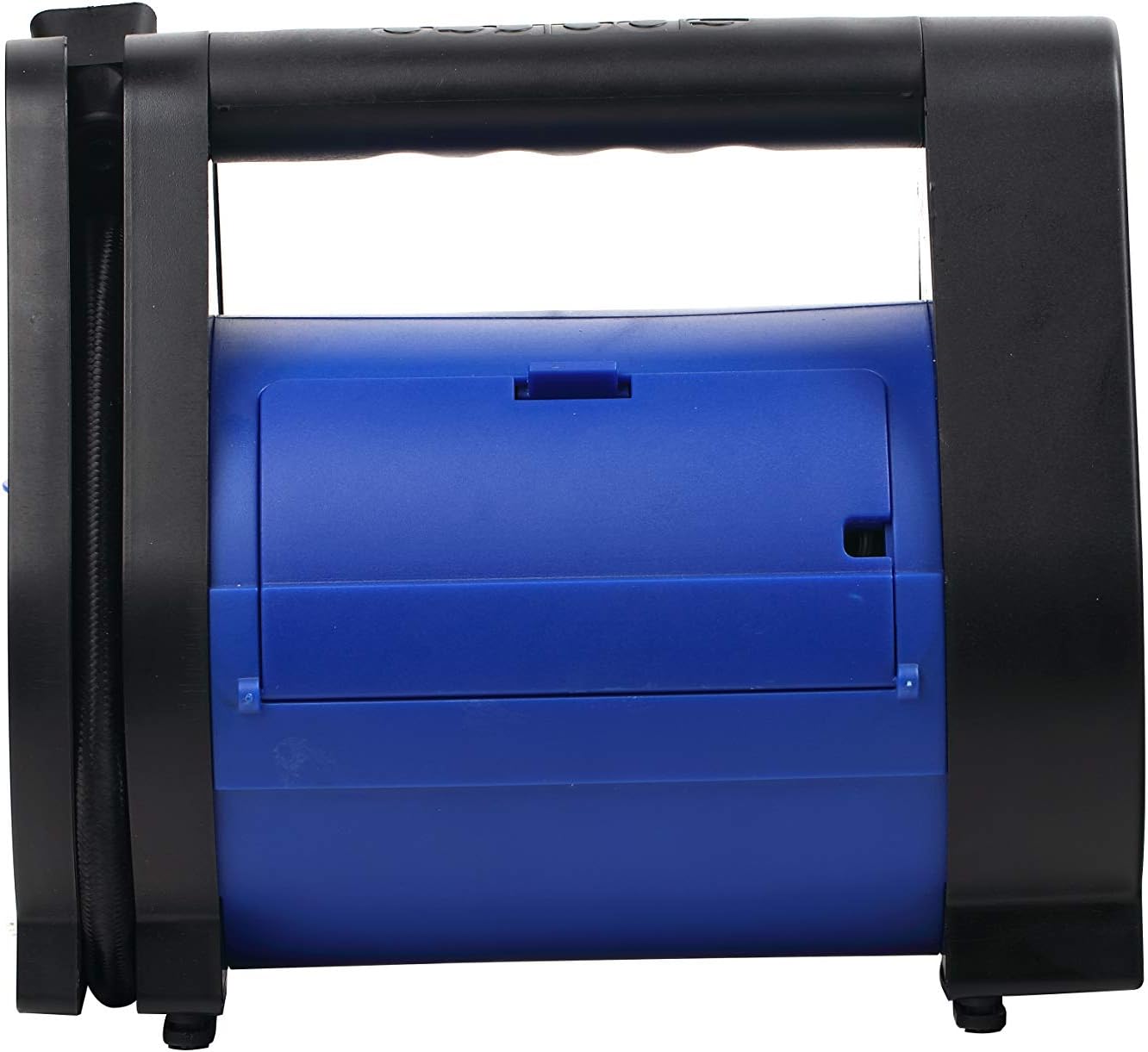

Obrázek 3: Zadní view of the Sparco SPT160 Air Compressor, showing the cable storage compartment.
Obrázek 4: Close-up of the included Sparco mascot digital tire pressure gauge, used for accurate pressure readings.
Nastavení
- Připojte napájení: Plug the compressor's 12V power cable into your vehicle's cigarette lighter socket. Ensure the vehicle engine is running to provide stable power.
- Příprava hadice: Uncoil the air hose from the compressor.
- Připojte trysku: For vehicle tires, screw the air hose connector directly onto the tire valve stem. For other inflatables, select the appropriate nozzle adapter and attach it to the air hose, then insert it into the item's inflation port.
- Nastavte požadovaný tlak: Use the digital display and control buttons on the compressor to set your target pressure (e.g., PSI, BAR, KPA). Consult your vehicle's manual or tire sidewall for recommended tire pressure.
Návod k obsluze
- Zahájit inflaci: With the power connected and the nozzle securely attached, flip the power switch on the compressor to the "ON" position. The compressor will begin to inflate the item.
- Sledovat průběh: The digital display will show the current pressure. The compressor is designed for fast inflation, typically taking 4-5 minutes for a standard car tire.
- Automatické vypnutí: The Sparco SPT160 features an automatic safety shutdown. Once the preset pressure is reached, the compressor will automatically turn off.
- Odpojit: Turn the power switch to "OFF". Carefully unscrew the nozzle from the valve stem. Be aware that the nozzle may be warm after use.
- Obchod: Coil the air hose and power cable neatly and store the compressor in its designated storage area.
Obrázek 5: The Sparco SPT160 Air Compressor in use, inflating a car tire. The integrated LED light is visible.
Obrázek 6: The compressor connected to a basketball, demonstrating its versatility with different nozzle adapters.

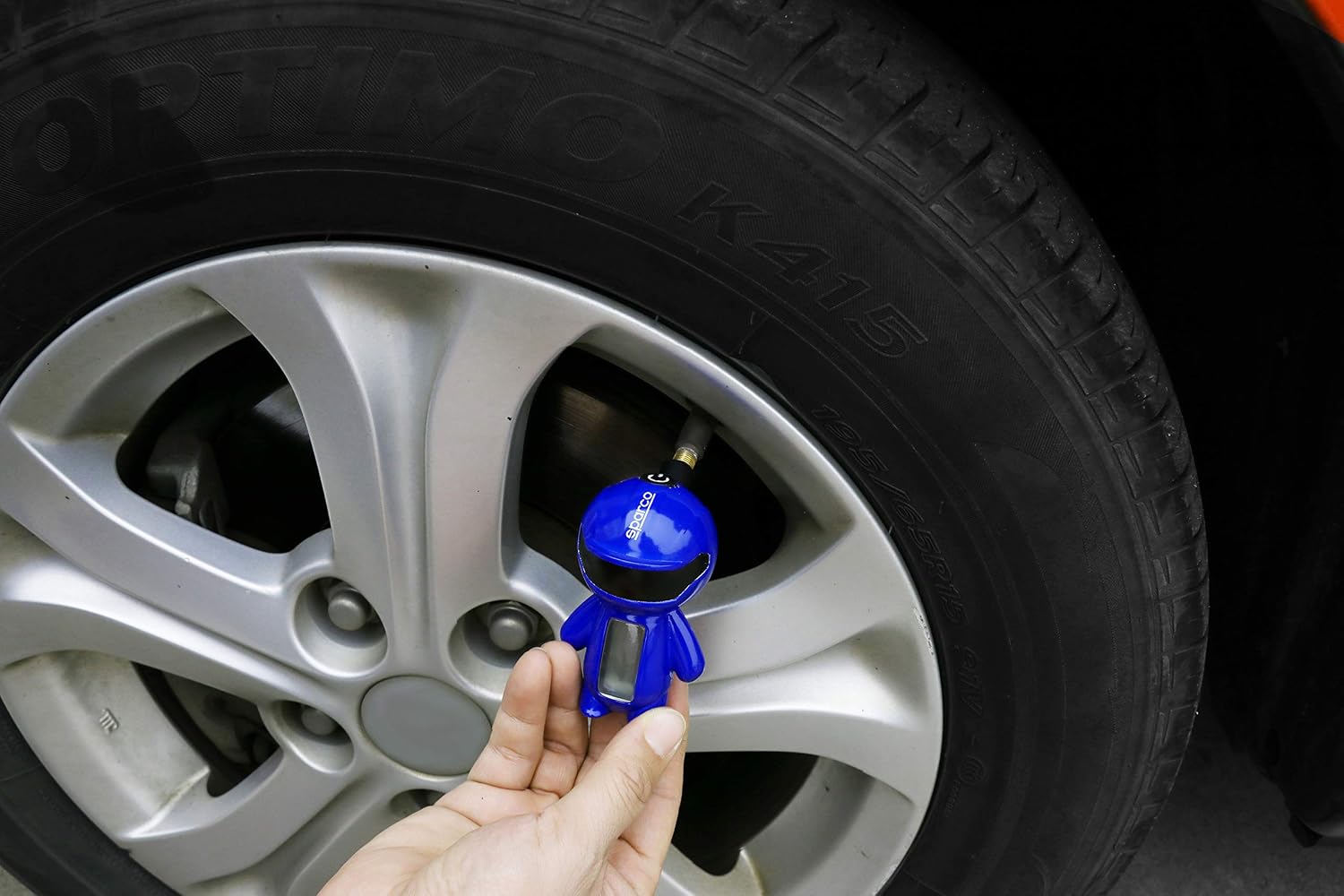

Obrázek 7: Using the Sparco mascot digital tire pressure gauge to verify tire pressure after inflation.
Údržba
- Čištění: Otřete vnější povrch kompresoru čisticím prostředkemamp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the compressor is unplugged before cleaning.
- Skladování: Kompresor skladujte na chladném a suchém místě, mimo dosah přímého slunečního záření a extrémních teplot. Ujistěte se, že hadice a napájecí kabel jsou úhledně stočeny, aby nedošlo k jejich poškození.
- Inspekce: Periodically inspect the air hose, power cable, and connectors for any signs of wear, cracks, or damage. Do not use the compressor if any components are damaged.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Kompresor se nezapne. | No power from 12V socket; faulty connection; vehicle engine off. | Ensure 12V socket is functional. Check connection. Start vehicle engine. Check compressor's power switch. |
| Pomalá inflace. | Air leak in hose/nozzle; low vehicle battery voltage. | Check all connections for leaks. Ensure vehicle engine is running. |
| Kompresor se přehřívá a vypíná. | Dlouhodobé nepřetržité používání. | Allow the compressor to cool down for at least 15-20 minutes before resuming operation. |
| Nepřesný údaj o tlaku. | Gauge malfunction; incorrect unit setting. | Verify pressure with a separate, reliable gauge (like the included Sparco mascot gauge). Ensure the correct pressure unit (PSI, BAR, KPA) is selected. |
Specifikace
| Funkce | Detail |
|---|---|
| Číslo modelu | SPT160 |
| Značka | Sparco |
| Typ | Air Compressor: 100 psi |
| svtage | 12 voltů |
| Rozměry (D x Š x V) | 24.5 cm x 16.5 cm x 22.5 cm (přibližně 9.6 x 6.5 x 8.9 palce) |
| Hmotnost | 290.01 g (přibližně 10.23 unce) |
| Zahrnuté komponenty | 1 Air Compressor, 3 Nozzle Adapters, 1 Digital Tire Pressure Gauge |
Obrázek 8: Visual representation of the Sparco SPT160 Air Compressor's dimensions.
Záruka a podpora
Sparco products are manufactured to high-quality standards. This product is covered by a manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or contact Sparco customer support.
For technical assistance, troubleshooting not covered in this manual, or to inquire about replacement parts, please visit the official Sparco webnebo se obraťte na jejich zákaznický servis. Uschovejte si účtenku jako doklad o koupi pro případ reklamace.
