Bestway Flowclear 1000gal Sand Filter Instruction Manual

1. Úvod

This manual provides essential information for the safe and efficient operation of your Bestway Flowclear 1000-gallon Sand Filter. This system is designed to maintain clean water in your above-ground pool by filtering out debris using silica sand. Please read all instructions carefully before installation and use.

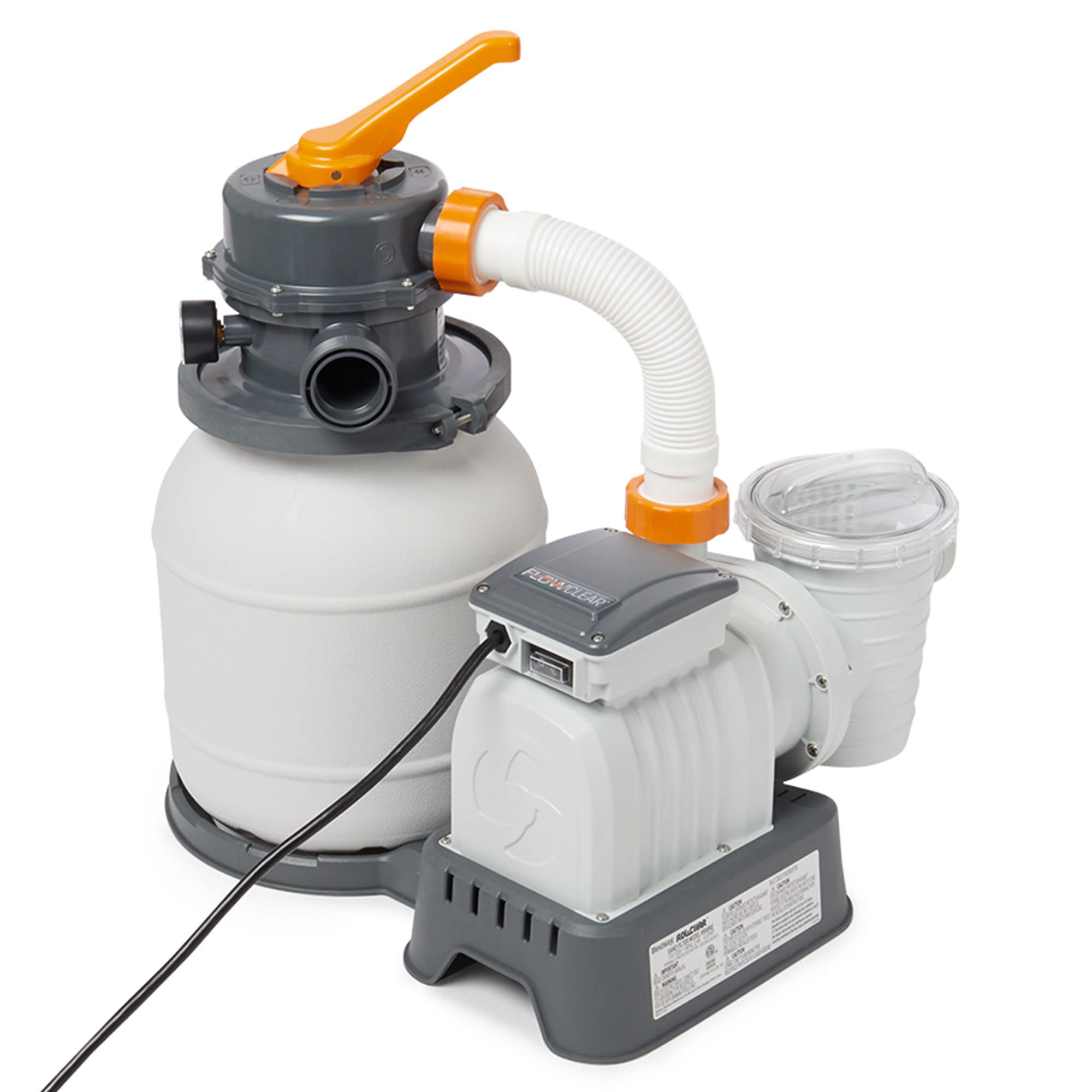

Image 1.1: Assembled Bestway Flowclear 1000gal Sand Filter.

2. Bezpečnostní informace

• Always disconnect the power supply to the filter pump before performing any maintenance, cleaning, or servicing.
• Ensure the filter system is placed on a solid, level surface to prevent tipping.
• Do not operate the filter if any parts are damaged, missing, or if the power cord is frayed.
• Keep children and pets away from the filter system during operation.
• Follow all local electrical codes and safety standards when installing and operating this equipment.
• Tento spotřebič není určen pro použití osobami (včetně dětí) se sníženými fyzickými, smyslovými nebo duševními schopnostmi nebo nedostatečnými zkušenostmi a znalostmi, pokud na ně nedohlíží osoba odpovědná za jejich bezpečnost nebo jim nebyla poskytnuta instrukce ohledně používání spotřebiče.

3. Obsah balení

Před zahájením instalace ověřte, zda jsou všechny komponenty přítomny:

• Bestway Flowclear 1000gal Sand Filter Unit
• Hoses and connectors
• Návod k použití

Note: Filter sand (silica sand) is NOT included and must be purchased separately.

4. Pokyny k nastavení

Proper setup is crucial for the efficient operation of your sand filter. Follow these steps carefully:

1. Umístění filtru: Place the sand filter on a firm, level surface near your pool. Ensure there is enough space for maintenance and operation.
2. Filling with Sand: Remove the multi-port valve from the top of the filter tank. Carefully pour the recommended amount of silica sand (not included) into the tank. Ensure the standpipe is centered during this process. Do not overfill.
3. Připojení vícecestného ventilu: Reattach the multi-port valve to the top of the filter tank, ensuring a secure and watertight seal. The top flange clamp design allows for 360-degree rotation for easy installation and hose alignment.
4. Připojovací hadice: Connect the hoses from your pool to the filter system. One hose will connect from the pool's outlet (skimmer or suction port) to the filter pump's inlet. Another hose will connect from the filter's outlet back to the pool's return inlet. A third hose may be needed for the waste port during backwash operations.


   Image 4.1: Connecting a hose to the pool's return inlet.



   Image 4.2: Connecting a hose to the pool's skimmer or suction port.
5. Plnění čerpadla: Before starting, ensure the pump is primed by filling it with water. Refer to the pump's specific instructions for priming procedures.
6. Elektrické připojení: Connect the pump to a grounded electrical outlet. Ensure the power supply matches the pump's voltagpožadavky na e (120 voltů).

Image 4.3: Fully assembled and connected sand filter system next to a pool.

5. Návod k obsluze

The Flowclear sand filter features a 6-position valve for various operational modes:

• Filtr: Normal filtering mode. Water is pumped through the sand, trapping debris, and returned to the pool.
• Zpětný proplach: Reverses water flow through the sand bed to flush trapped debris out to waste. Use when the pressure gauge indicates high pressure.
• Opláchněte: Used after backwashing to settle the sand bed and flush any remaining dirty water to waste before returning to filter mode.
• Odpad: Bypasses the filter and pumps water directly out to waste. Useful for vacuuming heavy debris or lowering pool water level.
• Recirkulace: Obchází filtr a cirkuluje vodu přímo zpět do bazénu. Užitečné pro míchání chemikálií bez filtrace.
• ZAVŘENO: Shuts off all flow to the filter. Use for pump maintenance or when the pool is not in use.

To change valve positions, ALWAYS turn off the pump first to prevent damage to the multi-port valve.

Image 5.1: The 6-position multi-port valve and pressure gauge.

Starting Filtration:

1. Ensure all hoses are securely connected and the pool is filled to the appropriate level.
2. Set the multi-port valve to the FILTR pozice.
3. Turn on the pump. The pump will begin drawing water from the pool, filtering it through the sand, and returning clean water to the pool.
4. Monitor the pressure gauge. Note the initial operating pressure.

Image 5.2: Operating the sand filter system.

6. Údržba

Regular maintenance ensures optimal performance and longevity of your sand filter.

• Zpětné proplachování a oplachování: When the pressure gauge reads 5-10 PSI above the initial clean operating pressure, it's time to backwash.
1. Vypněte čerpadlo.
2. Nastavte vícecestný ventil na BACKWASH.
3. Zapněte čerpadlo a nechte ho běžet, dokud voda v průzoru (pokud je k dispozici) nebude čirá (obvykle 2–3 minuty).
4. Vypněte čerpadlo.
5. Nastavte vícecestný ventil na Oplach.
6. Zapněte čerpadlo a nechte ho běžet 30–60 sekund.
7. Vypněte čerpadlo.
8. Set the multi-port valve back to FILTR.
9. Zapněte čerpadlo pro obnovení normální filtrace.
• Výměna písku: Silica sand typically needs to be changed once every three years, depending on usage and water quality.
• Čištění sítka: Periodically check and clean the strainer basket located in the pump to remove large debris that could impede flow.

7. Řešení problémů

8. Specifikace

• Značka: Bestway
• Číslo modelu: 58496E
• Název typu položky: 1000gal Sand Filter
• Doporučená velikost bazénu: 300-7,200 galonů
• Průtok čerpadla: 1000 gallons per hour (GPH)
• svtage: 120 voltů
• Materiál: Akryl
• Barva: Šedá
• UPC: 821808584963

9. Záruka a podpora

Informace o záruce: The manufacturer's warranty description for this product states "No Warranty". Please refer to your retailer's return policy for any issues.

Zákaznická podpora: For further assistance, questions, or to inquire about replacement parts, please visit the official Bestway website or contact their customer service department directly. You can often find contact information on the product packaging or on the Bestway brand store page.
