1. Úvod
This manual provides essential instructions for the installation, operation, and maintenance of the Graigar TUF-2000B+TM-1 Digital Ultrasonic Flow Meter. This device is designed for high-accuracy flow measurement using advanced ultrasonic technology.
Klíčové vlastnosti:
- Vysoká přesnost: Achieves 1% accuracy for precise measurements.
- Široký rozsah měření: Supports various transducer types for pipe sizes from DN15mm to DN6000mm.
- Vysoká spolehlivost: Utilizes low voltage, multi-pulse technology for improved accuracy, operational life, and reliability.
- Strong Anti-interference: Features a dual-balance signal differential receiver/driver circuit to minimize interference from external sources.
- Powerful Recording Function: Automatically records totalizer data for the last 512 days, 128 months, and 10 years. It also logs the time and flow rate of the last 64 power on/off events and the working status for the last 32 days.
- Heat Measurement Support: Can perform heat/energy measurement when connected with a temperature transducer.
- Paměť SD karty: Optional SD card support for extended data storage.
Standardní konfigurace:
- TUF-2000B Ultrasonic Flowmeter Unit
- TM-1 Transducer
- 2 x 5m Signal Cables
- Steel Belt (for mounting)
- Záruční list
Figure 1: Complete kit of the Graigar TUF-2000B+TM-1 Digital Ultrasonic Flow Meter, including the main unit, TM-1 transducers, signal cables, and mounting accessories.
Video 1: Konecview of the TUF-2000B Digital Ultrasonic Flow Meter components and basic interaction.
2. Nastavení a instalace
Proper setup is crucial for accurate flow measurement. Follow these steps carefully.
2.1 Vybalení a identifikace součástí
Carefully unpack all components and verify against the standard configurations list.
Figure 2: The Graigar TUF-2000B+TM-1 kit as it appears in its protective packaging.
2.2 Transducer Installation (TM-1 Clamp-on Sensor)
The TM-1 transducers are clamp-on type, designed for non-invasive measurement.
- Vyberte bod měření: Choose a straight section of pipe, free from valves, pumps, or other obstructions that could disturb flow.
- Clean Pipe Surface: Ensure the outer surface of the pipe at the measurement point is clean and free of rust, paint, or debris.
- Apply Coupling Gel: Apply a generous amount of ultrasonic coupling gel to the contact surfaces of both transducers and the pipe. This is critical for signal transmission.
- Mount Transducers: Position the TM-1 transducers on the pipe according to the specified distance and orientation (refer to the detailed diagram in the full user manual for specific spacing based on pipe diameter). Use the provided steel belts to securely fasten the transducers to the pipe.
- Připojení signálních kabelů: Connect the 5m signal cables from the transducers to the corresponding ports on the TUF-2000B main unit. Ensure connections are tight and secure.
Obrázek 3: Detail view of the TM-1 clamp-on transducers, showing their design for external pipe mounting.
Figure 4: The TM-1 transducers shown with their signal cables and the steel belts used for securing them to a pipe.
2.3 Main Unit Placement and Power Connection
Mount the TUF-2000B main unit in a suitable location, protected from extreme environmental conditions. Connect the power cable to a compatible power source.
Figure 5: The TUF-2000B main unit, displaying its front panel with keypad and LCD, and the attached power cable.
Obrázek 6: Zadní view of the TUF-2000B main unit, highlighting the mounting brackets and cable glands for secure installation and wiring.
3. Návod k obsluze
Once installed, the TUF-2000B is ready for operation.
3.1 Zapnutí a počáteční konfigurace
Upon powering on, the device will perform a self-check. Use the keypad to navigate through the menu and input necessary parameters such as pipe diameter, material, and fluid type.
Figure 7: The front panel of the TUF-2000B main unit, showing the LCD display and the numerical and function keys for operation.
3.2 Měření průtoku
After configuration, the device will begin displaying real-time flow data on the LCD screen. The measurement principle relies on the time difference of ultrasonic signals transmitted through the fluid.
3.3 Data Recording and Retrieval
The TUF-2000B automatically records various data points. Access the menu to view historical data, including totalizer readings, power on/off events, and working status logs. If an optional SD card is installed, data can be stored and retrieved for further analysis.
3.4 Heat Measurement (Optional)
If a temperature transducer is connected, the flow meter can also calculate and display heat/energy consumption. Refer to the full user manual for specific instructions on connecting and configuring temperature sensors.
4. Údržba
Regular maintenance ensures the longevity and accuracy of your flow meter.
- Udržujte v čistotě: Wipe the main unit and transducers with a soft, dry cloth. Avoid abrasive cleaners or solvents.
- Zkontrolujte kabely: Periodically check signal cables for any signs of wear, damage, or loose connections.
- Transducer Contact: Ensure the coupling gel between the transducers and the pipe remains effective. Reapply if necessary to maintain good ultrasonic signal transmission.
- Ochrana životního prostředí: Ensure the main unit is protected from direct sunlight, excessive moisture, and extreme temperatures.
5. Řešení problémů
Pokud narazíte na problémy, podívejte se na následující běžné problémy a jejich řešení.
- Žádné/nepravidelné hodnoty:
- Check transducer placement and spacing.
- Ensure sufficient coupling gel is applied.
- Verify signal cable connections are secure.
- Confirm pipe parameters (diameter, material) are correctly entered in the device.
- Check for air bubbles or sediment in the pipe, which can interfere with ultrasonic signals.
- Problémy s napájením:
- Zkontrolujte, zda je napájecí kabel bezpečně připojen.
- Zkontrolujte zdroj napájení.
- Displej nefunguje:
- Ujistěte se, že je zařízení zapnuté.
- Contact technical support if the issue persists after checking power.
6. Specifikace
| Funkce | Specifikace |
|---|---|
| Číslo modelu | TUF-2000B+TM-1 |
| Přesnost | 1% |
| Measuring Range (Pipe Size) | DN15mm to DN6000mm (with appropriate transducers) |
| Typ snímače | TM-1 Medium Clamp-on Sensor |
| Délka signálního kabelu | 2 x 5m (standard) |
| Funkce nahrávání | 512 days/128 months/10 years totalizer data, 64 power on/off events, 32 days working status |
| Měření tepla | Supported (requires external temperature transducer) |
| Paměť | Optional SD card support |
| Hmotnost položky | 6.6 liber (cca) |
| Výrobce | Graigar |
7. Záruka a podpora
The Graigar TUF-2000B+TM-1 Digital Ultrasonic Flow Meter comes with a Certificate of Warranty. The standard guarantee period is one year from the date of purchase.
For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact your authorized Graigar dealer or visit the official Graigar website for contact information. Please have your model number and purchase date available when contacting support.

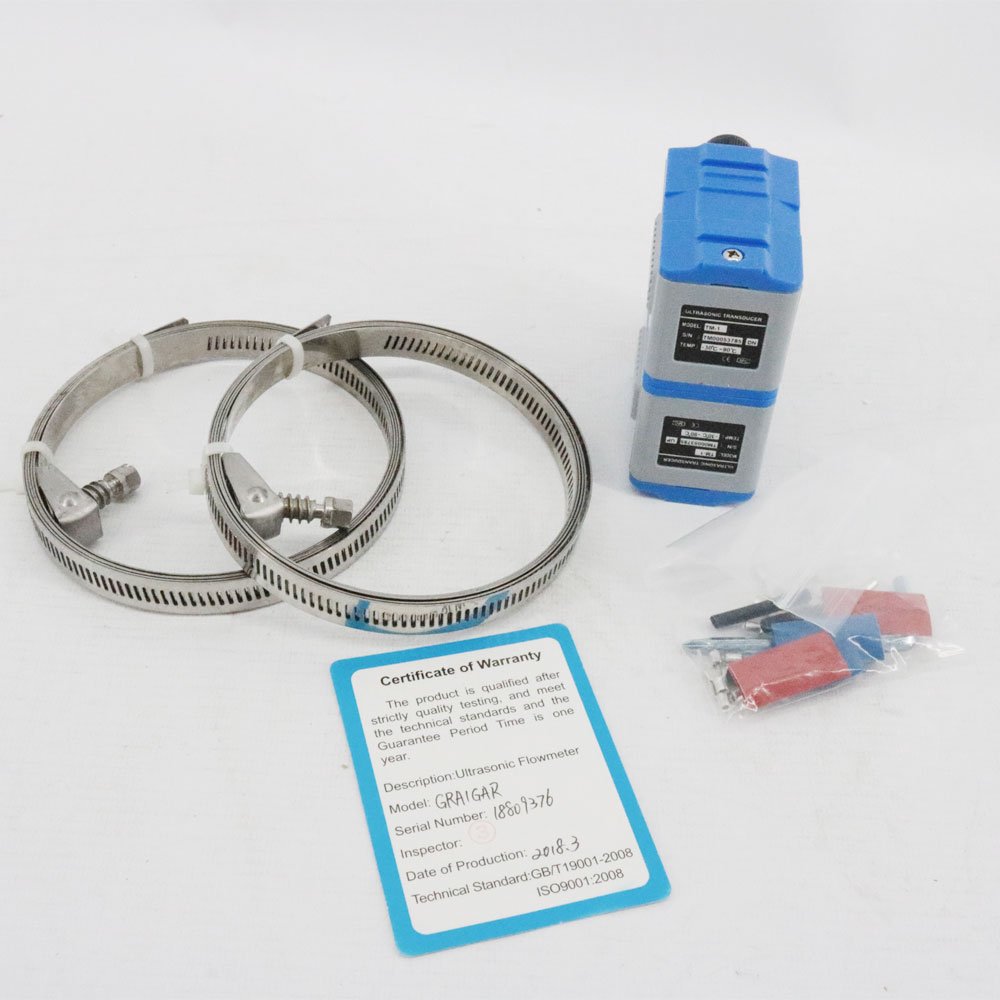

Figure 8: The warranty certificate included with the Graigar Ultrasonic Flowmeter, alongside the TM-1 transducers and mounting clamps.
