Lucande 'Loya' Modern LED Wall Light User Manual

1. Úvod

Thank you for choosing the Lucande 'Loya' Modern LED Wall Light. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions carefully before installation and retain them for future reference.

The Lucande 'Loya' is a contemporary LED wall light designed for both indoor and outdoor use, featuring a durable aluminum construction and an integrated LED light source. Its sleek design and energy-efficient technology make it an ideal choice for illuminating various spaces.

2. Bezpečnostní pokyny

• Elektrická bezpečnost: Installation must be performed by a qualified electrician in accordance with all local and national electrical codes. Ensure the main power supply is disconnected before installation, maintenance, or cleaning.
• svtage: This fixture operates on 230 Volts. Verify your power supply matches this requirement.
• Třída ochrany I: This product requires a protective earth connection.
• Stupeň krytí IP54: The fixture is protected against dust ingress and splashing water from any direction. While suitable for outdoor use, avoid direct high-pressure water jets.
• Integrovaná LED: LED světelný zdroj je integrovaný a nelze jej vyměnit uživatelem. Nepokoušejte se světelný zdroj rozebírat.
• Zacházení: Handle the product with care to avoid damage. Do not drop or subject it to strong impacts.
• Teplo: The light fixture may become warm during operation. Do not touch the light source directly when it is on.

3. Obsah balení

Zkontrolujte prosím balení, zda neobsahuje následující položky:

• Lucande 'Loya' LED Wall Light fixture (with integrated LED)
• Montážní materiál (šrouby, hmoždinky) - (Assumed, typical for wall lights)
• Návod k použití (tento dokument)

Obrázek 3.1: Demontováno view of the light fixture, illustrating its main components including the outer casing, internal electrical housing, and mounting plate.

4. Nastavení a instalace

Důležité: Před zahájením instalace se ujistěte, že je jistič VYPNUTÝ.

1. Vyberte umístění: Select a suitable wall location for mounting. Consider the light distribution and aesthetic.
2. Označte vrtné body: Use the fixture's mounting plate as a template to mark the drilling points on the wall.
3. Vrtací otvory: Drill holes at the marked points and insert appropriate wall plugs (if necessary for your wall type).
4. Kabelové připojení: Carefully connect the electrical wires from your power supply to the terminals on the back of the fixture. Ensure correct polarity (Live, Neutral, Earth). This fixture requires an earth connection (Protection Class I).
5. Montážní přípravek: Secure the fixture to the wall using the provided screws. Ensure it is firmly attached.
6. Obnovit napájení: Jakmile je instalace dokončena a všechna připojení jsou bezpečná, obnovte napájení jističem.

Obrázek 4.1: Rozměry produktu pro plánování instalace.

Obrázek 4.2: Zadní view of the fixture, showing electrical connection points and mounting hardware attachment areas.

5. Návod k obsluze

The Lucande 'Loya' LED Wall Light is designed for simple operation. Once properly installed and connected to the main power supply, the light can be switched on and off using a standard wall switch connected to the circuit.

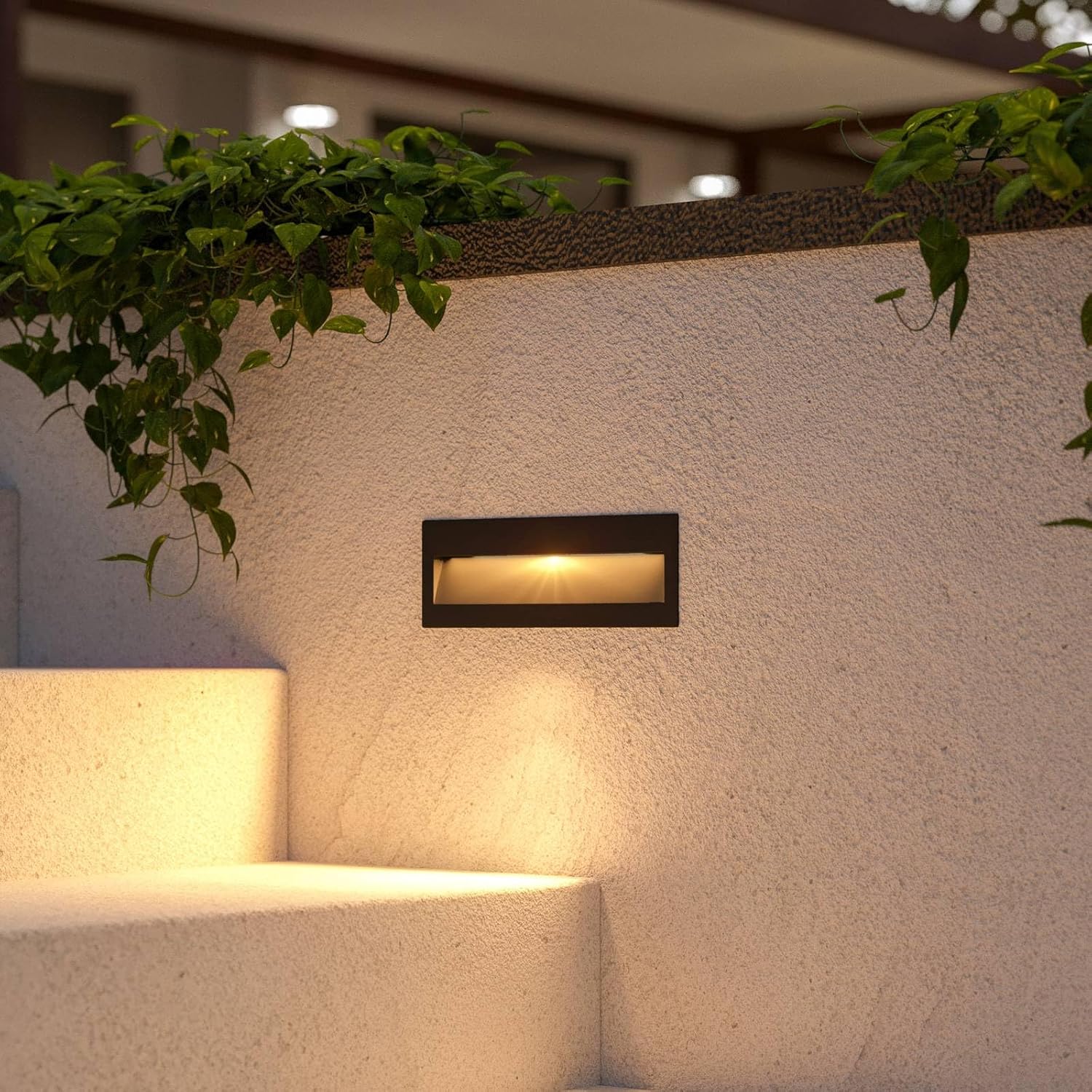

Figure 5.1: The 'Loya' light installed and illuminated on an outdoor staircase.

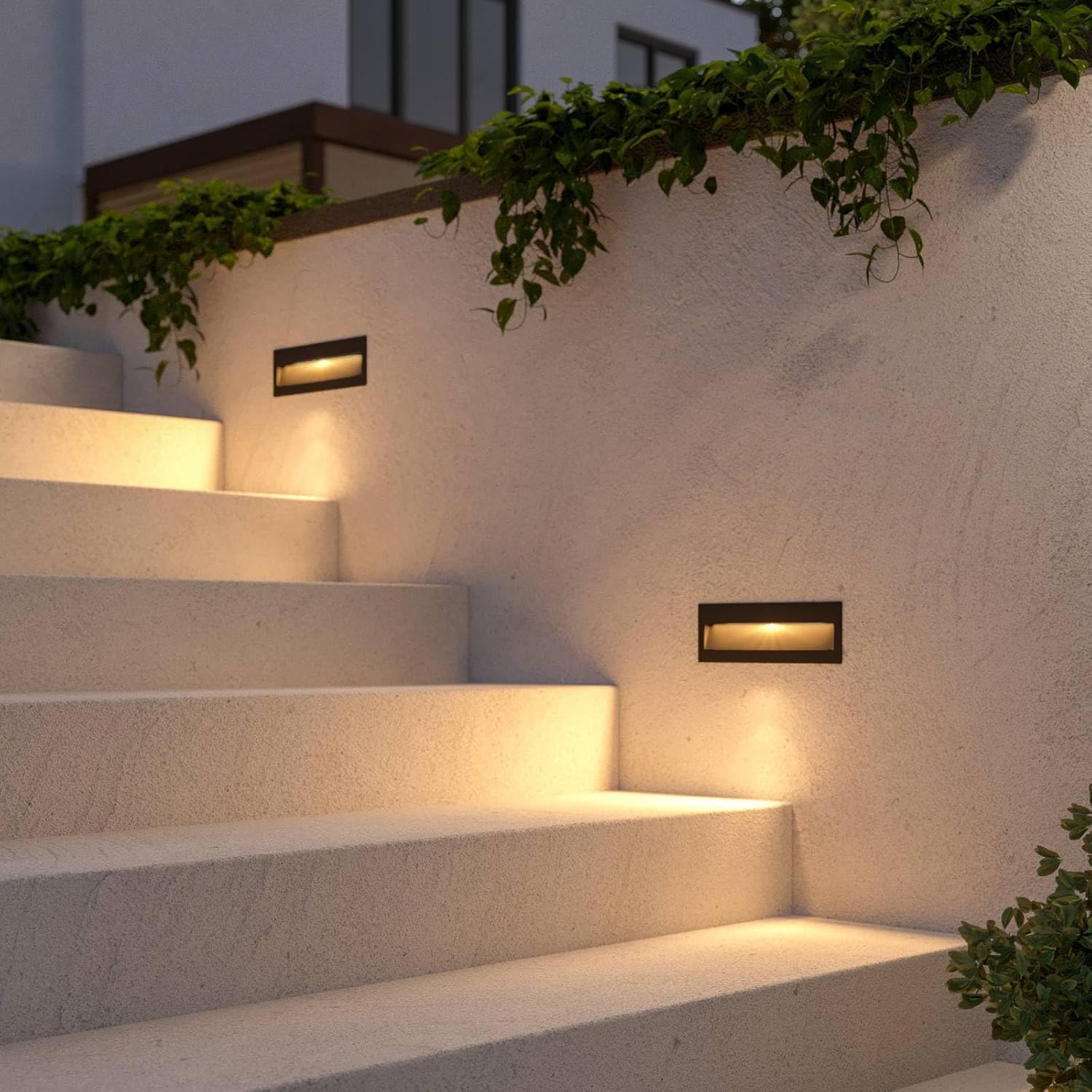

Figure 5.2: Multiple 'Loya' lights enhancing outdoor ambiance.

6. Údržba

The Lucande 'Loya' LED Wall Light requires minimal maintenance.

• Čištění: Před čištěním odpojte napájení. Otřete svítidlo měkkým hadříkem.amp hadříkem. Nepoužívejte abrazivní čisticí prostředky ani rozpouštědla, protože by mohly poškodit povrchovou úpravu.
• Inspekce: Periodically inspect the fixture for any signs of damage or wear, especially if installed outdoors. Ensure all connections remain secure.
• Životnost LED diod: The integrated LED is designed for long-term use and does not require replacement under normal operating conditions.

7. Řešení problémů

8. Specifikace

Figure 8.1: Energy Efficiency Label. For more details, scan the QR code or visit eprel.ec.europa.eu/qr/743209.

9. Záruka a podpora

Lucande products are manufactured to high-quality standards. For warranty information, please refer to the terms and conditions provided at the point of purchase or visit the official Lucande website. Information regarding spare parts availability is not explicitly provided for this model.

For technical support or inquiries, please contact your retailer or the manufacturer directly. Ensure you have your model number (9969039) and proof of purchase ready.
