Zavedení
The TruVoice HD-700 Monaural NC Headset is designed for professional communication environments, offering clear audio and effective noise cancellation. This headset provides a versatile solution for both desk phone and computer/softphone applications, ensuring comfort for extended use.
Key features include an ultra noise-canceling microphone, lightweight aluminum design, and compatibility with various phone systems via included USB and RJ11 cables.
Obsah balení
Ověřte, zda jsou v balení přítomny všechny položky:
- TruVoice HD-700 Headset
- USB propojovací kabel
- RJ11 U10P-S Quick Disconnect (QD) Adapter Bottom Cable
- Rychloupínací kabel
- Leatherette Ear Cushion(s) (pre-installed or spare)
- Oděvní klip
Image: Quick Start Guide illustrating the headset, quick disconnect cable, and connection to a handset, along with a list of package contents for HD-700 and HD-750 models.
Nastavení
Připojení ke stolnímu telefonu
To connect the headset to a compatible desk phone:
- Locate the handset cord on your desk phone.
- Disconnect the handset cord from the phone's handset port.
- Connect the RJ11 U10P-S Quick Disconnect (QD) Adapter Bottom Cable (coiled cable) into the handset port on your desk phone.
- Connect the headset's Quick Disconnect (QD) end to the QD end of the RJ11 adapter cable. Ensure a secure connection.
- Connect the desk phone's original handset into the RJ11 adapter cable's handset port (if available, or follow specific phone instructions).
Image: Black coiled RJ11 cable, used for connecting the headset to a desk phone's handset port.

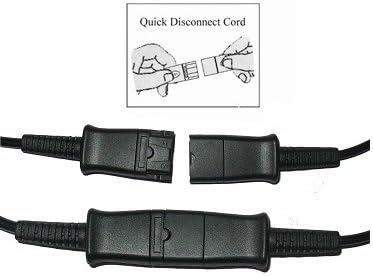

Image: Illustration demonstrating the connection and disconnection of the Quick Disconnect (QD) cord, showing two parts clicking together and separating.
Connecting to a Computer or Softphone
To connect the headset to a computer for softphone applications:
- Connect the headset's Quick Disconnect (QD) end to the QD end of the USB connection cable.
- Plug the USB connector of the USB cable into an available USB port on your computer.
- The computer should automatically detect and install the necessary drivers.
- Verify audio input/output settings in your computer's sound control panel or softphone application.
Image: Black USB cable with an inline control unit featuring buttons for volume up, volume down, and mute, and a Quick Disconnect (QD) port.
Nastavení náhlavní soupravy
For optimal comfort and microphone performance:
- Nastavení čelenky: Adjust the headband to fit comfortably over your head. The headset should feel secure without excessive pressure.
- Microphone Boom Adjustment: Rotate the microphone boom 270 degrees to position the microphone on either your left or right side.
- Umístění mikrofonu: Position the microphone approximately two fingers' width away from your mouth for clear voice transmission.
Obrázek: Boční view of the TruVoice HD-700 Monaural Headset, highlighting the adjustable headband and the flexible microphone boom.
Návod k obsluze
Call Management (USB Cable)
When connected via the USB cable, use the inline control unit for call management:
- Zvýšení/Snížení hlasitosti: Press the '+' or '-' buttons to adjust the listening volume.
- Ztlumit mikrofon: Press the mute button (often indicated by a microphone icon) to temporarily disable the microphone. Press again to unmute.
- Přijmout/ukončit hovor: (If supported by your softphone application) Press the call button (often indicated by a phone icon) to answer or end a call.
Call Management (Desk Phone)
When connected to a desk phone, call management is typically handled directly on the phone:
- Přijímání / ukončování hovorů: Use the dedicated headset button or speaker button on your desk phone, or lift/replace the handset.
- Nastavení hlasitosti: Adjust the volume using the controls on your desk phone.
Údržba
- Čištění: Wipe the headset and cables with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
- Polštářky do uší: Replace ear cushions periodically for hygiene and comfort.
- Skladování: Store the headset in a clean, dry place away from extreme temperatures. Avoid tangling cables.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| No audio from headset (desk phone) | Incorrect cable connection; phone not configured for headset. | Ensure RJ11 cable is securely connected to the handset port. Check phone's headset settings. |
| No audio from headset (computer) | USB cable not fully plugged in; incorrect sound settings. | Verify USB connection. Check computer's sound output settings to ensure the headset is selected. |
| Mikrofon nefunguje | Mikrofon ztlumený; vybráno nesprávné vstupní zařízení. | Check if the microphone is muted via the inline control or softphone application. Verify computer's sound input settings. |
| Poor sound quality / static | Loose connection; interference. | Ensure all connections are secure. Move away from other electronic devices that may cause interference. |
Specifikace
- Model: HD-700
- Konektivita: Wired (USB, RJ11 Quick Disconnect)
- Umístění uší: On Ear (Monaural)
- Mikrofon: Ultra Noise-Canceling, 270-degree rotation
- Materiál: Aluminum (Die-cast design)
- Impedance: 150 Ohmy
- Speciální vlastnosti: Acoustic Shock Protection, Lightweight design, Adjustable headband
- Hmotnost položky: 12.8 unce
- UPC: 757347366657
Záruka a podpora
Záruka: The TruVoice HD-700 Headset comes with a Lifetime Warranty from TruVoice, covering manufacturing defects and performance issues. Please retain your proof of purchase.
Podpora: For technical assistance, troubleshooting, or warranty claims, please contact TruVoice customer support. Refer to the official TruVoice webaktuální kontaktní informace naleznete na webu nebo na obalu produktu.
