PROFLO PF7611G Alvord Tub and Shower Trim Package User Manual

1. Úvod

This manual provides detailed instructions for the installation, operation, and maintenance of your PROFLO PF7611G Alvord Tub and Shower Trim Package. Please read this manual thoroughly before beginning installation or operation to ensure proper function and safety. Retain this manual for future reference.

The PROFLO PF7611G Alvord Tub and Shower Trim Package features a 1.75 GPM single-function shower head and a coordinating tub spout, designed for durability and ease of use in a chrome finish.

2. Bezpečnostní informace

Během instalace a provozu vždy dodržujte následující bezpečnostní opatření:

• Doporučená profesionální instalace: If you are unsure about any part of the installation process, it is recommended to consult a qualified plumber.
• Vodovod: Ensure the main water supply is turned off before beginning any plumbing work to prevent water damage.
• Bezpečnost při používání teplé vody: Exercise caution when adjusting water temperature to avoid scalding.
• Nástroje: Use appropriate tools for installation. Improper tools can damage the product or cause injury.
• Chemikálie: Avoid using harsh chemicals or abrasive cleaners on the product finish, as this can cause damage.

3. Obsah balení

Carefully unpack your PROFLO PF7611G Alvord Tub and Shower Trim Package and ensure all components are present and undamaged. The package typically includes:

• Single-function shower head
• Sprchové rameno a příruba
• Výtok z vany
• Handle trim and escutcheon plate
• Montážní materiál (šrouby, těsnění atd.)

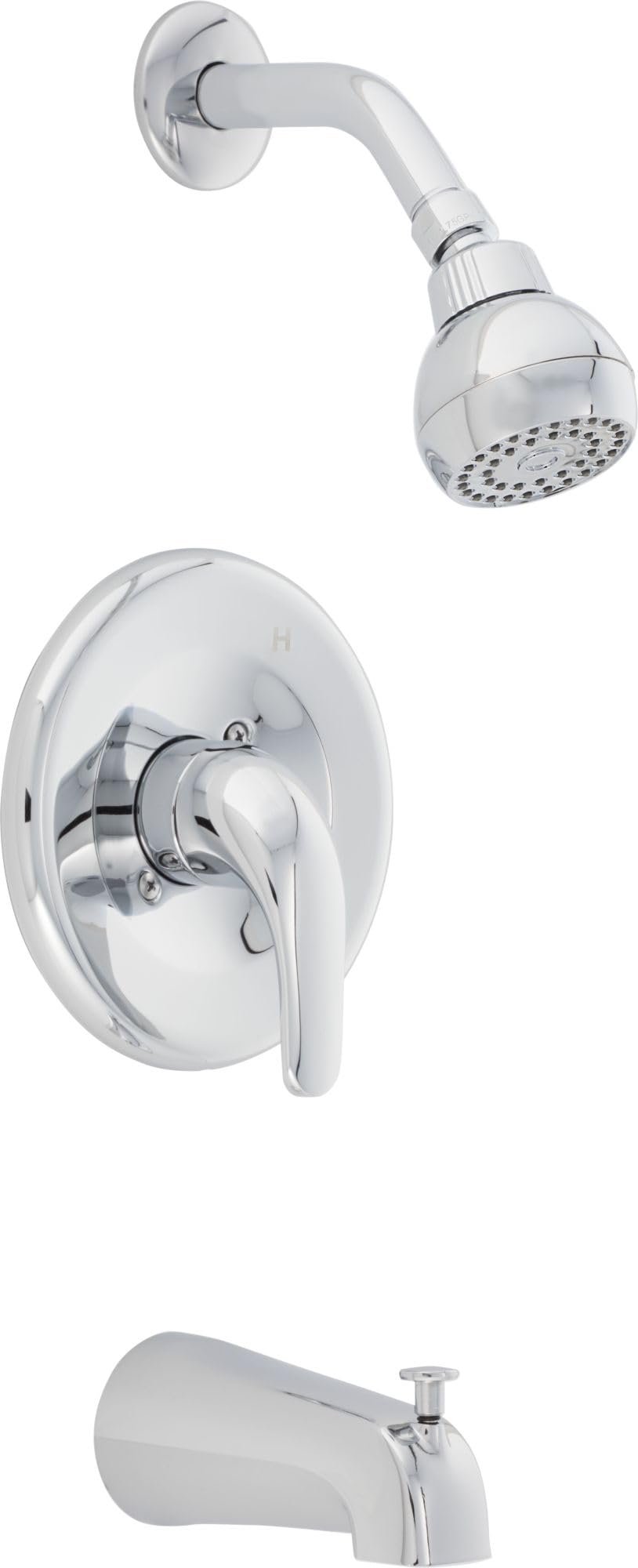

Image 3.1: Components of the PROFLO PF7611G Alvord Tub and Shower Trim Package. This image displays the individual parts included in the trim package, such as the shower head, handle, and tub spout, laid out for inspection.

4. Nastavení (instalace)

This section outlines the general steps for installing the PROFLO PF7611G Alvord Tub and Shower Trim Package. Ensure you have the necessary tools and that the main water supply is turned off before proceeding.

4.1 Potřebné nástroje

• Nastavitelný klíč
• Šroubovák (Phillips a/nebo plochý)
• Instalatérská páska (páska na těsnění závitů)
• Caulk gun and silicone sealant
• Ochranné brýle

4.2 kroky instalace

1. Vypněte přívod vody: Locate the main water shut-off valve for your home or the specific bathroom and turn it off.
2. Prepare Existing Plumbing: If replacing an old trim, remove all existing components. Clean the wall area around the valve and pipes.
3. Install Shower Arm and Flange: Apply plumber's tape to the threaded end of the shower arm. Thread the shower arm into the shower pipe in the wall. Hand-tighten, then tighten with a wrench until secure. Slide the shower arm flange against the wall.
4. Připevnění sprchové hlavice: Thread the shower head onto the shower arm. Hand-tighten, then use a wrench to snug it up, being careful not to overtighten.
5. Instalace výtoku vany: Depending on your tub spout type (slip-on or threaded), either slide it onto the copper pipe and secure the set screw, or thread it directly onto the pipe. Ensure it is flush against the wall.
6. Instalace krytu rozeta: Position the escutcheon plate over the valve body, ensuring it is centered and flush against the wall. Secure it with the provided screws.
7. Instalační rukojeť: Attach the handle to the valve stem according to the manufacturer's instructions for the specific valve body (not included in this trim package). Secure with the set screw.
8. Mezery těsnění: Apply a bead of silicone sealant around the shower arm flange, tub spout, and escutcheon plate where they meet the wall to prevent water penetration.
9. Zapnout přívod vody: Slowly turn the main water supply back on and check for leaks at all connections.

Image 4.1: The PROFLO PF7611G Alvord Tub and Shower Trim Package installed in a typical bathroom setting. This image provides a visual reference of the product's appearance once fully installed, including the shower head, handle, and tub spout.

5. Návod k obsluze

The PROFLO PF7611G Alvord Tub and Shower Trim Package features a single handle for controlling both water flow and temperature.

• Zapnutí/vypnutí: Lift the handle to turn on the water flow. Push the handle down to turn off the water flow.
• Nastavení teploty: Rotate the handle counter-clockwise for hotter water and clockwise for colder water.
• Diverter (for Tub/Shower): Pull the knob on the tub spout to divert water flow from the tub spout to the shower head. Push it back down to return water flow to the tub spout.

6. Údržba

Proper care and maintenance will ensure the longevity and appearance of your PROFLO PF7611G Alvord Tub and Shower Trim Package.

• Čištění: Clean the chrome finish regularly with a soft cloth and mild soap and water. Rinse thoroughly and dry immediately to prevent water spots.
• Vyhněte se drsným čisticím prostředkům: Do not use abrasive cleaners, scouring pads, ammonia-based cleaners, or any cleaners containing bleach, acids, or alcohol, as these can damage the finish.
• Trysky sprchové hlavice: If water flow from the shower head becomes restricted, gently rub the rubber nozzles to dislodge any mineral buildup. For stubborn buildup, the shower head may need to be soaked in a vinegar solution.

7. Řešení problémů

Běžné problémy a jejich řešení naleznete v následující tabulce.

8. Specifikace

9. Informace o záruce

PROFLO products are manufactured to high-quality standards and are backed by a manufacturer's warranty. Specific warranty details, including coverage duration and terms, are typically provided with the product packaging or can be found on the official PROFLO webstránky. Uschovejte si prosím doklad o koupi pro případ reklamace.

10. Podpora

For further assistance, technical support, or to inquire about replacement parts, please contact PROFLO customer service. You can typically find contact information on the PROFLO webwebu nebo prostřednictvím prodejce vašeho produktu.

PROFLO Webmísto: Visit the PROFLO Store on Amazon

11. Video zdroje

No official product videos from the seller were found for this specific model at this time. Please refer to the written instructions and diagrams for guidance.
