Yokogawa 2011 No. 04863S DC Ammeter User Manual

Zavedení

This manual provides essential information for the safe and effective operation, setup, and maintenance of the Yokogawa 2011 No. 04863S DC Ammeter. This precision instrument is designed for accurate measurement of direct current (DC) in various applications, featuring a 50mV drop for precise readings.

Bezpečnostní informace

Vždy dodržujte následující bezpečnostní opatření, abyste předešli zranění a poškození nástroje:

• Ensure the ammeter is disconnected from all power sources before making any connections or disconnections.
• Nepřekračujte stanovený objemtage and current ratings of the instrument.
• Use appropriate personal protective equipment (PPE) when working with electrical circuits.
• Avoid operating the ammeter in wet or damp podmínky.
• Refer to local electrical codes and regulations for safe installation and operation.

Nastavení

Proper setup is crucial for accurate measurements and safe operation.

1. Rozbalení: Carefully remove the ammeter from its packaging. Inspect for any visible damage.
2. Umístění: Place the ammeter on a stable, level surface away from direct sunlight, excessive heat, or strong electromagnetic fields.
3. Spojení:
   • Identify the input terminals on the ammeter. For DC current measurement, connect the ammeter in series with the load.
   • Ensure all connections are secure and free from loose wires.
   • Observe polarity when connecting the ammeter in a DC circuit. The positive terminal of the ammeter should connect towards the positive side of the circuit, and the negative terminal towards the negative side.

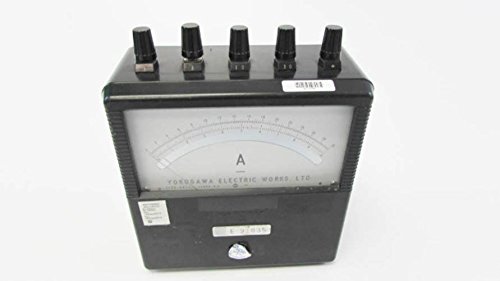

Obrázek 1: Přední strana view of the Yokogawa 2011 DC Ammeter, showing the main dial and input terminals.

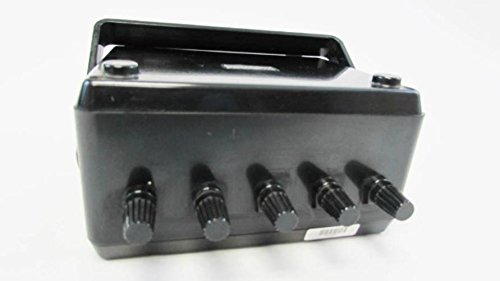

Obrázek 2: Nahoře view of the ammeter, highlighting the five input terminals for various current ranges.

Návod k obsluze

Follow these steps to take accurate current measurements:

1. Vyberte rozsah: Based on the expected current, select the appropriate input terminal (e.g., 50mV drop) to ensure the reading falls within the ammeter's scale. Start with the highest range if the current is unknown to prevent damage.
2. Zapnutí: Once connections are secure, apply power to the circuit being measured.
3. Měření odečtu: Observe the needle on the ammeter's dial. Read the value indicated by the needle on the corresponding scale. The dial is marked in Amperes (A).
4. Vypnout: After taking the measurement, disconnect power from the circuit before disconnecting the ammeter.

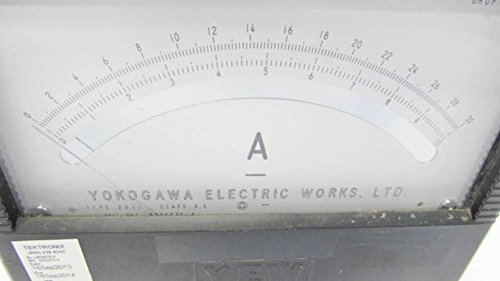

Obrázek 3: Detail view of the ammeter's analog dial, showing the 'A' for Amperes and various measurement scales.

Údržba

Regular maintenance ensures the longevity and accuracy of your ammeter.

• Čištění: Wipe the exterior of the ammeter with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Skladování: Store the ammeter in a clean, dry environment, away from extreme temperatures and humidity.
• Kalibrace: For critical applications, periodic calibration by a qualified technician is recommended to maintain measurement accuracy.
• Inspekce: Periodically inspect the terminals and casing, zda nezkontrolujete žádné známky opotřebení nebo poškození.

Obrázek 4: Spodní část view of the ammeter, showing the stable feet for secure placement.

Odstraňování problémů

If you encounter issues with your ammeter, refer to the following common problems and solutions:

Specifikace

Key technical specifications for the Yokogawa 2011 No. 04863S DC Ammeter:

• Model: 2011-SGS B9000ES-S
• Typ: DC ampérmetr
• Pokles: 50mV
• Výrobce: Yokogawa
• ASIN: B01MT9RIVD
• Rozměry balení: 10 x 10 x 10 palce
• První k dispozici: 13. března 2014

Záruka a podpora

For information regarding warranty coverage, technical support, or service, please contact Yokogawa customer service or refer to the official Yokogawa webwebu. Uschovejte si účtenku jako doklad o koupi.

Yokogawa Official Webmísto: www.yokogawa.com
