DS18 SLC-MD12 12-Inch Car Subwoofer Instruction Manual

1. Úvod

This manual provides essential information for the proper installation, operation, and maintenance of your DS18 SLC-MD12 12-inch car subwoofer. Please read these instructions carefully before use to ensure optimal performance and longevity of your product.

The DS18 SLC-MD12 is a 12-inch subwoofer designed for car audio systems, featuring a black steel basket, a polypropylene cone, and a 4-layer voice coil. It is engineered to deliver quality bass response for car audio enthusiasts.

2. Vlastnosti produktu

• Velikost: 12-palcový průměr
• Manipulace s energií: 250W RMS, 500W Max
• Impedance: 4 Ohm (Single Voice Coil - SVC)
• Hlasová cívka: ACCAW 4-layer, 2-inch (50.8mm) diameter
• Magnet: Ferrite, 42 oz weight
• Materiál kužele: Poly Injection (Polypropylene)
• Rám: Black Steel Basket
• Suspenze: Non-fatiguing rubber surround for durability

Obrázek: Přední strana view of the DS18 SLC-MD12 subwoofer, highlighting its 12-inch size, 4 Ohm impedance, and frequency response. Note: While the image indicates 1000W Max Power, the product specifications state 500W Max Power.

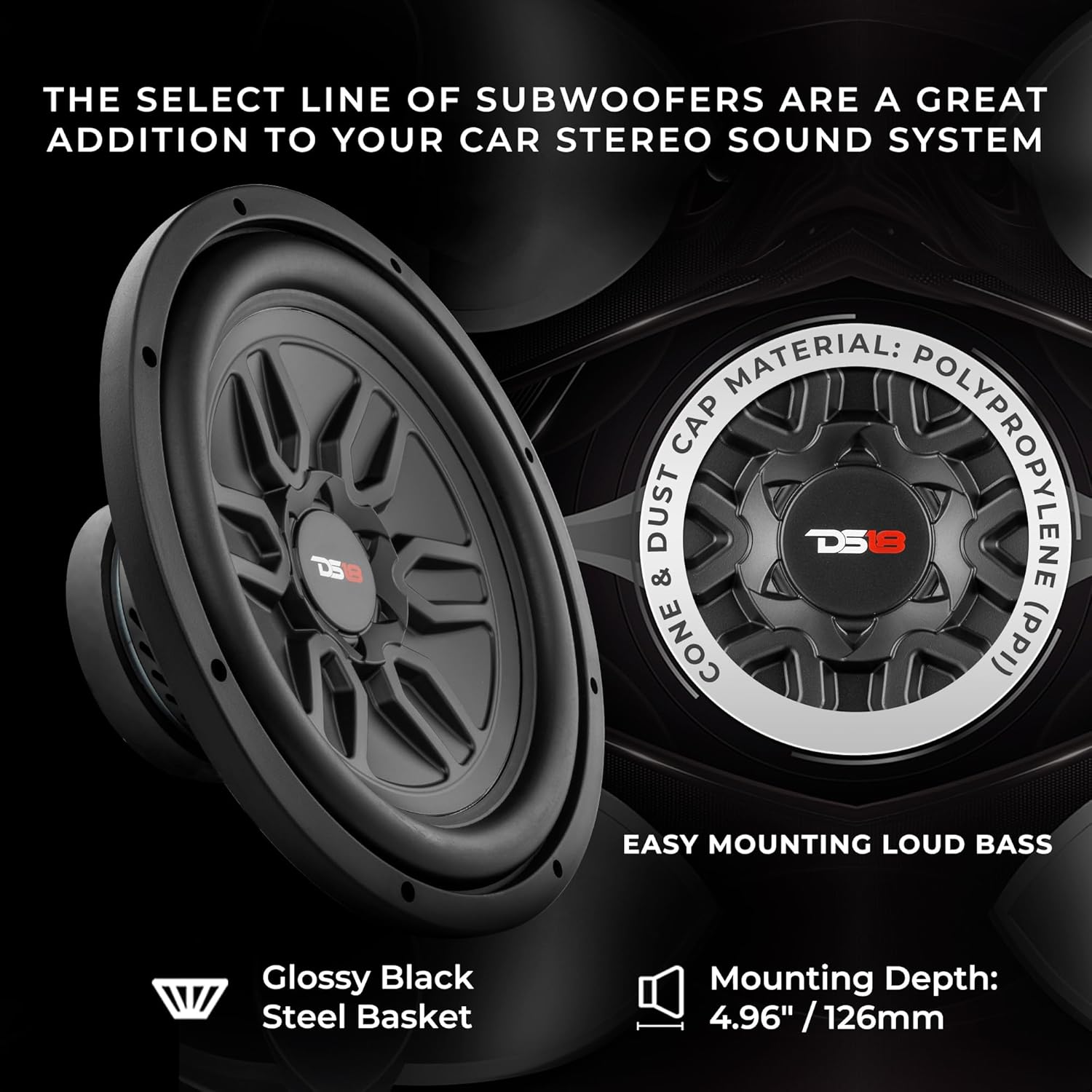

Obrázek: Úhlový view of the DS18 SLC-MD12 subwoofer, showing the polypropylene cone and dust cap. The image also indicates a mounting depth of 4.96 inches (126mm) and a glossy black steel basket.

3. Nastavení a instalace

3.1. Break-in Procedure

Before operating your new subwoofer under harsh conditions, it is crucial to perform a 'break-in' process. This ensures the subwoofer's components settle and perform as designed, preventing premature failure and optimizing performance.

1. Install the subwoofer into its enclosure.
2. Připojte subwoofer k vašemu amplifier with appropriate wiring.
3. Play music at a moderate volume for approximately 10-20 hours. Avoid excessive bass or high volumes during this period.
4. Gradually increase the volume and bass levels after the break-in period.

Over-driving the woofer before it has been properly broken-in can lead to premature failure and poor sound quality.

3.2. Pokyny pro montáž

Ensure the mounting location provides adequate space and structural integrity for the subwoofer. Refer to the specifications for precise dimensions.

• Průměr výřezu: 10.9 palců
• Celkový průměr: 12.4 palců
• Montážní hloubka: 5.5 palců

Obrázek: Boční view of the DS18 SLC-MD12 subwoofer, illustrating the magnet structure and the area where the voice coil is housed. This view pomáhá pochopit požadovanou montážní hloubku.

Obrázek: Zadní view of the DS18 SLC-MD12 subwoofer, displaying the speaker terminals for wiring connections.

4. Návod k obsluze

Once installed and broken-in, your DS18 SLC-MD12 subwoofer is ready for operation. Ensure your amplifier settings are correctly configured for a 4 Ohm load and that the power output does not exceed the subwoofer's RMS rating of 250W to prevent damage.

4.1. Recommended Enclosure Volumes

For optimal performance, consider the following enclosure volumes:

• Optimum Sealed Enclosure: 1.3 cubic feet / 36.8 Liters
• Optimum Ported Enclosure: 1.55 cubic feet / 43.9 Liters

5. Údržba

The DS18 SLC-MD12 subwoofer requires minimal maintenance. To ensure its longevity and performance:

• Udržujte subwoofer čistý a bez prachu a nečistot. K čištění používejte měkký, suchý hadřík.
• Nevystavujte subwoofer extrémním teplotám nebo vlhkosti.
• Pravidelně kontrolujte těsnost a korozi kabelových spojů.
• Ensure the enclosure remains sealed and free from air leaks.

6. Řešení problémů

If you experience issues with your DS18 SLC-MD12 subwoofer, consider the following common troubleshooting steps:

• Žádný zvuk:
  • Check all power and audio connections to ensure they are secure and correctly wired.
  • Ověřte, že amplifier je zapnutý a funguje správně.
  • Inspect the subwoofer's voice coil for any visible damage (though this usually requires removal).
• Zkreslený zvuk:
  • Reduce the volume level on your head unit and ampživější.
  • Kontrola amplifier gain settings; ensure they are not set too high.
  • Verify that the subwoofer is not over-driven beyond its power handling capabilities.
  • Inspect the cone and surround for any physical damage.
• Slabé basy:
  • Ensure the subwoofer is wired in phase with other speakers.
  • Check the enclosure for any air leaks or damage.
  • Adjust bass boost and crossover settings on your ampzvlhčovač nebo hlavní jednotka.

If problems persist after performing these checks, consult a professional car audio technician or contact DS18 customer support.

7. Specifikace

8. Záruka a podpora

Informace o záruce a technickou podporu naleznete na oficiálních stránkách DS18. webnebo se obraťte na autorizovaného prodejce DS18. Uschovejte si účtenku jako doklad o koupi pro případné reklamace.

Oficiální DS18 Webmísto: www.ds18.com
