BLACK+DECKER Cordless Grass String Trimmer

Zavedení

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your BLACK+DECKER 28cm 18V Cordless Grass String Trimmer, model STC1820PCB-XJ. Please read this manual thoroughly before first use and keep it for future reference.

The BLACK+DECKER 28cm 18V trimmer is a powerful, ergonomically-designed string trimmer ideal for trimming excess grass and giving lawn borders a neat and tidy finish. It features E-drive technology for powering through tougher areas and a 28cm cutting swath for fast cutting. The Trim 'n' Edge function allows easy switching between trimming and edging applications. The Automatic Single Line Feed System (AFS) saves time and effort by automatically feeding line when needed.

Obrázek 1: Přesview of the BLACK+DECKER STC1820PCB-XJ Cordless Grass String Trimmer.

Důležité bezpečnostní informace

Always wear appropriate safety gear, including eye protection, long pants, and sturdy footwear, when using this string trimmer. Be aware of flying debris and potential cut hazards. Keep bystanders, children, and pets at a safe distance (at least 15 meters/50 feet) from the operating area. Disconnect the battery pack before cleaning, performing maintenance, or when the tool is not in use.

Do not operate the trimmer in wet conditions or near flammable liquids or gases. Inspect the cutting line and guard before each use for any damage. Replace damaged parts immediately. Ensure all guards and handles are properly installed before operation.

Nastavení

1. Montáž

The STC1820PCB-XJ is designed for easy assembly. Ensure all components are present before beginning. The main shaft connects the motor head to the handle assembly. Securely fasten all connections as per the diagrams provided in the original packaging. This unit is a bare unit, meaning the battery and charger are sold separately.

2. Instalace baterie

This trimmer operates on an 18V Lithium-Ion battery (not included). To install the battery, align the battery pack with the receptacle in the handle and slide it in until it clicks securely into place. To remove, press the release button and slide the battery out.

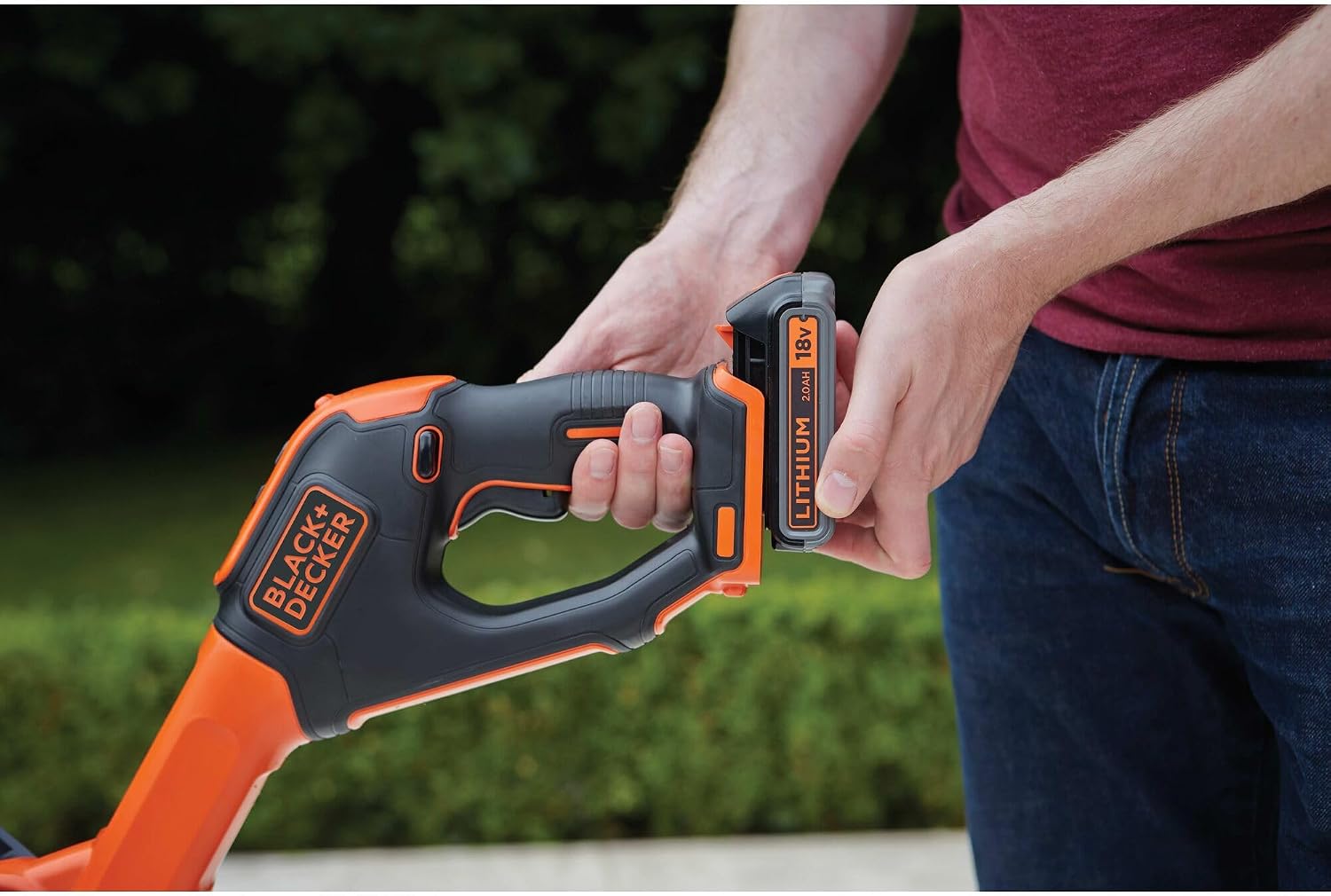

Figure 2: Proper insertion of the 18V Lithium-Ion battery into the trimmer handle.

3. Adjusting the Auxiliary Handle

Adjust the auxiliary handle to a comfortable position that allows for balanced operation and good control. Loosen the knob on the handle, slide it to the desired position, and then tighten the knob firmly.

Návod k obsluze

1. Spouštění a zastavování

To start the trimmer, ensure the battery is fully charged and securely installed. Press the safety lock-off button (if present) and then squeeze the trigger switch. To stop, release the trigger switch.

2. Sekání trávy

Hold the trimmer firmly with both hands. Maintain a comfortable distance from the cutting head. Use a sweeping motion, moving the trimmer from side to side, to cut grass. The E-drive technology ensures consistent power, even in dense areas. The 28cm cutting swath allows for efficient coverage.

Figure 3: Operating the trimmer in an area with overgrown grass, demonstrating its power.

3. Edging Function (Trim 'n' Edge)

The Trim 'n' Edge feature allows you to easily convert the trimmer into an edger for neat lawn borders. To switch modes, twist the pole assembly as indicated by the markings on the tool. Once in edging mode, use the guide wheel to maintain a consistent cutting depth along paths and flowerbeds.

Figure 4: The trimmer being adjusted for the Trim 'n' Edge function, allowing for precise border work.

Figure 5: The trimmer in use for edging, creating a clean line along a garden bed.

4. Automatic Line Feed System (AFS)

The AFS automatically feeds out cutting line as needed, eliminating the need to manually bump or adjust the line. This ensures continuous cutting performance and saves time.

Obrázek 6: Detailní záběr view of the trimmer head actively cutting grass, showcasing the automatic line feed.

Údržba

1. Čištění

After each use, disconnect the battery and clean the trimmer. Remove any grass clippings, dirt, or debris from the cutting head, guard, and ventilation slots. Use a damp cloth; do not use solvents or abrasive cleaners. Ensure the tool is dry before storage.

2. Výměna řezací struny

When the cutting line runs out, it needs to be replaced. Refer to your original product manual for specific instructions on how to open the spool housing and replace the line. Always use genuine BLACK+DECKER replacement line to ensure optimal performance and safety.

3. Skladování

Store the trimmer in a dry, secure location, out of reach of children. If storing for extended periods, remove the battery pack and store it separately in a cool, dry place.

Odstraňování problémů

Pokud problém přetrvává i po vyzkoušení těchto řešení, kontaktujte zákaznickou podporu BLACK+DECKER.

Specifikace

Záruka a podpora

For warranty information, please refer to the warranty card included with your purchase or visit the official BLACK+DECKER webUschovejte si doklad o koupi pro případ reklamace.

If you require technical assistance, replacement parts, or have questions regarding your BLACK+DECKER product, please contact BLACK+DECKER customer support. You can find contact details on the official BLACK+DECKER webwebu nebo prostřednictvím prodejce, u kterého jste produkt zakoupili.

Explore more BLACK+DECKER products and accessories at the Obchod BLACK+DECKER.

Další informace

Do této příručky nebyla k dispozici žádná oficiální produktová videa od prodejce, která by bylo možné vložit.
