Invicta Vintage Automatic Watch Model 22569 User Manual

Zavedení

This manual provides essential information for the proper use and care of your Invicta Vintage Automatic Watch, Model 22569. This timepiece features a 45mm stainless steel case with a silver dial and operates with a precise automatic movement. It is designed with 5 bar water resistance and includes a chronograph function. Please read these instructions carefully to ensure optimal performance and longevity of your watch.

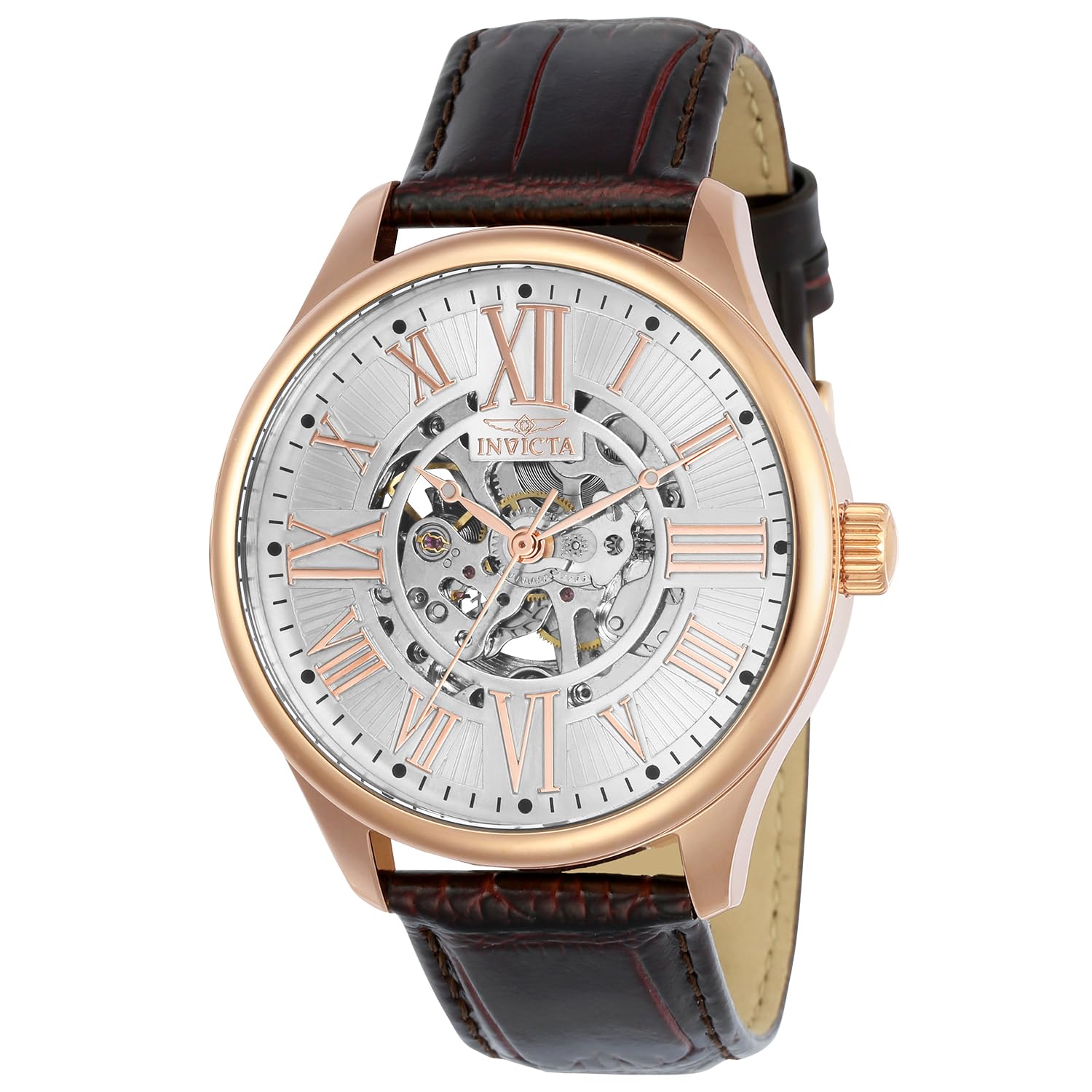

Image: Invicta Vintage Automatic Watch Model 22569. This image displays the watch's overall design, featuring a brown leather strap and a silver dial with Roman numerals.

Nastavení

Automatický pohyb

Your Invicta watch is equipped with an automatic mechanical movement. This type of movement is powered by the motion of your wrist and does not require a battery. For initial setup or if the watch has stopped due to lack of wear, it needs to be manually wound. Gently rotate the crown clockwise approximately 20-30 times to build up a power reserve. After this, regular daily wear will keep the watch running.

Nastavení času a data

The watch features a crown for setting the time and date. Depending on the specific crown type, the operation may vary:

• Šroubovací korunka: If your watch has a screw-down crown, unscrew it counter-clockwise before pulling it out to adjust the time or date. After adjustment, push the crown back in and screw it clockwise tightly to ensure water resistance.
• Push-pull Crown: If your watch has a push-pull crown, gently pull it out to the desired position for time or date adjustment. After adjustment, push the crown back in completely.

Failure to properly secure the crown will compromise the watch's water resistance.

Image: Watch Movements and Crown Types. This diagram illustrates the differences between automatic and quartz movements, and demonstrates the operation of both screw-down and push-pull crowns for setting the watch.

Návod k obsluze

Denní nošení

For consistent operation, wear your automatic watch daily. The natural motion of your wrist will keep the mainspring wound. If the watch is not worn for an extended period (typically 36-40 hours), it may stop and require manual winding as described in the Setup section.

Funkce chronografu

Your watch is equipped with a chronograph feature for measuring elapsed time. Refer to the specific instructions provided with your watch for detailed operation of the chronograph pushers, typically located on the side of the case adjacent to the crown.

Údržba

Péče o odolnost proti vodě

The water resistance of your watch is rated at 5 bar (50 meters), suitable for short periods of recreational swimming. However, water resistance can be affected by several factors:

• Ensure the crown is always fully pushed in or screwed down tightly. An improperly sealed crown will compromise water resistance.
• Avoid exposing the watch to extreme temperature differences, which can cause condensation inside the watch.
• If the watch is exposed to saltwater, rinse it immediately with fresh water.
• It is recommended to have your watch's water resistance checked regularly by a qualified technician, especially after battery changes or significant impacts.

Image: Water Resistance Guidelines. This image provides visual and textual information on maintaining the water resistance of your watch, emphasizing proper crown sealing and care after exposure to water.

Obecná péče

• Clean your watch regularly with a soft, dry cloth. For more thorough cleaning, a slightly damp cloth can be used, ensuring the crown is sealed.
• Avoid exposing the watch to strong magnetic fields, as this can affect the accuracy of the mechanical movement.
• Protect your watch from impacts and extreme vibrations.

Odstraňování problémů

Hodinky neběží nebo ztrácejí čas

• Nedostatečná rezerva energie: As an automatic watch, it requires motion to operate. If the watch has stopped or is losing time, manually wind it by rotating the crown clockwise 20-30 times. Ensure you wear it regularly.
• Magnetické rušení: Exposure to strong magnetic fields can affect accuracy. If you suspect this, consult a watch technician for demagnetization.
• Požadovaná služba: If the issue persists after winding and ensuring no magnetic interference, the watch may require professional servicing.

Condensation Inside the Watch

• Small amounts of condensation that disappear quickly are usually not a concern.
• Persistent condensation or visible water droplets indicate a breach in water resistance. Immediately take the watch to a qualified technician to prevent further damage.

Specifikace

Informace o záruce

Your Invicta Vintage Automatic Watch Model 22569 comes with a 2-year Invicta manufacturer's warranty. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage resulting from improper use, accidents, unauthorized repairs, or normal wear and tear.

Podpora

For further assistance, technical support, or warranty service, please contact Invicta customer service. You can find contact information and additional resources on the official Invicta website or by visiting an authorized Invicta service center. Always ensure that any repairs or maintenance are performed by certified professionals to maintain the integrity and warranty of your watch.
