1. Úvod
The KT-185 Magnetic Tumbler is designed for polishing intricate details, tiny crevices, and multiple settings on jewelry pieces. It is not intended for use on flat surfaces. This magnetic tumbler can effectively process certain rings with stones intact, such as cubic zirconia (CZ), rubies, sapphires, and diamonds. The automated polishing process significantly reduces the need for traditional methods like cyanide bombing, stripping, and thrumming. Most finishing operations are completed within 30 minutes by placing jewelry, steel pins, water, and a special burnishing compound into the acrylic bowl.

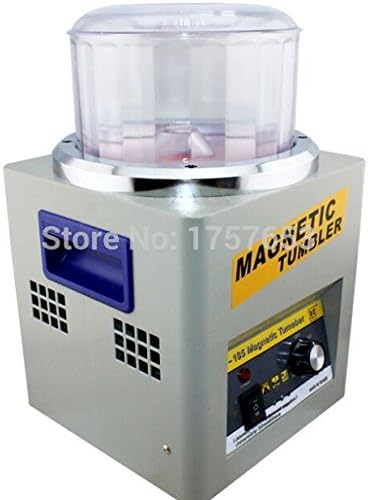

Obrázek 1: Přední strana view of the KT-185 Magnetic Tumbler with the acrylic bowl in place.
2. Nastavení
- Rozbalení: Carefully remove the magnetic tumbler from its packaging. Inspect for any damage during transit.
- Umístění: Place the unit on a stable, level, and dry surface. Ensure adequate ventilation around the machine.
- Připojení napájení: Ověřte, že svtage and frequency of your power supply match the requirements of the machine (AC 220 V, 50 Hz or AC 110 V, 60 Hz). Connect the power cord to a grounded electrical outlet.
- Bowl Assembly: Ensure the acrylic bowl is clean and properly seated on the magnetic base.

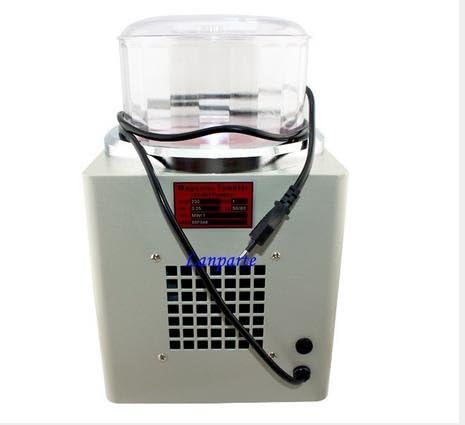

Obrázek 2: Zadní view of the KT-185 Magnetic Tumbler, showing the power input and ventilation.
3. Návod k obsluze
Follow these steps for effective jewelry polishing:
- Připravte si misku: Place your jewelry pieces into the acrylic bowl.
- Add Steel Pins: Add the appropriate amount of tiny steel pins (media) to the bowl. The pins are driven by powerful rotating magnets at the base.
- Add Water and Compound: Pour water into the bowl, ensuring the jewelry and pins are fully submerged. Add a small amount of special burnishing compound. Refer to the compound manufacturer's instructions for exact ratios.
- Zajistěte víko: Place the lid securely on the acrylic bowl to prevent splashing and ensure proper operation.
- Začněte leštění: Press the "on" button to start the magnetic tumbler.
- Monitorovat proces: Most finishing operations are completed in under 30 minutes. Monitor the process to achieve desired results.
- Dokončit: Once polishing is complete, turn off the machine, carefully remove the lid, and retrieve your polished jewelry. Rinse thoroughly to remove any remaining compound or pins.
Figure 3: The magnetic tumbler with its clear acrylic bowl, ready for operation.
4. Údržba
- Čištění mísy: After each use, thoroughly clean the acrylic bowl and lid with water to remove any residue from the polishing compound and jewelry.
- Cleaning Steel Pins: Periodically clean the steel pins to ensure optimal performance. Follow the manufacturer's guidelines for cleaning and storing the pins.
- Čištění exteriéru: Otřete vnější část stroje měkkým hadříkemamp hadříkem. Nepoužívejte abrazivní čisticí prostředky ani neponořujte jednotku do vody.
- Skladování: Store the magnetic tumbler in a dry, dust-free environment when not in use.
5. Řešení problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Stroj se nezapne. | No power supply; faulty power cord. | Check power connection and outlet. Ensure the power switch is in the "on" position. |
| Špatné výsledky leštění. | Incorrect amount of pins or compound; insufficient run time; worn pins. | Adjust pin and compound quantities. Increase polishing duration. Replace worn steel pins. |
| Nadměrný hluk během provozu. | Improperly seated bowl or lid; uneven surface. | Ensure the bowl and lid are securely in place. Place the tumbler on a flat, stable surface. |
6. Specifikace
- Model: KT-185
- Glass Tank Size: 160 x 100 mm
- Dimenze: 280 x 260 x 400 mm
- Hmotnost: 13 kg
- Rychlost: 2000 ot./min
- Kapacita: 600 g
- svtage: AC 220 V, 50 Hz; AC 110 V, 60 Hz (Poznámka: Voltage could be 110 V/60 Hz or 220 V/50 Hz, depending on the recipient's country standard.)
- Výrobce: Obecný
- Datum první dostupnosti: 28. prosince 2015
7. Bezpečnostní informace
- Always ensure the machine is unplugged before performing any maintenance or cleaning.
- Nepoužívejte stroj s poškozeným napájecím kabelem nebo zástrčkou.
- Během provozu držte ruce a volný oděv v dostatečné vzdálenosti od pohyblivých částí.
- Do not overload the tumbler beyond its specified capacity.
- Use only recommended polishing media and compounds.
- Uchovávejte mimo dosah dětí.
8. Záruka a podpora
Specific warranty information for this product is not provided in the available data. For warranty claims, technical support, or service inquiries, please contact the retailer or manufacturer directly. Retain your proof of purchase for any potential claims.
