CATA BETA 1200 Stainless Steel Ceiling Hood Instruction Manual

1. Důležité bezpečnostní informace

Please read this instruction manual carefully before installing, operating, or performing maintenance on your CATA BETA 1200 ceiling hood. Keep this manual for future reference.

• Elektrická bezpečnost: Ensure the electrical installation complies with local regulations. Disconnect the appliance from the power supply before any cleaning or maintenance.
• Instalace: Installation must be performed by a qualified technician. Ensure adequate ventilation in the room when the hood is used simultaneously with other gas or fuel-burning appliances.
• Používání: This appliance is intended for domestic use only. Do not flambé under the range hood. Do not leave frying pans unattended during use, as overheated oil can ignite.
• Děti: Keep packaging materials away from children. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

2. Konec produktuview

The CATA BETA 1200 is a high-performance, ceiling-mounted extractor hood designed to efficiently remove smoke, steam, and odors from your kitchen. Constructed from durable stainless steel, it offers both functionality and a sleek aesthetic.

Mezi klíčové vlastnosti patří:

• Materiál: Nerez
• Typ montáže: Strop
• Kapacita proudění vzduchu: 780 m³/h
• Ovládání: Dotykové ovládání
• Speciální funkce: Časovač

3. Nastavení a instalace

The CATA BETA 1200 is designed for ceiling installation. Proper planning and adherence to dimensions are crucial for optimal performance and safety. Ensure the ceiling structure can support the weight of the hood.

3.1 Rozměry a vůle

Refer to the diagrams below for detailed product dimensions and recommended installation clearances. Maintain the minimum and maximum heights as specified for efficient extraction.

Figure 1: CATA BETA 1200 Ceiling Hood Dimensions (1200mm width)

Figure 2: Alternative CATA Ceiling Hood Dimensions (900mm width, for reference)

3.2 Potrubí

This hood is designed for ducted (canalizado) operation. Ensure the ducting system is properly installed and sealed to prevent air leaks and maximize extraction efficiency. The duct diameter should match the hood's outlet for optimal performance.

3.3 Elektrické připojení

Connect the hood to a suitable electrical supply as per local electrical codes. A dedicated circuit is recommended. Ensure the power supply is disconnected before making any electrical connections.

4. Návod k obsluze

The CATA BETA 1200 features intuitive touch controls for easy operation.

4.1 Zapnutí/vypnutí

Press the power symbol on the touch control panel to turn the hood on or off.

4.2 Nastavení rychlosti ventilátoru

Select the desired fan speed by pressing the corresponding speed level on the touch panel. Higher speeds provide greater extraction capacity (up to 780 m³/h) for intense cooking.

4.3 Osvětlení

Press the light symbol to turn the integrated lighting on or off, illuminating your cooking area.

4.4 Funkce časovače

Activate the timer function to allow the hood to continue operating for a set period after cooking, ensuring all residual odors are removed. Refer to the specific timer icon and instructions on the control panel for setting the duration.

5. Údržba

Regular maintenance ensures the longevity and optimal performance of your CATA BETA 1200 hood.

5.1 Čištění exteriéru

Clean the stainless steel surfaces regularly with a soft cloth and a non-abrasive cleaner specifically designed for stainless steel. Avoid harsh chemicals or abrasive pads that can scratch the surface.

5.2 Čištění tukového filtru

The metal grease filters should be cleaned frequently (approximately every 2-4 weeks, depending on usage) to maintain extraction efficiency. Remove the filters as per the appliance's design and wash them by hand with hot soapy water or in a dishwasher. Ensure they are completely dry before re-installing.

5.3 Výměna žárovky

If a light bulb needs replacement, ensure the hood is disconnected from the power supply. Refer to the specific instructions for accessing and replacing the bulbs, using only bulbs of the correct type and wattage.

6. Řešení problémů

Before contacting technical support, please check the following common issues:

• Digestoř se nezapíná: Check if the appliance is properly plugged into the power outlet and if the circuit breaker has tripped.
• Low extraction performance: Ensure the grease filters are clean and not clogged. Check for any obstructions in the ducting system. Verify that the fan speed is set appropriately for the cooking intensity.
• Neobvyklý hluk: Check if the filters are correctly installed. Ensure there are no loose parts or foreign objects in the fan area.
• Světla nefungují: Check if the light bulbs need replacement. Ensure the hood is receiving power.

Pokud problém přetrvává i po kontrole těchto bodů, obraťte se na kvalifikovaný servisní personál.

7. Specifikace

7.1 Energetický štítek

The energy label provides information on the hood's energy efficiency and performance characteristics.

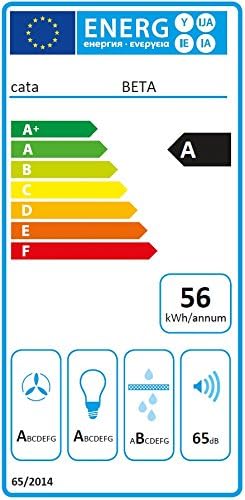

Figure 3: CATA BETA Energy Label

8. Záruka a podpora

For warranty information, please refer to the warranty card included with your product or contact your retailer. In case of technical issues or for spare parts, please contact Cata customer service or an authorized service center. Always provide the model number (BETA 1200) and the product number (TP-8422248062299_221836_Vendor) when seeking support.

You can visit the official Cata store for more information: Cata Official Store
