Garland 2321900 Thermocouple 6-inch Instruction Manual

1. Konec produktuview

The Garland 2321900 is a 6-inch thermocouple designed for use in various industrial and scientific applications, particularly within oven pilot systems. A thermocouple is an electrical device consisting of two dissimilar electrical conductors forming electrical junctions at differing temperatures. It produces a temperature-dependent voltage as a result of the thermoelectric effect, which can then be interpreted to measure temperature. This specific model is engineered for reliability and accurate temperature sensing in demanding environments.

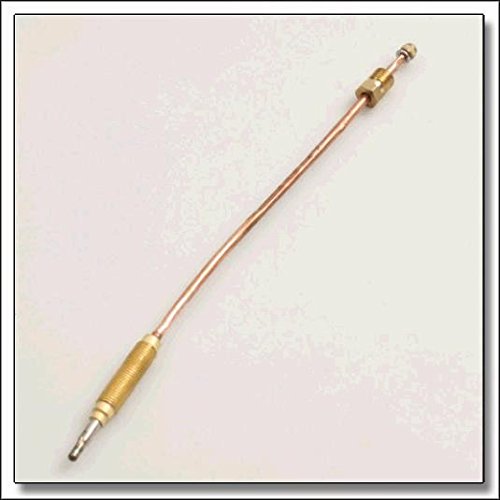

Image 1.1: The Garland 2321900 6-inch Thermocouple. This image displays the physical appearance of the thermocouple, including its metallic construction and connection points.

2. Bezpečnostní informace

CAUTION: This product is intended for use in high-temperature environments. Always handle with care to prevent burns. Do not touch the product while it is in use or immediately after it has been removed from the heat source. Keep the product clean and free of debris to ensure proper functioning and prevent potential hazards. Always follow the manufacturer's instructions for proper installation and use.

• Ensure power to the appliance is disconnected before installation or maintenance.
• Wear appropriate personal protective equipment (PPE), such as heat-resistant gloves, when handling the thermocouple, especially after operation.
• Verify that the thermocouple is correctly rated for the temperature range of your application.
• Improper installation can lead to inaccurate readings or system malfunction. Consult a qualified technician if unsure about installation procedures.

3. Nastavení a instalace

Proper installation is crucial for the accurate and safe operation of the Garland 2321900 thermocouple. It is recommended that installation be performed by a qualified professional.

Kroky instalace:

1. Odpojit napájení: Before beginning any installation, ensure that the power supply to the appliance (e.g., oven, furnace) is completely disconnected and locked out to prevent accidental startup.
2. Locate Existing Thermocouple (if applicable): Identify the position of the old thermocouple, typically near the pilot light or burner assembly. Note its orientation and connection points.
3. Remove Old Thermocouple: Carefully disconnect the old thermocouple from its mounting bracket and the control valve. Be mindful of any gas lines or electrical connections.
4. Install New Thermocouple: Insert the new Garland 2321900 thermocouple into the designated mounting bracket. Ensure the tip of the thermocouple is positioned correctly within the flame path of the pilot light, as specified by the appliance manufacturer. The tip must be fully enveloped by the pilot flame for proper operation.
5. Connect to Control Valve: Securely attach the thermocouple's lead to the appropriate terminal on the gas control valve. Ensure a tight, secure connection to prevent signal loss.
6. Ověřte umístění: Double-check that the thermocouple is firmly mounted and its tip is correctly positioned to sense the pilot flame.
7. Obnovení napájení a testování: Once installation is complete, restore power to the appliance. Follow the appliance manufacturer's instructions to light the pilot and test the system's operation. Verify that the main burner ignites and operates correctly, and that the thermocouple holds the pilot flame.

4. Návod k obsluze

The Garland 2321900 thermocouple is a passive component that generates a small electrical voltage when its tip is heated by a flame. This voltage signals the gas control valve to remain open, allowing gas to flow to the main burner. Its operation is integral to the safety and functionality of gas-fired appliances.

• Pilot Ignition: When the pilot light is ignited, the flame heats the tip of the thermocouple.
• svtage Generace: The heat causes the thermocouple to generate a millivolt electrical current.
• Aktivace plynového ventilu: This current flows to the gas control valve, energizing an electromagnet that holds the pilot gas valve open.
• Bezpečnostní vypnutí: If the pilot flame extinguishes, the thermocouple cools down, stops generating voltage, and the electromagnet releases, closing the pilot gas valve and preventing unburnt gas from accumulating.

No direct user interaction is required for the thermocouple's operation once correctly installed. Its function is automatic and continuous as long as the pilot flame is present.

5. Údržba

Regular inspection and minor maintenance can extend the lifespan and ensure the reliable operation of your Garland 2321900 thermocouple.

• Vizuální kontrola: Periodically inspect the thermocouple tip for signs of corrosion, carbon buildup, or physical damage. Ensure it is still securely positioned within the pilot flame.
• Čištění: If carbon or soot buildup is observed on the thermocouple tip, gently clean it with a fine-grade emery cloth or a soft brush. Avoid harsh abrasives that could damage the metal. Ensure the appliance is off and cooled before cleaning.
• Kontrola připojení: Verify that the connection to the gas control valve is tight and free of corrosion. A loose or corroded connection can lead to intermittent operation or failure.
• Nahrazení: Thermocouples are wear items and may eventually fail. If the pilot light consistently goes out or the main burner fails to ignite despite a strong pilot flame, the thermocouple may need replacement.

6. Řešení problémů

If your appliance is experiencing issues related to the pilot light or main burner ignition, the thermocouple may be a contributing factor. Here are some common troubleshooting steps:

• Pilot Light Will Not Stay Lit:
  • Weak Pilot Flame: Ensure the pilot flame is strong and consistently engulfs the tip of the thermocouple. Adjust the pilot flame if necessary (refer to appliance manual).
  • Dirty Thermocouple: Clean any carbon buildup from the thermocouple tip as described in the Maintenance section.
  • Uvolněné připojení: Check and tighten the thermocouple connection at the gas control valve.
  • Vadný termočlánek: If the above steps do not resolve the issue, the thermocouple may be faulty and require replacement.
• Main Burner Does Not Ignite (Pilot is Lit):
  • Insufficient Thermocouple Voltage: Even if the pilot is lit, the thermocouple might not be generating enough voltage to open the main gas valve. This often indicates a weak or failing thermocouple.
  • Gas Control Valve Issue: The problem might lie with the gas control valve itself, not the thermocouple. This requires professional diagnosis.

For complex issues or if you are uncomfortable performing these checks, contact a certified appliance technician.

7. Specifikace

8. Záruka a podpora

Specific warranty information for the Garland 2321900 thermocouple is not provided in this document. For details regarding product warranty, returns, or technical support, please contact the original seller or Garland customer service directly. Retain your proof of purchase for any warranty claims.

For further assistance with installation, troubleshooting, or replacement, it is recommended to consult a qualified and certified technician.
