Uživatelská příručka k multifunkčnímu nářadí BLACK+DECKER 18V ​​EVO183B1

1. Úvod

The BLACK+DECKER 18V Multi-Tool EVO183B1 is a versatile power tool designed to handle a variety of DIY and home improvement tasks. Its innovative interchangeable head system allows you to quickly switch between drill driver, jigsaw, and sander functions, providing efficiency and convenience. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your multi-tool.

Figure 1.1: The BLACK+DECKER 18V Multi-Tool showing the main body and the three interchangeable heads: drill driver, jigsaw, and sander. Arrows indicate the attachment points for each head.

2. Klíčové vlastnosti

• svtage: DC 18V
• Kapacita baterie: 1.5 Ah lithium-ion
• Přepínač: Variable Speed for precise control
• LED světlo: Integrated for illuminating the work area
• Držák bitů: Magnetic for secure bit retention
• Vrtačka:
  • Rotation Speed: 0-800 rpm
  • Max Torque: 22 N·m
  • Clutch: 11 stages for various materials
  • Kapacita sklíčidla: 1-10 mm
• Jigsaw:
  • Stroke Rate: 0-2,800 spm
  • Délka zdvihu: 13 mm
• Sander:
  • Rotation Speed: 0-9,000 rpm
  • Pad Replacement: One-touch system

3. Obsah balení

Ensure all items listed below are present in your kit:

• BLACK+DECKER 18V Multi-Tool Main Unit
• Drill Driver Head Attachment
• Jigsaw Head Attachment
• Sander Head Attachment
• 11 x Bits (Drill: 2.5/4/5/6/8mm; Phillips: #1/#2; Slotted: #6; Pozi: #2; Hex: #5/#6)
• 5 x Jigsaw Blades (6 TPI wood cutting x2, 10 TPI wood cutting x2, curve cutting x1)
• 10 x Sandpaper Sheets (Coarse #80 x5, Fine #120 x5)
• Adaptér pro sběr prachu
• 2 x 1.5Ah lithium-iontové baterie
• 40-minute Rapid Charger
• Dedicated Kit Box

Figure 3.1: A visual representation of the various accessories included with the multi-tool, such as drill bits, jigsaw blades, sandpaper, charger, and batteries.

4. Nastavení

4.1 Nabíjení baterie

1. Insert the battery into the rapid charger.
2. Zapojte nabíječku do standardní elektrické zásuvky.
3. Kontrolka nabíječky bude ukazovat stav nabíjení. Úplné nabití obvykle trvá 40 minut.
4. Po úplném nabití vyjměte baterii z nabíječky.

4.2 Attaching/Detaching Head Attachments

1. Ensure the tool is switched off and the battery is removed before attaching or detaching heads.
2. Align the desired head attachment (drill, jigsaw, or sander) with the main unit.
3. Push the head firmly onto the main unit until it clicks securely into place.
4. To detach, press the release buttons on the sides of the main unit and pull the head away.

Figure 4.1: Illustrates the process of attaching or detaching an interchangeable head from the main multi-tool body, highlighting the secure connection mechanism.

5. Návod k obsluze

5.1 Obecná obsluha

1. Insert a charged battery into the tool's base.
2. Select the appropriate head attachment for your task.
3. Press the trigger to start the tool. The variable speed switch allows for controlled operation.
4. Integrované LED světlo osvětlí pracovní prostor po stisknutí spouště.

5.2 Using the Drill Driver Attachment

1. Attach the drill driver head.
2. Insert the desired drill bit or screwdriver bit into the chuck and tighten securely.
3. Adjust the clutch setting (1-11) based on the material and desired torque to prevent overtightening or stripping screws.
4. For drilling, apply steady pressure and maintain a straight angle. For screwdriving, ensure the bit is fully engaged with the screw head.

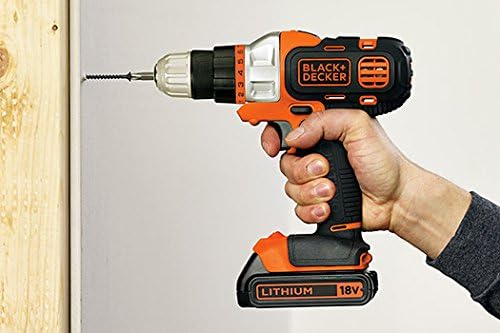

Figure 5.1: A user demonstrating the drill driver attachment in action, screwing into a wooden surface. This highlights the tool's ergonomic design and ease of use for drilling and fastening tasks.

5.3 Using the Jigsaw Attachment

1. Attach the jigsaw head.
2. Select the appropriate jigsaw blade for your material (wood, metal, etc.) and insert it into the blade clamp. Ensure it is securely locked.
3. Place the base plate of the jigsaw firmly on the workpiece.
4. Start the tool and guide it along your cutting line, applying consistent, moderate pressure.

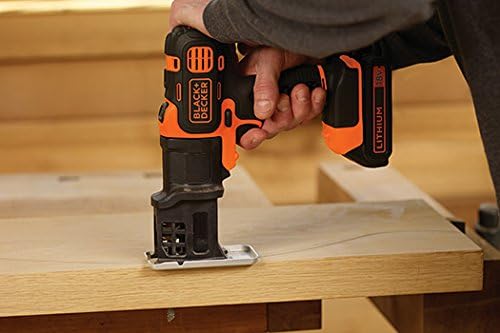

Figure 5.2: A user operating the jigsaw attachment to make a cut in a wooden board. This image emphasizes the tool's capability for precise cutting tasks.

5.4 Using the Sander Attachment

1. Attach the sander head.
2. Attach the appropriate sandpaper sheet to the sanding pad. Ensure the dust collection adapter is connected if using dust extraction.
3. Place the sander flat on the surface to be sanded.
4. Start the tool and move it in smooth, overlapping motions across the surface.

Figure 5.3: A user demonstrating the sander attachment smoothing a wooden surface. This illustrates the tool's effectiveness for finishing and surface preparation.

6. Údržba

Regular maintenance ensures the longevity and optimal performance of your BLACK+DECKER Multi-Tool.

• Čištění: After each use, wipe down the tool and attachments with a clean, damp tkanina. Nepoužívejte agresivní chemikálie nebo abrazivní čisticí prostředky.
• Větrací otvory: Udržujte větrací otvory čisté od prachu a nečistot, abyste zabránili přehřátí. V případě potřeby použijte stlačený vzduch.
• Kontrola příslušenství: Regularly inspect drill bits, jigsaw blades, and sandpaper for wear or damage. Replace worn accessories promptly for best results and safety.
• Péče o baterie: Baterie skladujte na chladném a suchém místě mimo dosah přímého slunečního záření. Neskladujte zcela vybité baterie delší dobu.
• Skladování: Store the tool, batteries, and charger in the dedicated kit box in a dry, secure location, out of reach of children.

7. Řešení problémů

If you encounter issues with your multi-tool, refer to the following common problems and solutions:

Pokud problém přetrvává i po vyzkoušení těchto řešení, kontaktujte zákaznickou podporu BLACK+DECKER.

8. Specifikace

• Značka: ČERNÁ+DECKER
• Číslo modelu produktu: EVO183B1
• Rozměry produktu: 22.5 x 7.5 x 23 cm
• Hmotnost položky: 970 g
• Barva: Pomerančový
• Zdroj napájení: Dobíjecí
• svtage: 18 V DC
• Max Torque (Drill Driver): 22 N·m
• Max Rotation Speed (Drill Driver): 800 ot./min
• Typ baterie: Lithium-iontová
• Baterie v ceně: Yes (2x 1.5Ah)
• Speciální funkce: Integrované LED pracovní světlo

9. Záruka a podpora

9.1 Informace o záruce

This BLACK+DECKER Multi-Tool EVO183B1 comes with a 1-letá záruka od data nákupu. Uschovejte si doklad o koupi pro případ reklamace. Záruka se vztahuje na vady materiálu a zpracování při běžném používání.

9.2 Zákaznická podpora

For technical assistance, warranty claims, or to purchase replacement parts and accessories, please visit the official BLACK+DECKER website or contact their customer service department. Refer to the contact information provided on the product packaging or the official brand webmísto.
