Zavedení
This manual provides instructions for the installation, operation, and maintenance of the PROFLO PFXSC32C 5/8" x 3/8" Multi Turn Straight Supply Stop with Strainer. This product is designed to control water flow to plumbing fixtures, featuring a durable brass construction and a chrome finish for longevity and corrosion resistance. The integrated strainer helps prevent debris from entering the fixture.
Bezpečnostní informace
Please read all instructions carefully before installation. Failure to follow these instructions may result in property damage or personal injury.
- Před zahájením jakýchkoli instalatérských prací vždy uzavřete hlavní přívod vody.
- Používejte vhodné osobní ochranné prostředky, jako jsou ochranné brýle a rukavice.
- Ujistěte se, že všechna připojení jsou bezpečná, aby nedošlo k únikům. Nepřetahujte.
- Pokud si nejste jisti některým krokem, poraďte se s kvalifikovaným instalatérem.
- This product is intended for use with potable water systems only.
Konec produktuview

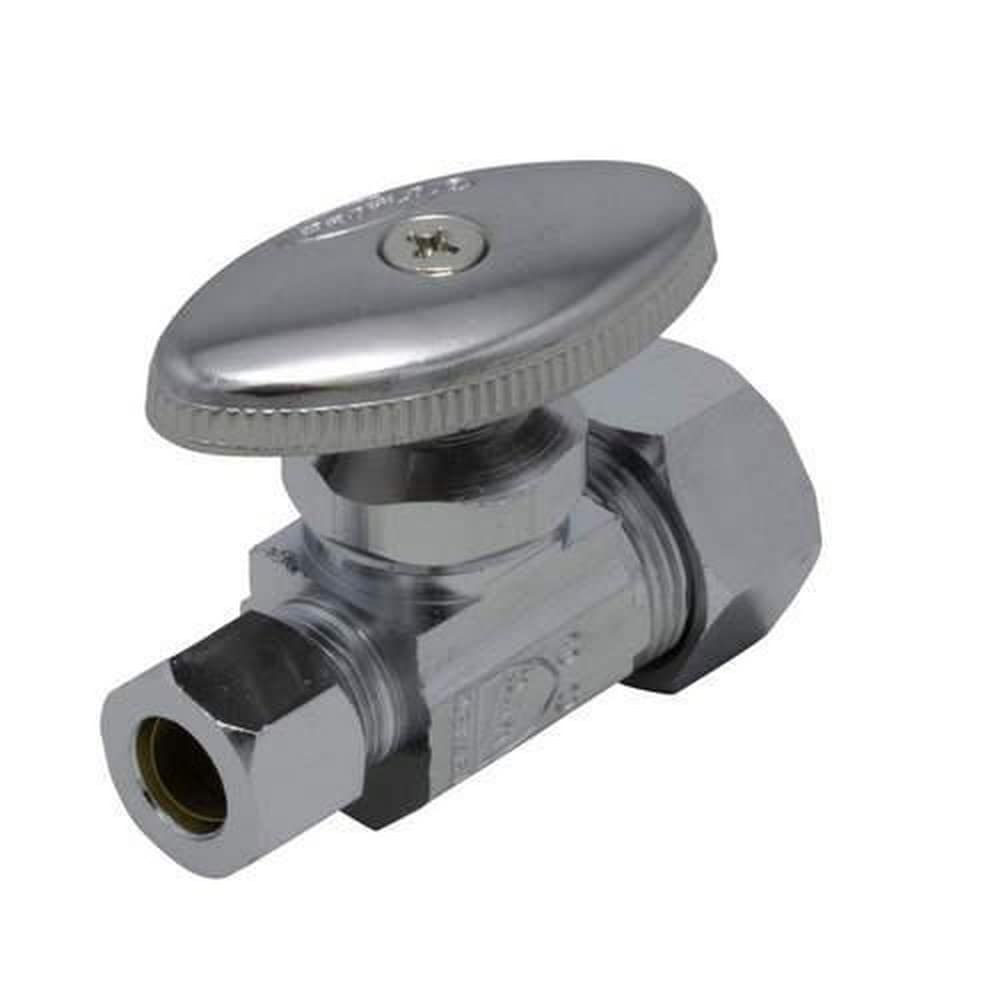

Image: The PROFLO PFXSC32C Multi Turn Straight Supply Stop with Strainer, featuring a chrome finish and a multi-turn handle. This image displays the valve's overall design and connection points.
The PROFLO PFXSC32C is a straight supply stop valve designed for reliable water flow control. It features a 5/8" compression inlet and a 3/8" compression outlet. The multi-turn handle allows for precise control over water flow. An integrated strainer is included to filter out sediment and debris, protecting your plumbing fixtures.
Nastavení a instalace
Požadované nástroje:
- Nastavitelný klíč nebo basin klíč
- Pipe cutter (if cutting new supply lines)
- Teflon tape (optional, for threaded connections if applicable)
- Bucket and towels (for catching drips)
Kroky instalace:
- Vypněte přívod vody: Locate the main water shut-off valve for your home or the specific area where you are working and turn it off. Open a nearby faucet to relieve pressure and drain any remaining water from the lines.
- Prepare the Inlet Pipe: Ensure the existing pipe (typically 5/8" OD) is clean, smooth, and free of burrs. If replacing an old valve, remove it and clean the pipe end.
- Install Compression Nut and Ferrule: Slide the compression nut (included with the valve) onto the pipe, followed by the compression ferrule (ring). Ensure the ferrule is oriented correctly.
- Attach the Supply Stop: Insert the pipe end with the nut and ferrule into the inlet of the PROFLO PFXSC32C supply stop. Hand-tighten the compression nut onto the valve body.
- Utažení spojení: Using an adjustable wrench, carefully tighten the compression nut. Turn it about 1/2 to 3/4 of a turn past hand-tight. Do not overtighten, as this can damage the ferrule or valve.
- Connect Fixture Supply Line: Attach the 3/8" supply line from your faucet or toilet to the outlet of the supply stop. Hand-tighten the nut, then use a wrench to tighten it an additional 1/4 to 1/2 turn.
- Obnovte přívod vody a zkontrolujte netěsnosti: Slowly turn the main water supply back on. Check all connections for leaks. If a leak occurs, tighten the connection slightly until the leak stops.
Návod k obsluze
The PROFLO PFXSC32C is a multi-turn valve, meaning it requires several rotations of the handle to fully open or close the water flow.
- Chcete-li otevřít: Turn the handle counter-clockwise until it stops. This will allow full water flow to the connected fixture.
- Zavřít: Turn the handle clockwise until it stops. This will completely shut off the water flow to the connected fixture.
- Nastavení průtoku: Turn the handle partially to achieve a desired reduced water flow rate.
Údržba
Regular maintenance ensures optimal performance and extends the life of your supply stop.
- Čištění: Clean the exterior chrome finish with a soft cloth and mild soap. Avoid abrasive cleaners or harsh chemicals, as they can damage the finish.
- Čištění sítka: If water flow to the fixture becomes restricted, the integrated strainer may be clogged. To clean, turn off the water supply at the supply stop, disconnect the fixture supply line, and carefully remove the strainer screen. Rinse it under running water to remove debris, then reassemble.
- Kontroly těsnosti: Periodically inspect the connections for any signs of leaks. Tighten connections slightly if necessary.
- Operace: Operate the valve fully open and fully closed a few times annually to prevent mineral buildup and ensure smooth operation.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Leak at connections | Loose compression nut; damaged ferrule; improper installation. | Turn off water supply. Gently tighten compression nuts. If leak persists, disassemble, inspect ferrule for damage, and reassemble carefully. Replace ferrule if damaged. |
| Nízký průtok vody | Supply stop not fully open; clogged strainer; debris in supply line. | Ensure valve is fully open (turned counter-clockwise until it stops). Clean the integrated strainer as described in the Maintenance section. Check fixture aerator for clogs. |
| Valve difficult to turn | Mineral buildup; infrequent use. | Operate the valve fully open and closed several times. If still stiff, consider replacement if it affects functionality. |
Specifikace
| Funkce | Detail |
|---|---|
| Číslo modelu | PFXSC32C |
| Značka | PROFLO |
| Materiál | Mosaz |
| Vnější povrch | Chrome |
| Typ vstupního připojení | Compression (5/8" OD) |
| Typ výstupního připojení | Compression (3/8" OD) |
| Rozměry položky (D x Š x V) | 1 x 1 x 1 palce (přibližně) |
| Hmotnost položky | 0.35 libry |
| UPC | 781889201466 |
| ASIN | B00NCC64AI |
| Zahrnuté komponenty | Ventil |
Záruka a podpora
The PROFLO PFXSC32C Multi Turn Straight Supply Stop is covered under PROFLO's 1letá omezená zárukaTato záruka se vztahuje na vady materiálu a zpracování při běžném používání a servisu.
For warranty claims, technical assistance, or further information, please contact PROFLO customer support through their official website or authorized distributors. Keep your proof of purchase for warranty validation.
