TAKEX SA-6 Sensor Guard Intruder Alarm System User Manual

1. Úvod

Thank you for choosing the TAKEX SA-6 Sensor Guard Intruder Alarm System. This manual provides essential information for the safe and effective installation, operation, and maintenance of your device. Please read this manual thoroughly before use and retain it for future reference.

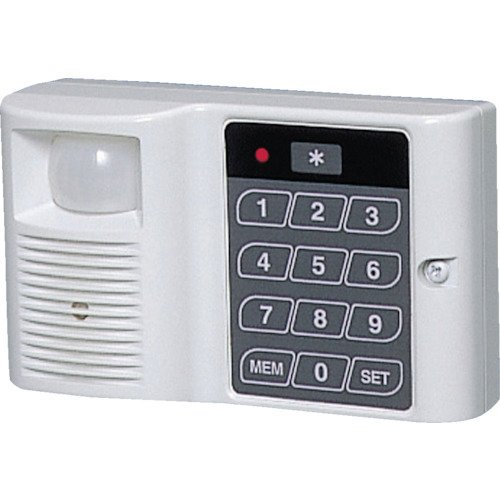

Obrázek 1.1: The TAKEX SA-6 Sensor Guard. This image shows the compact design of the SA-6 unit, typically mounted on a wall or placed on a flat surface, with its sensor lens visible.

2. Vlastnosti produktu

• Intruder Detection: Utilizes passive infrared (PIR) technology to detect movement within its detection area.
• High-Volume Alarm: Activates a loud alarm of 90dB or more upon detection to deter intruders.
• Customizable PIN: Arm and disarm the system using a personal identification number (PIN) of 1 to 8 digits.
• Rozšiřitelná funkcionalita: Equipped with output terminals for connecting external devices such as chimes, additional sirens, wireless transmitters, or remote notification systems.
• Flexibilní instalace: Can be used as a freestanding unit or securely mounted on a wall.
• Indikátor stavu baterie: Features a function to notify the user when battery replacement is required.

3. Bezpečnostní opatření

Pro zajištění bezpečného provozu a prevenci poškození dodržujte prosím následující bezpečnostní opatření:

• Nevystavujte zařízení přímému slunečnímu záření, extrémním teplotám nebo vysoké vlhkosti.
• Avoid installing the device near heat sources, air conditioners, or areas with strong air currents, as these can cause false alarms.
• Do not disassemble or modify the device. This may void the warranty and cause malfunction.
• Udržujte zařízení mimo dosah dětí.
• Pro výměnu používejte pouze specifikovaný typ baterie.
• Ensure the mounting surface is stable and can support the device's weight.

4. Obsah balení

Ověřte, zda jsou v balení přítomny všechny položky:

• TAKEX SA-6 Sensor Guard Unit
• Upevňovací šrouby (x2)
• Hmoždinky (2x)
• Uživatelská příručka (tento dokument)
• Batteries (AA x 3, typically included)

5. Nastavení

5.1 Instalace baterie

1. Open the battery compartment cover located on the back of the SA-6 unit.
2. Vložte tři (3) baterie typu AA a dbejte na správnou polaritu (+/-) vyznačenou uvnitř přihrádky.
3. Bezpečně zavřete kryt bateriového prostoru.
4. The unit will emit a short beep, indicating it is powered on.

5.2 Montáž jednotky

The SA-6 can be placed on a flat surface or mounted on a wall. For optimal detection, position the unit where intruders are likely to pass through the detection area.

Montáž na stěnu:

1. Choose a suitable location, typically 1.8 to 2.4 meters (6 to 8 feet) above the floor, ensuring a clear line of sight for the sensor.
2. Mark the positions for the two mounting screws using the unit's mounting holes as a template.
3. Drill pilot holes at the marked positions. Insert wall plugs if mounting into drywall or masonry.
4. Secure the unit to the wall using the provided mounting screws. Do not overtighten.

Umístění povrchu:

Place the unit on a stable, flat surface at an appropriate height to cover the desired detection area. Ensure it is not easily knocked over.

6. Návod k obsluze

6.1 Setting/Disarming the System

The SA-6 uses a PIN code for arming and disarming.

To Arm:

1. Zadejte na klávesnici svůj 1–8místný PIN kód.
2. Press the "ARM" button.
3. The unit will emit a confirmation beep, and the indicator light will show the armed status. You will have a short exit delay period before the system is fully armed.

Odzbrojit:

1. Zadejte na klávesnici svůj 1–8místný PIN kód.
2. Press the "DISARM" button.
3. The unit will emit a confirmation beep, and the indicator light will show the disarmed status.

6.2 Změna PIN kódu

Refer to the specific instructions provided with your unit for changing the PIN code. Typically, this involves entering a master code or a sequence of button presses followed by the new PIN.

6.3 Using Output Terminals (Optional)

The SA-6 features output terminals for connecting external devices.

• Chime/Siren Connection: Connect a compatible chime or siren to the designated output terminals. When an alarm is triggered, the connected device will also activate.
• Wireless Transmitter/Notification Device: For remote alerts, connect a wireless transmitter or a notification device to the output terminals. This allows the SA-6 to trigger other security systems or send alerts to your mobile phone (requires compatible third-party equipment).

Consult the documentation for your external devices for specific wiring instructions.

7. Údržba

7.1 Výměna baterie

The SA-6 unit will indicate when the batteries are low, typically through a specific LED indicator or a series of beeps.

1. When the low battery indicator activates, replace all three (3) AA batteries promptly.
2. Follow the steps in Section 5.1 "Battery Installation" to replace the batteries.
3. Použité baterie zlikvidujte v souladu s místními předpisy.

7.2 Čištění

To maintain optimal performance, keep the sensor lens clean.

• Gently wipe the exterior of the unit and the sensor lens with a soft, dry cloth.
• Nepoužívejte abrazivní čisticí prostředky, rozpouštědla ani nestříkejte přímo na jednotku.

8. Řešení problémů

9. Specifikace

10. Záruka a podpora

TAKEX products are designed for reliability and performance. For warranty information, please refer to the warranty card included with your purchase or visit the official TAKEX webmísto.

If you encounter any issues or require technical assistance, please contact TAKEX customer support through their official channels. Provide your product model (SA-6) and a detailed description of the problem for efficient service.

Oficiální Webmísto: www.takex.com (Poznámka: Toto je zástupný symbol URL, ověřte skutečného úředníka website for TAKEX if available.)
