Sunlite 40170-SU SB254HOMV Fluorescent Ballast Instruction Manual

1. Úvod

This manual provides essential instructions for the safe installation, operation, and maintenance of your Sunlite 40170-SU SB254HOMV 2-Lamp F54 T5 High Output Linear Fluorescent Ballast. Please read this manual thoroughly before installation and retain it for future reference.

2. Důležité bezpečnostní informace

WARNING: Risk of Electric Shock. Installation should only be performed by a qualified electrician in accordance with all national and local electrical codes.

• Always disconnect power at the circuit breaker before installing or servicing the ballast.
• Zajistěte přívod objtage is compatible with the ballast's multi-volt rating (120-277V).
• Do not attempt to modify the ballast or its wiring.
• This ballast is designed for use with specific fluorescent lamp types (F54 T5 HO, FC40T5, F55W/2G11, F50/2G11). Using incompatible lamps may cause damage or fire.
• The ballast is a heavy-duty Class P electronic ballast, providing reliable overheating protection. However, ensure proper ventilation.

Obrázek 2.1: The Sunlite ballast is UL Listed, ensuring compliance with safety standards.

3. Konec produktuview

The Sunlite 40170-SU SB254HOMV is a high-performance electronic ballast designed to operate one or two F54 T5 High Output linear fluorescent lamps, or one or two FC40T5, F55W/2G11, or F50/2G11 plug-in lamps. Its multi-volt technology allows for operation on line voltages between 120V and 277V (50/60Hz), simplifying installation in various commercial and industrial settings.

Klíčové vlastnosti:

• Multi-Volt Technology: Operates on 120-277V, 50/60Hz.
• Duální Lamp Kompatibilita: Supports one or two F54 T5 HO, FC40T5, F55W/2G11, or F50/2G11 lamps.
• Okamžitý start: Provides immediate illumination without flickering or warm-up delays.
• Tichý provoz: Features a professional-grade Sound Rating A for quiet performance.
• Seznam UL: Meets standard safety and quality guidelines.
• Ochrana proti přehřátí: Heavy-duty Class P electronic ballast design.

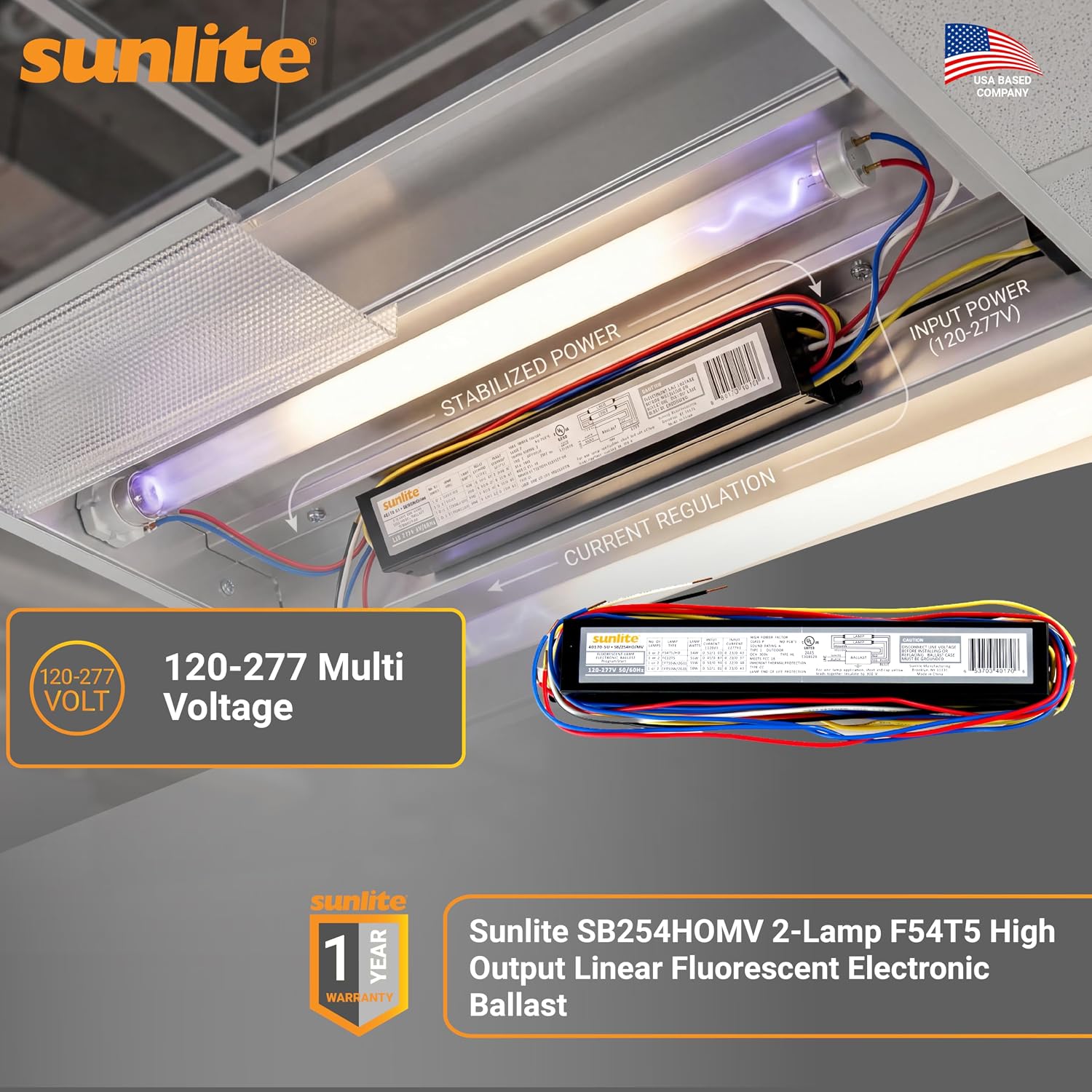

Obrázek 3.1: The Sunlite ballast installed in a fixture, demonstrating its multi-voltage capability and connection points.

Obrázek 3.2: The ballast is engineered for dual lamp compatibility, supporting various fluorescent lamp typy.

4. Pokyny k instalaci

Before beginning installation, ensure you have read and understood the safety information in Section 2. This ballast is designed for new installations or as a replacement in existing fixtures.

4.1 Potřebné nástroje a materiály:

• Sada šroubováků
• Odizolovače/řezačky drátu
• Elektrická páska
• Wire nuts or appropriate connectors
• svtagelektronický tester/multimetr
• Compatible fluorescent lamps

Obrázek 4.1: Essential tools for ballast installation, highlighting the multi-volt technology for simplified wiring.

4.2 Wiring Diagram (General Guidance):

The Sunlite 40170-SU SB254HOMV ballast features color-coded wires for easy identification. Refer to the specific wiring diagram printed on the ballast label for precise connections. The following is a general guide for a typical 2-lamp nastavení:

1. Odpojení napájení: Turn off power to the fixture at the circuit breaker. Verify power is off using a voltage tester.
2. Montáž: Securely mount the new ballast inside the fixture using appropriate fasteners.
3. Input Power (Line VoltagE):
   • Připojte Černý wire from the ballast to the incoming Linka (horká) vodič ze zdroje napájení.
   • Připojte Bílý wire from the ballast to the incoming Neutrální vodič ze zdroje napájení.
   • Připojte Zelený wire from the ballast to the fixture's Země.
4. Lamp Connections (Output Wires):
   • Pro Lamp 1: Připojte Modrý wire(s) from the ballast to one end of the first lamp's tombstone (socket). Connect the Červený wire(s) from the ballast to the other end of the first lamp's tombstone.
   • Pro Lamp 2: Připojte Žluť wire(s) from the ballast to one end of the second lamp's tombstone. Connect the Pomerančový wire(s) from the ballast to the other end of the second lamp's tombstone.
   • Poznámka: Some ballasts may have multiple wires of the same color for each lamp connection. Ensure all wires for a specific connection point are properly grouped and secured. Refer to the ballast's specific wiring diagram.
5. Zabezpečená připojení: Use wire nuts or approved connectors for all wire splices. Ensure all connections are tight and insulated.
6. Lamp Instalace: Install the compatible fluorescent lamps into the fixture sockets.
7. Obnovení napájení: Obnovte napájení jističe a otestujte přípravek.

If replacing an existing ballast, note the original wiring configuration before disconnecting. Wiring can vary between ballast models. Always consult the diagram on your specific Sunlite ballast for accurate connections.

5. Návod k obsluze

Once properly installed and wired, the Sunlite 40170-SU SB254HOMV ballast operates automatically.

• Zapnutí: Turn on the light switch connected to the fixture. The ballast will provide instant-start ignition, illuminating the lamps okamžitě.
• Tichý provoz: The ballast is designed for quiet performance (Sound Rating A), making it suitable for various environments.
• Vypnout: Turn off the light switch to extinguish the lamps.

Obrázek 5.1: The ballast ensures instant-start ignition and quiet operation for a comfortable lighting experience.

6. Údržba

The Sunlite 40170-SU SB254HOMV ballast requires minimal maintenance. Regular inspection and cleaning of the fixture and lamps jsou doporučeny.

• Čištění: Ensure power is off before cleaning. Use a dry, soft cloth to wipe dust from the ballast and fixture. Do not use liquid cleaners directly on the ballast.
• Inspekce: Periodically inspect wiring for any signs of wear, fraying, or loose connections. Ensure the ballast is securely mounted.
• Lamp Nahrazení: Při výměně lampUjistěte se, že jsou kompatibilní se specifikacemi předřadníku. Před výměnou vždy odpojte napájení.amps.

7. Řešení problémů

If your fluorescent fixture is not operating correctly, refer to the following troubleshooting guide:

If troubleshooting steps do not resolve the issue, contact a qualified electrician or Sunlite customer support.

8. Specifikace

9. Záruka a podpora

This Sunlite ballast is covered by a 1letá omezená záruka od data nákupu. Tato záruka se vztahuje na vady materiálu a zpracování při běžném používání.

For warranty claims, technical support, or further assistance, please contact Sunlite customer service. Keep your proof of purchase for warranty validation.

Obrázek 9.1: The Sunlite ballast comes with a 1-year warranty.
