1. Úvod

The GIMA 28210 Vega Suction Aspirator is a compact and reliable medical device designed for minor surgical procedures and general aspiration needs. It features a quiet, high-flow, maintenance-free pump, ensuring long product life and durability. This aspirator is recommended for nasal, oral, and tracheal aspiration of body fluids such as mucus, catarrh, or blood in both adult and pediatric patients. It is equipped with a continuously adjustable vacuum regulator and a vacuum indicator for precise control.

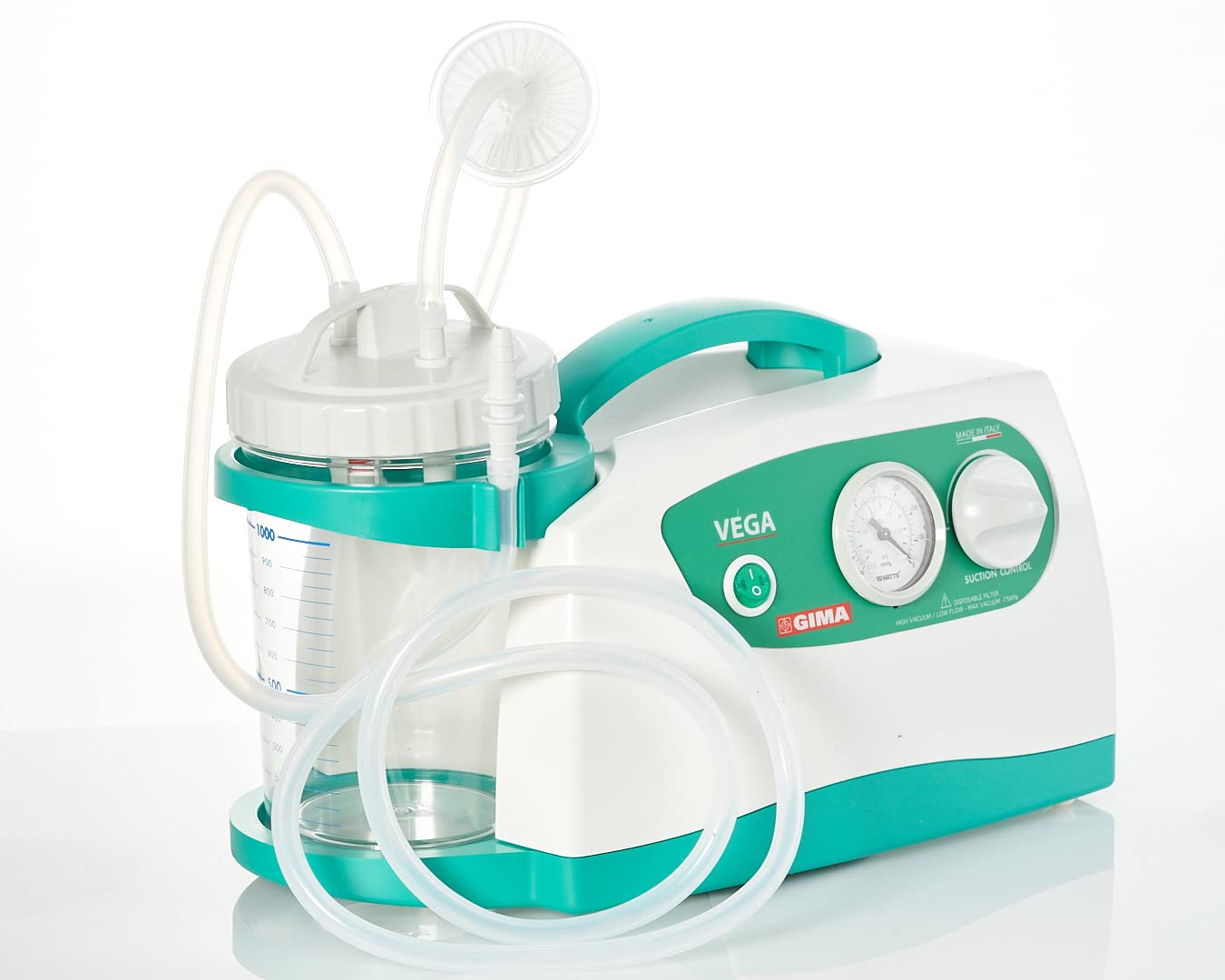

Image 1.1: The GIMA 28210 Vega Suction Aspirator, fully assembled with its collection jar, lid, and connected tubing. The unit features a green and white casins ovládacím panelem na přední straně.

2. Bezpečnostní informace

Read all instructions carefully before operating the device. Failure to follow these instructions may result in injury or damage to the device.

• This device should only be operated by qualified personnel.
• Ensure the power supply matches the device's requirements (220V-50Hz, 184W).
• Neponořujte hlavní jednotku do vody nebo jiných kapalin.
• Regularly inspect all components for damage before use. Do not use if any part is damaged.
• Replace the hydrophobic filter regularly to prevent fluid overflow into the pump.
• Dispose of aspirated fluids and disposable components according to local regulations for medical waste.
• Udržujte zařízení mimo dosah zdrojů tepla a přímého slunečního záření.

3. Obsah balení

Verify that all the following components are present in the package:

• GIMA 28210 Vega Suction Aspirator main unit
• 1000 ml autoclavable collection jar
• Collection jar lid with overflow safety valve and filter connection
• Hydrofobní filtr
• Suction tubing (patient and connection tubing)
• Napájecí kabel
• Patient catheter/cannula (disposable)
• Návod k použití

Image 3.1: The product packaging, showing the GIMA Vega surgical suction unit. The box indicates different models and their flow rates.

Image 3.2: The detachable power cord with a standard European plug, used to connect the aspirator to a power outlet.

Image 3.3: A hydrophobic filter, essential for preventing fluids from entering the pump mechanism and ensuring hygienic operation.

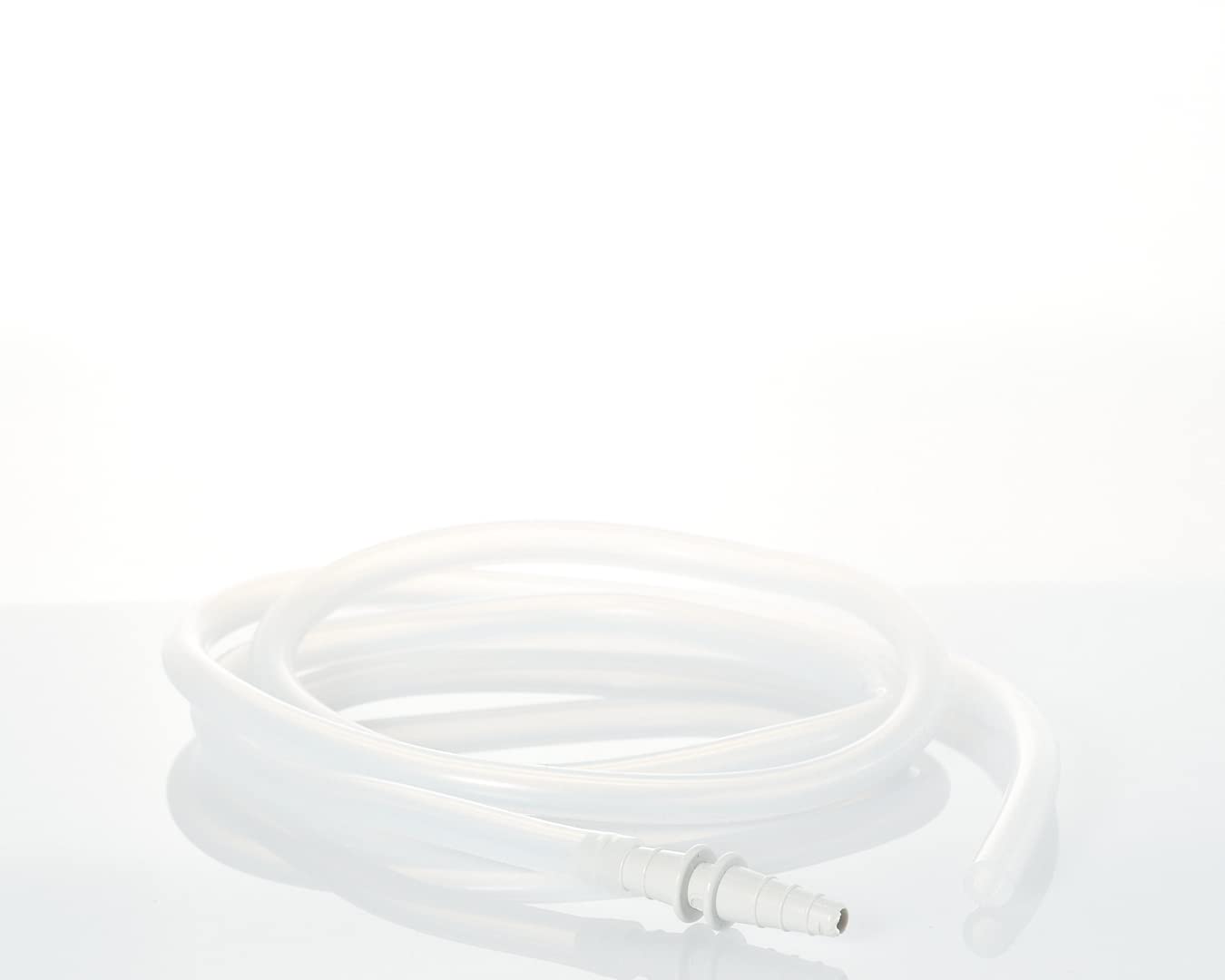

Image 3.4: Clear silicone suction tubing, used to connect the collection jar to the patient catheter and to the aspirator unit.

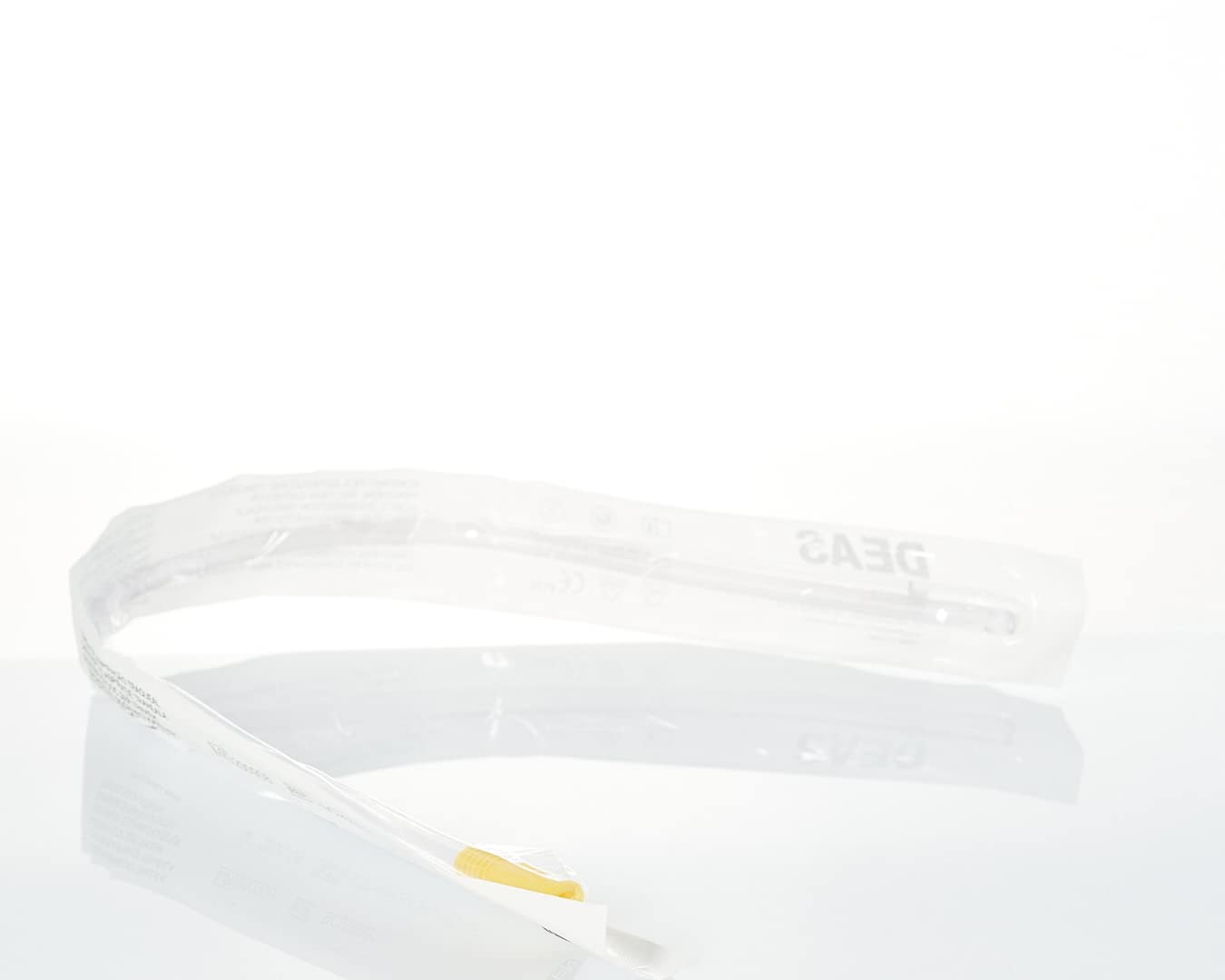

Image 3.5: A sterile, disposable patient catheter, used for direct aspiration from the patient.

4. Nastavení

1. Rozbalte zařízení: Opatrně vyjměte všechny součásti z obalu a zkontrolujte, zda nejsou poškozené.
2. Umístění jednotky: Place the aspirator on a stable, flat surface, ensuring adequate ventilation around the unit.
3. Připojte napájecí kabel: Insert the power cord into the power inlet at the back of the unit. Connect the other end to a suitable electrical outlet.
4. Assemble the Collection Jar:
   • Place the 1000 ml collection jar into its holder on the side of the aspirator unit.
   • Securely attach the lid to the collection jar. Ensure a tight seal.
5. Connect the Hydrophobic Filter: Insert the hydrophobic filter into the designated port on the collection jar lid. Ensure the filter is oriented correctly (usually indicated by an arrow or text). This filter prevents fluid and bacteria from entering the pump.
6. Connect Suction Tubing:
   • Connect one end of the short silicone tubing to the filter outlet on the collection jar lid and the other end to the vacuum inlet on the aspirator unit.
   • Connect one end of the longer patient tubing to the patient port on the collection jar lid.
   • Attach a sterile, disposable patient catheter/cannula to the free end of the patient tubing.

Obrázek 4.1: Zadní strana view of the GIMA 28210 Vega Suction Aspirator, showing the power input socket, ventilation grilles, and product label with specifications like voltage and model number.

5. Návod k obsluze

1. Zapnutí: Press the ON/OFF switch located on the front panel of the unit. The power indicator light will illuminate.
2. Nastavení úrovně podtlaku: Turn the vacuum regulator knob on the front panel to set the desired vacuum pressure. Monitor the vacuum gauge to ensure the correct level is achieved. Start with a low setting and gradually increase as needed, following clinical guidelines.
3. Proveďte aspiraci: Carefully insert the patient catheter into the area requiring aspiration. The device will begin to draw fluids into the collection jar.
4. Monitor Collection Jar: Continuously monitor the fluid level in the collection jar. Do not allow the fluid to reach the overflow safety valve or the hydrophobic filter.
5. Vypnout: Once aspiration is complete, press the ON/OFF switch to turn off the unit.
6. Disconnect and Dispose: Disconnect the patient catheter and dispose of it according to medical waste protocols.

6. Údržba

Regular maintenance is crucial for the safe and effective operation of your GIMA 28210 Vega Suction Aspirator.

6.1 Čištění hlavní jednotky

• Před čištěním se ujistěte, že je zařízení odpojeno.
• Wipe the exterior of the main unit with a soft cloth dampened with a mild disinfectant solution.
• Nepoužívejte abrazivní čisticí prostředky nebo rozpouštědla.
• Zajistěte, aby se do vnitřních součástí nedostala žádná kapalina.

6.2 Cleaning and Sterilizing the Collection Jar and Lid

• After each use, empty the collection jar and rinse it thoroughly with water.
• The 1000 ml collection jar and its lid are autoclavable at 121°C for sterilization. Follow standard sterilization protocols.
• Alternatively, a disposable collection system (consisting of a rigid reusable container and a disposable polyethylene liner with a hermetically sealed lid and hydrophobic, anti-reflux, bacterial filter) can be used.

6.3 Replacing the Hydrophobic Filter

• The hydrophobic filter is a single-use component and should be replaced after each patient or if it becomes wet or visibly contaminated.
• To replace, disconnect the tubing, remove the old filter, and insert a new sterile filter into the designated port on the collection jar lid.
• Dispose of the used filter as medical waste.

7. Řešení problémů

8. Specifikace

9. Záruka a podpora

For warranty information, technical support, or service, please refer to the documentation provided with your purchase or contact your authorized GIMA distributor or the manufacturer directly. Keep your purchase receipt as proof of purchase.
