Hager WITTY Electric Vehicle Charging Station (Model XEV103) User Manual

1. Úvod

1.1. Přesview

The Hager WITTY charging station is designed for charging electric vehicles in accordance with Mode 3 (IEC 61851-1) and Mode 2 standards. It supports both Type 3 and standard socket connections, offering flexible charging solutions for various electric vehicles. This device operates on a 3-phase + Neutral, 32A electrical supply, delivering power from 4 kW to 22 kW.

1.2. Bezpečnostní pokyny

• Instalaci musí provést kvalifikovaný elektrikář v souladu s místními a národními elektrotechnickými předpisy.
• Do not attempt to open or repair the charging station yourself. Contact qualified service personnel.
• Ujistěte se, že je nabíjecí stanice řádně uzemněna.
• Do not use the charging station if it is damaged or shows signs of malfunction.
• Keep children and unauthorized persons away from the charging station during operation.
• Avoid exposing the charging station to extreme temperatures, direct sunlight for prolonged periods, or corrosive substances.

2. Popis produktu

2.1. Vlastnosti

• Compatible with Mode 3 (Type 3) and Mode 2 charging.
• Free access operation.
• Power output: 4 kW to 22 kW.
• Input: 3-phase + Neutral, 32A.
• Integrated status indicator light.

2.2. Součásti

The Hager WITTY charging station typically includes:

• Nabíjecí stanice
• Montážní materiál (šrouby, kotvy)
• Uživatelská příručka (tento dokument)

Obrázek 1: Přední view of the Hager WITTY charging station with a green operational light, mounted on a textured wall.

Obrázek 2: Strana view of the Hager WITTY charging station, illustrating the cable connection point and the unit's profile.

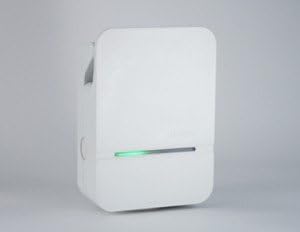

Obrázek 3: Detailní přední strana view of the Hager WITTY charging station, emphasizing the integrated green status light.

3. Nastavení

3.1. Místo instalace

Choose a suitable location that is protected from direct impact, excessive moisture, and extreme temperatures. Ensure adequate ventilation and accessibility for maintenance.

3.2. Montáž

1. Označte si na zdi body pro vrtání pomocí dodané šablony (pokud je k dispozici) nebo změřením montážních otvorů na jednotce.
2. Vyvrtejte otvory a vložte do nich vhodné hmoždinky.
3. Secure the charging station to the wall using the provided screws.

3.3. Elektrické připojení

VAROVÁNÍ: Elektrickou instalaci musí provést kvalifikovaný elektrikář.

1. Ensure the main power supply is disconnected before beginning any electrical work.
2. Connect the 3-phase + Neutral (3Ph+N) 32A power supply to the designated terminals inside the charging station.
3. Zajistěte řádné uzemnění.
4. Verify all connections are secure and correctly wired according to the wiring diagram provided with the unit (refer to the separate installation guide for detailed diagrams).
5. Close the charging station cover securely.

4. Provoz

4.1. Starting a Charge

1. Ensure the charging station is powered on and the status indicator light is green (ready).
2. Connect the charging cable to your electric vehicle's charging port.
3. Connect the other end of the charging cable to the charging station's outlet (Type 3 or Mode 2 socket).
4. The charging station will automatically initiate the charging process. The status indicator light may change to blue or flashing green, depending on the charging status.

4.2. Stopping a Charge

1. Nejprve odpojte nabíjecí kabel od elektromobilu.
2. Disconnect the charging cable from the charging station.
3. The charging station will return to a ready state (green indicator light).

4.3. Stavové indikátory

• Zelené světlo: Ready for charging.
• Blue Light (or flashing green): Probíhá nabíjení.
• Red Light (or flashing red): Error or fault detected. Refer to the Troubleshooting section.
• Žádné světlo: Power off or system fault.

5. Údržba

5.1. Čištění

Clean the exterior of the charging station with a soft, damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals. Ensure the unit is powered off before cleaning.

5.2. Inspekce

Periodically inspect the charging station for any signs of damage, wear, or loose connections. Check the charging cable for fraying or damage. If any damage is found, discontinue use and contact a qualified technician.

6. Řešení problémů

7. Specifikace

8. Záruka a podpora

For warranty information and technical support, please refer to the official Hager website or contact your local Hager distributor. Keep your purchase receipt for warranty claims.

Spare parts availability: Information not available.
