Q-POWER QPF12 12" Deluxe Series Car Audio Subwoofer User Manual

Zavedení

This manual provides essential information for the proper installation, operation, and maintenance of your Q-POWER QPF12 12-inch Deluxe Series Dual Voice Coil Car Audio Power Subwoofer. Please read this manual thoroughly before attempting installation or operation to ensure optimal performance and safety.

Obrázek: Přední strana view of the Q-POWER QPF12 subwoofer, showcasing the cone and Q Power branding.

Bezpečnostní informace

• Doporučená profesionální instalace: For best results and to prevent damage, professional installation by a qualified car audio technician is highly recommended.
• Správné zapojení: Ensure all wiring is correctly connected and insulated to prevent short circuits and electrical hazards. Incorrect wiring can damage the subwoofer, amplifier, and vehicle electrical system.
• Manipulace s energií: Do not exceed the subwoofer's maximum power handling capabilities (1700 Watts Max) to avoid damage.
• Ochrana sluchu: Prolonged exposure to high sound pressure levels can cause permanent hearing loss. Use caution when operating the subwoofer at high volumes.
• Bezpečná montáž: Always ensure the subwoofer is securely mounted within its enclosure and the enclosure is secured within the vehicle to prevent movement during driving or in the event of an accident.

Co je v krabici

Upon unpacking your Q-POWER QPF12 subwoofer, please verify that all components are present:

• Q-POWER QPF12 Subwoofer
• Push Pin Style Terminals (integrated)
• Chromed Cast Aluminum Basket (integrated)

Nastavení a instalace

The Q-POWER QPF12 subwoofer is designed for optimal performance in small enclosures. Careful consideration of enclosure design and wiring is crucial for sound quality and longevity.

Požadavky na kryt

This subwoofer is optimized for small sealed or ported enclosures. Consult with a car audio professional or use appropriate enclosure design software to determine the ideal enclosure volume and port tuning frequency for your specific application.

Wiring the Dual Voice Coils

The QPF12 features dual 4 Ohm voice coils, offering flexibility in wiring configurations to match your amplifier's impedance requirements. Always ensure your ampZáložní zdroj je stabilní při zvolené impedanci.

• Sériové zapojení (zátěž 8 ohmů): Connect the positive terminal of Voice Coil 1 to the negative terminal of Voice Coil 2. Connect the remaining negative terminal of Voice Coil 1 and the remaining positive terminal of Voice Coil 2 to your amplifier. This configuration results in an 8 Ohm load.
• Paralelní zapojení (zátěž 2 ohmy): Connect the positive terminals of both Voice Coil 1 and Voice Coil 2 together. Connect the negative terminals of both Voice Coil 1 and Voice Coil 2 together. Connect the combined positive terminals to the amplifier's positive output and the combined negative terminals to the amplifier's negative output. This configuration results in a 2 Ohm load.

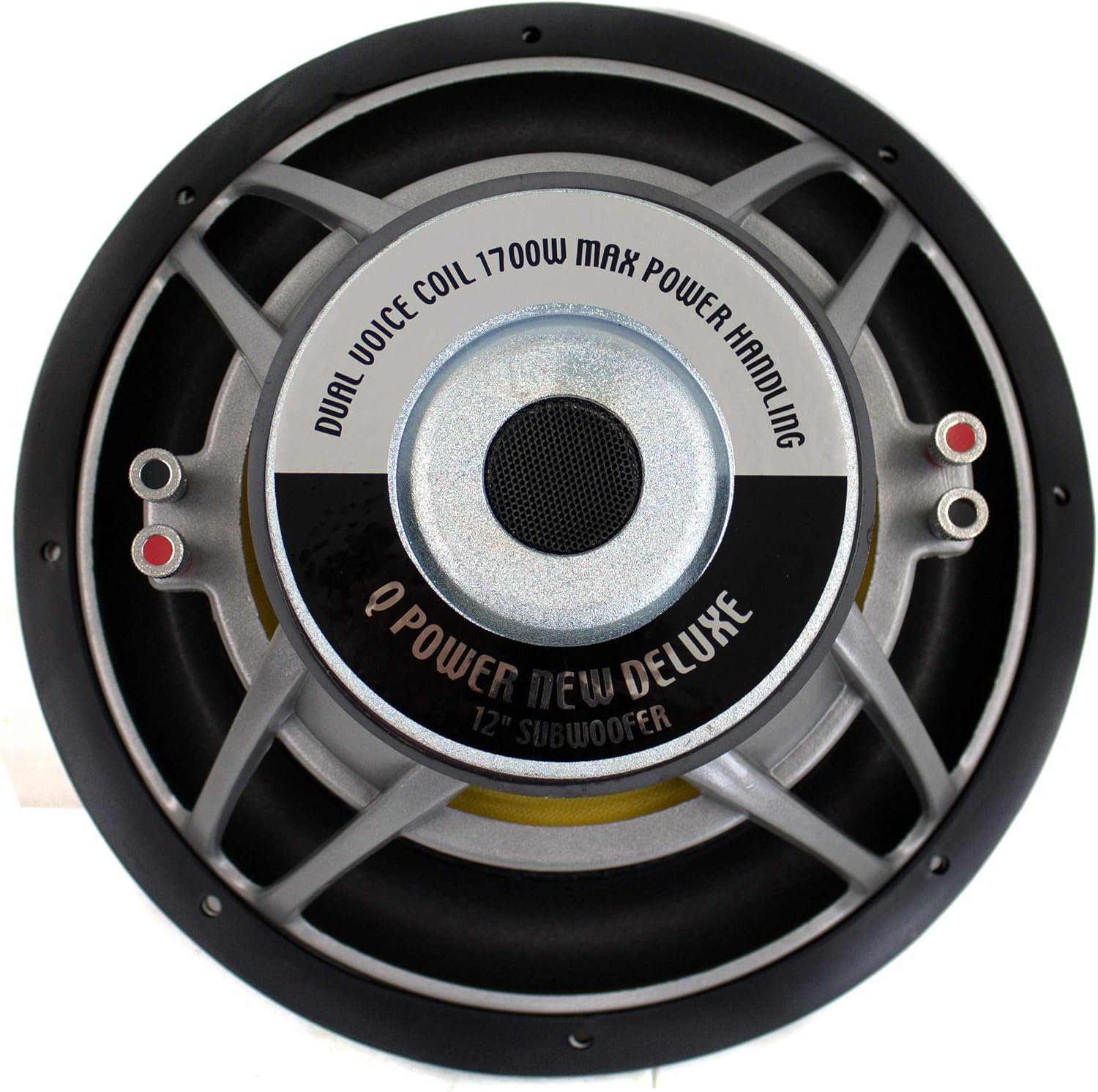

Obrázek: Zadní view of the Q-POWER QPF12 subwoofer, illustrating the magnet assembly and terminal locations.

Připojování k Ampdoživotní

The subwoofer utilizes push-pin style terminals for secure wire connections. Ensure proper polarity (+ to + and - to -) when connecting to your ampživější.

1. Press down on the colored tab of the terminal.
2. Insert the stripped end of your speaker wire into the opening.
3. Release the tab to secure the wire. Gently tug on the wire to ensure a firm connection.

Obrázek: Detail view of the push-pin terminals on the Q-POWER QPF12 subwoofer for speaker wire connection.

Návod k obsluze

Once installed, proper amplifier setup is key to achieving optimal sound and protecting your subwoofer.

• AmpNastavení zesílení lifieru: Nastavte si svůj amplifier's gain control carefully. Start with the gain at its minimum and slowly increase it until you achieve the desired volume without distortion. Over-driving the subwoofer with a distorted signal can cause damage.
• Nastavení přechodu: Využijte své amplifier's or head unit's low-pass filter (LPF) to send only low-frequency signals to the subwoofer. A typical LPF setting for a 12-inch subwoofer might be between 80Hz and 120Hz, depending on your vehicle and other speakers.
• Podzvukový filtr: Pokud váš amplifier has a subsonic filter, engage it and set it slightly below your enclosure's tuning frequency (for ported enclosures) or around 20-25Hz (for sealed enclosures) to protect the subwoofer from playing frequencies too low for its design.

Údržba

Your Q-POWER QPF12 subwoofer requires minimal maintenance to ensure long-lasting performance.

• Čištění: Pravidelně otírejte membránu a rám subwooferu měkkým, suchým hadříkem, abyste odstranili prach a nečistoty. Nepoužívejte agresivní chemikálie ani nadměrnou vlhkost.
• Inspekce: Regularly inspect the speaker wires and terminals for any signs of corrosion, fraying, or loose connections. Ensure the subwoofer is still securely mounted.
• Zabraňte propíchnutí: Be careful not to puncture or tear the subwoofer cone or surround, as this can severely affect sound quality and performance.

Odstraňování problémů

If you experience issues with your Q-POWER QPF12 subwoofer, refer to the following common troubleshooting steps:

• Žádný zvuk:
  • Check all power, ground, and remote turn-on connections to your ampživější.
  • Verify the RCA signal cables are securely connected from your head unit to the ampživější.
  • Ensure the subwoofer's speaker wires are correctly connected to the amplifier and the subwoofer terminals, maintaining proper polarity.
  • Zkontrolujte amplifier's fuses and the vehicle's main fuse.
  • Potvrďte amplifier is powered on (indicated by a power LED).
• Zkreslený zvuk:
  • Snižte amplifier's gain setting. Distortion often occurs when the ampZáchranný ventil je přetížený.
  • Check your head unit's volume and bass boost settings. Reduce if too high.
  • Ensure the subwoofer is not damaged (e.g., torn cone or damaged voice coil).
  • Verify the enclosure is sealed properly (if applicable) and free from air leaks.
• Slabý basový výstup:
  • Zvyšte amplifier's gain setting gradually.
  • Check the subwoofer's wiring for correct impedance matching with the ampživější.
  • Ensure the low-pass filter (LPF) is set appropriately.
  • Verify the enclosure volume and design are suitable for the subwoofer.

Specifikace

Below are the technical specifications for the Q-POWER QPF12 subwoofer:

Image: Product packaging highlighting key features of the Deluxe series subwoofer.

Záruka a podpora

The Q-POWER QPF12 subwoofer comes with a 1 Year 3 Kings Limited WarrantyTato záruka se vztahuje na výrobní vady vzniklé při běžném používání. Pro případné reklamace si prosím uschovejte doklad o koupi.

For technical support or warranty inquiries, please contact your authorized Q Power dealer or the manufacturer directly. Refer to the official Q Power webstránky s nejaktuálnějšími kontaktními informacemi.
