Uživatelská příručka k prodlužovacímu kabelu LogiLink LPS204 se 6 zásuvkami a nožním spínačem

1. Konec produktuview

The LogiLink LPS204 is a practical power strip designed to provide multiple power outlets with convenient control. It features six Schuko-type outlets and an external foot switch for easy power management of connected devices. This manual provides essential information for the safe and effective use of your power strip.

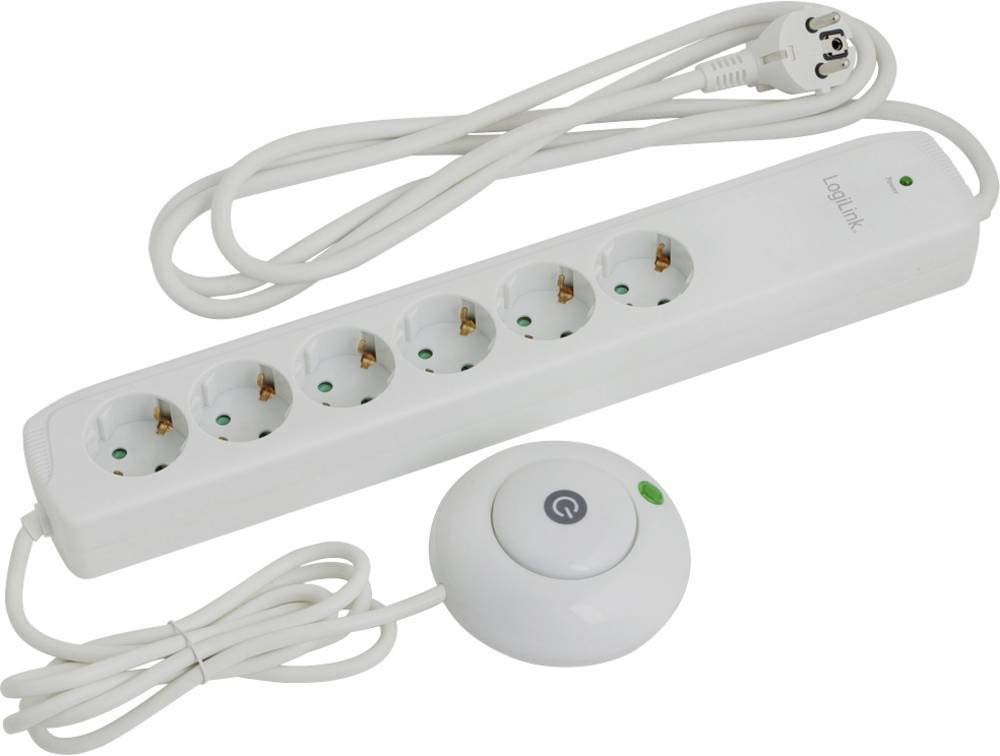

Obrázek 1: LogiLink LPS204 Power Strip with Foot Switch. This image displays the LogiLink LPS204 power strip. It features a white rectangular strip with six Schuko-type power outlets. A white power cable extends from one end, terminating in an angled Schuko plug. A separate round foot switch, also white, is connected to the power strip by a shorter cable. The foot switch has a central power button with an illuminated indicator.

Klíčové vlastnosti:

• 6 Schuko-type power outlets (German style)
• Integrated ON/OFF illuminated foot switch for convenient control
• 1.4-meter power cable with an angled Schuko plug
• Bílé provedení

2. Bezpečnostní informace

Před použitím tohoto výrobku si prosím přečtěte a pochopte všechny bezpečnostní pokyny. Nedodržení těchto pokynů může vést k úrazu elektrickým proudem, požáru nebo vážnému zranění.

• Do not exceed the maximum load: Ensure the total power consumption of all connected devices does not exceed 3500 Watts. Overloading can cause overheating and fire.
• Pouze pro vnitřní použití: This power strip is designed for indoor use in dry environments. Do not use it outdoors or in damp/mokré podmínky.
• Avoid liquid contact: Keep the power strip away from water, liquids, and excessive humidity.
• Správné uzemnění: Always plug the power strip into a properly grounded wall outlet.
• Do not daisy-chain: Nezapojujte více prodlužovacích kabelů dohromady.
• Děti a domácí mazlíčci: Keep the power strip and its cables out of reach of children and pets.
• Inspekce: Regularly inspect the power strip and its cables for any signs of damage. Do not use if damaged.
• Větrání: Do not cover the power strip, as this can lead to overheating.
• Odpojení: To completely disconnect power, unplug the power strip from the wall outlet.

3. Pokyny k nastavení

1. Rozbalit: Carefully remove the LogiLink LPS204 power strip from its packaging.
2. Umístění: Place the power strip on a stable, dry surface, away from heat sources and direct sunlight. Ensure adequate ventilation. Position the foot switch in an easily accessible location on the floor.
3. Připojení k zásuvce ve zdi: Plug the angled Schuko plug of the power strip's main cable into a properly grounded wall outlet.
4. Připojit zařízení: Plug your electronic devices into the six available Schuko outlets on the power strip. Ensure all devices are switched off before connecting them.
5. Ověřit připojení: Once all devices are connected, the power strip is ready for operation.

4. Návod k obsluze

The LogiLink LPS204 power strip is designed for simple operation using its integrated foot switch.

1. Zapnutí: Press the central button on the foot switch. The illuminated indicator on the foot switch and on the power strip itself will light up, indicating that power is supplied to all six outlets.
2. Vypnutí: Press the central button on the foot switch again. The illuminated indicators will turn off, cutting power to all six outlets.
3. Individual Device Control: Use the individual power switches on your connected devices (if available) to control them independently while the power strip is on.

Poznámka: The foot switch controls power to all six outlets simultaneously. Individual outlets cannot be controlled independently via the foot switch.

5. Údržba a péče

To ensure the longevity and safe operation of your LogiLink LPS204 power strip, follow these simple maintenance guidelines:

• Čištění: Disconnect the power strip from the wall outlet before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners, aerosols, or abrasive materials.
• Inspekce: Periodically check the power strip, cable, and plug for any signs of damage, such as cuts, fraying, or discoloration. If any damage is found, discontinue use immediately and replace the unit.
• Skladování: Pokud prodlužovací kabel delší dobu nepoužíváte, skladujte jej na chladném a suchém místě, mimo dosah přímého slunečního záření a extrémních teplot.
• Žádné díly opravitelné uživatelem: Do not attempt to open or repair the power strip. There are no user-serviceable parts inside. Opening the unit will void any warranty and may pose a safety hazard.

6. Řešení problémů

If you encounter issues with your LogiLink LPS204 power strip, refer to the following common problems and solutions:

If the problem cannot be resolved using the troubleshooting guide, do not attempt to repair the device yourself. Contact LogiLink customer support or a qualified electrician.

7. Specifikace

8. Záruka a podpora

Warranty information and details regarding customer support are typically provided with your purchase documentation or can be found on the official LogiLink webstránky. Uschovejte si prosím doklad o koupi pro případ reklamace.

For technical assistance or further inquiries, please refer to the contact information provided by LogiLink or your retailer.
