1. Úvod
This manual provides detailed instructions for the installation, operation, and maintenance of the Altronix PM212 Supervised Linear Power Supply/Charger. The PM212 is designed to provide 12VDC at 1 Amp, featuring AC and battery monitoring capabilities. Please read this manual thoroughly before installation and use to ensure proper functionality and safety.

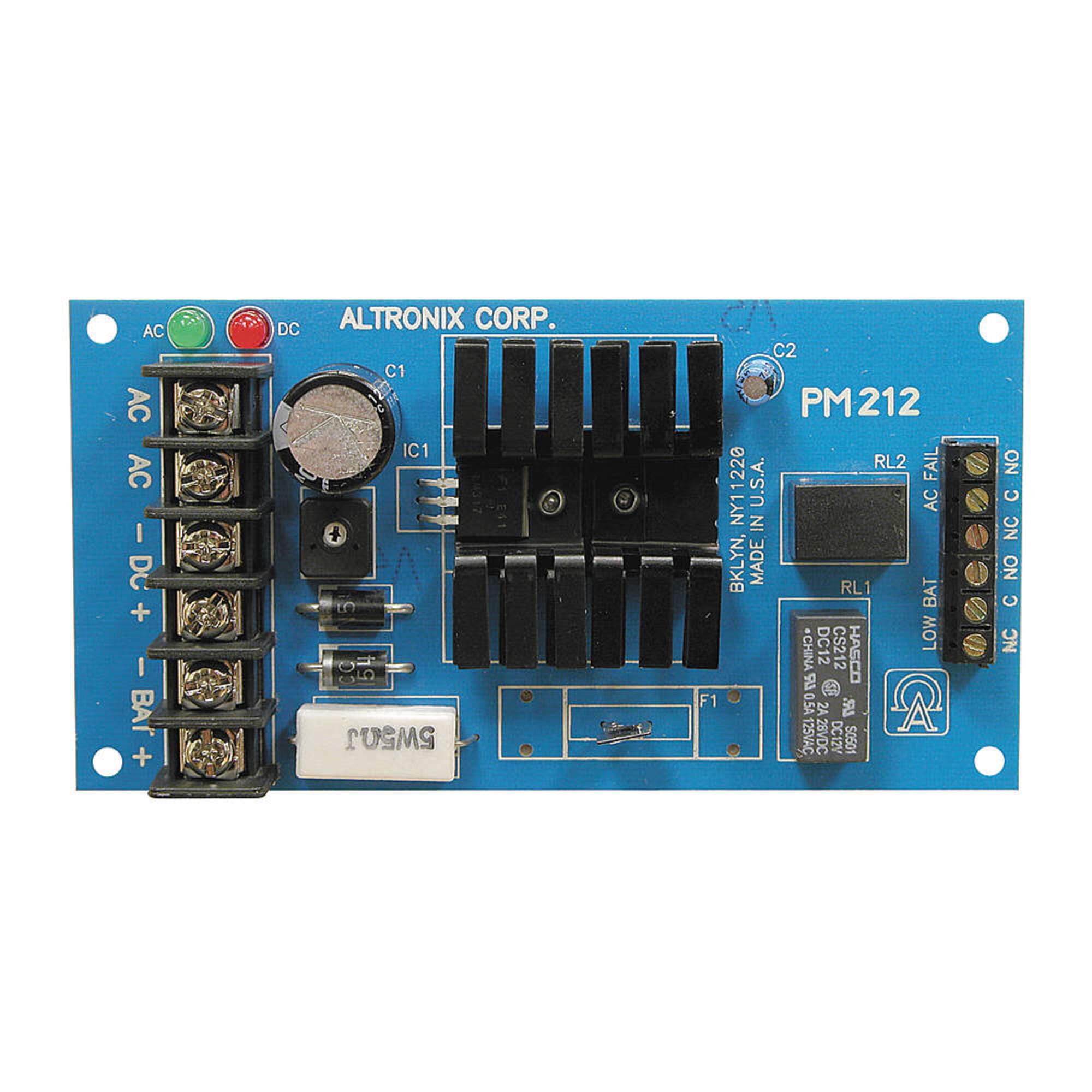

Figure 1: Altronix PM212 Supervised Linear Power Supply/Charger unit.
2. Nastavení a instalace
Follow these steps for safe and correct installation of the PM212 unit.
2.1 Montáž
- Mount the unit in a secure, dry location, away from direct sunlight and heat sources.
- Zajistěte dostatečné větrání kolem jednotky.
- Use appropriate fasteners for the mounting surface.
2.2 Zapojení kabeláže
All wiring should be performed by qualified personnel and comply with local electrical codes.
- AC vstup: Connect the AC power source to the designated AC input terminals. Ensure the input voltage matches the unit's requirements (typically 115VAC or 230VAC, refer to unit label).
- Připojení baterie: Connect a 12VDC rechargeable battery to the BATTERY terminals. Observe correct polarity (+ to + and - to -). The unit will charge the battery and switch to battery power during an AC failure.
- DC výstup: Connect your 12VDC devices to the DC OUTPUT terminals. Ensure the total current draw does not exceed 1 Amp.
- Monitoring Outputs: If utilizing the AC and battery monitoring features, connect the respective alarm outputs to your monitoring system. These are typically dry contact relays.
Důležité: Disconnect all power sources before making any connections.
3. Provoz
Once properly installed, the Altronix PM212 operates automatically.
3.1 Zapnutí
- After all connections are made, apply AC power to the unit.
- The unit will begin charging the connected battery (if present).
- The DC output will provide 12VDC to connected devices.
3.2 AC and Battery Monitoring
The PM212 includes supervised outputs for monitoring system status:
- AC Fail Output: Activates when AC power is lost.
- Low Battery Output: Activates when the connected battery voltage drops below a predetermined threshold, indicating a need for battery replacement or charging.
Refer to the wiring diagram for specific terminal designations for these monitoring outputs.
4. Údržba
Regular maintenance ensures optimal performance and longevity of your PM212 unit.
4.1 Kontrola a výměna baterie
- Inspect the battery terminals and connections annually for corrosion or loose wiring.
- Test the battery capacity periodically. Batteries typically have a lifespan of 3-5 years and should be replaced when their capacity significantly diminishes.
- When replacing the battery, ensure the new battery is a 12VDC rechargeable type with appropriate Amp- hodinové hodnocení.
4.2 Čištění
- Udržujte jednotku bez prachu a nečistot. K čištění používejte měkký, suchý hadřík.
- Nepoužívejte tekuté čisticí prostředky ani rozpouštědla.
4.3 Obecné kontroly
- Pravidelně kontrolujte těsnost a neporušenost všech kabelových spojů.
- Ensure the unit is operating within its specified temperature range.
5. Řešení problémů
Tato část obsahuje řešení běžných problémů, se kterými se můžete setkat.
| Problém | Možná příčina | Řešení |
|---|---|---|
| Žádný DC výstup | No AC input power; Blown fuse; Faulty wiring; Overload on output. | Check AC power source and connections; Inspect and replace fuse if necessary; Verify all wiring connections; Reduce load on DC output. |
| Baterie se nenabíjí | No AC input power; Incorrect battery connection polarity; Faulty battery; Blown battery fuse. | Ensure AC power is present; Check battery polarity; Test battery and replace if faulty; Check and replace battery fuse. |
| AC Fail Alarm Active | Loss of AC input power; AC input wiring issue. | Restore AC power; Check AC input wiring and connections. |
| Low Battery Alarm Active | Baterie voltage below threshold; Faulty battery; Battery not connected. | Allow battery to charge; Test battery and replace if faulty; Verify battery connections. |
Pokud problém přetrvává i po vyzkoušení těchto řešení, kontaktujte technickou podporu společnosti Altronix.
6. Specifikace
Key technical specifications for the Altronix PM212 Supervised Linear Power Supply/Charger.
| Funkce | Detail |
|---|---|
| Značka | Altronix |
| Číslo modelu | PM212 |
| Výstupní objemtage | 12V DC |
| Výstupní proud | 1 Amp |
| Vstupní objemtage | (Typically 115VAC or 230VAC, refer to unit label) |
| Nabíječka baterií | Built-in for 12VDC rechargeable batteries |
| Monitorovací funkce | AC Fail, Low Battery |
| Kompatibilní zařízení | Personal Computer (as per Amazon listing, but generally for security/access control systems) |
7. Záruka a podpora
For warranty information and technical support, please refer to the official Altronix webnebo se obraťte přímo na jejich zákaznický servis. Uschovejte si účtenku jako doklad o koupi pro případ reklamace.
Altronix Contact Information:
- Webmísto: www.altronix.com
- Technická podpora: Viz website for current contact methods (phone, email, support portal).
