CAD CM217 Small Diaphragm Condenser Microphone User Manual

Zavedení

The CAD CM217 is a small diaphragm condenser microphone designed for capturing a wide range of acoustic sources. Its precise sound reproduction makes it suitable for instruments such as acoustic guitars, stringed instruments, cymbals, and hi-hats. This manual provides essential information for the proper setup, operation, and maintenance of your CM217 microphone.

Bezpečnostní informace

• Always handle the microphone with care to prevent damage.
• Nevystavujte mikrofon extrémním teplotám, vlhkosti ani přímému slunečnímu záření.
• Ensure proper phantom power (48V) is supplied by your audio interface or mixer, as this is a condenser microphone. Incorrect power can damage the unit.
• Udržujte mikrofon mimo dosah silných magnetických polí.
• Disconnect the microphone from power before cleaning or when not in use.

Obsah balení

Ověřte, zda jsou v balení přítomny všechny položky:

• CAD CM217 Small Diaphragm Condenser Microphone
• Klip na mikrofon

Vlastnosti

• Small diaphragm condenser design for detailed sound capture.
• Integrated Hi-Pass Filter to reduce low-frequency rumble.
• Switchable Attenuator (Pad) for handling high sound pressure levels.
• Unidirectional polar pattern for focused sound pickup.
• Durable metal or plastic enclosure.

Nastavení

1. Montáž mikrofonu

Attach the supplied microphone clip to a standard microphone stand. Securely fasten the CAD CM217 microphone into the clip. Ensure the microphone is stable and positioned correctly for your recording needs.

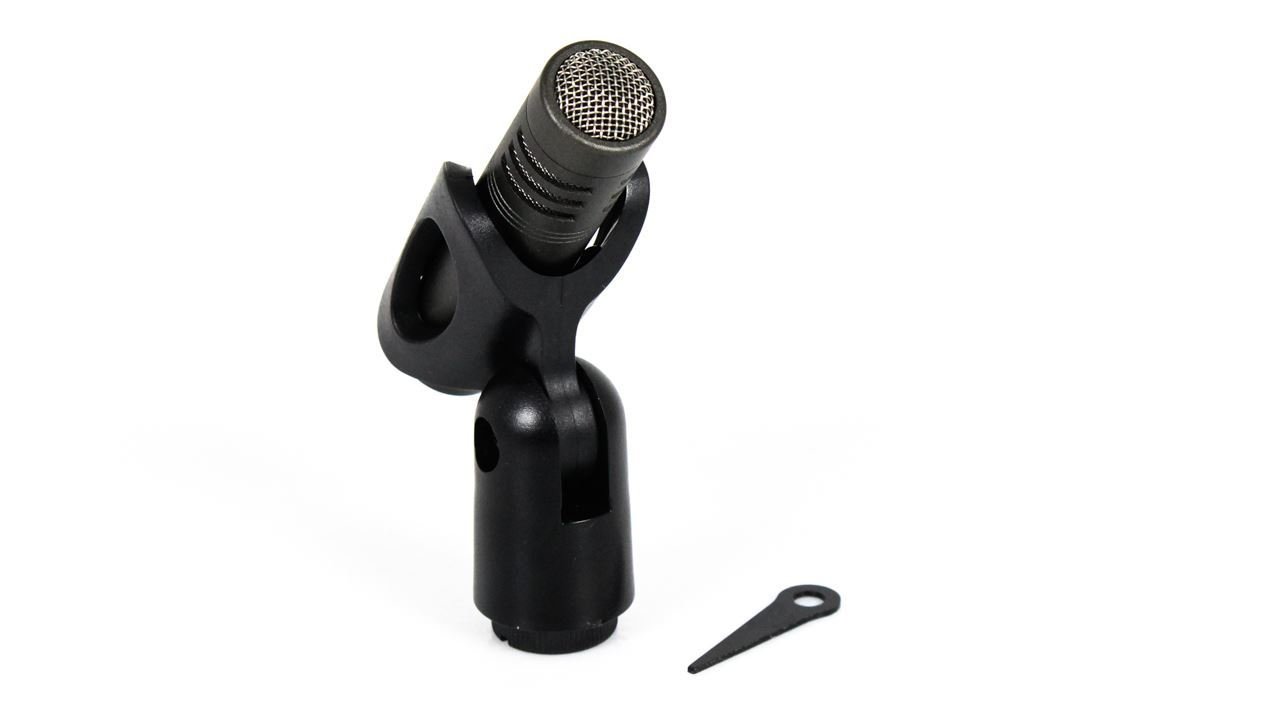

Image: The CAD CM217 microphone securely mounted in its included microphone clip, ready for use.

2. Connecting to an Audio Interface/Mixer

The CM217 connects via a standard XLR cable (not included) to an audio interface or mixer. Ensure the device provides 48V phantom power, which is required for the microphone to operate. Connect one end of the XLR cable to the microphone's output and the other end to an available XLR input on your audio device.

3. Phantom Power Activation

After connecting the microphone, activate the 48V phantom power on your audio interface or mixer. Refer to your audio device's manual for instructions on enabling phantom power.

Provozní

1. Understanding Controls: Hi-Pass Filter and Attenuator

The CM217 features two switches on its body:

• Hi-Pass Filter: This switch activates a low-cut filter, which reduces unwanted low-frequency noise such as rumble or handling noise. Engage this filter when recording sources that do not require strong low-end presence, or to clean up the signal.
• Attenuator (Pad): The attenuator switch provides a -10dB pad. This reduces the microphone's output level, preventing distortion when recording very loud sound sources like drums or amplified instruments. Engage the pad if your audio interface input is clipping despite low gain settings.

Obrázek: Podrobný view of the CAD CM217 microphone, highlighting the Hi-Pass Filter and Attenuator switches for signal control.

2. Umístění mikrofonu

Optimal microphone placement is crucial for sound quality. Experiment with distances and angles relative to the sound source. For acoustic guitars, try positioning the microphone 6-12 inches from the soundhole or where the neck meets the body. For cymbals and hi-hats, overhead placement at a distance of 1-2 feet can capture a balanced sound. The unidirectional polar pattern helps to reject off-axis sounds, focusing on the intended source.

3. Zisk StagIng

Set the input gain on your audio interface or mixer to achieve a healthy signal level without clipping. The goal is to have the loudest parts of your performance peak around -6dB to -3dB on your meter, leaving headroom to prevent digital distortion.

Údržba

• Čištění: Use a soft, dry cloth to wipe the microphone body. Do not use liquid cleaners or solvents, as they can damage the finish or internal components. Avoid touching the microphone grille with bare hands to prevent residue buildup.
• Skladování: Pokud mikrofon nepoužíváte, uložte jej do ochranného pouzdra nebo sáčku, abyste jej chránili před prachem, vlhkostí a fyzickými nárazy.
• Prostředí: Operate and store the microphone in a clean, dry environment with stable temperature and humidity.

Odstraňování problémů

Žádný zvukový výstup

• Check Phantom Power: Ujistěte se, že je na audio rozhraní nebo mixážním pultu zapnuto fantomové napájení 48 V.
• Kabelové připojení: Verify that the XLR cable is securely connected to both the microphone and the audio input. Try a different XLR cable to rule out a faulty cable.
• Výběr vstupu: Confirm that the correct input channel is selected on your audio interface/mixer and recording software.
• Nastavení zesílení: Zvyšte vstupní zesílení na audio rozhraní/mixážním pultu.

Zkreslený zvuk

• Attenuator (Pad): If recording a loud source, engage the -10dB attenuator switch on the microphone.
• Vstupní zisk: Snižte vstupní zesílení na audio rozhraní nebo mixážním pultu.
• Zdrojový svazek: If possible, reduce the volume of the sound source.

Hučení nebo šum

• Stínění kabelu: Ensure you are using high-quality, shielded XLR cables.
• Problémy s uzemněním: Check the grounding of your audio equipment and power outlets.
• Rušení: Move the microphone away from electronic devices that may cause electromagnetic interference (e.g., computers, monitors, power supplies).
• Hi-Pass Filter: Engage the Hi-Pass Filter on the microphone to reduce low-frequency rumble.

Specifikace

Poznámka: Specifikace se mohou změnit bez předchozího upozornění.

Záruka a podpora

Informace o záruce a technickou podporu naleznete na oficiálních stránkách CAD Audio. webnebo se obraťte přímo na jejich zákaznický servis. Uschovejte si účtenku jako doklad o koupi pro případné reklamace.

Oficiální CAD Audio Webmísto: www.cadaudio.com
