Kohler K-1124-HL-0 Alcove Whirlpool 8-Jet Tub Instruction Manual

1. Důležité bezpečnostní informace

Please read all instructions carefully before installation and use of the Kohler K-1124-HL-0 Alcove Whirlpool Tub. Failure to follow these instructions may result in injury or property damage.

• Elektrická bezpečnost: This product requires electrical connection. All electrical work must be performed by a qualified, licensed electrician in accordance with all local and national electrical codes. Ensure a dedicated, ground-fault circuit interrupter (GFCI) protected circuit is used.
• Teplota vody: Test the water temperature before entering the tub. Water temperatures above 100°F (38°C) can be hazardous to your health.
• Dozor: Children and individuals with health conditions should be supervised when using the tub.
• Chemikálie: Use only recommended cleaning agents and bath additives. Certain chemicals can damage the tub surface or internal components.
• Větrání: Ensure adequate ventilation in the bathroom to prevent excessive humidity buildup.

2. Konec produktuview

The Kohler K-1124-HL-0 is an alcove whirlpool tub designed for deep, comfortable soaking and hydro-massage. It features a durable acrylic construction and an integrated heater to maintain water temperature.

Klíčové vlastnosti:

• 8 Factory-Installed Hydro-Massage Jets: Strategically placed jets provide targeted hydrotherapy.
• Vestavěný ohřívač: Maintains a comfortable and consistent water temperature for extended soaking.
• Comfort Depth Design: Offers a low step-over height while allowing for deep soaking.
• Odolná akrylová konstrukce: Resists flexing, chipping, and cracking for long-lasting performance.
• Alcove Installation: Designed for seamless integration into an alcove space, suitable for bath and shower combinations.

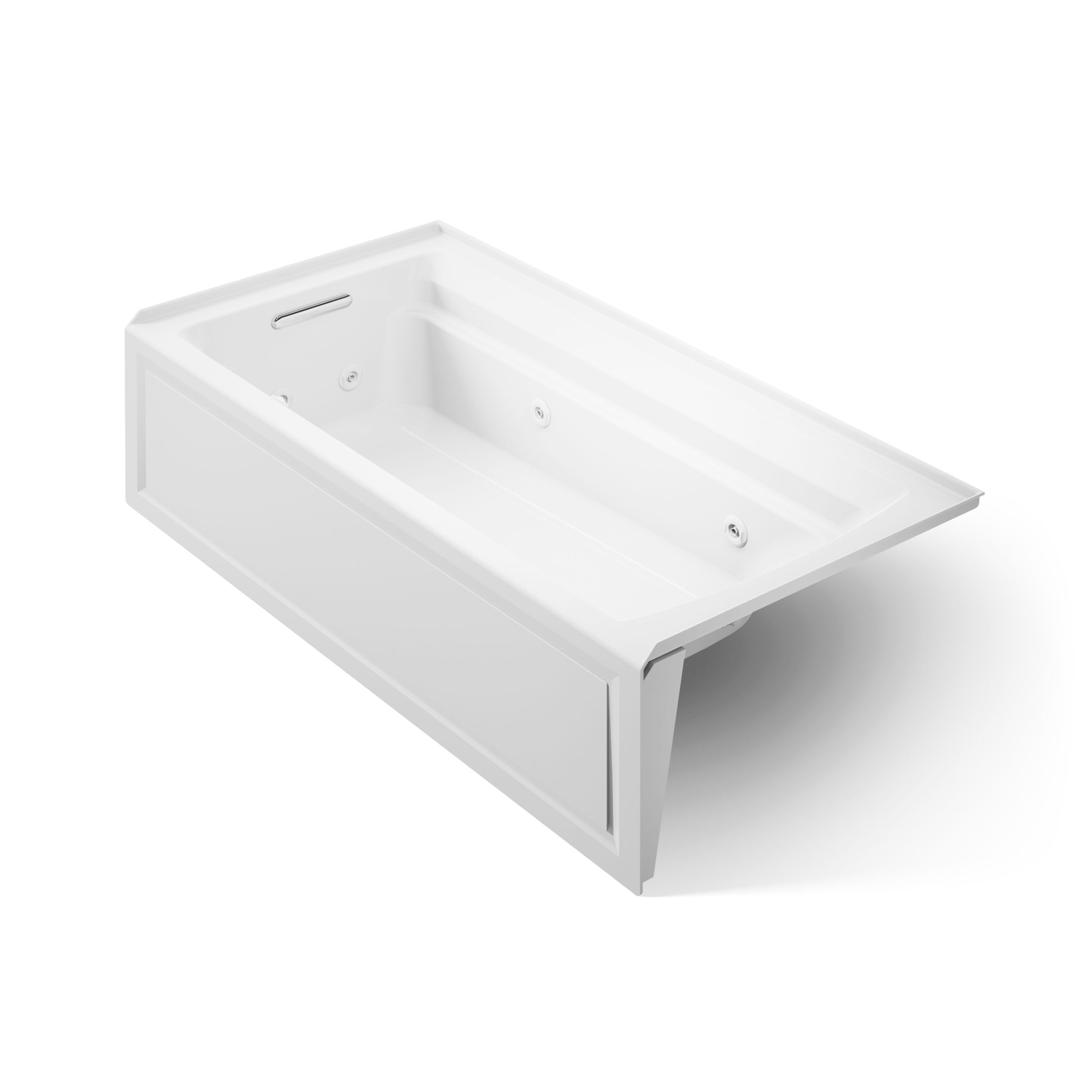

Image: The Kohler K-1124-HL-0 Alcove Whirlpool Tub installed in a contemporary bathroom.

Image: Detail of the tub's deep soaking design and slotted overflow drain.

3. Nastavení a instalace

Installation of the Kohler K-1124-HL-0 Alcove Whirlpool Tub should be performed by a qualified professional to ensure proper function and adherence to all plumbing and electrical codes.

Kroky instalace (viz výše)view):

1. Příprava místa: Ensure the installation area is level, structurally sound, and has access to necessary plumbing and electrical connections.
2. Hrubé instalatérské práce: Install hot and cold water supply lines and a drain connection according to local codes. The tile flange and drain are included with this model.
3. Elektrické připojení: A dedicated GFCI-protected electrical circuit is required for the whirlpool pump and heater. Connect according to the wiring diagram provided in the full installation guide.
4. Tub Placement: Carefully position the tub into the alcove. Ensure it is level and securely supported.
5. Konečná připojení: Connect the drain and overflow assembly. Connect the water supply lines to the faucet (faucet sold separately).
6. Test těsnosti: Fill the tub with water and run the whirlpool system to check for any leaks before sealing the installation.
7. Dokončení: Complete surrounding tile work or wall finishes.

Refer to the detailed installation instructions provided with your product for specific measurements, diagrams, and safety warnings.

Image: The tub is designed for alcove installation, suitable for a bath and shower combination.

4. Návod k obsluze

To operate your Kohler K-1124-HL-0 Alcove Whirlpool Tub, follow these steps:

1. Fill the Tub: Ensure the jets are fully submerged before activating the whirlpool system. Fill the tub to a level above the highest jet opening.
2. Activate Whirlpool: Locate the control button, typically on the rim of the tub. Press the button to turn on the whirlpool jets.
3. Adjust Jet Intensity and Direction: Each jet features an adjustable center nozzle for directional positioning. The outer ring allows control over water flow intensity. Rotate the nozzle to direct the water flow and turn the outer ring to adjust the strength of the massage.
4. Funkce ohřívače: The built-in heater automatically maintains the water temperature. There is no separate control for the heater; it activates when the whirlpool system is running.
5. Variable Speed Control (if applicable): Some Kohler whirlpool models offer variable speed control for different massage intensities. If your model has this feature, refer to the specific controls for adjusting the speed.
6. Body Massage Back Jets (if applicable): Certain models include back jets designed to target pressure points along the spine and shoulders.
7. Neck Jet Pillow (if applicable): Some advanced models may feature a neck jet pillow with adjustable jets for targeted neck massage.
8. Vypnout: Press the control button again to turn off the whirlpool system. Drain the tub after use.

Obrázek: Nad hlavou view illustrating the strategic placement of jets for effective hydro-massage.

Image: Visual guide on customizing hydromassage flow and targeting stress points with backjets.

Image: A powerful jet providing a deep, targeted hydromassage.

Image: The built-in heater ensures a comfortable and consistent water temperature.

Video: Kohler Whirlpool Features Overview

Video: Toto video poskytuje obecný přehledview of Kohler whirlpool features, including jet functionality, variable speed control, and the inline heater. While it may feature a different model (K-1148-HH-47), the demonstrated features are representative of Kohler whirlpool technology.

5. Údržba a čištění

Regular maintenance and cleaning will help preserve the appearance and functionality of your Kohler whirlpool tub.

Cleaning the Tub Surface:

• Použijte měkký hadřík nebo houbičku s jemným, neabrazivním čisticím prostředkem.
• Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the acrylic surface.
• Po čištění důkladně opláchněte čistou vodou.

Cleaning the Whirlpool System:

• Periodically fill the tub with warm water above the jets.
• Add a small amount of low-foaming detergent or a specialized whirlpool cleaning solution.
• Run the whirlpool system for 10-15 minutes.
• Drain the tub, refill with clean water, and run the system again for a few minutes to rinse.

6. Řešení problémů

If you encounter issues with your Kohler K-1124-HL-0 whirlpool tub, refer to the following common troubleshooting tips:

For issues not listed here or if troubleshooting steps do not resolve the problem, please contact Kohler Customer Service or a qualified service technician.

7. Specifikace

Detailed specifications for the Kohler K-1124-HL-0 Alcove Whirlpool Tub:

Image: Key dimensions of the Kohler K-1124-HL-0 Alcove Whirlpool Tub.

8. Záruka a podpora

The Kohler K-1124-HL-0 Alcove Whirlpool Tub is backed by a Lifetime Limited Warranty, ensuring quality and durability. For specific warranty details, terms, and conditions, please refer to the warranty documentation included with your product or visit the official Kohler webmísto.

Zákaznická podpora:

If you require assistance with installation, operation, maintenance, or have any questions regarding your Kohler product, please contact Kohler Customer Service. Have your model number (K-1124-HL-0) and proof of purchase ready when contacting support.

Image: The Kohler Lifetime Limited Warranty logo, highlighting the product's durable acrylic material.
