Bezpečnostní informace
VAROVÁNÍ: To avoid fire, shock, or death, turn off power at the circuit breaker or fuse box and test that power is off before wiring. All wiring should be performed by a qualified electrician in accordance with national and local electrical codes.
- Před prací na elektrických obvodech vždy odpojte napájení.
- Ujistěte se, že všechna vodičová spojení jsou bezpečná a řádně izolovaná.
- Nepřekračujte specifikované elektrické parametry zařízení.
- Toto zařízení je určeno pouze pro vnitřní použití.
Konec produktuview
The Eaton 270V-SP-L is a standard grade straight blade duplex receptacle designed for reliable electrical connections in residential and commercial applications. It features enhanced design elements for easier installation and secure mounting.
Obrázek 1: Přední strana view of the Eaton 270V-SP-L Duplex Receptacle.
Klíčové vlastnosti:
- Longer, wider straps provide 40% more contact area to the wallboard, reducing floating installations.
- Patented built-in wire stripper for No.14 and No.12 wire for faster installation.
- Patented built-in wire looper for pre-looping wires.
- Tri-combo screws accept slotted, Phillips, and Robertson-head tools for installation flexibility.
- Terminal screws are backed out and ready for wiring.
- Side wire terminals accept up to No.10 solid or stranded wire.
- Push-in terminals accept No.14 solid wire.
- 2-Pole/3-wire grounding design.
- UL498, CSA C22.2 No. 42, and NOM certified.
Specifikace:
| Značka | Eaton |
| Model | 270V-SP-L |
| Barva | Slonová kost |
| Ampvymazat | 15 Amps |
| svtage | 125 voltů |
| Hodnocení NEMA | 5-15 |
| Celkové elektrické zásuvky | 2 |
| Materiál | Plast |
| Rozměry (D x Š x V) | 2/3-Inch x 1-1/3-Inch x 4-1/5-Inch |
| Certifikace | UL498, CSA C22.2 No. 42, NOM |
Pokyny k instalaci
Follow these steps carefully to install your Eaton duplex receptacle. Ensure power is OFF before beginning.
- Vypnout napájení: Locate the circuit breaker or fuse box controlling the outlet you are replacing or installing. Turn off the power to that circuit and verify it is off using a voltage tester.
- Připravte dráty: If replacing an old receptacle, carefully disconnect the existing wires. For new installations, strip approximately 1/2 inch of insulation from the ends of the circuit wires (hot, neutral, and ground). The built-in wire stripper on the receptacle can assist with this.
- Připojit dráty:
- Zemnící vodič (zelený nebo holý měděný): Connect to the green grounding screw on the receptacle.
- Nulový vodič (bílý): Connect to the silver-colored terminal screws.
- Žhavý drát (černý nebo červený): Connect to the brass-colored terminal screws.
Note: The receptacle features side wire terminals for looping wires around screws or push-in terminals for No.14 solid wire. Ensure connections are tight.
- Montážní zásuvka: Carefully fold the wires into the electrical box. Insert the receptacle into the box and secure it using the mounting screws provided. The longer, wider straps help ensure a stable installation.
- Instalace nástěnné desky: Attach the decorative wall plate over the installed receptacle, securing it with the center screw.
- Obnovit napájení: Turn the power back on at the circuit breaker or fuse box. Test the receptacle to ensure proper function.

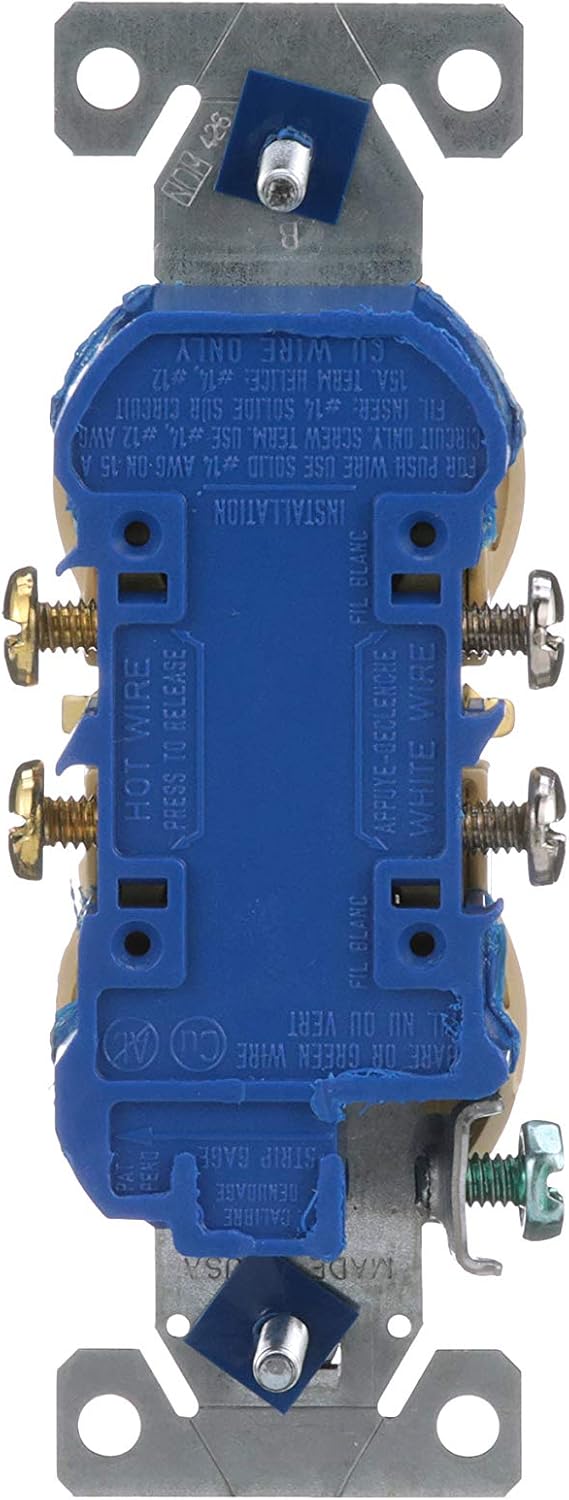

Obrázek 2: Zpět view illustrating wiring terminals for hot, neutral, and ground connections.
Operace
Once properly installed and power is restored, the Eaton 270V-SP-L duplex receptacle functions as a standard electrical outlet. Simply insert a compatible 2-prong or 3-prong plug into either of the two receptacles to draw power.
- Ensure plugs are fully inserted into the receptacle.
- Do not force plugs into the receptacle.
- Avoid overloading the circuit by plugging in too many high-power devices.
Údržba
The Eaton duplex receptacle requires minimal maintenance. Regular inspection and cleaning can help ensure its longevity and safe operation.
- Čištění: Periodically wipe the surface of the receptacle and wall plate with a soft, damp hadříkem. Nepoužívejte abrazivní čisticí prostředky ani rozpouštědla. Před čištěním se ujistěte, že je přístroj vypnutý.
- Inspekce: Regularly check for any signs of damage, such as cracks, discoloration, or loose connections. If any damage is observed, turn off power and have the receptacle inspected and replaced by a qualified electrician.
- Uvolněné zástrčky: If plugs feel loose when inserted, it may indicate wear. Consider replacing the receptacle to maintain a secure connection and prevent arcing.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| V zásuvce není napájení. | Circuit breaker tripped or fuse blown. Loose wiring connection. | Check and reset the circuit breaker or replace the fuse. Turn off power and inspect wiring connections for tightness. |
| Nádoba je teplá na dotek. | Overloaded circuit. Loose connection. Faulty device. | Unplug some devices to reduce load. Turn off power and check wiring connections. If problem persists, replace the receptacle. |
| Plug falls out easily. | Worn out receptacle contacts. | Replace the receptacle. |
If you experience issues not listed here or if troubleshooting steps do not resolve the problem, consult a qualified electrician.
Záruka a podpora
Eaton products are manufactured to high-quality standards. For specific warranty information and technical support, please refer to the documentation included with your purchase or visit the official Eaton webUschovejte si účtenku jako doklad o koupi pro případ reklamace.
For further assistance, you may contact Eaton customer service through their official channels.
