FRAM G6412 In-Line Fuel Filter

Konec produktuview

The FRAM G6412 In-Line Fuel Filter is designed to ensure clean fuel delivery to your vehicle's engine. Clean fuel is critical as small jets and passages in carburetors and openings in fuel injectors can become clogged by contaminants. This filter effectively prevents smaller particles from entering the engine and other fuel delivery components, which can otherwise lead to issues such as improper fuel mixture (too rich or too lean) in carbureted engines.

Vizuální produkt

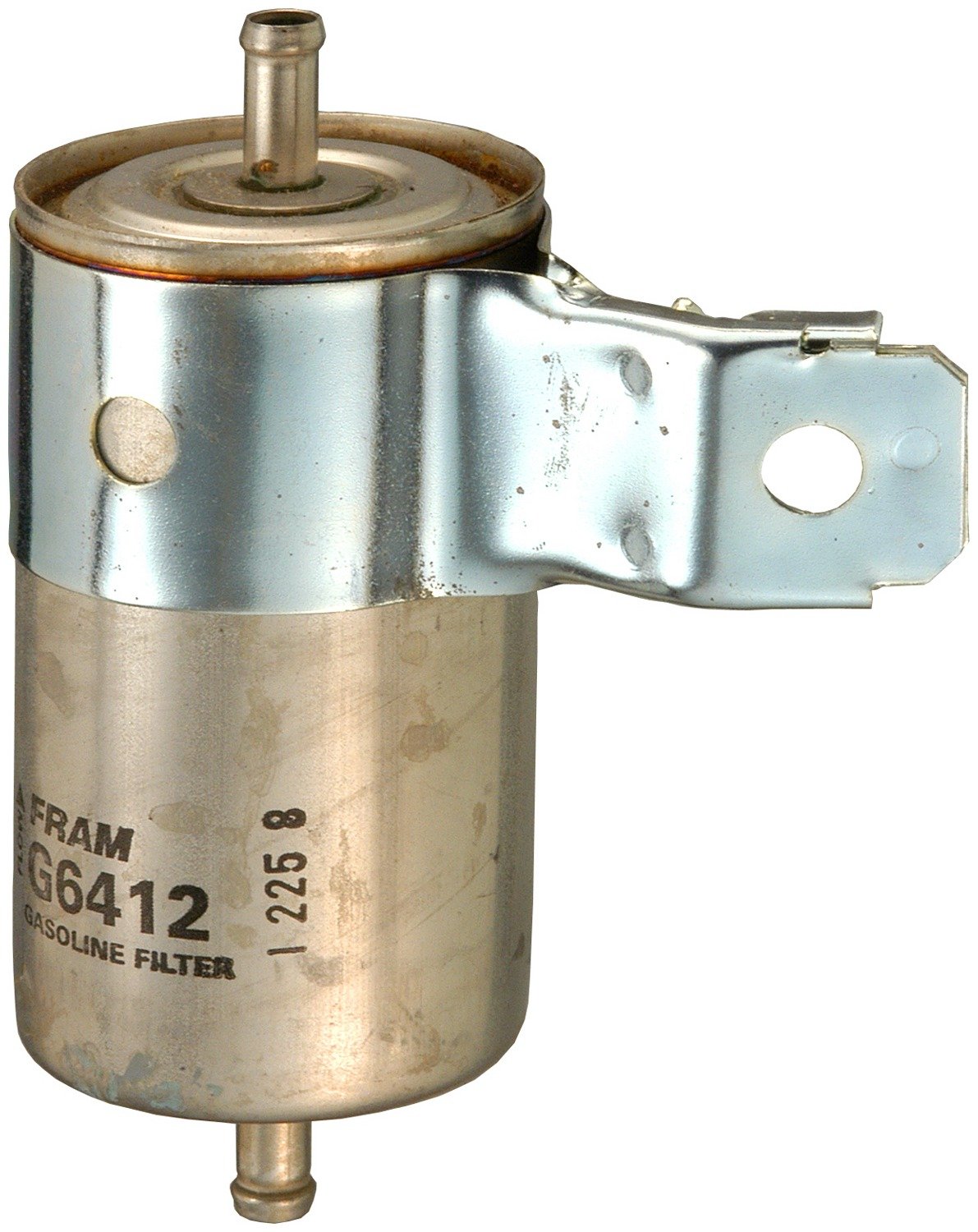

Obrázek 1: Přední view of the FRAM G6412 In-Line Fuel Filter. This image displays the cylindrical metal body of the filter with an inlet and outlet tube at opposite ends. A metal mounting bracket is attached to the side, featuring a circular hole for secure installation. The filter's model number, G6412, and "GASOLINE FILTER" are visible on the side.

Nastavení a instalace

Proper installation of the FRAM G6412 In-Line Fuel Filter is crucial for its effective operation and vehicle safety. It is recommended that installation be performed by a qualified mechanic or an individual with experience in automotive maintenance.

Bezpečnostní opatření:

• Ensure the engine is cool and the vehicle is turned off.
• Disconnect the vehicle's battery to prevent accidental starting.
• Relieve fuel system pressure according to your vehicle's service manual before disconnecting fuel lines. Fuel is highly flammable.
• Používejte vhodné osobní ochranné prostředky, včetně ochranných brýlí a rukavic.
• Mějte po ruce hasicí přístroj.

Obecné kroky instalace:

1. Locate the existing fuel filter. Refer to your vehicle's service manual for the exact location and procedure.
2. Place a drain pan beneath the filter to catch any residual fuel.
3. Carefully disconnect the fuel lines from the old filter. Be prepared for fuel spillage.
4. Remove the old fuel filter from its mounting bracket.
5. Install the new FRAM G6412 filter, ensuring the flow direction arrow (if present) matches the fuel flow of your vehicle. The filter should be securely mounted.
6. Reconnect the fuel lines, ensuring all connections are tight and leak-free.
7. Znovu připojte baterii vozidla.
8. Turn the ignition to the "ON" position (without starting the engine) for a few seconds to allow the fuel pump to prime the system. Check for leaks.
9. Start the engine and check for any fuel leaks around the filter connections.

Note: Specific installation procedures may vary by vehicle make and model. Always consult your vehicle's official service manual for detailed instructions.

Provozní principy

The FRAM G6412 In-Line Fuel Filter operates by filtering contaminants from the fuel before it reaches the engine. As fuel flows through the filter, a specialized media traps dirt, rust, debris, and other impurities. This ensures that only clean fuel is delivered to the fuel injectors or carburetor, protecting sensitive engine components from wear and clogging. A clean fuel filter contributes to:

• Improved engine performance and efficiency.
• Snížené škodlivé emise.
• Prevention of fuel system component damage.
• Consistent fuel pressure and flow.

Údržba

Regular maintenance, specifically the timely replacement of your fuel filter, is essential for optimal vehicle performance and longevity of your fuel system. Over time, the filter media will accumulate contaminants, leading to reduced fuel flow and potential engine issues.

Frekvence výměny:

Refer to your vehicle manufacturer's recommended maintenance schedule for specific fuel filter replacement intervals. These typically range from every 20,000 to 60,000 miles, or every 2-5 years, depending on driving conditions and vehicle type. If you frequently drive in dusty environments or use lower quality fuel, more frequent replacement may be necessary.

Příznaky ucpaného palivového filtru:

• Engine sputtering or stalling, especially at high speeds or under load.
• Obtížnost nastartování motoru.
• Snížený výkon motoru nebo zrychlení.
• Rough idling.
• Check Engine Light illumination (in some vehicles).

If you experience any of these symptoms, inspect your fuel filter and consider replacing it.

Odstraňování problémů

If your vehicle is experiencing fuel delivery issues, the fuel filter is a common component to inspect. Below are some troubleshooting tips related to the FRAM G6412 fuel filter:

Pokud kroky k řešení problému nepomohou vyřešit, obraťte se na profesionálního automobilového technika.

Specifikace

Záruka a podpora

For detailed warranty information regarding your FRAM G6412 In-Line Fuel Filter, please refer to the official FRAM webwebu nebo v dokumentaci dodané s vaším nákupem. Záruční podmínky se mohou lišit.

If you require technical support, have questions about installation, or need further assistance, please contact FRAM customer service directly. You can typically find contact information on the official FRAM webmístě nebo na obalu produktu.

Official FRAM Webmísto: www.fram.com
